1. Introducció
Thank you for choosing the Hunter Crestfield 42-inch Ceiling Fan. This manual provides important information for the safe installation, operation, and maintenance of your new ceiling fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.

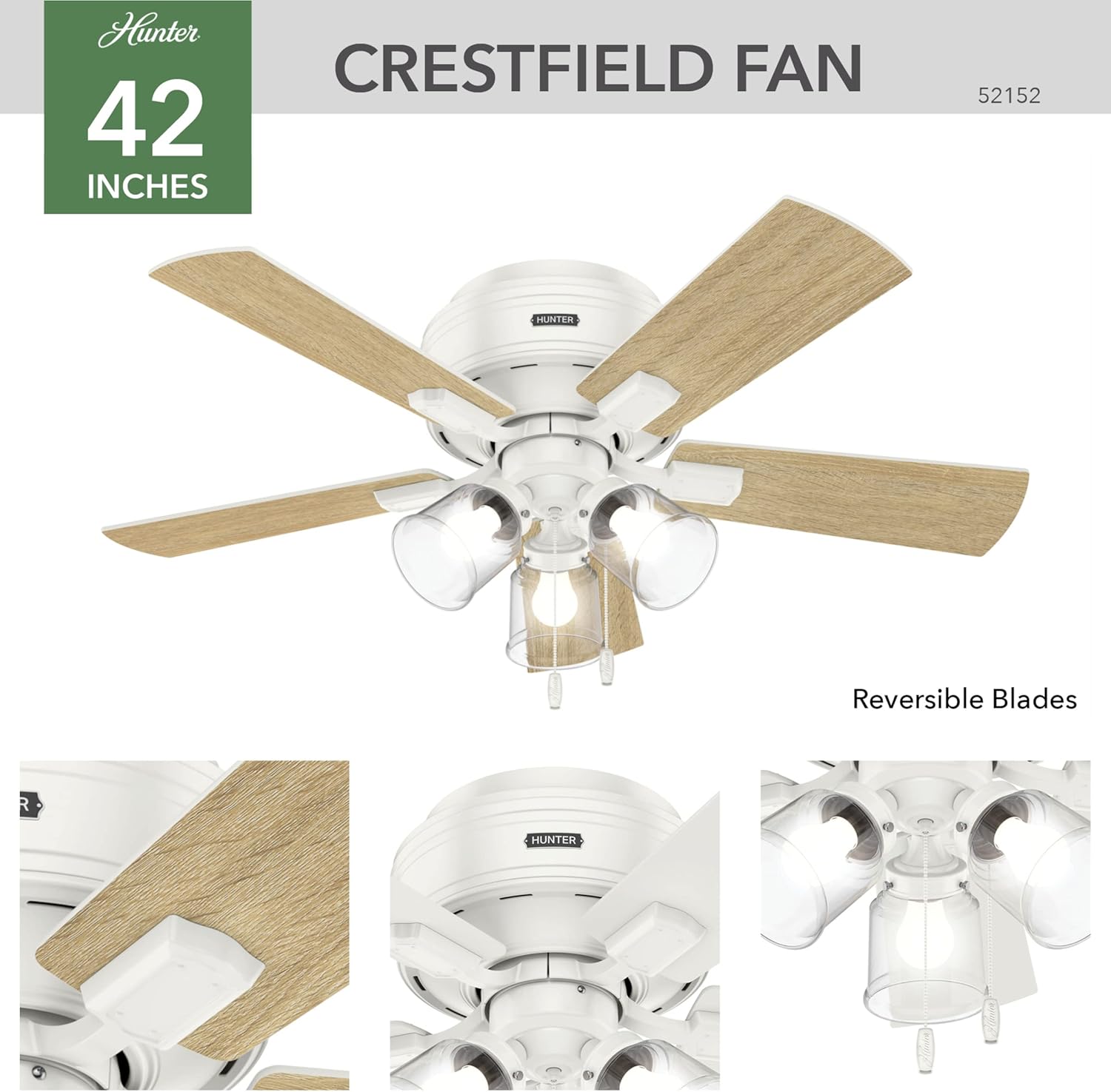

Image 1.1: Hunter Crestfield 42-inch Fresh White Ceiling Fan.
2. Informació de seguretat
WARNING: Turn off electrical breaker before installing.
Always ensure the power is disconnected at the circuit breaker or fuse box before attempting any installation, maintenance, or troubleshooting. All wiring must be in accordance with national and local electrical codes. If you are unfamiliar with wiring, consult a qualified electrician. Do not use this fan with a dimmer switch that is not specifically designed for ceiling fans, as it may cause damage to the motor or create a fire hazard. Ensure all connections are secure and properly insulated.
3. Producte acabatview
The Hunter Crestfield 42-inch Ceiling Fan is designed to provide both cooling and illumination, fitting seamlessly into contemporary interior designs. Its low-profile housing is ideal for rooms with lower ceilings (less than 9 feet in height), ensuring an unobtrusive yet efficient presence.
Característiques principals:
- Pro baixfile Disseny: Specially designed to fit flush to the ceiling, perfect for rooms with low ceilings.
- Refrigeració eficient: Features a 13-degree blade pitch optimized for suitable air movement and peak performance.
- Motor reversible: Allows for changing the direction of the fan from downdraft mode (summer) to updraft mode (winter) to circulate warm air.
- Il·luminació LED: Includes fully-dimmable, high-efficient LED bulbs that lower energy consumption and provide a longer lifespan.
- Control de cadena de tracció: Convenient control for fan speed and light operation.
- Només per a ús interior: Rated for indoor spaces.
Image 3.1: The Crestfield fan features 42-inch reversible blades.
Image 3.2: The low-profile design integrates well into various room settings.
4. Components inclosos
The following components are typically included in the Hunter Crestfield 42-inch Ceiling Fan package:
- Blades (5 reversible blades)
- Bulbs (3 LED bulbs)
- Kit de llum
- Muntatge del motor
- Cadenes de tracció (2)
Image 4.1: Visual representation of items included in the box.
5. Configuració i instal·lació
Installation of the Hunter Crestfield ceiling fan requires basic electrical knowledge. If you are unsure about any steps, it is recommended to consult a qualified electrician.
Preinstal·lació:
- Assegureu-vos que l'alimentació estigui apagada a l'interruptor.
- Read through the entire manual before starting.
- Reuneix totes les eines necessàries (tornavís, pelador de cables, escala, etc.).
- Verifiqueu que hi hagi tots els components enumerats a la secció 4.
Muntatge del ventilador:
The Crestfield fan is designed for flush mounting, suitable for ceilings less than 9 feet high. The fan dimensions are approximately 15.08 inches in height (A) and 7.95 inches from the ceiling to the blade (B).
Image 5.1: Fan dimensions for low-profile instal·lació.
Securely attach the mounting bracket to a ceiling joist or a fan-rated outlet box. Follow the detailed wiring instructions provided in the full user manual (link in Section 11) to connect the fan's electrical wires to your household wiring. Ensure all connections are tight and covered with wire nuts.
Assembling Blades and Light Kit:
Attach the five reversible blades to the motor housing. The blades offer a fresh white finish on one side and a light wood-grain finish on the other, allowing you to choose the aesthetic that best suits your room.
Images 5.2 & 5.3: Reversible fan blades (white and wood-grain sides).
Install the light kit and the three LED bulbs. The clear glass shades provide ampla il·luminació.
Image 5.4: Light kit with clear glass shades and pull chains.
6. Instruccions de funcionament
Your Hunter Crestfield ceiling fan is operated using the integrated pull chains.
Control de velocitat del ventilador:
One pull chain controls the fan speed. Pull the chain repeatedly to cycle through the available speeds: High, Medium, Low, and Off. The fan features a WhisperWind Motor for quiet operation.
Images 6.1 & 6.2: Fan speed and motor features.
Control de la llum:
The second pull chain controls the light. Pull the chain to turn the light On or Off. The included LED bulbs are dimmable, but dimming functionality may require a compatible wall control (sold separately) or specific pull chain sequences as detailed in the full manual.
Image 6.3: Pull chain for light control.
Funció del motor reversible:
To change the direction of the fan blades (for summer downdraft or winter updraft), locate the reverse switch on the motor housing. Ensure the fan is completely off before flipping the switch. Once the switch is in the desired position, turn the fan back on.
7. Manteniment
Un manteniment regular ajuda a garantir la longevitat i el rendiment òptim del teu ventilador de sostre.
- Neteja: Netegeu periòdicament les aspes del ventilador i la carcassa del motor amb un drap suau i sec.amp drap. No utilitzeu netejadors abrasius ni dissolvents, ja que poden danyar l'acabat.
- Cargols de tensió: Check all screws on the blade attachments and mounting hardware annually to ensure they are secure. Loose screws can cause wobbling or noise.
- Bombetes: Replace LED bulbs only with bulbs of the same type and wattage as specified in the full user manual.
8. Solució De Problemes
If you experience issues with your Hunter Crestfield ceiling fan, refer to the following common troubleshooting tips. For more detailed solutions, consult the complete user manual.
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no arrenca | No hi ha alimentació al ventilador; Connexions de cables soltes; Fusible fundit/interruptor disparat | Check circuit breaker/fuse; Verify all wire connections are secure; Replace fuse/reset breaker |
| El ventilador fa soroll | Loose motor housing screws; Loose blade screws; Fan not properly balanced | Tighten all screws; Ensure blades are securely attached; Use a balancing kit (if necessary) |
| La llum no funciona | Loose wire connections in light kit; Faulty bulb; Light kit switch is off | Check light kit wiring; Replace bulb; Ensure pull chain is in the 'On' position |
| Balanç excessiu | Loose blade screws; Uneven blade weight; Improper mounting | Tighten blade screws; Check blade weights and balance; Re-check mounting bracket installation |
9. Especificacions
Detailed technical specifications for the Hunter Crestfield 42-inch Ceiling Fan:
| Especificació | Valor |
|---|---|
| Marca | Caçador |
| Nom del model | Crestfield Indoor Low Profile Ventilador del sostre |
| Número de model de l'article | 52152 |
| Color | Blanc Fresc |
| Material | Alloy Steel, Aluminum, Glass, Resin |
| Dimensions del producte | 42 cm de llargada x 42 cm d'amplada x 15.08 cm d'alçada |
| Pes de l'article | 18.29 lliures |
| Font d'alimentació | AC |
| Voltage | 120 Volts |
| Wattage | 36 watts |
| Tipus de font de llum | LED |
| Brillantor | 600 lumens |
| Nombre de fonts de llum | 3 |
| Mètode de control | Estirar la cadena |
| Tipus d'instal·lació | Muntatge d'escorredor |
| Ús interior/exterior | Interior |
| Muntatge obligatori | Sí |
| Fabricant | Fan del caçador |
10. Informació de la garantia
The Hunter Crestfield Ceiling Fan comes with a Garantia limitada del motor de per vida. This warranty is backed by Hunter Fan Company, a company with over 125 years of experience in the fan business, ensuring quality and reliability.
11. Suport i recursos addicionals
For comprehensive installation guides, detailed troubleshooting, and further product information, please refer to the official user manual PDF:
Descarrega el manual d'usuari complet (PDF)
You can also visit the official Hunter store for more products and support:
