BESTEK MRJ2001 USB Surge Protector User Manual

1. Introducció

The BESTEK MRJ2001 USB Surge Protector is designed to provide power and charging solutions for electronic devices. It features two AC outlets and two USB charging ports, making it suitable for various environments including home, office, and travel. This manual outlines the product's features, proper usage, safety precautions, and maintenance procedures.

Figure 1: The BESTEK MRJ2001 USB Surge Protector, showcasing its compact design, two standard AC power outlets, two USB charging ports, and the integrated power cord with a cable management strap.

2. Producte acabatview

2.1 Característiques

• Disseny compacte i portàtil: Measures approximately 6.6 x 2.1 x 1.3 inches, making it easy to transport.
• Multiple Power Outlets: Equipped with two standard AC outlets and two smart USB charging ports (2.4A Max total output).
• Proteccions de seguretat integrades: Includes safeguards against over-current, overload, overvoltage, i curtcircuits.
• Construcció duradora: Features a fire-retardant PC alloy ABS shell and a ruggedized cord with strain relief.
• Protecció contra la pols: USB ports include protective covers to prevent dust accumulation.

2.2 Components

The BESTEK MRJ2001 is designed with both external and internal features for functionality and safety.

Figure 2: An internal diagram of the BESTEK MRJ2001 USB Surge Protector, detailing its construction. Key components visible include the fire-retardant shell, AC sockets, USB ports with dust covers, surge protection components, and the strain relief protective structure for the cord.

1. Endolls de CA: Two standard AC outlets for powering devices.
2. Ports de càrrega USB: Two smart USB ports for charging mobile devices.
3. USB Dust Cover: Protects USB ports from dust when not in use.
4. Cable d'alimentació: Integrated 1.3-foot ruggedized cord.
5. Surge Protection Components: Internal circuitry designed to protect against power surges.
6. Strain Relief Protective Structure: Reinforces the cord connection for durability.
7. Fire-retardant Shell: exterior casing made from PC alloy ABS for enhanced safety.

3. Configuració

To set up your BESTEK MRJ2001 USB Surge Protector:

1. Uncoil the power cord from the surge protector.
2. Plug the surge protector's power plug into a standard wall outlet.
3. The power indicator light (if present) should illuminate, indicating the unit is receiving power.

4. Instruccions de funcionament

4.1 Ús de preses de corrent altern

Plug your electronic devices directly into the two AC outlets on the surge protector. Ensure that the total power consumption of all connected devices does not exceed the maximum wattage rating of the unit (refer to specifications).

4.2 Ús dels ports de càrrega USB

The two USB ports are designed for charging mobile devices such as smartphones and tablets. These are smart USB ports, which automatically detect your device's charging requirements to deliver optimal current up to 2.4A (total maximum output for both ports).

Figure 3: The BESTEK MRJ2001 USB Surge Protector in use, charging both a tablet and a smartphone via its two smart USB ports, demonstrating its multi-device charging capability.

1. Obriu la coberta antipols de l'USB.
2. Connect your device's USB charging cable to one of the USB ports.
3. Connecteu l’altre extrem del cable al dispositiu.
4. El dispositiu hauria de començar a carregar-se automàticament.

5. Informació de seguretat

The BESTEK MRJ2001 USB Surge Protector incorporates multiple safety features to protect your connected devices and the unit itself:

Figure 4: This image shows a smartphone actively charging through the surge protector. Below it, four icons visually represent the device's built-in safety features: overload protection, over-current protection, overvoltage protecció i protecció contra curtcircuits.

• Protecció de sobrecàrrega: Evita els danys per un consum excessiu d'energia.
• Protecció contra sobreintensitat: Safeguards against current exceeding safe limits.
• Overvoltage Protecció: Protegeix els dispositius del voltage pics.
• Protecció contra curtcircuits: Talla automàticament l'alimentació en cas de curtcircuit.

Precaucions de seguretat importants:

• Do not exceed the maximum load capacity of the surge protector.
• No utilitzeu en ambients humits ni a prop de l'aigua.
• No desmunteu ni modifiqueu la unitat.
• Mantenir fora de l'abast dels nens.
• Assegureu-vos que l'endoll estigui completament inserit a la presa de corrent.

6. Manteniment

To ensure the longevity and proper functioning of your surge protector:

• Neteja: Disconnect the unit from the power source before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use liquid cleaners or abrasive materials.
• Emmagatzematge: When not in use, store the surge protector in a cool, dry place, away from direct sunlight and extreme temperatures. The integrated cord strap can be used for neat storage.
• Inspecció: Periodically inspect the power cord and the unit for any signs of damage. If damage is found, discontinue use immediately.

7. Solució De Problemes

If you encounter issues with your BESTEK MRJ2001 USB Surge Protector, refer to the following common solutions:

• Sense alimentació als dispositius:
  • Ensure the surge protector is securely plugged into a functioning wall outlet.
  • Check if the wall outlet itself is receiving power by testing it with another device.
  • Verify that the connected devices are properly plugged into the surge protector's outlets or USB ports.
• USB Devices Not Charging:
  • Confirm that the USB cable is not damaged and is correctly connected to both the surge protector and the device.
  • Test the USB cable with another power source to rule out cable issues.
  • Ensure the total current draw for all USB devices does not exceed 2.4A.
• Surge Protector Feels Warm:
  • It is normal for the unit to feel slightly warm during operation. However, if it becomes excessively hot, disconnect all devices and unplug the unit immediately. This may indicate an overload or malfunction.

8. Especificacions

Detailed technical specifications for the BESTEK MRJ2001 USB Surge Protector:

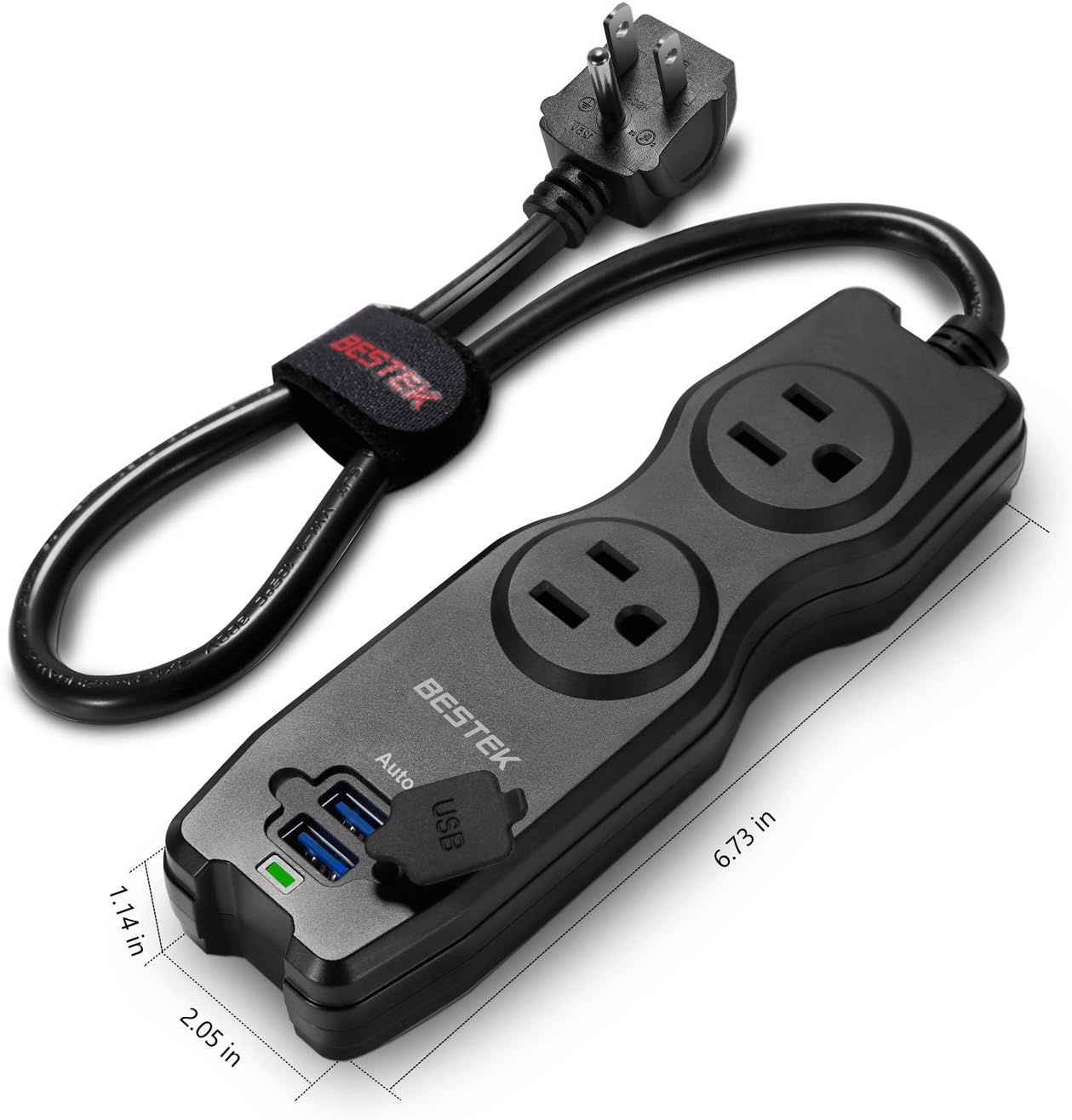

Figure 5: This image provides a visual representation of the BESTEK MRJ2001 USB Surge Protector's physical dimensions, indicating its length as 6.73 inches, width as 2.05 inches, and height as 1.14 inches, emphasizing its compact size.

9. Garantia i Suport

The BESTEK MRJ2001 USB Surge Protector comes with an 18 mesos de garantia. For warranty claims, technical support, or any inquiries, please contact BESTEK customer service. Refer to the product packaging or the official BESTEK weblloc per obtenir informació de contacte.

Figure 6: The BESTEK MRJ2001 USB Surge Protector neatly packed into a backpack compartment alongside other travel essentials like sunglasses and a tablet, illustrating its ease of portability for travel or daily use.
