Sentiotec K1 Sauna Control Unit Instruction Manual

1. Introducció

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Sentiotec K1 Sauna Control Unit. Please read these instructions carefully before installation and use, and retain them for future reference. The Sentiotec K1 features innovative K1-Next Technology, offering a monobloc housing with integrated controls for a seamless sauna experience.

2. Instruccions de seguretat

ADVERTÈNCIA: Risc de descàrrega elèctrica i incendi!

• Installation and electrical connections must be performed by a qualified electrician in accordance with all local and national electrical codes.
• Ensure the main power supply to the sauna heater and control unit is disconnected before any installation, maintenance, or troubleshooting.
• Do not operate the control unit if it is damaged or malfunctioning.
• Keep the control unit dry and away from direct water spray.
• Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
• Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.

3. Producte acabatview

The Sentiotec K1 Sauna Control Unit is designed for intuitive control of your sauna heater and lighting. It features a compact, monobloc design with clearly marked controls.

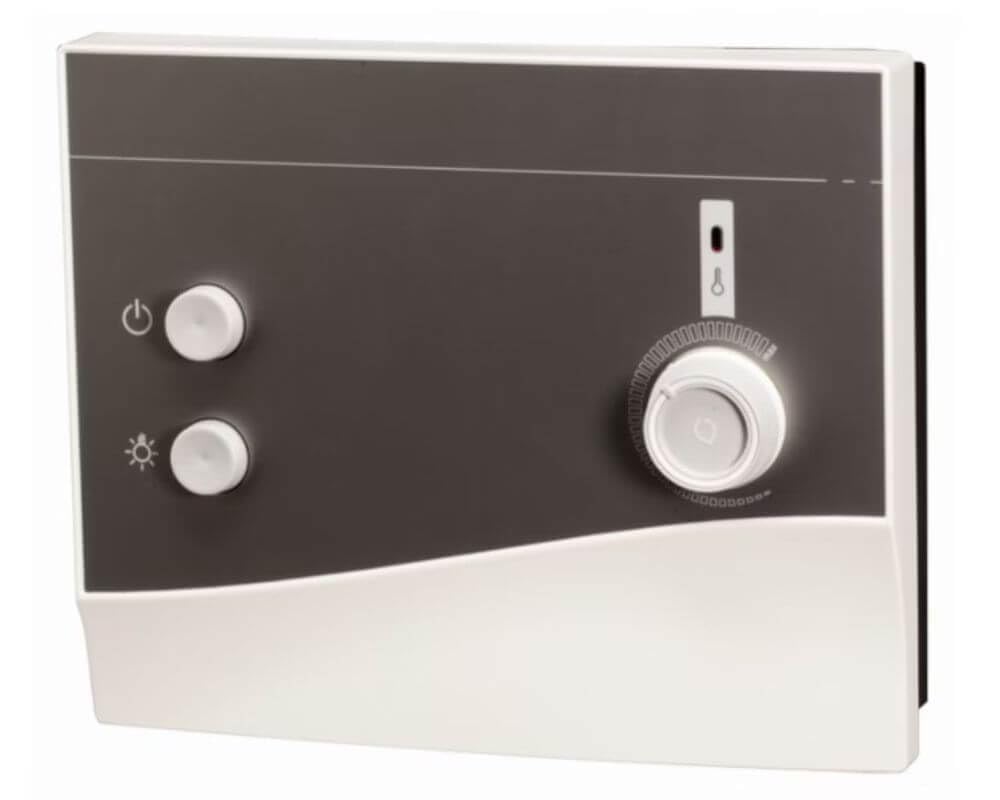

This image displays the Sentiotec K1 Sauna Control Unit. The unit features a two-tone design, with a dark gray upper panel and a white lower panel. On the left side of the dark gray panel, there are two white push-buttons. The top button is marked with a power symbol (circle with a vertical line), and the bottom button is marked with a light bulb symbol. On the right side, there is a large white rotary knob for temperature adjustment, with a temperature scale indicated around its circumference and a thermometer icon above it. The overall design is clean and functional.

Elements de control:

• Botó d'encendre (⏻): Activates and deactivates the sauna heater.
• Botó de llum (☼): Controls the sauna cabin lighting.
• Pom de control de temperatura: Adjusts the desired sauna temperature.

4. Instal·lació

Professional installation by a qualified electrician is mandatory.

4.1. Ubicació de muntatge

• Mount the control unit outside the sauna cabin, in a dry, easily accessible location.
• Assegureu-vos que hi hagi una ventilació adequada al voltant de la unitat.
• Avoid locations exposed to direct sunlight or extreme temperatures.

4.2. Connexió elèctrica

• The unit requires a supply voltage of 400 V 3 N ~.
• Connect the sauna heater, temperature sensor, and light according to the wiring diagram provided with the product packaging.
• Assegureu-vos que totes les connexions estiguin segures i aïllades correctament.
• The control unit includes temperature and safety sensors for the oven. These must be correctly installed within the sauna heater.
• Maximum load capacity for the heater is 9.0 kW.

5. Funcionament

The Sentiotec K1 allows for simple and precise control of your sauna environment.

5.1. Encès / apagat

• To turn on the sauna heater, press the Botó d'engegada (⏻).
• To turn off the sauna heater, press the Botó d'engegada (⏻) de nou.

5.2. Ajust de la temperatura

• Gira el Pom de control de temperatura to set the desired sauna temperature.
• The temperature can be continuously adjusted from 40 °C to 125 °C.
• The maximum temperature displayed is 125 °C.

5.3. Controlling Sauna Light

• Premeu el botó Botó de llum (☼) to turn the sauna cabin light on or off.

5.4. Heating Time Limit

• The control unit has a fixed heating time limit of 6 hours. After this period, the heater will automatically shut off for safety.

6. Manteniment

Regular maintenance ensures the longevity and proper functioning of your control unit.

• Ensure the power supply is disconnected before cleaning.
• Wipe the surface of the control unit with a soft, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
• No permeteu que entri aigua a la unitat.
• Comproveu periòdicament totes les connexions elèctriques per comprovar si estan ben ajustades i si hi ha signes de desgast.

7. Solució De Problemes

The Sentiotec K1 is equipped with an optical error indicator to assist in diagnosing issues.

• No Power / Unit Unresponsive: Check the main power supply to the sauna and the control unit. Verify all electrical connections.
• Heater Not Activating: Ensure the temperature setting is above the current sauna temperature. Check for any error indicators.
• Optical Error Indicator Active: The unit features an optical error indicator. This may signal a sensor break or a short circuit. In such cases, the unit will automatically shut down.
• Unit Shuts Down Unexpectedly: This could be due to the 6-hour heating time limit or a safety shutdown triggered by a sensor issue (break or short circuit).

If problems persist after checking these points, contact a qualified electrician or Sentiotec customer support.

8. Especificacions

9. Garantia i Suport

For warranty information, please refer to the documentation included with your purchase or contact your retailer. For technical support or inquiries, please visit the official Sentiotec weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.

Conserva el comprovant de compra per a qualsevol reclamació de garantia.
