Tamiya 35358 1/35 German Self-Propelled Howitzer Wespe Plastic Model Kit Instruction Manual

1. Introducció

This instruction manual provides guidance for the assembly, painting, and care of your Tamiya 35358 1/35 German Self-Propelled Howitzer Wespe plastic model kit. This kit faithfully recreates the German Self-Propelled Howitzer Wespe, a historical military vehicle. The model requires careful assembly and painting to achieve the intended detailed representation.

2. Informació de seguretat

ADVERTIMENT: This product contains small parts and is not suitable for children under 16 years of age. Adult supervision is recommended during assembly. Always use tools and adhesives in a well-ventilated area. Avoid inhaling paint fumes and keep all materials out of reach of small children and pets.

3. Contingut del paquet

Upon opening the box, verify that all components are present. Your Tamiya 35358 kit should include:

• Plastic sprues containing all model parts for the Wespe howitzer.
• Plastic sprues for four crew figures.
• Decal sheet for vehicle markings, including options for vehicles that fought on the Italian front.
• Illustrated assembly instructions.

Note: Adhesives, paints, and modeling tools are sold separately and are required for assembly and finishing.

4. Muntatge i muntatge

Assembly of this plastic model kit requires patience and attention to detail. Follow the included illustrated instructions carefully for best results.

4.1 Preparació

• Read through the entire instruction manual before beginning.
• Gather all necessary tools: plastic nippers, hobby knife, files, sandpaper, plastic cement, and tweezers.
• Assegureu-vos un espai de treball net i ben il·luminat.

4.2 Part Removal and Cleaning

Carefully cut parts from the plastic sprues using nippers. Use a hobby knife or file to remove any excess plastic (flash) or sprue gates from the parts. Test fit parts before applying adhesive.

Image 1: Fully assembled and painted Tamiya Wespe model kit, showcasing the detailed superstructure and figures.

4.3 Main Assembly Steps

1. Chassis and Running Gear: Begin by assembling the lower hull, suspension components, and road wheels. The kit features link-and-length tracks, which require careful assembly.

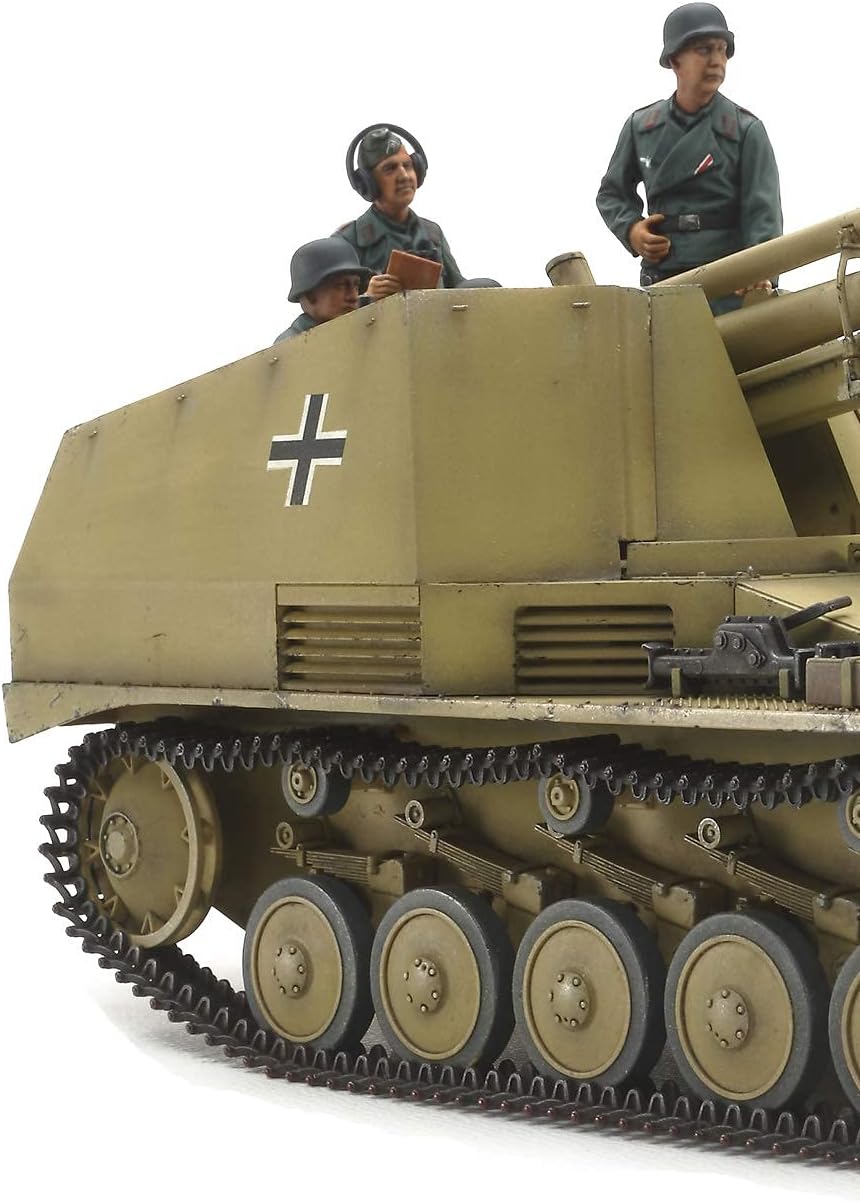

Imatge 2: Detallada view of the model's tracks and running gear, highlighting the individual track links and road wheels.

2. Superstructure: Assemble the boxy superstructure that houses the howitzer. Pay attention to alignment and ensure strong bonds.

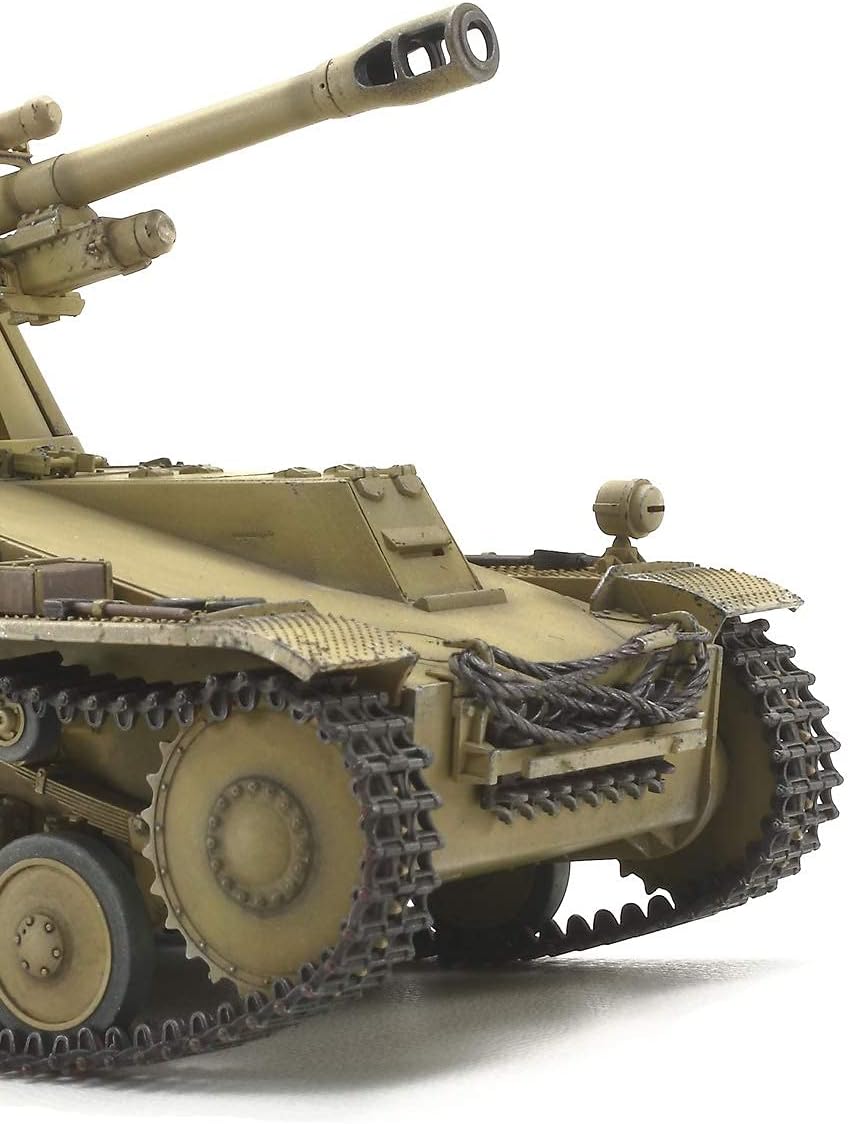

Image 3: Front perspective of the model, illustrating the main gun and the front armor plating.

3. Howitzer Assembly: Construct the Type 18/2 10.5cm L/28 howitzer. Ensure all parts move freely if designed to do so, or are fixed securely if static.
4. Detail Parts: Attach smaller details such as tools, lights, and other external equipment.
5. Crew Figures: Assemble the four included crew figures according to their individual instructions.


Image 4: The four detailed crew figures provided in the kit, ready for assembly and painting.

5. Painting Guide

Painting is a crucial step to bring your model to life. Refer to the provided paint guide and historical references for accurate color schemes.

Image 5: Official Tamiya paint chart indicating recommended X-Acrylic and TS-Spray paint colors for the Wespe model.

5.1 Recommended Paints

Tamiya recommends using their X-Acrylic (gloss), XF-Acrylic (matt), and TS-Spray (for plastics) paints. The paint guide image above provides specific color codes and descriptions.

5.2 Painting Process

1. Primer: Apply a thin coat of primer to all parts to ensure paint adhesion and a uniform finish.
2. Base Coats: Apply the main camouflage colors. Multiple thin coats are better than one thick coat.
3. Detail Painting: Paint smaller details such as tools, tracks, and figures.
4. Weathering (Optional): For a realistic appearance, consider applying weathering effects like washes, dry-brushing, and pigments to simulate dirt, dust, and wear.
5. Etiquetes: Apply decals after painting and a gloss clear coat. Use decal setting solutions for a seamless look. Seal with a matte or satin clear coat.

6. Operating (Display and Care)

Once assembled and painted, your Tamiya Wespe model is a static display piece. Proper handling and care will preserve its appearance.

• Ubicació de la pantalla: Place your model in a stable location away from direct sunlight, extreme temperatures, and high humidity to prevent damage or fading.
• Manipulació: Handle the model by its base or sturdy parts to avoid breaking delicate components.

7. Manteniment

Regular, gentle maintenance will keep your model looking its best.

• Pols: Use a soft brush (such as a makeup brush) or a can of compressed air to gently remove dust. Avoid wiping with cloths, which can snag small parts or scratch paint.
• Neteja: If necessary, use a very lightly dampened cloth with plain water to clean surfaces, but avoid excessive moisture, especially on decals or weathered areas.

8. Solució De Problemes

While Tamiya kits are known for their precision, minor issues can sometimes arise during assembly.

• Les peces no s'ajusten: If parts do not fit perfectly, gently sand or file the mating surfaces. Do not force parts together, as this can cause breakage.
• Adhesive Issues: Ensure you are using plastic cement specifically designed for polystyrene models. Apply sparingly to avoid damaging plastic details. Allow sufficient drying time.
• Decal Silvering: If decals show a silvery sheen, ensure the surface beneath was glossy before application and use a decal setting solution to help them conform to the surface.

9. Especificacions

10. Garantia i Suport

Tamiya products are manufactured to high standards. For any questions regarding missing parts, manufacturing defects, or assembly assistance, please contact Tamiya customer support directly. Specific warranty details may vary by region; please refer to the packaging or Tamiya's official weblloc per obtenir la informació més actualitzada.

Tamiya Official Weblloc: www.tamiya.com
