HENDI 239278 Induction Cooktop User Manual

1. Introducció

This manual provides essential information for the safe and efficient operation of your HENDI 239278 Induction Cooktop. This appliance is designed for commercial use and is not intended for household applications. Please read these instructions thoroughly before installation, operation, or maintenance to ensure proper use and to prevent damage or injury.

The HENDI 239278 Induction Cooktop features a sleek design with a stainless steel frame and a ceramic glass surface. It includes a digital display and touch-sensitive controls for precise temperature and power adjustments, along with a timer function and electronic overheating protection.

2. Instruccions de seguretat

Always adhere to the following safety precautions to reduce the risk of fire, electric shock, burns, or other injuries.

• Ús previst: This appliance is for commercial use only. Do not use it for domestic purposes.
• Seguretat elèctrica: Ensure the power supply matches the specifications (230V, 2000W). Do not overload electrical outlets.
• Col·locació: Place the cooktop on a stable, heat-resistant, and level surface. Ensure adequate ventilation around the unit. Do not block air vents.
• Estris de cuina: Use only induction-compatible cookware with a base diameter between Ø120 mm and Ø230 mm. Incompatible cookware will not heat.
• Protecció contra el sobreescalfament: The cooktop is equipped with electronic overheating protection. If the unit overheats, it will automatically shut down. Allow it to cool before resuming operation.
• Neteja: Disconnect the power before cleaning. Allow the unit to cool completely. Do not immerse the appliance in water or other liquids.
• Supervisió: Never leave the cooktop unattended during operation.
• Nens: Mantingueu l'aparell fora de l'abast dels nens i de les persones amb capacitats físiques, sensorials o mentals reduïdes.
• Danys: Do not operate the appliance if it is damaged. Contact qualified service personnel for repairs.

3. Producte acabatview

The HENDI 239278 Induction Cooktop is designed for efficiency and ease of use in a professional kitchen environment.

Figura 1: HENDI 239278 Induction Cooktop in operation, showing a frying pan with food on the ceramic glass surface. The digital display and touch controls are visible at the front.

Components:

• Superfície de vidre ceràmic: The main cooking area.
• Marc d'acer inoxidable: Provides durability and a clean aesthetic.
• Pantalla digital: Shows temperature, power level, or timer settings.
• Controls tàctils: Per ajustar la configuració.
• Vendes de refrigeració: Located on the sides and bottom for heat dissipation.

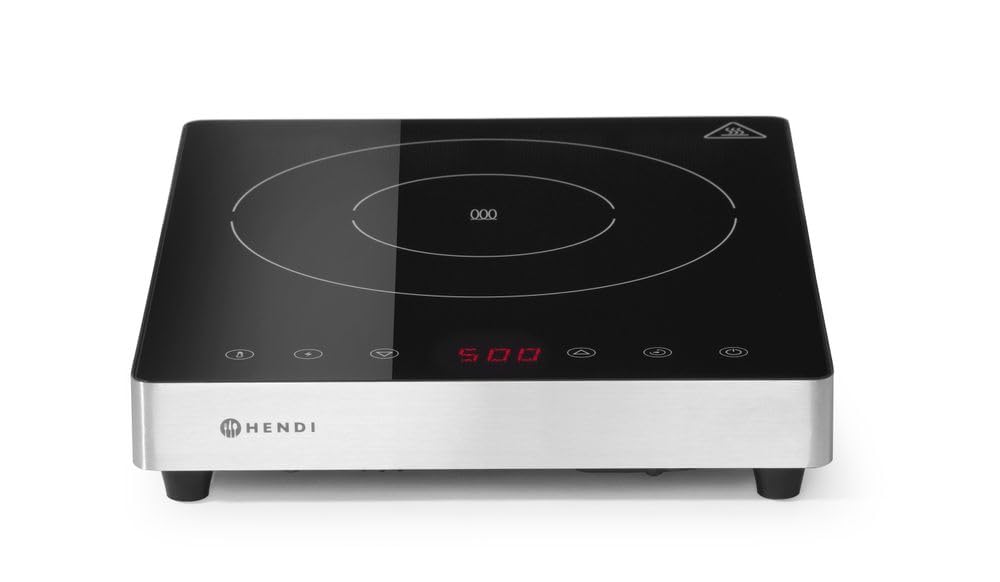

Figura 2: De dalt a baix view of the HENDI 239278 Induction Cooktop, highlighting the single cooking zone and the touch-sensitive control panel with digital display.

4. Configuració

4.1 Desembalatge

Carefully remove the cooktop from its packaging. Inspect the unit for any signs of damage. Retain the packaging for future transport or storage.

4.2 Col·locació

• Place the cooktop on a flat, stable, and non-combustible surface.
• Ensure there is sufficient space (at least 10 cm) around the unit for proper ventilation. Do not place it near heat sources or flammable materials.
• Do not place the cooktop on a metal surface, as this may interfere with induction operation.

4.3 Connexió d'alimentació

• Connect the power plug to a grounded electrical outlet with the correct voltage (230V) and sufficient capacity (2000W).
• Assegureu-vos que el cable d'alimentació no estigui pinçat ni entri en contacte amb superfícies calentes.

4.4 Cookware Selection

Only use induction-compatible cookware (e.g., cast iron, enameled iron, stainless steel with a magnetic bottom). The base diameter of the pan should be between Ø120 mm and Ø230 mm for optimal performance.

5. Instruccions de funcionament

The HENDI 239278 Induction Cooktop features intuitive touch controls for easy operation.

5.1 Encès/Apagat

• Place suitable cookware with contents on the ceramic glass surface.
• Premeu el botó Encès/Apagat button (usually indicated by a power symbol) to turn on the cooktop. The digital display will illuminate.
• Per apagar-lo, premeu el botó Encès/Apagat button again. The cooling fan may continue to run for a short period to dissipate residual heat.

5.2 Temperature and Power Adjustment

• After powering on, you can select either power (wattage) or temperature mode.
• Utilitza el +/- buttons or dedicated Power/Temperature selection buttons to adjust the setting.
• The cooktop offers 11 steps for power or temperature adjustment.
• El rang de temperatures és de 35 °C a 240 °C.
• The power output is up to 2000W.

5.3 Funció de temporitzador

• Premeu el botó Temporitzador button (if available) to activate the timer function.
• Utilitza el +/- buttons to set the desired cooking time, ranging from 0 to 180 minutes.
• Once the set time expires, the cooktop will automatically turn off.

6. Manteniment

Regular cleaning and maintenance will prolong the life of your HENDI Induction Cooktop.

6.1 Neteja

• Desendolleu sempre l'aparell de la presa de corrent i deixeu-lo refredar completament abans de netejar-lo.
• Netegeu la superfície de vidre ceràmic amb un drap suau iamp cloth and a mild detergent. For stubborn stains, use a specialized ceramic hob cleaner.
• Clean the stainless steel frame with a soft cloth. Avoid abrasive cleaners or scouring pads that could scratch the surface.
• Do not use water jets or immerse the appliance in water.
• Ensure all parts are dry before reconnecting to power.

6.2 Emmagatzematge

If storing the cooktop for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging.

7. Solució De Problemes

If you encounter issues with your HENDI Induction Cooktop, refer to the following common problems and solutions:

• La placa de cocció no s'encén:
  • Comproveu si el cable d'alimentació està ben connectat a una presa de corrent que funcioni.
  • Verifiqueu que la font d'alimentació estigui activa.
• Els estris de cuina no s'escalfen:
  • Ensure the cookware is induction-compatible (magnetic bottom).
  • Check if the pan's base diameter is within the recommended range (Ø120-Ø230 mm).
  • Ensure the pan is centered on the cooking zone.
• Cooktop shuts off during operation:
  • The overheating protection may have activated. Allow the unit to cool down.
  • Comproveu que la ventilació sigui adequada; assegureu-vos que les reixetes de ventilació no estiguin bloquejades.
  • If the timer was set, it might have reached the end of the cycle.
• Unusual noises (e.g., loud fan):
  • A cooling fan operates during and after cooking; some noise is normal.
  • Ensure the unit is on a stable surface to prevent vibrations.

If the problem persists after attempting these solutions, contact qualified service personnel or your supplier for assistance.

8. Especificacions

9. Garantia i Suport

For warranty information, service, or technical support, please contact your HENDI supplier or the manufacturer directly. Keep your purchase receipt as proof of purchase. As this is a commercial product, specific warranty terms may apply, differing from consumer product warranties.
