FLEXTAILGEAR Portable Air Pump User Manual

1. Introducció i mésview

The FLEXTAILGEAR Portable Air Pump is a compact, lightweight, and powerful solution for all your inflation and deflation needs. Designed for convenience and efficiency, this rechargeable pump is ideal for outdoor activities, camping, and home use, making quick work of inflating air mattresses, pool floats, sleeping pads, and more.

Image: The FLEXTAILGEAR Portable Air Pump, showcasing its compact design when held in a hand.

2. Característiques del producte

• Compact & Travel-Ready Design: Weighing just 5.6 oz with a 2.1"x2.1"x3.1" cube-shaped design, it easily fits into backpacks, eliminating bulk and cord clutter.
• Powerful In/Deflation: Features 300L/min wind speed and 2 kPa air pressure for rapid inflation/deflation. Inflates an air bed in 4-5 minutes, sleeping pad in 40-50 seconds, and a swimming ring in 30 seconds.
• Bateria potent i recarregable: Equipped with a large 3600mAh lithium battery, providing up to 45 minutes of operation after a full charge. One charge can inflate approximately 50 swim rings or 10 air beds. Modern Type-C port for versatile charging.
• 5 Nozzles & Various Use Scenarios: Includes 5 different nozzles compatible with most air mattresses, inflatable beds, pool floats, swim rings, inflatable sofas, sleeping pads, and more.
• Durable & Water-Resistant: Crafted with an ABS shell and well-sealed surface technology, boasting an IPX4 water-resistant rating.

Image: Visual representation of the MAX PUMP PLUS key features including its light weight, air pressure, speed, battery capacity, and nozzle variety.

3. Contingut del paquet

• FLEXTAILGEAR Portable Air Pump (Model: FLEXT)
• 5 x Different Nozzles
• Cable de càrrega USB tipus C
• Bossa d'emmagatzematge
• Manual d'usuari

4. Configuració i càrrega

4.1 Càrrega inicial

Before first use, fully charge your FLEXTAILGEAR Portable Air Pump. Connect the provided USB Type-C cable to the charging port on the pump and to a compatible USB power source (e.g., wall adapter, power bank, computer USB port). The charging indicator light will provide feedback on the battery status.

• Charging Time: Approximately 45 minutes for a full charge from empty.
• Charging Indicator: Refer to the product diagram for indicator light behavior (e.g., solid light for fully charged, blinking for charging).

Imatge: Detallada view of the pump's charging indicator and its 3600mAh battery, illustrating battery level feedback.

4.2 Identifying Ports & Controls

Familiarize yourself with the pump's components:

• Port d'inflació: Where air is expelled for inflation.
• Port de deflació: Where air is drawn in for deflation.
• Pump Switch: The main control button for operation.
• Indicador de càrrega: Mostra l'estat de la bateria.
• Port de càrrega micro-USB: Per connectar el cable de càrrega.

Imatge: Una explosió view of the pump, labeling its various ports, switches, and indicators for user reference.

5. Instruccions de funcionament

5.1 Inflació

1. Seleccioneu el broquet: Choose the appropriate nozzle from the 5 provided attachments that best fits the valve of the item you wish to inflate.
2. Col·loca el broquet: Firmly insert the selected nozzle into the port d'inflació de la bomba.
3. Connecta a l'element: Insert the nozzle into the valve of your inflatable item.
4. Inici de la inflació: Feu doble clic the pump switch to turn on the pump.
5. Inflar: Allow the pump to inflate the item to your desired firmness.
6. Atura la inflació: Feu un sol clic the pump switch to turn off the pump.
7. Eliminar: Carefully remove the nozzle from the item and the pump.

5.2 Deflació

1. Seleccioneu el broquet: Choose the appropriate nozzle that fits the valve of the item you wish to deflate.
2. Col·loca el broquet: Firmly insert the selected nozzle into the port de deflació de la bomba.
3. Connecta a l'element: Insert the nozzle into the valve of your inflatable item.
4. Inicia la deflació: Feu doble clic the pump switch to turn on the pump.
5. Desinflar: Allow the pump to deflate the item.
6. Stop Deflation: Feu un sol clic the pump switch to turn off the pump.
7. Eliminar: Carefully remove the nozzle from the item and the pump.

6. Manteniment i cura

• Neteja: Netegeu l'exterior de la bomba amb un drap suau iamp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
• Emmagatzematge: Store the pump and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures.
• Cura de la bateria: If the pump is not used for an extended period, recharge the battery at least once a month to maintain its activity and prolong battery life.
• Ús continu: To protect the battery-powered air pump, avoid using it constantly for over 10 minutes. Allow it to cool down before resuming operation.
• Resistència a l'aigua: The pump has an IPX4 water-resistant rating, meaning it is protected against splashing water from any direction. Do not immerse the pump in water.

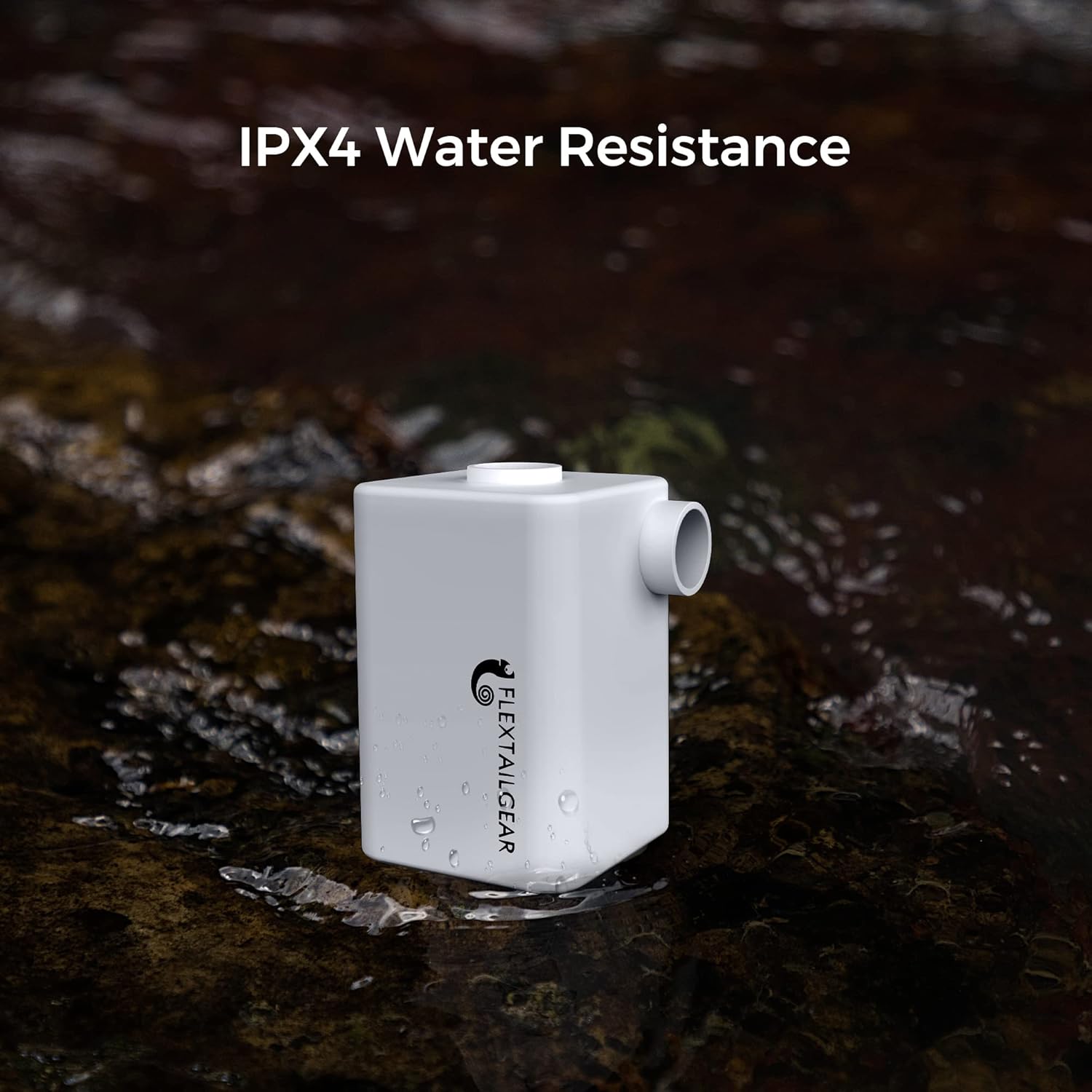

Image: The pump demonstrating its IPX4 water resistance by being near water, indicating splash protection.

7. Solució De Problemes

• La bomba no s'encén: Ensure the battery is charged. The pump requires a feu doble clic of the power button to turn on for safety.
• Pump stops during operation: The pump may have overheated due to prolonged use. Allow it to cool down for a few minutes before attempting to use it again.
• Inflació/deflació lenta: Check that the correct nozzle is securely attached and fully inserted into the item's valve. Ensure there are no leaks in the inflatable item.
• Not suitable for high-pressure items: This pump is designed for low-pressure inflatables. It is no suitable for inflating items like balloons, sports balls, or vehicle tires that require high pressure.
• Can I use the air pump while charging? It is recommended not to use the air pump while it is charging to ensure optimal battery health and longevity.

Image: A visual guide indicating suitable and unsuitable items for inflation with the pump.

8. Especificacions

9. Informació de seguretat

• Mantenir fora de l'abast dels nens.
• Do not block the air intake or exhaust ports during operation.
• Do not immerse the pump in water. The IPX4 rating protects against splashes, not submersion.
• Avoid prolonged continuous use (over 10 minutes) to prevent overheating and damage to the battery.
• Use only the provided charging cable and a compatible USB power source.
• Do not attempt to disassemble or repair the pump yourself. Contact qualified personnel for service.

10. Garantia i assistència

FLEXTAILGEAR products are designed for durability and performance. For any questions, technical support, or warranty inquiries, please contact FLEXTAILGEAR customer service through their official website or the retailer where the product was purchased. Please have your model number (FLEXT) and purchase information ready.
