Teesa Sonic Black TSA8015 Electric Toothbrush User Manual

1. Introducció

Thank you for choosing the Teesa Sonic Black TSA8015 Electric Toothbrush. This manual provides essential information for the safe and effective use of your new device. Please read these instructions carefully before first use and retain them for future reference.

2. Informació de seguretat

Per garantir un funcionament segur i evitar danys, observeu les següents pautes de seguretat:

• Perill d'asfixia: Keep the toothbrush and its components out of reach of children under 3 years of age.
• Ús previst: Use this product exclusively for oral hygiene purposes. Do not use for any other applications.
• Exposició a l'aigua: While the device is IPX7 waterproof, avoid prolonged submersion in water to prevent damage to internal components.
• Substitució del capçal del raspall: For optimal hygiene and performance, replace the brush head every 3 to 4 months, or sooner if bristles are frayed.
• Font d'alimentació: Use only the provided charging cable and charger. Do not attempt to modify the charging system.
• Danys: Do not use the device if it appears damaged in any way. Contact customer support for assistance.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• 1x Teesa Sonic Black TSA8015 Electric Toothbrush Handle
• 2x Capçals de raspall
• 1x estoig de viatge
• 1x Charging Base with Cable

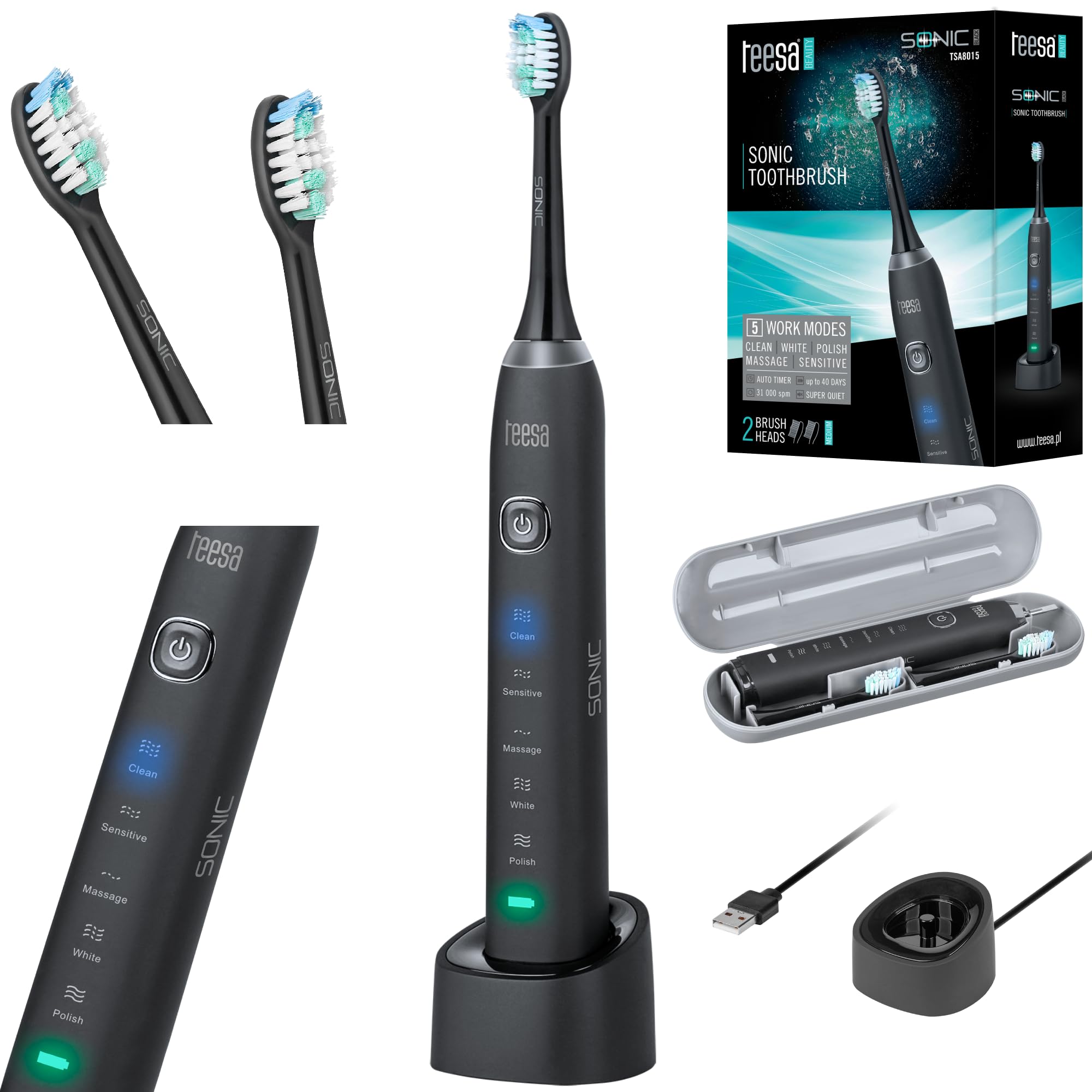

Image: Contents as displayed on the product packaging.

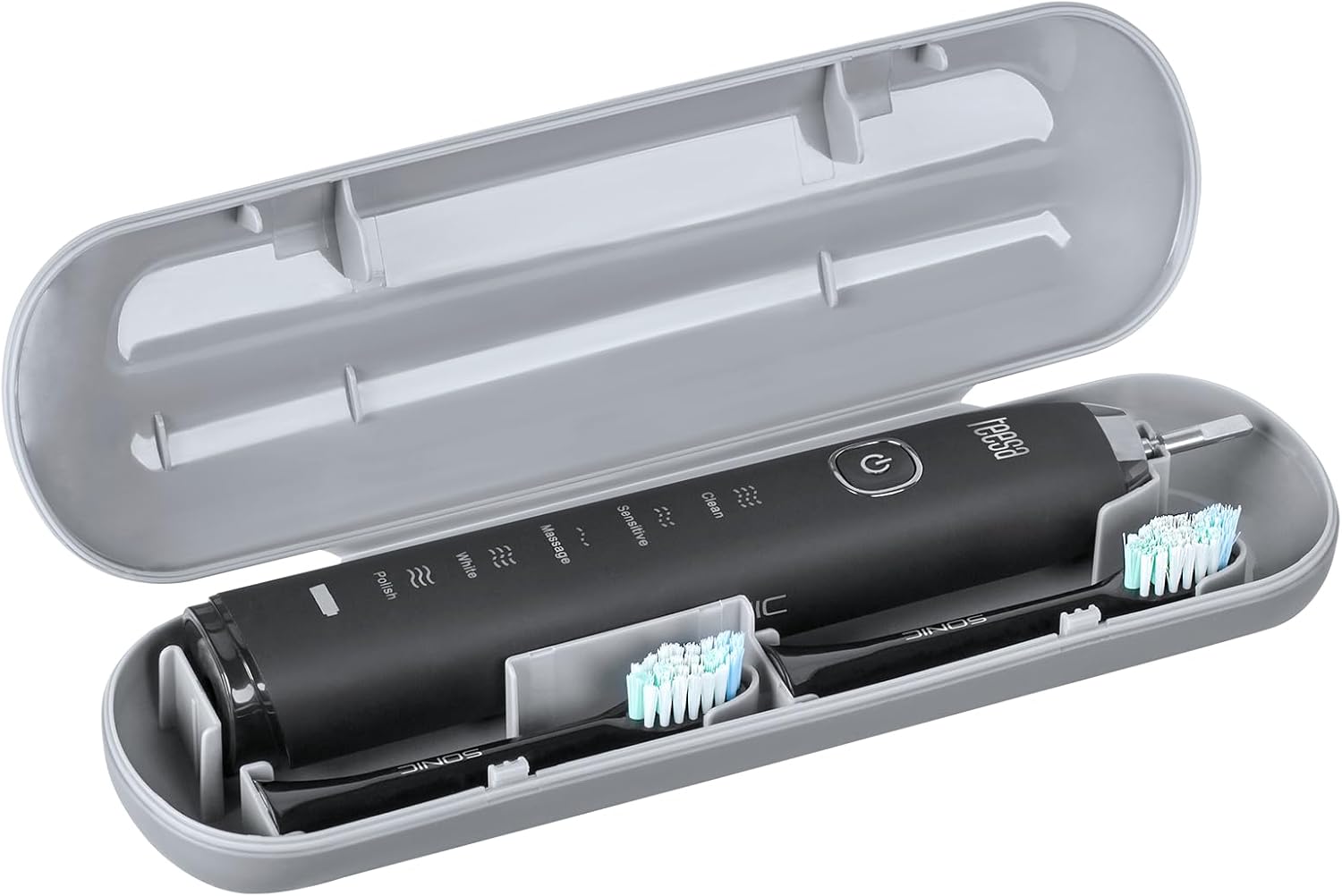

Image: The toothbrush and two brush heads neatly stored within the included travel case.

4. Producte acabatview

The Teesa Sonic Black TSA8015 is an advanced electric toothbrush designed for effective oral care. It features multiple cleaning modes and a built-in timer for optimal brushing habits.

Image: Teesa Sonic Black TSA8015 Electric Toothbrush on its charging base.

Característiques principals:

• 5 Cleaning Programs: Clean, Sensitive, Massage, White, Polish.
• High-Frequency Vibrations: Up to 31,000 movements per minute.
• Temporitzador intel·ligent: 2-minute automatic shut-off timer with 30-second interval reminders for even brushing.
• Classificació impermeable: IPX7 for safe use in wet environments.
• Llarga vida útil de la bateria: Up to 40 days or 160 minutes of continuous use on a single charge.

Image: Close-up of the toothbrush handle showing the power button and mode indicators.

5. Configuració

5.1 Càrrega inicial

1. Col·loca el mànec del raspall de dents a la base de càrrega.
2. Connect the charging base to a suitable power outlet.
3. The indicator light on the toothbrush will show charging status. Allow the toothbrush to charge fully before first use. A full charge can provide up to 40 days of use.

5.2 Fixació del capçal del raspall

1. Alineeu el capçal del raspall amb l'eix metàl·lic del mànec del raspall de dents.
2. Premeu fermament el capçal del raspall cap avall fins que encaixi al seu lloc. Assegureu-vos que estigui ben fixat.

Image: Two Teesa Sonic brush heads.

6. Instruccions de funcionament

6.1 Engegada/apagada

• Press the power button once to turn on the toothbrush. It will start in the last used mode.
• Press and hold the power button for 2 seconds to turn off the toothbrush.

6.2 Selecció d'un mode de neteja

After turning on the toothbrush, press the power button repeatedly to cycle through the 5 available modes:

1. Neteja: Standard mode for daily cleaning.
2. Sensible: Neteja suau per a dents i genives sensibles.
3. Massatge: Gently massages gums.
4. Blanc: Designed for removing surface stains.
5. polonès: For polishing teeth and enhancing brightness.

6.3 Tècnica de pinzellatge

Apply a small amount of toothpaste to the brush head. Place the brush head against your teeth at a slight angle towards the gum line. Gently move the brush across your teeth, allowing the sonic vibrations to do the work. Do not scrub vigorously.

6.4 Smart Timer Function

• The toothbrush features a 2-minute timer, which is the dentist-recommended brushing time.
• Every 30 seconds, the toothbrush will briefly pause, signaling you to move to the next quadrant of your mouth.
• Després de 2 minuts, el raspall de dents s'apagarà automàticament.

7. Neteja i Manteniment

7.1 Després de cada ús

1. Rinse the brush head thoroughly under running water while the toothbrush is still on to remove any remaining toothpaste and debris.
2. Turn off the toothbrush.
3. Remove the brush head and rinse both the brush head and the handle separately under running water.
4. Netegeu el mànec amb un drap suau.

Image: Rinsing the toothbrush under running water.

7.2 Replacing the Brush Head

It is recommended to replace the brush head every 3 to 4 months, or when the indicator bristles fade, to maintain optimal cleaning performance and hygiene.

1. Grip the brush head and pull it straight off the handle.
2. Desfeu-vos del capçal del raspall vell de manera responsable.
3. Attach a new brush head as described in Section 5.2.

7.3 Emmagatzematge

When not in use, store the toothbrush in a clean, dry place. If traveling, use the provided travel case to protect the toothbrush and brush heads.

8. Solució De Problemes

If you encounter issues with your Teesa Sonic Black TSA8015, refer to the following common problems and solutions:

• El raspall de dents no s'encén: Ensure the battery is charged. Place the handle on the charging base for several hours.
• Reduced vibration/performance: The brush head may be worn out; replace it. Ensure the brush head is securely attached. The battery might be low; recharge the device.
• L'indicador de càrrega no funciona: Check if the charging base is properly connected to the power outlet. Ensure the toothbrush handle is correctly seated on the charging base.
• Soroll inusual: Ensure the brush head is correctly attached. If the noise persists and seems abnormal, discontinue use and contact customer support.

If the problem persists after attempting these solutions, please contact Teesa customer support.

9. Especificacions

10. Garantia i Suport

Your Teesa Sonic Black TSA8015 Electric Toothbrush is covered by a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please visit the official Teesa website or contact their customer service department using the contact information provided with your product.
