Manual d'usuari del patinet elèctric Koowheel E1

1. Introducció i directrius de seguretat

Thank you for choosing the Koowheel Electric Scooter E1. This manual provides important information on the safe operation, maintenance, and troubleshooting of your scooter. Please read it thoroughly before your first ride and keep it for future reference.

1.1 Informació important de seguretat

• Porteu sempre casc i l'equip de seguretat adequat (genolleres, colzeres) quan aneu en bicicleta.
• No circuleu en condicions humides, amb pluja intensa o per bassals.
• Avoid riding on uneven surfaces, loose gravel, or steep inclines.
• Respecteu totes les lleis i regulacions locals de trànsit.
• Do not allow children under 16 years old to operate the scooter.
• Perform a pre-ride check before each use, including brakes, tires, and battery level.
• Estigueu atents al vostre entorn i a altres vianants o vehicles.

2. Producte acabatview

The Koowheel Electric Scooter E1 is designed for personal transportation, offering a convenient and eco-friendly way to travel. It features a foldable design for easy storage and portability.

Figure 2.1: Koowheel Electric Scooter E1, showing its sleek design and main components.

Figura 2.2: Part frontal view of the Koowheel Electric Scooter E1, highlighting the handlebars and front wheel.

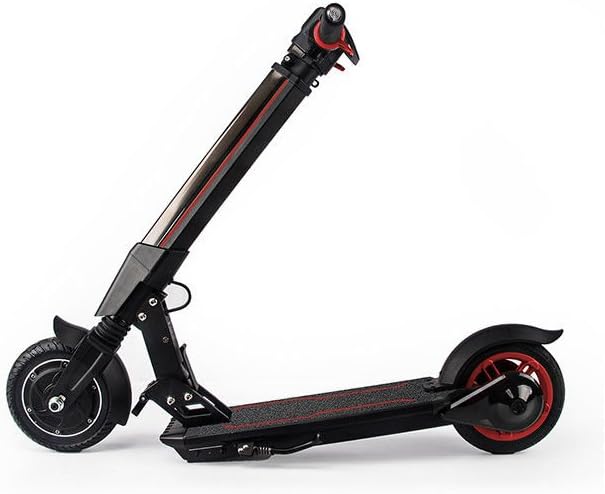

Figure 2.3: The Koowheel Electric Scooter E1 in its folded position, demonstrating its portability.

3. Muntatge i muntatge

3.1 Unboxing

Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present. Retain packaging for future storage or shipping.

3.2 Desplegament del patinet

1. Col·loqueu el patinet sobre una superfície plana.
2. Locate the folding mechanism latch near the base of the steering column.
3. Release the latch and carefully lift the steering column until it locks into the upright position. Ensure the locking mechanism is securely engaged.
4. Adjust the handlebar height if applicable and secure the quick-release clamp.

Figura 3.1: De dalt a baix view of the Koowheel Electric Scooter E1 in its folded state, showing the compact design.

3.3 Càrrega inicial

Before first use, fully charge the scooter's battery. Connect the charger to the charging port on the scooter and then to a power outlet. The indicator light on the charger will change (e.g., from red to green) when charging is complete. This typically takes 3-5 hours.

Warning: Use only the original charger provided with the scooter. Using an unauthorized charger may damage the battery and void your warranty.

4. Instruccions de funcionament

4.1 Engegada/apagada

To turn on the scooter, press and hold the power button on the handlebar for 2-3 seconds. The display will illuminate. To turn off, press and hold the power button again until the display turns off.

4.2 Conduint el scooter

1. Place one foot firmly on the deck of the scooter.
2. Push off with your other foot to gain initial momentum (kick-start).
3. Once moving, gently press the throttle lever to engage the motor.
4. Gradually increase speed by pressing the throttle further.
5. To slow down, release the throttle. To brake, gently squeeze the brake lever on the handlebar. For emergency stops, apply the brake firmly.
6. Maintain balance and keep both hands on the handlebars at all times.

4.3 modes de velocitat

Your scooter may feature multiple speed modes. Refer to the display or control panel for instructions on how to switch between modes (e.g., Eco, Standard, Sport).

5. Manteniment

5.1 Cura de la bateria

• Carregueu la bateria regularment, fins i tot si no l'utilitzeu, per allargar-ne la vida útil.
• Do not fully discharge the battery before recharging.
• Guardeu el patinet en un lloc fresc i sec quan no l'utilitzeu, allunyat de la llum solar directa i de temperatures extremes.

5.2 Neteja

Netegeu el patinet amb anunciamp cloth. Do not use high-pressure water jets or immerse the scooter in water. Avoid using abrasive cleaners.

5.3 Pressió dels pneumàtics

Check tire pressure regularly (if applicable, for pneumatic tires). Maintain recommended pressure for optimal performance and safety. Refer to the tire sidewall for recommended PSI.

5.4 Inspecció general

Periodically check all screws, bolts, and connections to ensure they are tight. Inspect brake cables and pads for wear.

6. Solució De Problemes

If you encounter problems not listed here, or if the suggested solutions do not resolve the issue, please contact Koowheel customer support.

7. Especificacions

• Marca: Koowheel
• Model: E1
• Número de peça: 201843949
• ASIN: B07CBQDP2Z
• Primer disponible: 7 d'abril de 2018
• Tipus de producte: Scooter elèctric
• Característica: Perfect scooter for outside fun!

Nota: Les especificacions estan subjectes a canvis sense previ avís.

8. Garantia i Suport

8.1 Informació de la garantia

Koowheel products typically come with a limited warranty covering manufacturing defects. Please refer to the warranty card included with your purchase or visit the official Koowheel weblloc web per obtenir informació detallada sobre els termes i condicions de la garantia. Conserveu el comprovant de compra per a reclamacions de garantia.

8.2 Atenció al client

For technical assistance, spare parts, or warranty inquiries, please contact Koowheel customer support. Contact information can usually be found on the official weblloc web o a l'embalatge del producte.

Weblloc: www.koowheel.com (Nota: Això és un marcador de posició URL. Please refer to official documentation for actual contact details.)

Correu electrònic: support@koowheel.com (Note: This is a placeholder email.)
