FrSky R9M Lite Module User Manual

1. Producte acabatview

The FrSky R9M Lite Module is a 900MHz frequency system designed for use with the FrSky Taranis X-Lite transmitter. This module facilitates long-range remote control (RC) operations and is compatible with all receivers in the FrSky R9 series. It features a digital interface for low latency and high-precision data transmission.

Característiques principals:

• Firmware upgradable via Taranis X-Lite.
• Supports telemetry data transmission.
• Designed for long-range, low-latency, and high-precision RC systems.
• Achieves long distances with an RF power output of 100mW.

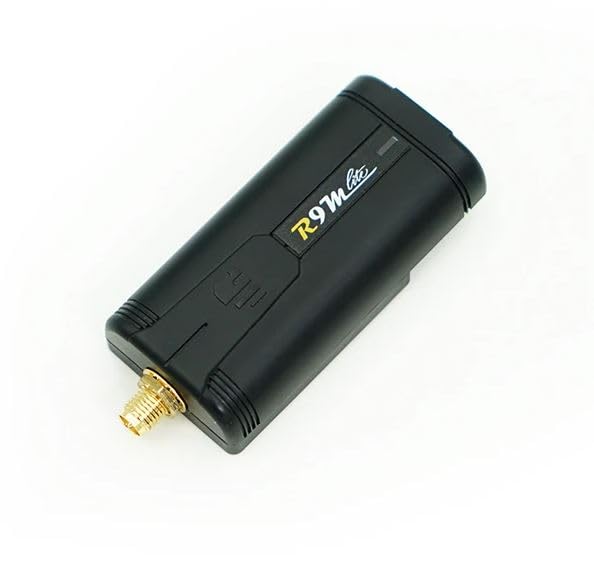

Image of the FrSky R9M Lite Module, a compact black device designed for long-range RC applications.

2. Instruccions de configuració

2.1 Instal·lació del mòdul

1. Ensure the Taranis X-Lite transmitter is powered off.
2. Locate the module bay on the back of the Taranis X-Lite.
3. Carefully insert the R9M Lite module into the module bay, ensuring proper alignment of the pins.
4. Secure the module if a locking mechanism is present.

2.2 Actualització del microprogramari

It is recommended to keep the module's firmware updated for optimal performance and compatibility. Firmware updates can be performed through the Taranis X-Lite transmitter. Refer to the official FrSky website for the latest firmware and detailed update procedures.

2.3 Procediment vinculant

1. Power on the Taranis X-Lite transmitter with the R9M Lite module installed.
2. Access the model setup menu on the transmitter and select the external module settings.
3. Choose the appropriate mode (e.g., R9M ACCESS, R9M ACCST) and initiate the binding process.
4. Power on the R9 series receiver while holding its F/S (Fail-Safe) button. The receiver's LED should indicate binding mode.
5. Once binding is successful, the receiver's LED will indicate a solid connection. Power cycle both the transmitter and receiver to confirm.

3. Operating the R9M Lite Module

3.1 Frequency and Power Output

• The R9M Lite Module operates on 900MHz/868MHz frequencies.
• RF Power (Non-EU): 100mW (with telemetry).
• RF Power (EU): 25mW (with telemetry) / 100mW (without telemetry).
• RF Power (Flex): 100mW (with telemetry).
• Ensure the correct power setting is selected based on regional regulations and operational requirements.

3.2 Telemetry Functionality

The module supports telemetry data transmission, allowing real-time feedback from the receiver to the transmitter. This includes data such as receiver battery voltage, signal strength, and other sensor data if connected.

3.3 Range Considerations

The R9M Lite is designed for long-range applications. Actual range may vary depending on environmental conditions, antenna placement, and receiver type. Always perform a range check before flight.

4. Manteniment

4.1 actualitzacions de microprogramari

Regularly check the FrSky official website for new firmware versions. Updating firmware can improve performance, add new features, and resolve potential issues.

4.2 Atenció general

• Mantingueu el mòdul net i lliure de pols i humitat.
• Avoid exposing the module to extreme temperatures.
• Handle the antenna carefully to prevent damage.

5. Solució De Problemes

5.1 Module Not Detected

• Ensure the module is correctly seated in the Taranis X-Lite module bay.
• Verify the transmitter's firmware is up to date.

5.2 Binding Failure

• Confirm both the module and receiver are in binding mode.
• Check that the module and receiver firmware versions are compatible.
• Ensure the receiver is an R9 series receiver.

5.3 Poor Range or Signal Loss

• Inspect antennas on both the transmitter module and receiver for damage or improper connection.
• Ensure the RF power setting is appropriate for the operating region.
• Avoid operating in areas with high RF interference.
• Perform a range check.

6. Especificacions tècniques

7. Garantia i Suport

For warranty information and technical support, please contact FrSky directly through their official website or authorized distributors. Keep your proof of purchase for warranty claims.

Official FrSky Weblloc: www.frsky-rc.com
