Rheem Triton GHE100SU-200NG Commercial Natural Gas Water Heater

1. Introducció

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Rheem Triton GHE100SU-200NG Commercial Natural Gas Water Heater. Please read this manual thoroughly before attempting any installation or operation. Retain this manual for future reference.

The Rheem Triton series is designed for commercial applications, offering advanced features for efficiency and reliability, including an integrated leak detection system and smart monitoring capabilities.

2. Informació de seguretat

ADVERTIMENT: La instal·lació, l'ajustament, l'alteració, el servei o el manteniment inadequats poden causar danys a la propietat, lesions o la mort. Llegiu atentament les instruccions d'instal·lació, funcionament i manteniment abans d'instal·lar o donar servei a aquest equip.

• All installation and service must be performed by a qualified professional.
• Assegureu-vos que la ventilació sigui adequada tal com s'especifica a les normes locals i en aquest manual.
• No emmagatzemeu ni utilitzeu gasolina o altres vapors i líquids inflamables a prop d'aquest o qualsevol altre aparell.
• Before performing any service or maintenance, disconnect all power to the unit and shut off the gas supply.
• This water heater operates with natural gas. Verify the gas type before installation.
• Regularly inspect for leaks and signs of corrosion.

3. Característiques del producte

The Rheem Triton GHE100SU-200NG Commercial Water Heater incorporates several advanced features for enhanced performance and ease of use:

• LeakSense Integrated Leak Detection System: Provides highly accurate leak detection, capable of identifying leaks as small as a grain of sand, with real-time alerts to prevent damage.
• EcoNet Monitoring Technology: Allows for performance updates and alerts to be sent via mobile devices, enabling remote monitoring and control.
• Full-Color LCD Display: Offers an intuitive interface for monitoring status, adjusting settings, and accessing diagnostic information.
• Built-in Condensate Neutralizer: Helps reduce the acidity of condensate water for safe drainage, protecting plumbing systems.
• Flexible Venting Options: Supports various PVC venting choices, simplifying installation and conversion from standard to high-efficiency gas systems.
• Multiple Water Connection Points: Designed for simplified and flexible installations, reducing the need for extensive water line rework.
• ASME-Grade Steel Patented Triple Pass Heat Exchanger: Maximizes efficiency and extends tank life.
• Full Modulation: Optimizes BTU input to match specific water heating demands, enhancing energy efficiency.

Figura 1: Frontal view of the Rheem Triton GHE100SU-200NG Commercial Natural Gas Water Heater, showing the LCD display and various connection points.

4. Configuració i instal·lació

IMPORTANT: Installation of this commercial water heater must be performed by a licensed and qualified professional in accordance with all local, state, and national codes and regulations.

1. Selecció del lloc: Choose a location that provides adequate clearance for maintenance, proper ventilation, and is protected from freezing temperatures. Ensure the floor can support the weight of the water heater when full.
2. Desembalatge: Carefully remove the water heater from its packaging. Inspect for any shipping damage.

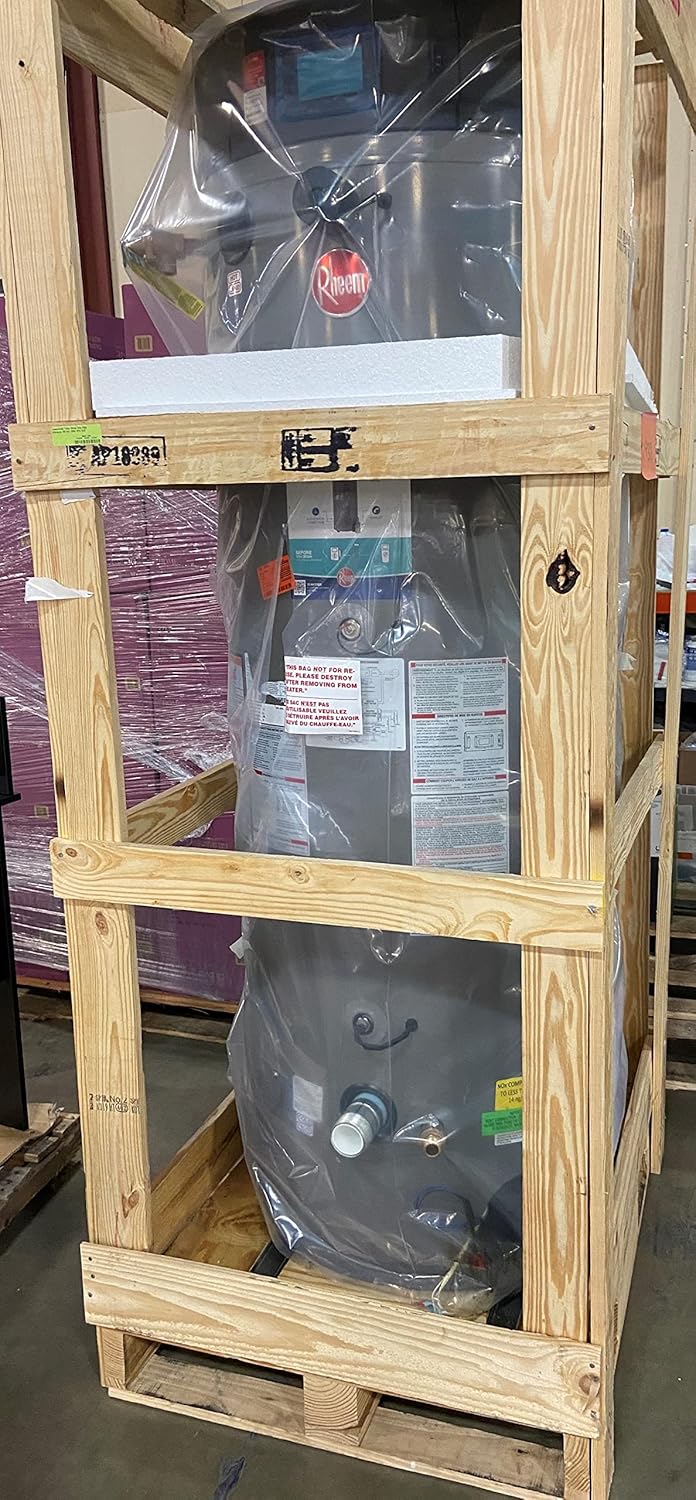

Figure 2: Rheem Triton Commercial Water Heater securely packaged within a wooden shipping crate.
3. Connexions d'aigua: Connect the cold water inlet and hot water outlet to the appropriate plumbing lines. The Triton features multiple 5 water connection points for installation flexibility.
4. Connexió de gas: Connect the natural gas supply line to the water heater's gas inlet. Ensure all gas connections are leak-tested by a qualified technician.
5. Ventilació: Install the venting system according to the manufacturer's instructions and local codes. The Triton supports various flexible PVC venting options.
6. Connexió elèctrica: Connect the water heater to the appropriate electrical supply as specified in the wiring diagram.
7. Desguàs de condensats: Connect the condensate drain line to an approved drainage system. The built-in neutralizer ensures safe disposal.
8. LeakSense Activation: Ensure the LeakSense system is properly connected and activated during commissioning.
9. System Fill and Purge: Fill the water heater with water and purge all air from the system before starting.

Figure 3: Dimensions of the Rheem Triton GHE100SU-200NG Commercial Water Heater, showing a height of 77 inches and a width of 26-3/16 inches.

5. Instruccions de funcionament

Once installed and commissioned by a qualified professional, operating the Rheem Triton GHE100SU-200NG is managed primarily through its integrated LCD display and EcoNet technology.

1. Encès: Ensure the electrical supply and gas supply are turned on. The unit's LCD display should illuminate.
2. Initial Setup (Professional Only): During initial startup, a qualified technician will configure settings such as desired water temperature, operating modes, and network connectivity for EcoNet.
3. Ajust de temperatura: Use the controls on the full-color LCD display to adjust the set water temperature. Refer to the on-screen menu for navigation.
4. Monitoring with EcoNet: Download the EcoNet app to your mobile device and connect it to your water heater (if configured during installation). This allows for remote monitoring of performance, energy usage, and receipt of alerts.
5. Indicadors d'estat: The LCD display will show current operating status, error codes (if any), and maintenance reminders.
6. Tancament: To shut down the unit, turn off the gas supply valve and then disconnect the electrical power.

6. Manteniment

Regular maintenance is crucial for the longevity and efficient operation of your Rheem Triton water heater. All maintenance should be performed by a qualified service technician.

• Inspecció anual: Schedule an annual inspection by a qualified technician to check all components, including the burner, heat exchanger, venting system, and safety devices.
• Buidat del tanc: Periodically flush the tank to remove sediment buildup. The frequency depends on water quality.
• Anode Rod Inspection/Replacement: Inspect and replace the anode rod as needed to protect the tank from corrosion.
• Prova de la vàlvula d'alleujament de pressió: Test the temperature and pressure relief (T&P) valve annually to ensure it is functioning correctly.
• Condensate Drain Cleaning: Clean the condensate drain line and trap regularly to prevent blockages.
• LeakSense System Check: Verify the functionality of the LeakSense system during routine maintenance.
• Preventive Maintenance Alerts: Pay attention to alerts from the EcoNet system or the LCD display, which may indicate upcoming maintenance needs.

7. Solució De Problemes

This section provides general troubleshooting guidance. For complex issues, contact a qualified service technician.

8. Especificacions

9. Garantia i Suport

For detailed warranty information, please refer to the warranty certificate included with your product or visit the official Rheem weblloc. Els termes i condicions de la garantia poden variar.

For technical support, service, or to locate a qualified Rheem service professional, please contact Rheem customer service or visit their official website. When contacting support, please have your model number (GHE100SU-200) and serial number ready.

Rheem Official Weblloc: www.rheem.com
