Manual d'usuari del projector d'exterior EGLO Faedo 3 LED

1. Instruccions de seguretat importants

Si us plau, llegiu atentament aquestes instruccions abans de la instal·lació i l'ús. Conserveu aquest manual per a futures consultes.

• Seguretat elèctrica: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure power is disconnected at the circuit breaker before installation or maintenance.
• Posada a terra: Aquest producte ha d'estar correctament connectat a terra per evitar descàrregues elèctriques.
• Classificació IP65: This fixture is rated IP65 for protection against dust and water jets. It is suitable for outdoor use. Do not submerge in water.
• Calor: The LED fixture may become warm during operation. Do not touch the fixture directly after prolonged use.
• Font de llum: The integrated LED light source is not replaceable. Do not attempt to open or modify the fixture.
• Neteja: Utilitzeu un suau, damp drap per netejar. No utilitzeu netejadors abrasius ni dissolvents.

2. Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar la instal·lació:

• EGLO Faedo 3 LED Outdoor Projector (1 unit)
• Suport de muntatge
• Cargols de muntatge i taps de paret
• Manual d'instruccions (aquest document)

Figure 2.1: EGLO Faedo 3 LED Outdoor Projector. This image shows the main product unit, a black rectangular LED floodlight with a white LED panel and an adjustable mounting bracket.

3. Producte acabatview i Dimensions

The EGLO Faedo 3 LED Outdoor Projector is a durable and energy-efficient lighting solution designed for outdoor environments. Its robust aluminum construction and IP65 rating ensure longevity and reliability.

Figure 3.1: Product Dimensions. The image illustrates the dimensions of the projector: Length (L) 130 mm / 5.12 inches, Height (H) 95 mm / 3.74 inches, and Depth (A) 30 mm / 1.18 inches.

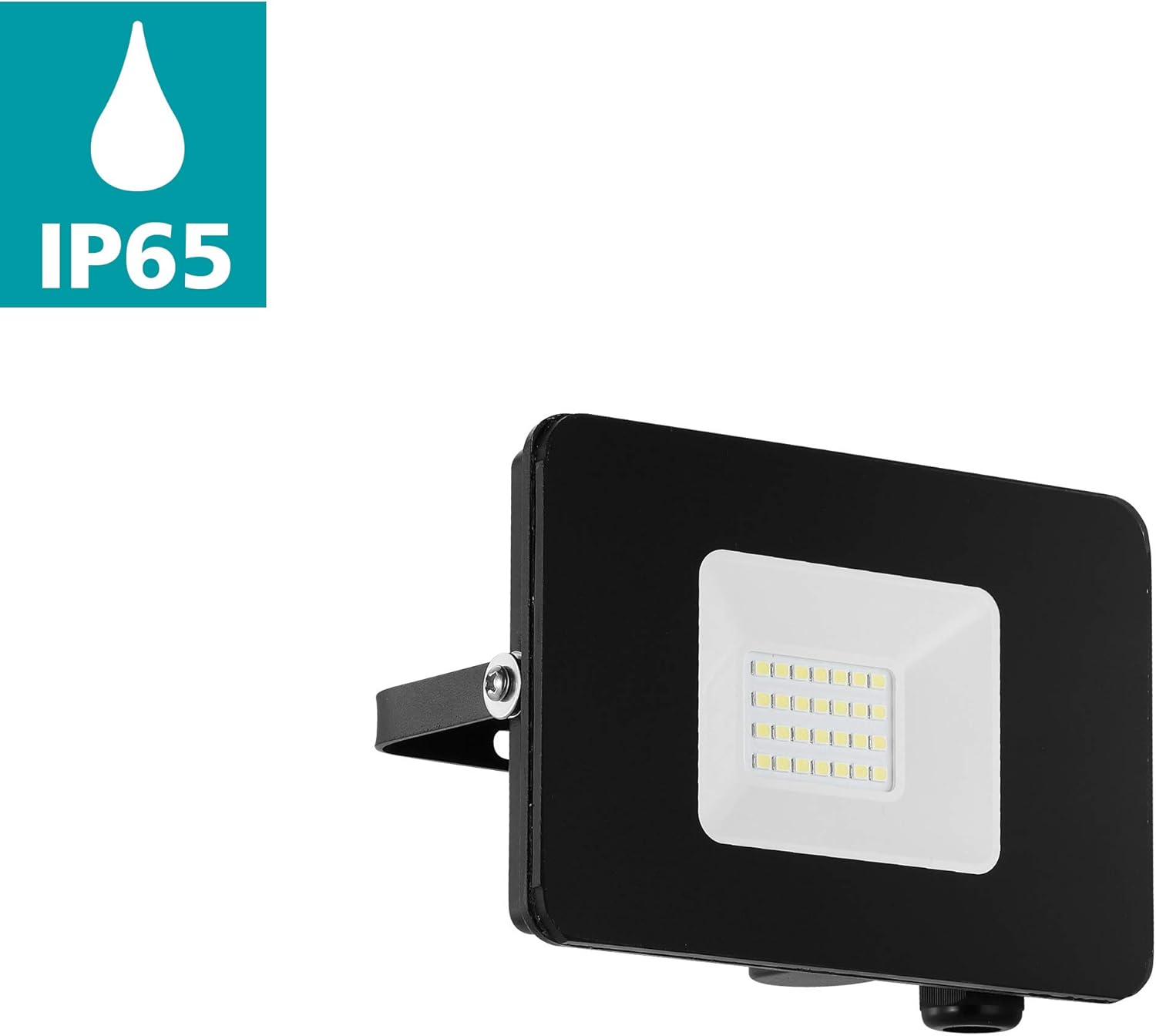

Figure 3.2: IP65 Protection Rating. This graphic highlights the IP65 rating, indicating the product's high resistance to dust ingress and protection against water jets from any direction, making it suitable for outdoor use.

4. Instal·lació

Abans de començar: Ensure the power supply is turned OFF at the main circuit breaker. Use appropriate personal protective equipment (PPE) such as safety glasses and gloves.

1. Tria la ubicació: Select a suitable outdoor location for mounting the projector, ensuring it is on a stable surface and provides the desired illumination area.
2. Marca els punts de perforació: Use the mounting bracket as a template to mark the drilling points on the wall or mounting surface.
3. Forats: Drill holes at the marked points using an appropriate drill bit for your wall material. Insert wall plugs if necessary.
4. Col·loqueu el suport de muntatge: Fixeu el suport de muntatge a la paret amb els cargols proporcionats. Assegureu-vos que estigui ben fixat.
5. Cablejat:
   • Connect the live wire (usually brown or red) from your power supply to the 'L' terminal on the fixture.
   • Connect the neutral wire (usually blue or black) from your power supply to the 'N' terminal on the fixture.
   • Connect the ground wire (usually green/yellow) from your power supply to the ground terminal (⚡) on the fixture.
   • Assegureu-vos que totes les connexions estiguin segures i aïllades correctament.
6. Fixació de muntatge: Attach the LED projector to the mounting bracket. Secure it with the provided screws or fasteners.
7. Ajust d'angle: Adjust the angle of the projector to direct the light as desired. Tighten the adjustment screws to fix the position.
8. Restaura l'alimentació: Un cop finalitzada la instal·lació i totes les connexions siguin segures, restableu l'alimentació a l'interruptor principal.

Figure 4.1: Installation Diagram. This diagram illustrates the steps for mounting the fixture, including detaching the mounting plate, marking drill holes, securing the plate, connecting electrical wires (Live, Neutral, Ground), and reattaching the fixture to the plate.

5. Funcionament

The EGLO Faedo 3 LED Outdoor Projector (Model 97456) is designed for straightforward operation.

• Encès/apagat: This model does not include an integrated switch. Operation is controlled by the external power switch connected to the fixture's circuit.
• Sortida de llum: The fixture provides a consistent 1800 lumens of light output at 20 Watts.
• No regulable: This LED projector is not dimmable. Do not connect it to a dimmer switch.

6. Manteniment

Regular maintenance ensures optimal performance and longevity of your EGLO Faedo 3 LED Outdoor Projector.

• Neteja:
  • Before cleaning, ensure the power supply to the fixture is turned OFF.
  • Netegeu l'exterior de l'aparell amb un drap suau iamp tela.
  • Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish or the glass.
• Inspecció: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any damage is observed, disconnect power and consult a qualified electrician.
• Font de llum LED: The LED light source is integrated and not user-replaceable. If the LEDs fail, the entire fixture must be replaced.

7. Solució De Problemes

If you encounter issues with your EGLO Faedo 3 LED Outdoor Projector, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact EGLO customer support.

8. Especificacions

9. Garantia i Suport

EGLO products are manufactured with high-quality materials and undergo strict quality control. For warranty information and customer support, please refer to the official EGLO weblloc web o poseu-vos en contacte amb el vostre distribuïdor local.

Per a més ajuda, podeu visitar el EGLO Brand Store on Amazon o contactar directament amb el venedor.
