1. Introducció
This manual provides essential information for the safe and effective use of the Rubi Tools DU-200 EVO 850 Tile Saw. This mobile head cutter is designed for precise cutting of ceramic and porcelain wall and floor tiles, suitable for renovation and light construction projects. It features foldable legs, wheels for portability, an external water tank, and an 8-inch CEV-SUPERPRO diamond blade.
Please read this manual thoroughly before operating the saw to ensure proper setup, safe operation, and optimal performance.
Figura 1: global view of the Rubi Tools DU-200 EVO 850 Tile Saw.
2. Informació de seguretat
AVÍS: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions greus o danys materials.
- Utilitzeu sempre l'equip de protecció individual (EPI) adequat, incloent-hi ulleres de seguretat, protecció auditiva i guants.
- Ensure the work area is well-lit, clean, and free of obstructions.
- Mantingueu els nens i els vianants allunyats de la serra en funcionament.
- Never operate the saw with damaged or missing guards.
- Ensure the saw is properly grounded and connected to a suitable power supply (120V, 60Hz).
- Do not operate the saw in wet conditions or expose it to rain.
- Always disconnect power before performing any adjustments, maintenance, or blade changes.
- Use only diamond blades specified for wet cutting of ceramic and porcelain tiles.
- Maintain a firm grip on the tile during cutting and keep hands clear of the blade path.
- Do not force the cut; allow the blade to cut at its own pace.
3. Components mésview
Familiarize yourself with the main components of your DU-200 EVO 850 Tile Saw:
- Muntatge del motor: Houses the motor and blade, mounted on sliding bearings for smooth operation.
- Diamond Blade: 8-inch (200 mm) CEV-SUPERPRO blade for cutting tiles.
- Cutting Table: The surface where tiles are placed for cutting.
- Foldable Legs: Provide stability during operation and fold for transport.
- Rodes: Facilitate easy movement of the saw.
- Dipòsit d'aigua extern: Supplies water for blade cooling and cleaning.
- C³ System: Enhances blade cooling and cleaning within the water tank.
- Adjustable Square: Allows for precise angle cuts from 0 to 45°.
- Lateral Stop: Used for consistent, repetitive cuts.
- Mànec ergonòmic: For comfortable transport.
Figura 2: Frontal view highlighting the water bucket and foldable legs.
Figure 3: Detail of the cutting head and diamond blade.
4. Configuració
Follow these steps to set up your tile saw for operation:
- Desembalatge: Carefully remove the saw and all components from the packaging. Inspect for any shipping damage.
- Muntatge de cames: Unfold the legs until they lock securely into position. Ensure all four legs are stable on a level surface.
- Fixació de la roda: If not already attached, secure the wheels to the designated points on the saw frame for easy mobility.
- Preparació del dipòsit d'aigua: Fill the external water tank with clean water. Ensure the water level is sufficient to cover the lower portion of the diamond blade during operation. Position the tank correctly to allow the C³ system to function.
- Comprovació de la fulla: Verify that the CEV-SUPERPRO diamond blade (8" / 200 mm) is securely installed and free from damage. The saw comes with the blade pre-installed.
- Connexió d'alimentació: Connect the power cable to a grounded 120V, 60Hz electrical outlet. Ensure the corrugated tube protects both the power cable and water pipe.
Figura 4: Part inferior view showing transport wheels and handle.
5. Instruccions de funcionament
Abans d'operar, assegureu-vos que enteneu i seguiu totes les precaucions de seguretat.
- Tile Preparation: Mark the desired cut line on the tile. Ensure the tile is clean and free of debris.
- Adjusting the Cutting Angle: For straight cuts, ensure the adjustable square is set to 0°. For mitre cuts, adjust the square to the desired angle between 0° and 45°. The motor assembly can also be folded for mitre cuts.
- Positioning the Tile: Place the tile firmly on the cutting table, aligning the marked cut line with the blade path. Use the lateral stop for repetitive cuts to ensure consistency.
- Inici de la serra: Turn on the saw. Allow the blade to reach full speed before beginning the cut.
- Fent el tall: Gently push the motor assembly forward, guiding the blade through the tile. Apply steady, even pressure. Do not force the blade. The water system will automatically cool and clean the blade during the cut.
- Completing the Cut: Continue pushing until the cut is complete. Once the cut is finished, retract the motor assembly to its starting position and turn off the saw. Wait for the blade to stop completely before removing the tile.

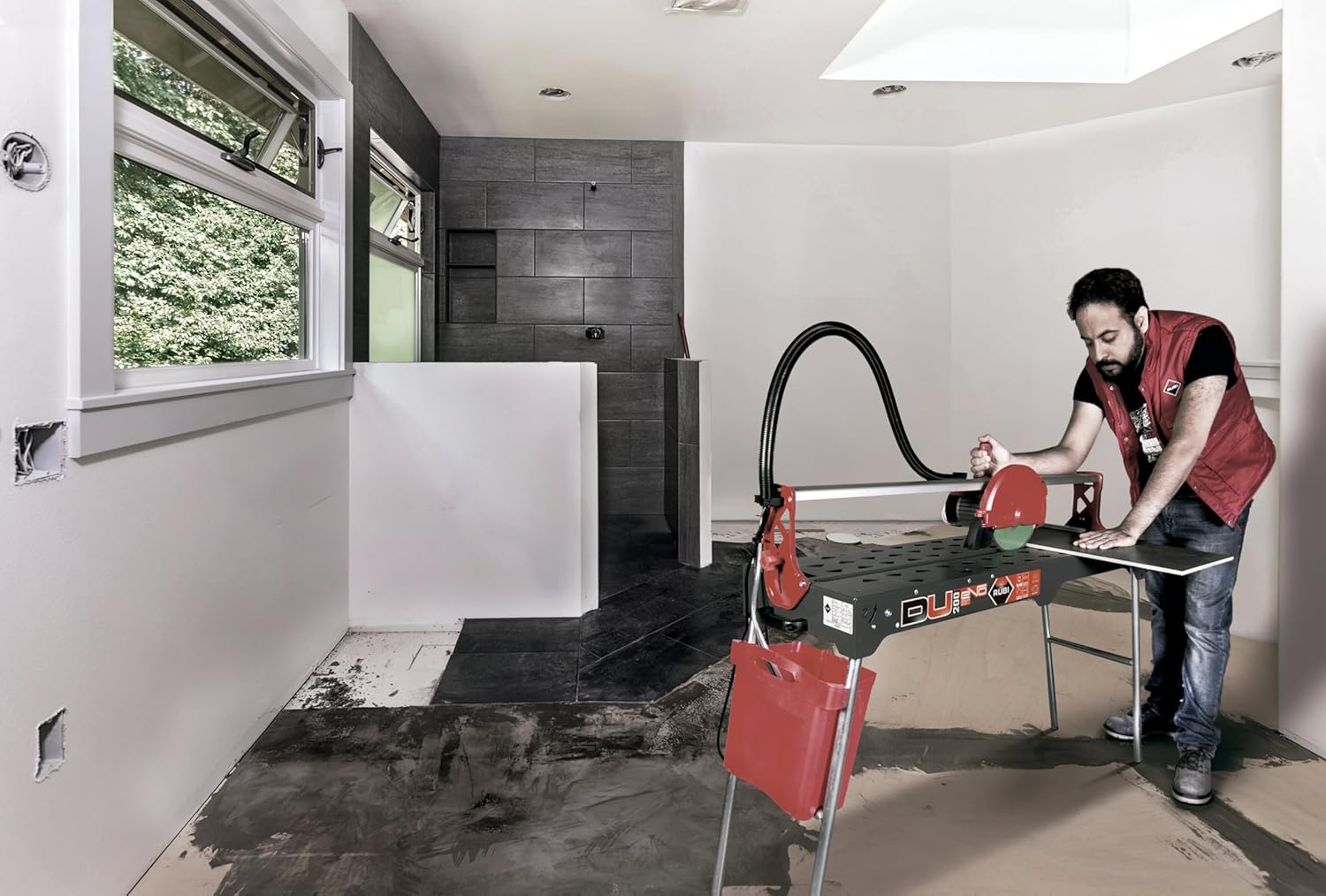

Figure 5: User demonstrating tile cutting with the saw.
Figura 6: Un altre view of the saw in use for tile installation.
6. Manteniment
Regular maintenance ensures the longevity and optimal performance of your tile saw.
- Després de cada ús:
- Desconnecteu la serra de l'alimentació.
- Empty and clean the external water tank to prevent sediment buildup and ensure proper function of the C³ system.
- Rinse the cutting table and motor assembly to remove tile dust and slurry.
- Wipe down the entire saw with a damp tela.
- Inspecció de la fulla: Regularly inspect the diamond blade for wear, cracks, or damage. A worn or damaged blade can affect cut quality and safety. Replace the blade as needed.
- Motor Assembly Rails: Keep the sliding bearings and rails clean and free of debris to ensure smooth movement of the motor assembly.
- Power Cable and Water Pipe: Periodically check the corrugated tube protecting the power cable and water pipe for any signs of wear or damage.
7. Solució De Problemes
This section addresses common issues you might encounter with your tile saw.
| Problema | Causa possible | Solució |
|---|---|---|
| Poor cut quality (chipping, rough edges) | Worn or incorrect blade; insufficient water flow; forcing the cut. | Replace blade with appropriate type; check water tank level and C³ system; reduce cutting speed. |
| Sobreescalfament del motor | Overloading the motor; insufficient ventilation; prolonged continuous use. | Reduce cutting pressure; ensure proper ventilation around motor; allow saw to cool periodically. |
| La fulla no gira | No power; motor fault; blade jammed. | Check power connection; inspect for obstructions around blade; contact service if motor fault suspected. |
| Flux d'aigua inconsistent | Low water level; clogged C³ system or pump; kinked water hose. | Refill water tank; clean C³ system and pump; straighten water hose. |
8. Especificacions
- Model: DU-200 EVO 850
- Número de peça: 54976
- Fabricant: Rubi Tools
- Voltage: 120 V
- Freqüència: 60 Hz
- Diàmetre de la fulla: 8 polzades (200 mm)
- Fulla inclosa: CEV-SUPERPRO Diamond Blade
- Cutting Angles: 0° to 45° (adjustable square)
- Característiques: Mobile head, foldable legs, wheels, external water tank, C³ system, direct drive motor with thermal protection, reinforced chassis.
- Ús previst: Cutting ceramic and porcelain wall and floor tiles for renovations and light works.
9. Garantia i Suport
The Rubi Tools DU-200 EVO 850 Tile Saw comes with a 2 any de garantia des de la data de compra, que cobreix els defectes de fabricació. Conserveu el comprovant de compra per a reclamacions de garantia.
For technical support, service, or warranty inquiries, please contact Rubi Tools customer service. Refer to the contact information provided with your product packaging or visit the official Rubi Tools weblloc d'assistència.
