Introducció
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your MEIKEE 7W Low Voltage Landscape Lighting. Please read this manual thoroughly before use and retain it for future reference.
Image: The MEIKEE 7W Low Voltage Landscape Lighting unit, featuring a black spotlight head, adjustable arm, ground stake, and coiled power cable with two wire connectors.
Característiques del producte
- Il·luminació blanca càlida: Emits 2700K warm white light with 800 lumens brightness.
- Volum baixtage Operació: Compatible with DC/AC 12-24V systems for enhanced safety.
- Construcció duradora: IP66 waterproof rating, heat, and frost resistant for outdoor use.
- Il·luminació ajustable: Features a 270° adjustable lamp head for precise light direction.
- Instal·lació versàtil: Can be installed as ground-inserted or wall-mounted.
Imatge: Un cop mésview of the product's key specifications, including 7W power, 12-24V AC/DC compatibility, 2700K warm white color temperature, 15 SMD LED chips, and a lifespan exceeding 50,000 hours.
Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- MEIKEE Landscape Light Unit
- Connectors de filferro
- Pica de terra
- Screw Pack (for wall mounting)
- Manual d'usuari
Configuració i instal·lació
Important: A low-voltage transformer and low-voltage wires are required for operation and are not included in this package.
1. Connexió dels cables
Follow these steps to connect the landscape light to your low-voltage wiring system using the provided connectors:
- Carefully divide the power cable of your low-voltage system into two halves.
- Insert one half of the power cable into the large cap of the connector.
- Screw the pin part of the connector into the large cap to pierce the power cable.
- Insert the light wire (from the MEIKEE unit) through the small cap of the connector.
- Screw the small cap into the joint of the connector.
- Gently pull on the wires to ensure they are securely connected and do not come out.
Image: A visual guide demonstrating the six steps for securely connecting the landscape light's wires to a low-voltage power cable using the included waterproof connectors.
2. Mètodes d'instal·lació
The MEIKEE landscape light offers two primary installation options:
Ground Inserted Installation
- Attach the ground spike to the base of the light unit.
- Insert the assembled light unit firmly into the desired location in the ground.
- Ajusteu l'angle de la lamp head to direct the light as needed.
- Connecteu-vos a l'alimentació i enceneu la llum.
Instal·lació de paret
- Fix the holder of the light unit to the desired wall surface.
- Punch holes in the wall at the marked positions.
- Secure the light unit using the provided screws.
- Connecteu-vos a l'alimentació i enceneu la llum.

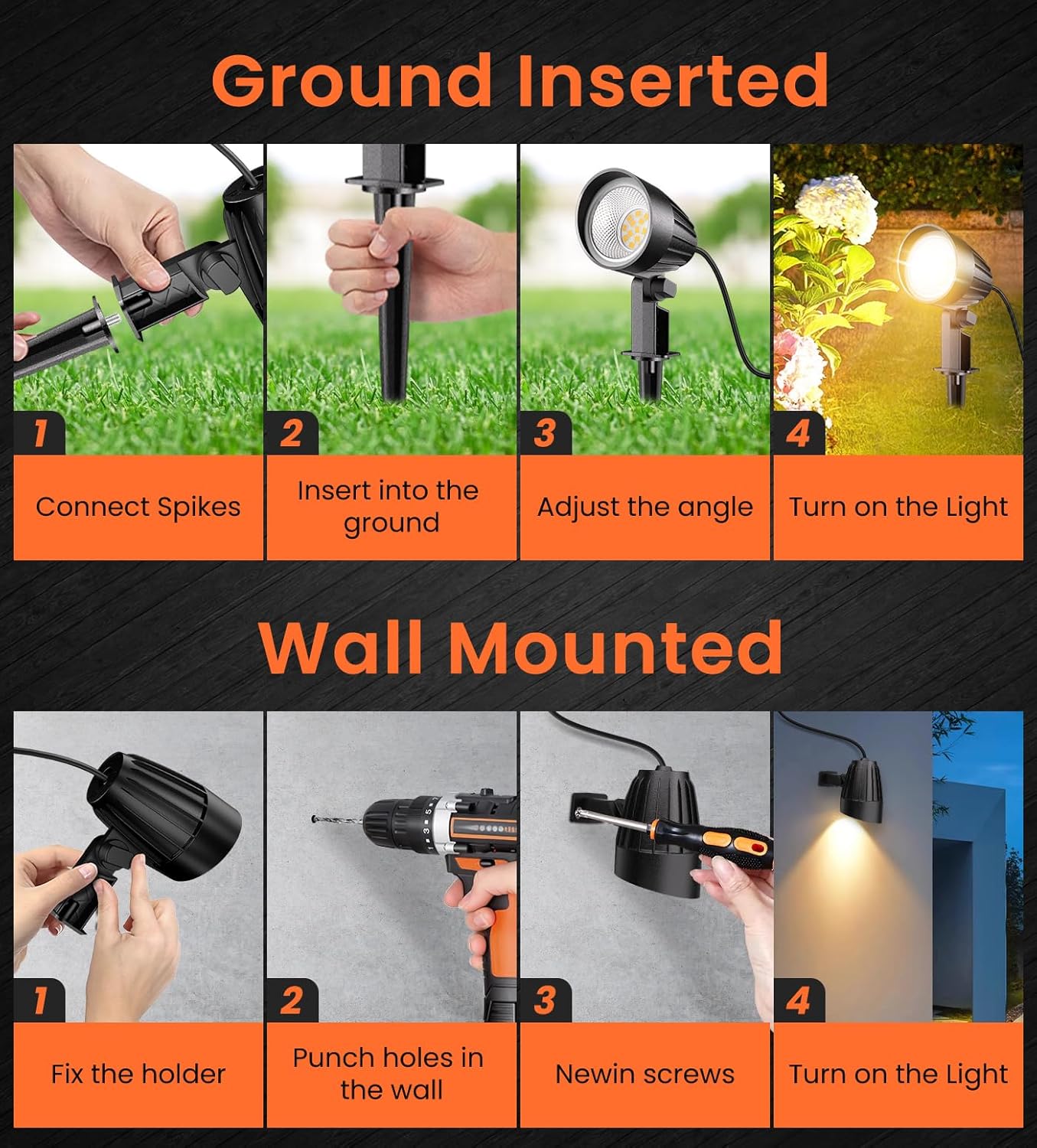

Image: A two-part diagram illustrating the four steps for ground-inserted installation (connecting spike, inserting into ground, adjusting angle, turning on) and the four steps for wall-mounted installation (fixing holder, punching holes, screwing, turning on).
Instruccions de funcionament
Once installed and connected to a compatible low-voltage power source, the MEIKEE landscape light operates automatically based on the power supply. There are no manual controls on the unit itself.
- Ajust de l'angle de llum: El lamp head can be rotated up to 270° vertically to direct the light beam precisely where needed. Loosen the adjustment knob on the side of the lamp head, position the light, and then tighten the knob to secure it.
- Sortida de llum: The unit provides a consistent 800 lumens of 2700K warm white light when powered.
Image: This image highlights the 270° rotational capability of the spotlight head and demonstrates the warm white (2700K) light output, suitable for various outdoor lighting needs.
Manteniment
The MEIKEE landscape light is designed for minimal maintenance due to its durable construction and LED technology.
- Neteja: Periodically wipe the lens and housing with a soft, damp cloth to remove dirt, dust, or debris that may accumulate and obstruct light output. Do not use abrasive cleaners or solvents.
- Resistència a la intempèrie: The IP66 waterproof rating ensures protection against dust and powerful water jets. The unit is also designed to be heat and frost resistant, operating effectively in temperatures ranging from -25°C to 40°C.
- Inspecció: Regularly inspect the power cables and connectors for any signs of damage or wear. Ensure all connections remain secure.
Image: This image illustrates the IP66 waterproof rating of the light, its operational temperature range (-25°C to 40°C), and its resistance to both heat and frost, making it suitable for diverse weather conditions.
Resolució de problemes
If you encounter issues with your MEIKEE landscape light, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | Sense energia a la unitat. Connexió de cablejat fluixa o incorrecta. Transformador defectuós. | Assegureu-vos el baix voltage transformer is powered on and functioning. Check all wire connections for tightness and correct polarity. Test the transformer with another low-voltage device if possible. |
| La llum parpelleja o és tènue. | Potència insuficient. Connexió fluixa. Voltage caiguda sobre llargs recorreguts de cable. | Verify the transformer output matches the light's requirements. Inspect and secure all wire connections. Consider using thicker gauge wire for longer runs or reducing the number of lights on the circuit. |
| Water inside the light housing. | Improper sealing during manufacturing (rare). Danys a la carcassa o a la lent. | While the product is IP66 rated, if water ingress occurs, discontinue use and contact customer support for assistance. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | MEIKEE |
| Número de model | DSTA07 |
| Poder | 7 watts |
| Voltage | DC/AC 12-24 Volts |
| Brillantor | 800 lúmens |
| Temperatura de color | 2700K blanc càlid |
| Tipus de font de llum | LED (SMD Chips) |
| Material | Alumini, Policarbonat |
| Nivell de resistència a l'aigua | Impermeable IP66 |
| Ajustabilitat | L ajustable a 270°amp Cap |
| Tipus d'instal·lació | Ground Inserted / Wall Mounted |
| Dimensions del producte | 2.8 cm de llargada x 2.8 cm d'amplada x 6.77 cm d'alçada |
| Pes de l'article | 9.1 unces |
Image: A detailed diagram showing the dimensions of the MEIKEE landscape light (70mm/2.75in width, 255mm/10in height) and highlighting key components such as the polycarbonate snap-on lamp head, upgraded SMD beads and reflector, 270° rotatable lamp head, detachable spike, and convenient connectors.
Garantia i Suport
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official MEIKEE weblloc web. Conserveu el rebut de compra com a comprovant de compra.
