Manual d'instruccions

1. Introducció

This manual provides essential information for the proper use, setup, operation, and maintenance of your ZEISS Conquest V4 3-12x56 Riflescope. Please read this manual thoroughly before using the product to ensure optimal performance and safety.

The ZEISS Conquest V4 3-12x56 Riflescope is engineered for precision and reliability, featuring a 4x zoom range and a large 56mm objective lens for excellent light gathering capabilities. It is equipped with an illuminated Plex Reticle (#60) and capped elevation turret, designed for demanding hunting conditions.

Característiques principals:

• 90% Light Transmission: High-definition glass ensures superior light transmission for bright, clear images, especially in low-light conditions.
• ZEISS T* Coating: Proprietary multi-layer coating on all lenses guarantees brilliant, high-contrast images and optimal clarity.
• LotuTec Coating: Hydrophobic coating on external lens surfaces repels water and dirt, providing a clear view en totes les condicions meteorològiques.
• 4x Zoom Range: Versatile magnification range from 3x to 12x for various shooting distances.
• Illuminated Reticle #60: Fine, illuminated dot for precise aiming, suitable for both day and night hunting.
• Capped Elevation Turret: Protects settings from accidental adjustments.
• Fixed Parallax: Optimized for typical hunting distances.

2. Producte acabatview

Familiarize yourself with the main components of your ZEISS Conquest V4 3-12x56 Riflescope.

Figura 1: superior view of the ZEISS Conquest V4 3-12x56 Riflescope. This image highlights the overall sleek design, the magnification ring near the ocular, and the elevation and windage turrets centrally located on the main tube.

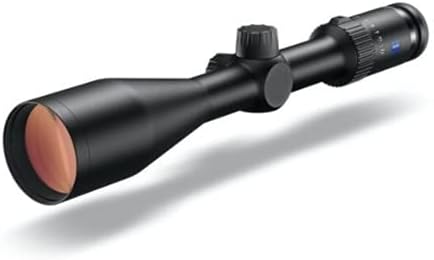

Figura 2: Angle view of the riflescope, showcasing the large 56mm objective lens which is crucial for light gathering and bright images. The image also provides a perspective on the scope's durable build.

Figura 3: lateral view of the riflescope, illustrating the magnification adjustment ring with clear markings and the diopter adjustment on the ocular end for sharp reticle focus.

3. Configuració

3.1 Muntatge de la mira telescòpica

Proper mounting is crucial for accuracy and consistent performance. Use high-quality rings and bases compatible with your rifle and the riflescope's main tube diameter. Ensure the scope is level and eye relief is set correctly for your shooting position.

1. Secure the bases to your rifle according to the manufacturer's instructions.
2. Place the lower halves of the rings onto the bases.
3. Position the riflescope in the lower rings, ensuring the reticle is level.
4. Place the upper halves of the rings and tighten the screws evenly, following the torque specifications provided by the ring manufacturer. Do not overtighten.
5. Adjust the eye relief by sliding the scope forward or backward until you achieve a full, clear field of view without any black crescent shadows.

3.2 Battery Installation for Illuminated Reticle

The illuminated reticle requires a CR2032 coin cell battery. The battery compartment is typically located on the illumination control turret.

1. Unscrew the battery cap on the illumination control turret.
2. Insert a fresh CR2032 battery with the positive (+) side facing outwards (towards the cap).
3. Carefully screw the battery cap back on, ensuring it is finger-tight to maintain the waterproof seal.

4. Funcionament

4.1 Ajust d'ampliació

The magnification ring is located near the ocular lens. Rotate this ring to adjust the magnification from 3x to 12x. The numbers on the ring indicate the current magnification setting.

4.2 Ús de la retícula il·luminada

The illumination control is integrated into the parallax turret (if applicable) or a dedicated turret. Rotate the illumination control to turn the reticle illumination on and adjust its brightness. The #60 reticle features a fine illuminated dot for precise aiming.

• Rotate the illumination dial clockwise to increase brightness.
• Rotate counter-clockwise to decrease brightness and turn off the illumination.
• Intermediate "off" positions may be present between brightness settings to quickly turn off the illumination without returning to the lowest setting.

4.3 Elevation and Windage Adjustment

The ZEISS Conquest V4 3-12x56 features a capped elevation turret and a windage turret for precise point of impact adjustments. Each click of the turret adjusts the point of impact by 0.25 MOA.

1. Torreta d'elevació: Unscrew the cap on the top turret. Rotate the turret clockwise to move the point of impact down, and counter-clockwise to move it up.
2. Torreta de vent: Unscrew the cap on the right-side turret. Rotate the turret clockwise to move the point of impact right, and counter-clockwise to move it left.
3. After making adjustments, replace the turret caps to protect the settings.

4.4 Parallax Adjustment

The ZEISS Conquest V4 3-12x56 Riflescope features a fixed parallax setting, optimized for typical hunting distances. Therefore, no manual parallax adjustment is required or available on this model.

5. Manteniment

5.1 Neteja de les lents

Always use a soft, clean microfiber cloth specifically designed for optics. Avoid using harsh chemicals or abrasive materials.

1. Gently brush off any loose dust or debris from the lens surfaces using a soft lens brush or compressed air.
2. If necessary, apply a small amount of optical cleaning solution to a clean microfiber cloth (never directly to the lens).
3. Wipe the lens surface gently in a circular motion from the center outwards.
4. For the LotuTec coating, water droplets will bead up and can be easily wiped away.

5.2 Cures generals i emmagatzematge

• Keep the riflescope protected from extreme temperatures and humidity.
• Store the riflescope in a dry, cool place, preferably in its original packaging or a protective case.
• Ensure lens caps are in place when not in use to prevent dust and scratches.
• Remove the battery if the riflescope will not be used for an extended period to prevent corrosion.

6. Solució De Problemes

7. Especificacions

8. Garantia i Suport

ZEISS products are manufactured to the highest quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official ZEISS weblloc.

For technical assistance, service, or warranty claims, please contact ZEISS customer support. Keep your purchase receipt and product serial number readily available when contacting support.

Note: This manual provides general guidance. Always refer to the specific documentation provided with your product for the most accurate and up-to-date information.
