Geko G02140 Vehicle Positioning Hydraulic Jack User Manual

1. Introducció

Thank you for choosing the Geko G02140 Vehicle Positioning Hydraulic Jack. This manual contains important information regarding the safe operation, maintenance, and troubleshooting of your new equipment. Please read this manual thoroughly before use to ensure proper function and to prevent injury or damage.

The Geko G02140 is designed for positioning vehicles in workshops or garages, allowing for easy movement and rotation of a vehicle without starting the engine. It features robust construction for durability and reliable performance.

2. Informació de seguretat

AVÍS: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions greus o danys materials.

• Utilitzeu sempre l'equip de protecció individual adequat, incloent-hi ulleres i guants de seguretat.
• Assegureu-vos que la zona de treball estigui neta, ben il·luminada i lliure d'obstacles.
• No supereu la capacitat de càrrega màxima de 680.4 kg (1500 lliures).
• Use the jack only on a hard, level, and stable surface. Avoid uneven ground or slopes.
• Never work under a vehicle supported only by a jack. Always use appropriate jack stands.
• Mantingueu les mans i els peus allunyats de les peces mòbils durant el funcionament.
• Do not modify the jack in any way. Use only original replacement parts if repairs are necessary.
• Store the jack in a dry, secure location away from children and unauthorized users.
• Inspect the jack for damage or wear before each use. Do not use if damaged.

3. Contingut del paquet

En desembalar-lo, comproveu que tots els components siguin presents i no estiguin danyats:

• 1 x Geko G02140 Vehicle Positioning Hydraulic Jack
• 1 x Manual d'usuari (aquest document)

Si falta alguna peça o està danyada, poseu-vos en contacte amb el vostre proveïdor immediatament.

4. Configuració

The Geko G02140 jack typically comes pre-assembled. Follow these steps for initial setup:

1. Desembalatge: Carefully remove the jack from its packaging. Retain packaging for future storage or transport.
2. Inspecció: Visually inspect the jack for any signs of shipping damage, loose components, or hydraulic fluid leaks.
3. Bleeding the Hydraulic System (if necessary): If the jack does not operate smoothly or lifts unevenly, it may be necessary to bleed air from the hydraulic system. Consult the troubleshooting section for detailed instructions.
4. Familiarització: Identify the lifting arm, release valve, and foot pedal/pump handle.

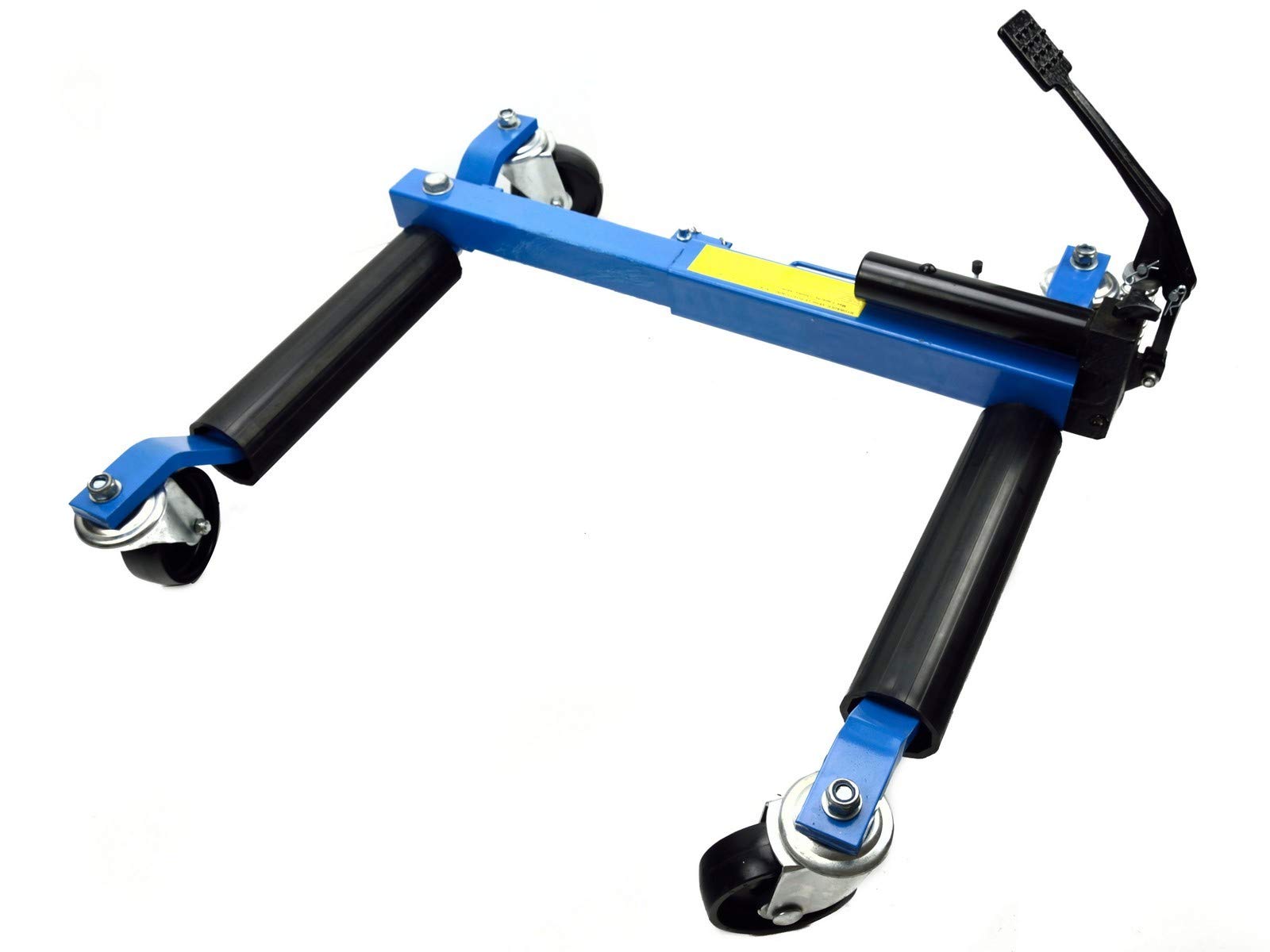

Figure 1: Geko G02140 Vehicle Positioning Hydraulic Jack. This image shows the overall design of the jack, including its wheels, lifting arms, and hydraulic mechanism.

5. Instruccions de funcionament

Follow these steps to safely use the Geko G02140 Vehicle Positioning Hydraulic Jack:

1. Preparar el vehicle: Ensure the vehicle is on a flat, stable surface. Engage the parking brake and block the wheels that will not be lifted.
2. Col·loca el Jack: Roll the jack to the desired wheel. The lifting arms should be positioned around the tire, ensuring a secure grip.
3. Close the Release Valve: Turn the release valve clockwise until it is fully closed. This will allow the jack to lift.
4. Aixecar el vehicle: Operate the foot pedal or pump handle to raise the lifting arms. Continue pumping until the wheel is fully off the ground and the vehicle is securely supported. Ensure the vehicle is stable before proceeding.
5. Posicionar el vehicle: Once the wheel is lifted, the jack's swivel casters allow for easy movement and rotation of the vehicle.
6. Baixar el vehicle: To lower the vehicle, slowly turn the release valve counter-clockwise. The vehicle will descend gradually. Do not open the valve too quickly.
7. Treure el Jack: Once the vehicle is fully lowered and stable on the ground, remove the jack.

CAUTION: Always ensure the vehicle is balanced and stable during lifting and lowering operations. Never leave a lifted vehicle unattended.

6. Manteniment

Un manteniment regular garanteix la longevitat i el funcionament segur del vostre gat hidràulic.

• Neteja: Keep the jack clean and free from dirt, grease, and corrosive materials. Wipe down surfaces with a clean cloth after each use.
• Lubricació: Lubriqueu periòdicament tots els punts de pivot i les peces mòbils amb oli de màquina lleuger.
• Fluid hidràulic: Check the hydraulic fluid level regularly. If the level is low, replenish with a high-quality hydraulic jack oil. Do not use brake fluid or other types of oil, as this can damage the seals.
• Inspecció: Before each use, inspect the jack for any signs of damage, wear, or leaks. Pay close attention to welds, casters, and hydraulic hoses.
• Emmagatzematge: Store the jack in a dry, protected area when not in use. Lower the lifting arms completely before storage.

7. Solució De Problemes

For issues not listed above or if solutions do not resolve the problem, contact qualified service personnel.

8. Especificacions

9. Garantia i Suport

Information regarding specific warranty terms for the Geko G02140 Vehicle Positioning Hydraulic Jack is not provided in this manual. For warranty claims, technical support, or inquiries about spare parts, please contact your retailer or the manufacturer directly.

Please retain your proof of purchase for any warranty-related requests.
