Manual d'usuari del quadricòpter DJI Mavic 2 Zoom

1. Producte acabatview

The DJI Mavic 2 Zoom is a high-performance drone quadcopter equipped with an optical zoom camera, a 3-axis gimbal for stable footage, and advanced flight features. Designed for dynamic perspectives, it offers exceptional image and video quality.

Figure 1: DJI Mavic 2 Zoom Drone (unfolded, front view). This image displays the drone in its ready-to-fly configuration, highlighting the camera and propeller arms.

Característiques principals:

• Optical Zoom Camera: Features a 1/2.3-inch 12MP sensor with up to 4x zoom, including a 2x optical zoom (24–48 mm).
• Gimbal de 3 eixos: Ensures steady and smooth shots during flight.
• Vídeo 4K: Records high-resolution video at 3840×2160 24/25/30p.
• Flight Performance: Up to 31 minutes flight time and 44 mph max speed.
• Advanced Sensing: Omnidirectional Obstacle Sensing for enhanced flight safety.
• Modes de vol intel·ligents: Includes ActiveTrack 2.0, Hyperlapse, and Dolly Zoom.

2. Configuració i preparació

2.1 Desplegament de l'aeronau

To prepare the Mavic 2 Zoom for flight, carefully unfold the propeller arms. The front arms unfold first, followed by the rear arms. Ensure all arms are securely locked into position.

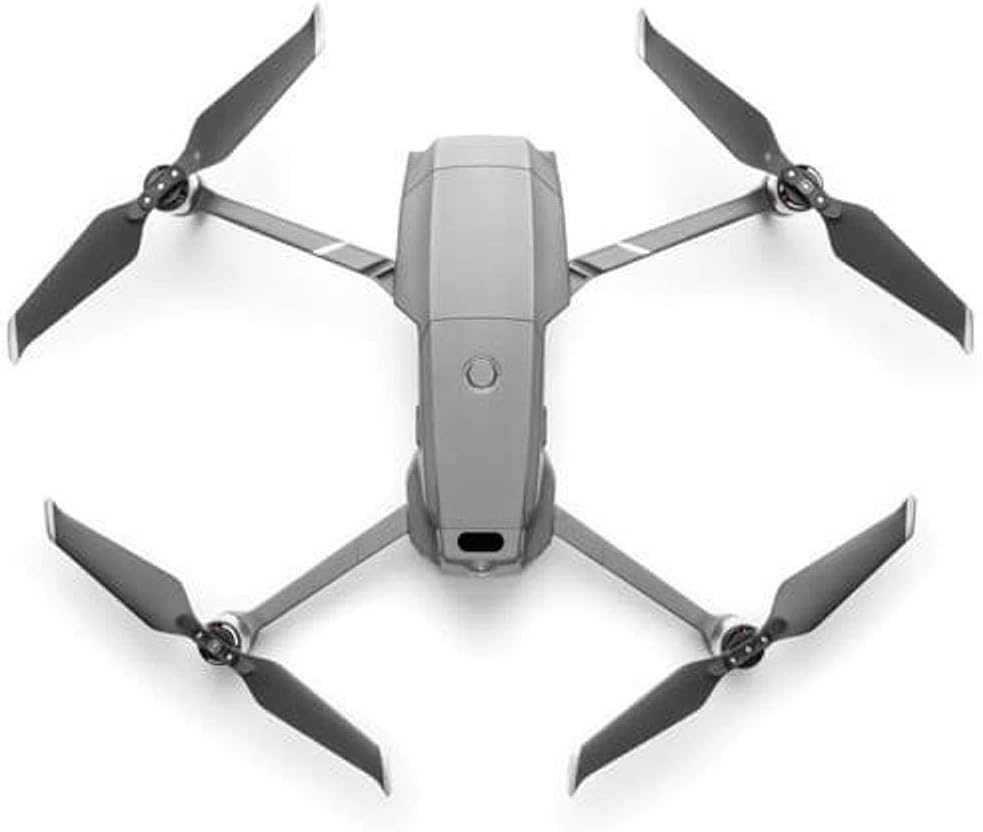

Figure 2: DJI Mavic 2 Zoom Drone (unfolded, top view). Això view shows the drone fully unfolded and ready for propeller attachment or flight.

2.2 Instal·lació i càrrega de la bateria

The Intelligent Flight Battery slides into the top compartment of the drone. Ensure it clicks securely into place. To charge, use the provided battery charger and power cable. The standard remote controller also has a built-in battery that offers up to 135 minutes of battery life on a full charge.

2.3 Configuració del comandament a distància

The standard remote controller connects to your smartphone via an RC cable (Lightning, Micro USB, or USB Type-C, all included). Download and install the DJI GO 4 App on your smartphone (requires iOS 10.0.2, Android 5.0 or above). Some versions of the Mavic 2 Zoom may come with a Smart Controller, which features an integrated screen, eliminating the need for a separate smartphone.

3. Funcionament del dron

3.1 Controls bàsics de vol

Once the drone is unfolded, batteries are charged, and the controller is connected to the DJI GO 4 App, you are ready for flight. The app provides a live feed from the drone's camera and displays important flight information. Take-off and landing can be initiated via the app or specific controller commands.

3.2 Modes de vol

• Mode normal: Standard flight mode with all safety features and obstacle sensing active.
• Mode esportiu: Disables some obstacle sensing for increased speed and agility. Use with caution.
• Mode trípode: Limits flight speed and control sensitivity for precise movements and stable shots.

3.3 Funcionament de la càmera

The Mavic 2 Zoom's camera features a 2x optical zoom (24-48mm equivalent) and can capture 12MP photos and 4K video. The 3-axis gimbal ensures stable footage. Zoom and gimbal tilt can be controlled via dedicated wheels/buttons on the remote controller.

3.4 Funcions de vol intel·ligents

• ActiveTrack 2.0: Advanced subject tracking that can predict subject movement.
• Hiperlapse: Crea vídeos a intervals impressionants amb diversos submodes (Lliure, Cercle, Bloqueig de curs, Punt de referència).
• Dolly Zoom: A cinematic effect where the camera zooms in while the drone flies backward, creating a disorienting visual.
• Detecció d'obstacles omnidireccional: Detects obstacles in all directions (forward, backward, downward, upward, and sideways) to enhance flight safety. Side sensing is available in ActiveTrack and Tripod modes.

4. Manteniment

Regular maintenance ensures the longevity and optimal performance of your DJI Mavic 2 Zoom.

• Hèlixs: Inspect propellers before each flight for any cracks, bends, or damage. Replace damaged propellers immediately using the spare propellers provided.
• Cura de la bateria: Store batteries in a cool, dry place. Do not overcharge or fully discharge batteries. Follow charging guidelines in the DJI GO 4 App.
• Gimbal i càmera: Keep the gimbal and camera lens clean and free from dust or debris. Use a soft, dry cloth for cleaning.
• Actualitzacions de firmware: Regularly check for and install firmware updates via the DJI GO 4 App to ensure optimal performance and access to new features.

5. Solució De Problemes

• Pèrdua de senyal: If the drone loses connection with the remote controller, it will automatically initiate Return to Home (RTH) and fly back to its recorded home point.
• Problemes de detecció d'obstacles: Obstacle sensing may be affected when flying low over water due to reflections. Exercise caution in such environments.
• Avís de bateria baixa: The remote controller will provide audible and visual warnings when the drone's battery is low, prompting an automatic RTH if not manually overridden.

6. Especificacions

7. Garantia i Suport

Per obtenir informació detallada sobre la garantia i assistència tècnica, consulteu la pàgina oficial de DJI. weblloc web o poseu-vos en contacte amb el servei d'atenció al client de DJI. Conserveu el comprovant de compra per a reclamacions de garantia.
