DoHonest S23 Wireless Backup Camera System

1. Introducció

Thank you for choosing the DoHonest S23 Wireless Backup Camera System. This manual provides essential information for the proper installation, operation, and maintenance of your new device. Please read it thoroughly before use to ensure optimal performance and safety.

This system is designed to enhance your driving safety by providing a clear, wide-angle view of the area behind your vehicle. Its digital wireless technology ensures a stable signal, making it suitable for various vehicle types including cars, trucks, minivans, SUVs, and small RVs.

2. Contingut del paquet

Verify that all items listed below are included in your package. If any items are missing or damaged, please contact DoHonest customer support.

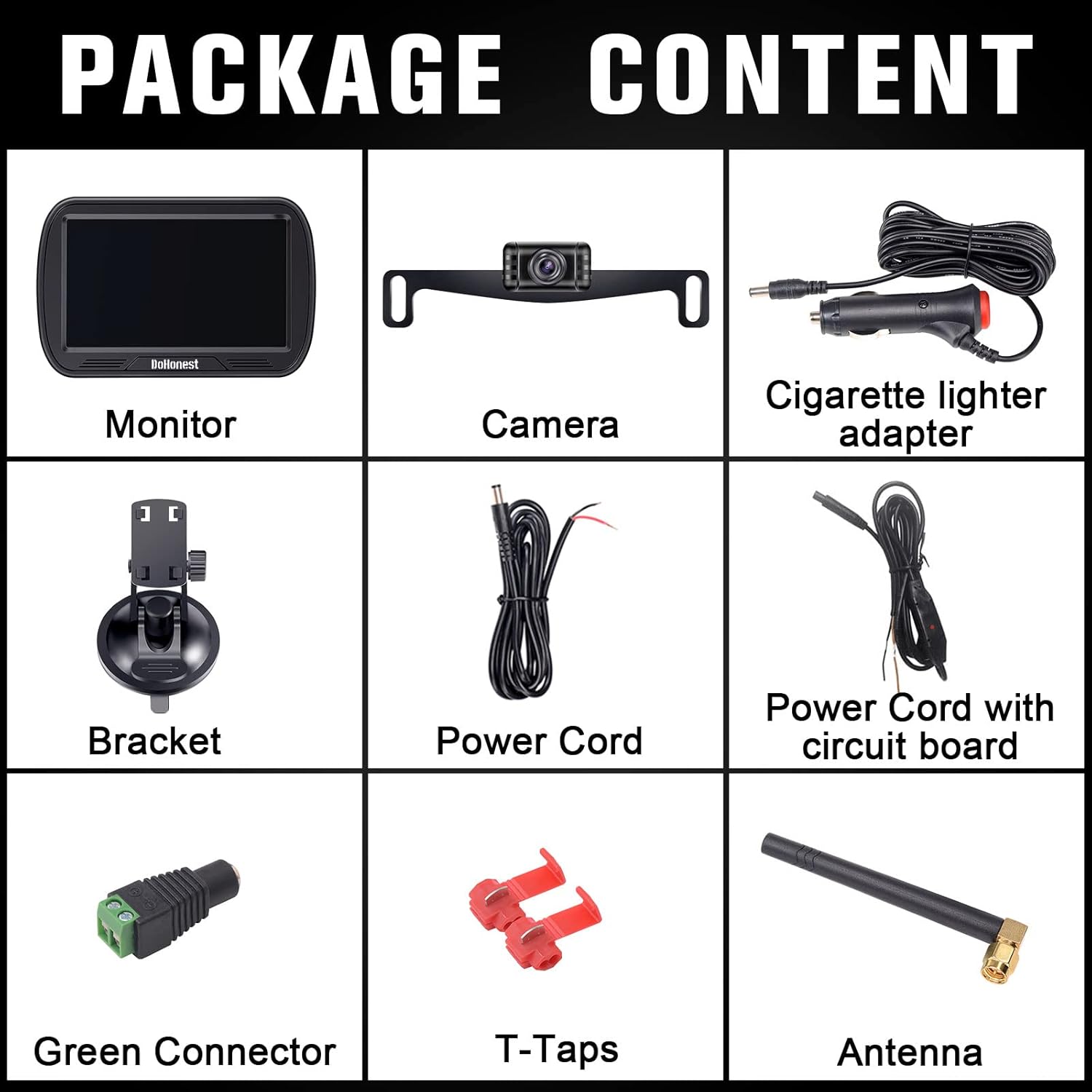

• Monitor HD de 5 polzades
• Càmera de marxa enrere sense fil (muntatge a matrícula)
• Adaptador per encenedor de cigarrets
• Monitor Bracket (Suction Cup Mount)
• Power Cord for Monitor
• Power Cord with Circuit Board for Camera
• Green Connector
• T-Taps (2x)
• Antenna (2x, one for monitor, one for camera)

3. Característiques del producte

• HD 1080P Resolution: Provides clear and sharp images for enhanced visibility.
• 5-inch Split Screen Monitor: Allows for simultaneous display from two camera channels (second camera not included).
• Lent gran angular de 150°: Ofereix un ampli camp de view per minimitzar els punts cecs.
• Visió nocturna: Equipped with LED lights for improved visibility in low-light conditions.
• Stable Digital Wireless Signal: Ensures reliable video transmission without interference.
• Càmera impermeable IP69K: Designed to withstand harsh weather conditions and high-pressure washing.
• Adjustable Guide Lines: Customizable parking guide lines for precise maneuvering.
• Image Flip Function: Allows for mirror or normal image display.
• Vol. Amplitage Compatibilitat: Admet sistemes elèctrics de vehicles de 12V-35V.

4. Guia d'instal·lació

4.1 Instal·lació de la càmera

1. Muntatge: The camera is designed for license plate mounting. Secure it using your vehicle's existing license plate screws.
2. Connexió d'alimentació: Connect the camera's power cord (with circuit board) to your vehicle's reverse light wiring. Use the provided T-taps for a secure connection. The red wire connects to the positive (+) lead of the reverse light, and the black wire connects to a ground (-) point.
3. Antena: Attach the antenna securely to the camera unit.

4.2 Instal·lació del monitor

1. Muntatge: Attach the suction cup bracket to your desired location on the dashboard or windshield. Ensure the surface is clean and dry for a strong hold.
2. Connexió d'alimentació: Plug the cigarette lighter adapter into your vehicle's 12V power outlet. Connect the monitor's power cord to the adapter.
3. Antena: Attach the antenna securely to the monitor unit.

4.3 Video Installation Guides

For a visual step-by-step installation, please refer to the official seller video:

5. Instruccions de funcionament

5.1 Engegada/apagada

The monitor will automatically power on when the camera receives power (e.g., when the vehicle is shifted into reverse, if wired to the reverse light). To manually power on/off, use the power button on the monitor.

5.2 Ajustar la configuració

Use the buttons on the monitor to navigate the menu and adjust settings such as:

• Brightness/Contrast/Hue: Optimize the display for different lighting conditions.
• Flip de la imatge: Change the image orientation (mirror/normal) as needed.
• Guide Lines: Enable/disable or adjust the width and height of the parking guide lines.
• Pantalla dividida: If a second camera is connected, select split-screen mode to view both feeds simultaneously.

6. Manteniment

• Neteja: Netegeu regularment la lent de la càmera i la pantalla del monitor amb un drap suau i sec.amp cloth. Avoid abrasive cleaners that could scratch the surfaces.
• Inspecció del cable: Periodically check all cables and connections for any signs of wear, damage, or loose connections.
• Seguretat de muntatge: Ensure the monitor mount and camera are securely fastened to prevent dislodgement during driving.
• Protecció meteorològica: While the camera is waterproof, extreme weather conditions (e.g., heavy snow, ice) may temporarily affect performance. Clear any obstructions from the lens.

7. Solució De Problemes

If you encounter any issues with your DoHonest S23 system, please refer to the following common troubleshooting steps:

• Sense imatge al monitor:
  • Check all power connections to both the camera and monitor. Ensure they are securely plugged in and receiving power.
  • Verify the camera is properly paired with the monitor. Refer to the pairing instructions in the full manual if needed.
  • Ensure the vehicle is in reverse (if wired to reverse lights).
• Imatge parpellejant/inestable:
  • Check for any potential sources of interference (e.g., other wireless devices, strong electromagnetic fields).
  • Ensure both antennas are securely attached and positioned for optimal signal reception.
  • Verify the power supply is stable and sufficient.
• Image is Upside Down/Reversed:
  • Access the monitor settings and use the "Image Flip" function to correct the orientation.
• Guide Lines Incorrect:
  • Adjust the guide line settings (width, height, on/off) through the monitor menu.

If these steps do not resolve the issue, please contact DoHonest customer support for further assistance.

8. Especificacions

9. Garantia i Suport

DoHonest products come with a standard manufacturer's warranty. For specific warranty details, product registration, or technical support, please visit the official DoHonest website or contact their customer service directly. Please have your product model number (S23) and purchase information ready when contacting support.

Driving Safety, Enjoy Life!
