Honda EU2200 Generator Maintenance Kit User Manual

1. Introducció

This user manual provides essential information and step-by-step instructions for performing routine maintenance on your Honda EU2200 Generator using the Honda EU2200 Generator Maintenance Kit. Regular maintenance is crucial for ensuring the longevity, efficiency, and reliable operation of your generator. This kit includes genuine Honda parts specifically designed for your EU2200 model.

2. Contingut del kit

Your Honda EU2200 Generator Maintenance Kit contains the following genuine Honda components:

• (1) 08207-10W30 Honda 10W-30 Oil: Specifically formulated for Honda power equipment engines, providing optimal lubrication and protection.
• (1) 17211-Z07-000 Honda Air Filter Element: Designed to protect your engine from dust and debris, ensuring clean air intake for efficient combustion.
• (1) 98056-55777 Honda Spark Plug: Essential for reliable engine ignition and efficient fuel burning.

Honda 10W-30 Genuine Oil: A 32 fl oz (1 quart) bottle of Honda SAE 10W-30 Genuine Oil, suitable for gasoline engines, ensuring proper lubrication and engine health.

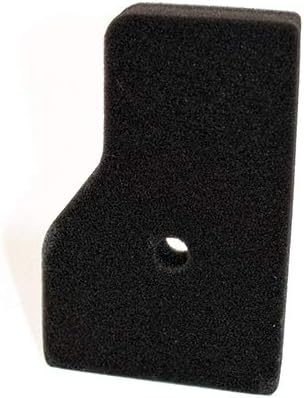

Honda Air Filter Element: A black foam air filter element, part number 17211-Z07-000, designed to fit the Honda EU2200 generator, ensuring clean air intake.

Honda Spark Plug: A genuine Honda spark plug, part number 98056-55777, crucial for reliable engine ignition and efficient fuel combustion.

3. Configuració i preparació

Before beginning any maintenance, ensure your generator is turned off, cooled down, and disconnected from any power sources. Always refer to your generator's owner's manual for specific safety precautions and detailed instructions.

1. Col·loqueu el generador sobre una superfície plana i plana.
2. Gather necessary tools, such as a wrench for the drain plug, a spark plug wrench, and a funnel.
3. Ensure you have a suitable container to collect used oil.

4. Procediments de manteniment

4.1. Canvi d'oli

Regular oil changes are vital for engine health. Replace the oil according to your generator's maintenance schedule, typically every 50-100 operating hours or annually.

1. Warm up the engine for a few minutes, then shut it off. This helps the oil drain more easily.
2. Col·loqueu una safata de drenatge sota el tap de drenatge de l'oli.
3. Remove the oil filler cap/dipstick and the oil drain plug. Allow all the old oil to drain completely.
4. Reinstall the oil drain plug, ensuring it is tightened securely.
5. Using a funnel, slowly add the new Honda 10W-30 oil (part 08207-10W30) to the engine. Refer to your generator's manual for the exact oil capacity.
6. Check the oil level with the dipstick, ensuring it is within the recommended range.
7. Torneu a instal·lar el tap/varilla d'ompliment d'oli.

4.2. Substitució del filtre d'aire

A clean air filter protects your engine from harmful particles and ensures optimal performance. Replace the air filter element (part 17211-Z07-000) as per your generator's maintenance schedule or if it appears dirty.

1. Locate the air filter housing on your generator.
2. Unclip or unscrew the cover to access the air filter element.
3. Carefully remove the old air filter element. Note its orientation.
4. Clean any dust or debris from the air filter housing.
5. Install the new Honda air filter element (part 17211-Z07-000) in the correct orientation.
6. Securely close the air filter housing cover.

4.3. Spark Plug Replacement

A worn or fouled spark plug can lead to poor engine performance and starting difficulties. Replace the spark plug (part 98056-55777) as recommended by your generator's maintenance schedule.

1. Desconnecteu la tapa de la bugia de la bugia.
2. Use a spark plug wrench to carefully remove the old spark plug.
3. Inspect the old spark plug for wear or fouling.
4. Before installing the new spark plug (part 98056-55777), ensure the gap is set correctly according to your generator's specifications.
5. Thread the new spark plug into the cylinder head by hand to prevent cross-threading.
6. Tighten the spark plug with a spark plug wrench to the recommended torque specification (refer to your generator's manual).
7. Reconnect the spark plug cap firmly.

5. Resolució de problemes comuns

If your generator experiences issues after maintenance, consider these common troubleshooting steps:

• El motor no arrenca: Check if the spark plug cap is securely connected. Verify the oil level is correct. Ensure the fuel valve is open and there is fresh fuel.
• Mal rendiment del motor: A dirty air filter can restrict airflow; ensure the new filter is clean and properly installed. An incorrectly gapped or faulty spark plug can also cause issues.
• Fuites d'oli: Double-check that the oil drain plug and oil filler cap are tightened correctly. Ensure the crush washer on the drain plug is properly seated.

For persistent problems, consult your Honda EU2200 Generator owner's manual or contact a certified Honda service technician.

6. Especificacions

Key specifications for the components in this maintenance kit:

• Viscositat de l'oli: 10W-30
• Oil Liquid Volume: 946 Milliliters (1 Quart)
• Oil Package Information: Ampolla
• Air Filter Element Part Number: 17211-Z07-000
• Spark Plug Part Number: 98056-55777
• Marca: Honda
• Tipus de servei de vehicles: Generador
• Tipus d'ajust per a automòbils: Vehicle Specific Fit (Honda EU2200 Generator)
• Item Weight (Kit): Aproximadament 2.27 lliures
• Package Dimensions (Kit): Aproximadament 9.92 x 5.39 x 3.62 polzades

7. Garantia i Suport

This maintenance kit contains genuine Honda parts, which are typically covered by Honda's standard parts warranty. For specific warranty details, please refer to the documentation included with your generator or contact an authorized Honda dealer. For technical support or further assistance, please consult your generator's owner's manual or visit the official Honda Power Equipment weblloc.
