Y&H CPY-2420 20A MPPT Solar Charge Controller Instruction Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Y&H CPY-2420 20A MPPT Solar Charge Controller. This device is designed to manage the power flow from your solar panel to your battery, ensuring efficient charging and protecting the battery from overcharge and deep discharge. It is suitable for 12V and 24V battery systems.

2. Informació de seguretat

Ensure all connections are tight and correct to avoid excessive voltage drop and loose connections that may cause heat accumulation.
The controller should be installed indoors, away from direct sunlight, high temperature, and water.
The controller generates heat during operation; ensure good ventilation.
The controller automatically recognizes 12V/24V batteries. Ensure your battery voltage coincideix amb el sistema voltage.
Connecteu sempre primer la bateria, després el panell solar i finalment la càrrega. Desconnecteu-ho en ordre invers.
Do not attempt to repair or modify the controller yourself. Contact qualified personnel for service.

3. Producte acabatview

The Y&H CPY-2420 MPPT Solar Charge Controller features a compact design with clear indicators for system status. It includes a USB output for charging small electronic devices.

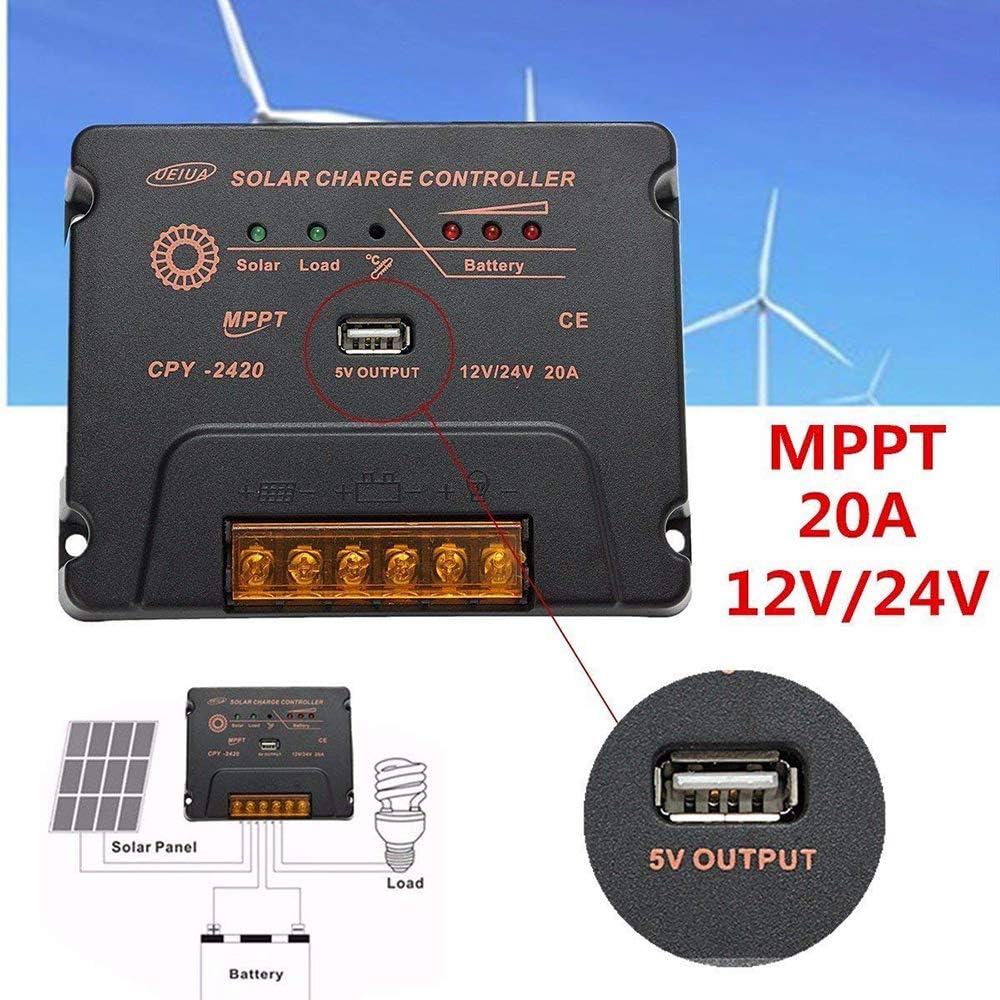

Figura 3.1: Davant view of the Y&H CPY-2420 20A MPPT Solar Charge Controller. Shows LED indicators for Solar, Load, and Battery status, a 5V USB output, and terminal connections at the bottom.

3.1. Indicadors i ports

LED solars: Indicates solar panel charging status.
LED de càrrega: Indicates load output status.
LED de bateria: Indicate battery charge level.
5V USB Output: Per carregar dispositius USB compatibles.
Bloc de terminals: Connections for solar panel, battery, and load.

4. Configuració i instal·lació

Follow these steps carefully to install your solar charge controller. Incorrect wiring can damage the controller or other components.

4.1. Wiring Sequence

Connect the battery to the charge controller first. Ensure correct polarity (+ to + and - to -).
Connect the solar panel to the charge controller. Ensure correct polarity.
Connect the load to the charge controller. Ensure correct polarity.

Important: Always connect the battery first and disconnect the battery last. This prevents damage to the controller from voltage creixements.

Wiring diagram for Y&H CPY-2420 Solar Charge Controller showing connections for solar panel, controller, battery, and load.

Figura 4.1: Wiring diagram illustrating the connection of the solar panel, battery, and load to the Y&H CPY-2420 controller. Note the positive and negative terminals for each connection.

Detailed wiring diagram for Y&H CPY-2420 Solar Charge Controller with labels for Solar Panel, Controller, Battery, and Loads.

Figura 4.2: Another detailed wiring diagram showing the Y&H CPY-2420 controller connected to a solar panel, a battery, and a light bulb as a load. This diagram emphasizes the correct polarity for all connections.

5. Instruccions de funcionament

Once properly installed, the Y&H CPY-2420 controller operates automatically. It will manage the charging process from the solar panel to the battery and control the load output.

5.1. Indicadors LED

Solar LED (Green): Illuminates when the solar panel is actively charging the battery.
Load LED (Green): Illuminates when the load output is active.
Battery LEDs (Red): Indicate the battery's state of charge. Refer to the product's specific documentation for detailed interpretations of the battery LED patterns (e.g., solid, blinking).

5.2. Sortida USB

The integrated 5V USB output can be used to charge small electronic devices such as smartphones or tablets. The USB output is active when the controller has sufficient battery power.

6. Manteniment

Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del controlador de càrrega solar.

Neteja: Periodically clean the controller's exterior with a dry cloth to remove dust and dirt. Do not use liquid cleaners.
Connexions: Annually check all wiring connections for tightness and corrosion. Loose connections can cause overheating and damage.
Ventilació: Ensure the area around the controller remains clear for proper airflow and heat dissipation.
Control ambiental: Verify that the controller is not exposed to excessive moisture, extreme temperatures, or direct sunlight, which can degrade performance.

7. Solució De Problemes

If you encounter issues with your Y&H CPY-2420 controller, refer to the following common problems and solutions:

Problema	Causa possible	Solució
Sense càrrega des del panell solar	Solar panel not connected or incorrect polarity. Insuficiència de llum solar. Damaged solar panel or wiring.	Check solar panel connections and polarity. Ensure adequate sunlight exposure. Inspect solar panel and wiring for damage.
La càrrega no funciona	Load not connected or incorrect polarity. Bateria voltage massa baix. Protecció de sobrecàrrega activada.	Check load connections and polarity. Carregueu la bateria. Reduce load or check for short circuits.
La bateria no es carrega completament	Insufficient solar input. Degradació de la bateria. Incorrect battery type setting (if applicable).	Increase solar panel capacity or improve sun exposure. Test battery health. Ensure correct battery type is selected (if controller has this feature).
La sortida USB no funciona	Bateria voltage massa baix. USB device not compatible or faulty cable.	Carregueu la bateria. Try a different USB device or cable.

8. Especificacions

Technical specifications for the Y&H CPY-2420 20A MPPT Solar Charge Controller:

Característica	Especificació
Model	CPY-2420
Corrent de càrrega nominal	20A
Volum del sistematage	Reconeixement automàtic de 12V / 24V
Sortida USB	5V
Dimensions del paquet	6.1 x 4.92 x 1.77 polzades
Pes de l'article	10.3 unces (291 grams)
UPC	704619167160

9. Garantia i Suport

This product is covered by a standard manufacturer's warranty. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation provided with your purchase or contact the retailer.

9.1. Suport tècnic

If you require technical assistance or have questions not covered in this manual, please contact Y&H customer support through your retailer or the official Y&H weblloc.
