The Fractal Design Define R6 USB-C TG is a mid-tower PC case designed for quiet operation and flexible component support. It features a full-size tempered glass side panel and sound-dampened steel panels. The case includes a USB 3.1 Gen 2 Type-C port on the front I/O for high-speed connectivity. Its interior is designed for extensive component compatibility, including multiple storage drives, various cooling configurations, and efficient cable management.
Imatge: De dalt a baix view of the Fractal Design Define R6 USB-C TG case, highlighting the front panel I/O ports including USB-C, USB 3.0, and audio jacks.
Configuració i instal·lació
Preparació del cas
Before installing components, remove the side panels. The tempered glass side panel is secured with a push-to-lock latching mechanism. The opposite steel side panel also detaches for access to the cable management area. The top panel features ModuVent technology, allowing it to be removed for enhanced airflow or radiator installation.

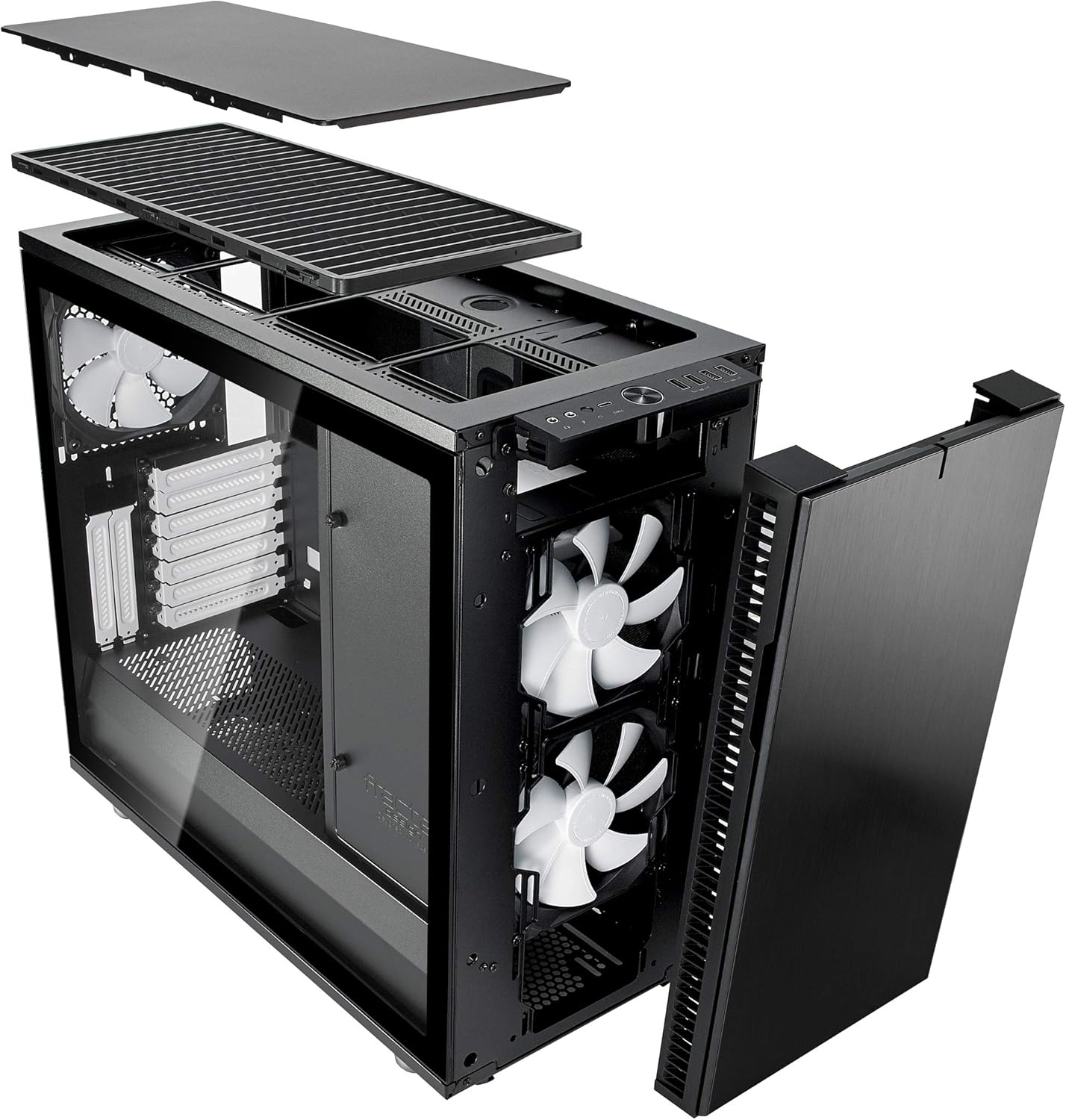

Imatge: Explosió view illustrating the modular design of the Define R6, with the top panel, front panel, and side panels detached, revealing the internal structure and component bays.
Instal·lació de la placa base
The Define R6 supports ATX motherboards. Install the necessary standoffs into the motherboard tray according to your motherboard's form factor. Secure the motherboard using screws.
Instal·lació de la unitat
The case supports up to six 3.5"/2.5" drives and two dedicated 2.5" drives. Utilize the provided drive trays and mounting points for secure installation. Drives can be configured in various positions within the case.
Imatge: Interna view of the Define R6, showcasing the spacious interior, motherboard tray, and multiple drive bay locations for storage devices.
Configuració del sistema de refrigeració
The Define R6 offers nine fan positions and supports radiators up to 420mm. The ModuVent technology allows the top panel to be converted from a sound-dampened cover to a filtered, high-airflow ventilation setup for optimal cooling performance. Install fans or radiators in the designated mounts.

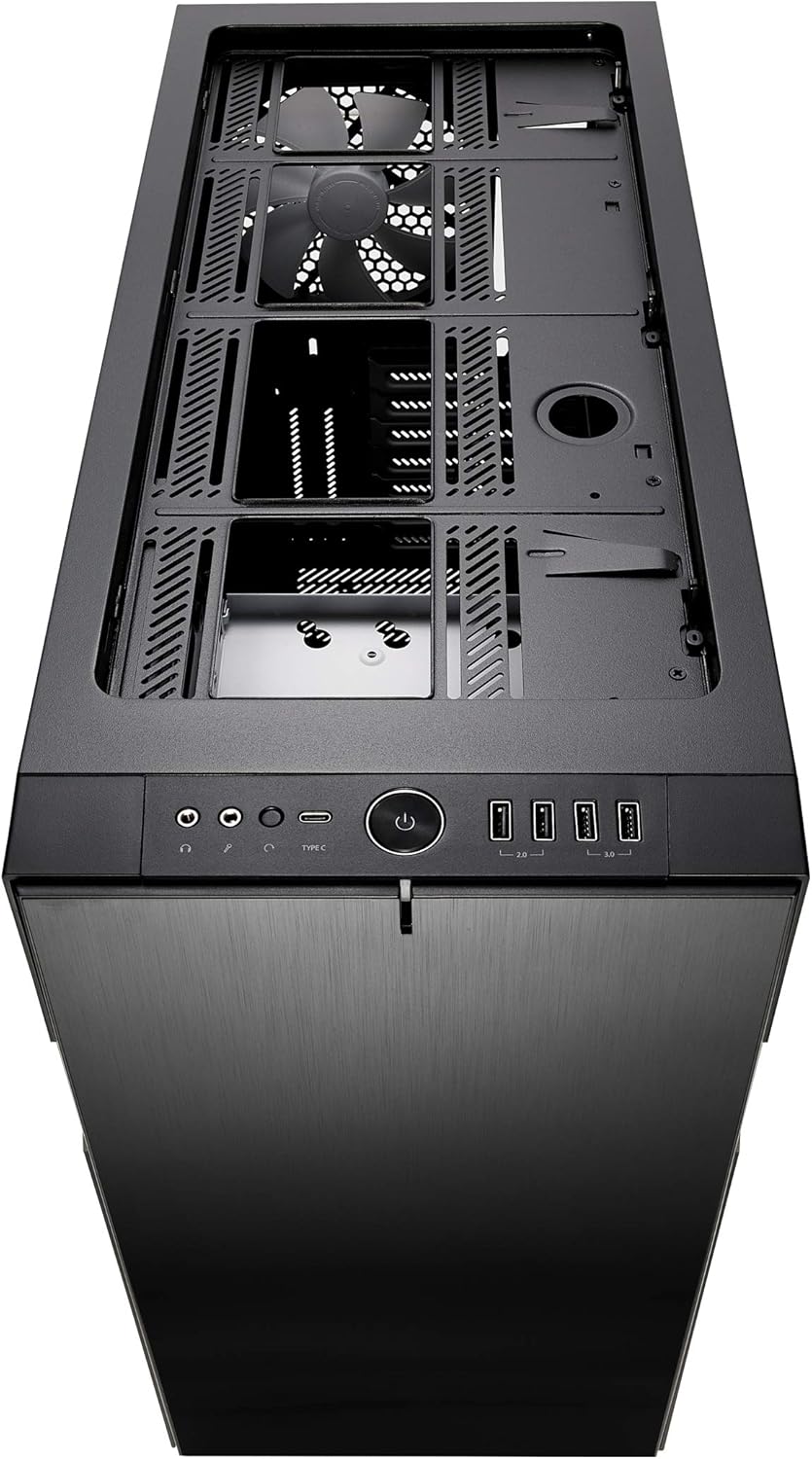

Imatge: Superior view of the Define R6 with the ModuVent panel removed, exposing the fan and radiator mounting points for custom cooling solutions.
Gestió de cables
The case provides 23mm of cable routing space behind the motherboard tray. Utilize the integrated cable channels and tie-down points to organize cables, ensuring clean aesthetics and unobstructed airflow.
Imatge: Interna view of the Define R6 from an angle, highlighting the ample space and grommets available for effective cable management behind the motherboard tray.
Funcionament
Connectivitat del panell frontal
The front I/O panel includes a USB 3.1 Gen 2 Type-C port, two USB 3.0 ports, and two USB 2.0 ports, along with audio input/output jacks. Connect compatible devices to these ports for data transfer and audio functionality.
Imatge: Frontal view of the Define R6, clearly showing the accessible front panel with its power button, USB-C, USB 3.0, USB 2.0, and audio ports.
Airflow and Noise Management
The case is optimized for silence with high-density industrial dampening on the side, top, and front panels. Ensure proper fan configuration and cable routing to maintain optimal airflow while minimizing noise levels. The reversible front door can be adjusted for user preference.
Manteniment
Neteja del filtre de pols
Regularly clean the dust filters located at the front, top (if ModuVent is open), and bottom of the case to prevent dust buildup and maintain optimal airflow. Filters can typically be slid out for easy cleaning with water or a soft brush.
Neteja exterior
Clean the tempered glass side panel with a microfiber cloth and a mild glass cleaner. For the steel panels, use a soft, damp drap. Eviteu productes de neteja abrasius que puguin ratllar les superfícies.
Resolució de problemes
Problemes comuns
- Flux d'aire deficient: Ensure all dust filters are clean and fans are oriented correctly for intake and exhaust. Verify no cables are obstructing airflow paths.
- Soroll excessiu: Check that all fans are securely mounted and free from obstructions. Ensure sound-dampening panels are properly seated. Verify component vibration is minimized.
- Problemes d'ajustament dels components: Refer to the specifications for maximum GPU length, CPU cooler height, and PSU depth. Ensure components are installed according to the manual.
- Front Panel I/O Not Working: Verify all front panel cables (USB, audio) are correctly connected to the motherboard headers.
Especificacions tècniques
| Característica | Detall |
|---|---|
| Nom del model | Define R6 Tempered Glass USB-C |
| Tipus de cas | Torre mitja |
| Compatibilitat amb la placa base | ATX |
| Dimensions (LxWxH) | 18.31 x 9.15 x 21.38 polzades |
| Pes de l'article | 27.3 lliures (12.4 quilograms) |
| Material | Vidre temperat, acer |
| Mètode de refrigeració | Aire |
| Longitud màxima de la GPU | 440 mm |
| Alçada màxima del refrigerador de la CPU | 185 mm |
| Max PSU Depth | 300 mm |
| Espai d'encaminament de cables | 23 mm |
| USB 3.1 Gen 2 Type-C Ports | 1 |
| Ports USB 3.0 | 2 |
| Ports USB 2.0 | 2 |
| Badies d'unitat (3.5"/2.5") | 6 |
| Drive Bays (2.5" dedicated) | 2 |
Garantia i Suport
This product is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Fractal Design website. For technical support, product registration, or to download the latest drivers and manuals, please visit the Fractal Design support portal.
