Suncast 2 x STA125B

Suncast 125' Wall-Mounted Side Tracker Garden Hose Reel Instruction Manual

Model: 2 x STA125B | Brand: Suncast

Introducció

This manual provides detailed instructions for the assembly, operation, and maintenance of your Suncast 125' Wall-Mounted Side Tracker Garden Hose Reel. Designed for convenience and durability, this hose reel helps manage your garden hose efficiently, keeping your outdoor space tidy and organized. Please read these instructions carefully before installation and use to ensure proper function and longevity of your product.

Informació de seguretat

Always exercise caution when handling tools and mounting hardware. Ensure the mounting surface is structurally sound and capable of supporting the weight of the hose reel and a full hose. Keep children and pets away from the installation area. Do not attempt to modify the product in any way not described in this manual.

Contingut del paquet

Your Suncast 125' Wall-Mounted Side Tracker Garden Hose Reel package typically includes:

  • Suncast Wall-Mounted Side Tracker Garden Hose Reel unit (2 units if purchased as a 2-pack)
  • Mànega líder
  • Mounting hardware (screws, anchors - may vary based on package)
  • Manual d'instruccions

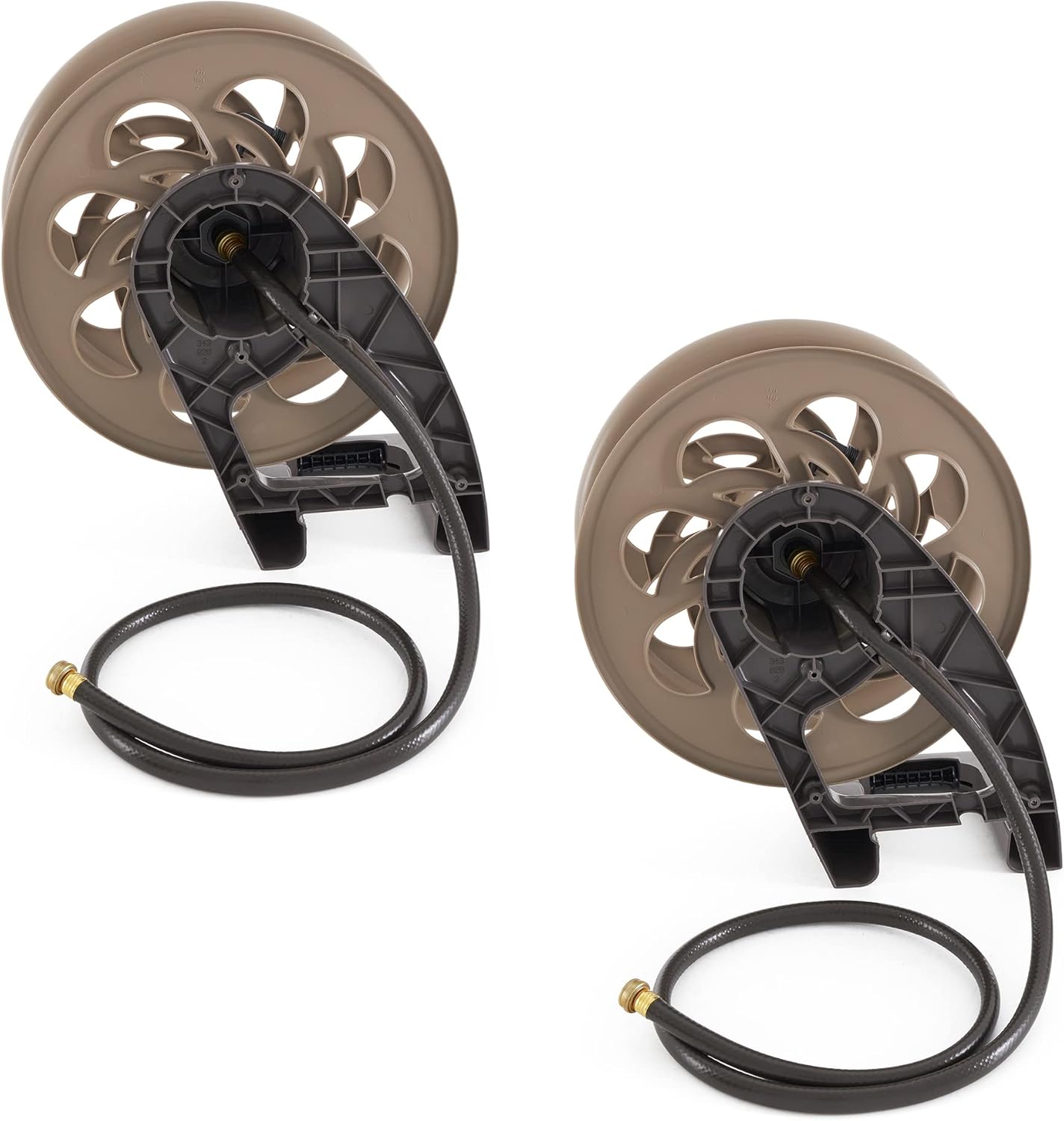

Two Suncast 125-foot wall-mounted hose reels with leader hoses
Figure 1: Two Suncast 125-foot wall-mounted hose reels, dark taupe color, with leader hoses attached, viewed from the front-side. This image shows the complete product as typically received in a 2-pack.

Configuració i instal·lació

Follow these steps for proper installation of your hose reel:

  1. Trieu una ubicació de muntatge: Select a sturdy wall, fence, or side of your house that is close to a water source and can support the weight of the reel and a full hose (up to 125 feet of 5/8-inch hose).
  2. Marca els punts de perforació: Hold the hose reel's mounting bracket against the chosen surface and use a pencil to mark the positions for drilling. Ensure the reel is level.
  3. Perforar forats pilot: Using an appropriate drill bit for your mounting surface (wood, masonry, etc.), drill pilot holes at the marked locations. If mounting into masonry or concrete, insert wall anchors.
  4. Secure the Reel: Align the mounting bracket with the pilot holes and secure the hose reel to the surface using the provided screws. Ensure it is firmly attached and does not wobble.

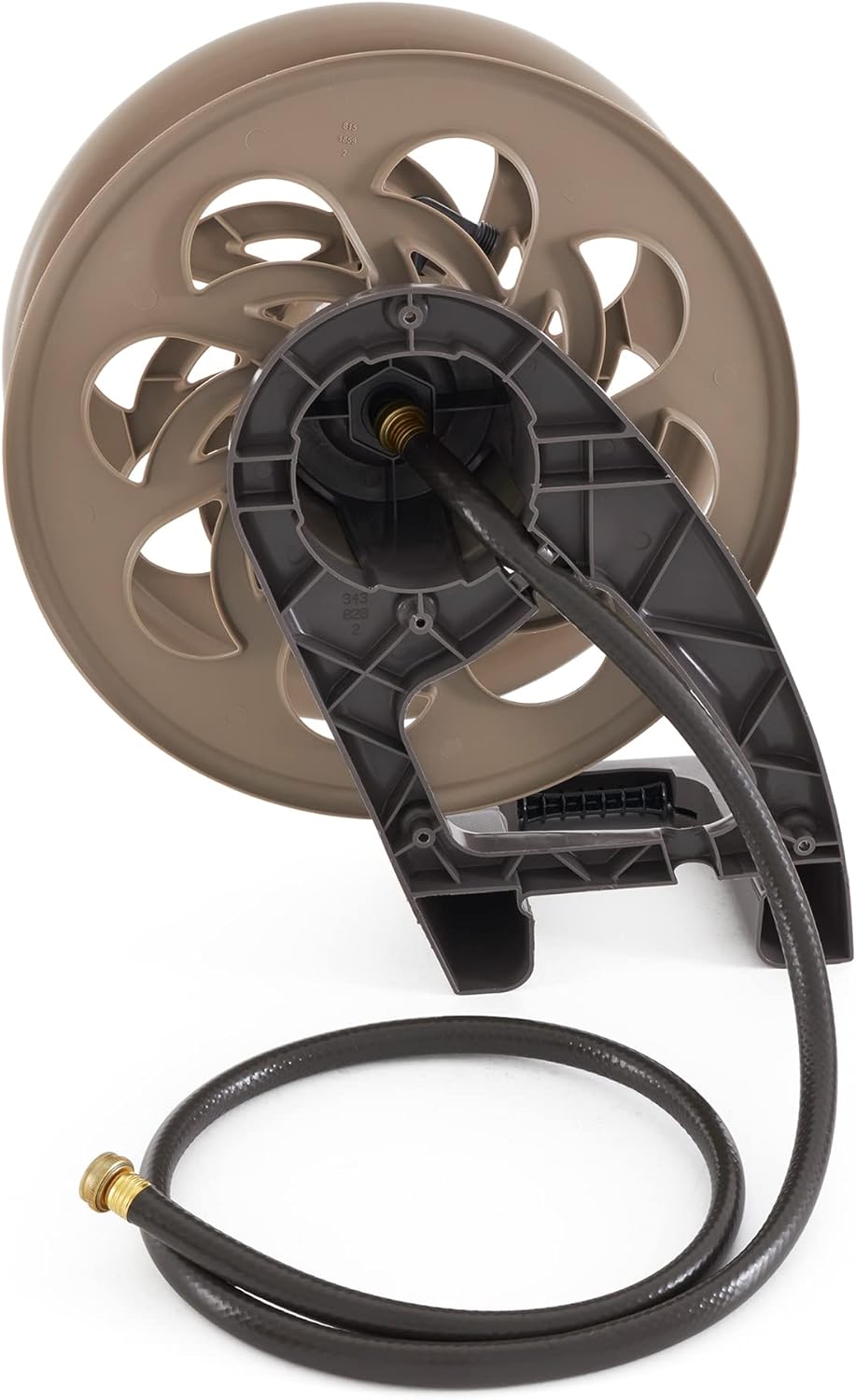

Enrere view of a Suncast hose reel showing mounting points and leader hose connection
Figure 2: A single Suncast hose reel, viewed from the back, illustrating the leader hose connection point and the integrated mounting bracket for wall attachment.
  1. Connect Leader Hose: Attach one end of the included leader hose to your outdoor water faucet and the other end to the inlet connection on the hose reel. Hand-tighten or use a wrench gently to ensure a leak-free connection.
  2. Attach Garden Hose: Connect your garden hose (up to 125 feet of 5/8-inch hose, sold separately) to the outlet connection on the hose reel.

Instruccions de funcionament

Operating your Suncast hose reel is straightforward:

  • Unwinding the Hose: To unwind the hose, simply pull the hose from the reel. The side tracker mechanism will guide the hose smoothly as it unwinds.
  • Winding the Hose: To wind the hose back onto the reel, turn the hand crank clockwise. The integrated hose guide will help layer the hose evenly across the reel, preventing tangles and kinks.
Suncast hose reel with green garden hose wound around it
Figure 3: A Suncast hose reel with a green garden hose neatly wound around it, demonstrating the reel's capacity and how the hose is stored.
Close-up of the hose guide on a Suncast hose reel
Figura 4: Un primer pla view of the hose guide mechanism on the Suncast hose reel, which assists in smooth and even winding of the garden hose.

Manteniment

Proper maintenance will extend the life of your hose reel:

  • Neteja: Periodically wipe down the hose reel with a damp cloth to remove dirt and debris. Avoid harsh chemicals that may damage the plastic.
  • Emmagatzematge d'hivern: For areas with freezing temperatures, it is recommended to drain all water from the hose and reel before winter. The reel can be easily removed from its wall mount for convenient indoor storage, protecting it from harsh elements.
  • Comproveu les connexions: Regularly inspect all hose connections for leaks. Tighten connections as needed, but do not overtighten.

Resolució de problemes

ProblemaCausa possibleSolució
Hose reel leaks at connectionsLoose connections, worn washers, damaged hose/leader hoseEnsure all connections are tight. Replace worn rubber washers. Inspect hoses for cracks or damage and replace if necessary.
Difficulty winding/unwinding hoseHose kinked, debris in mechanism, reel overloadedStraighten any kinks in the hose. Check for and remove any debris obstructing the winding mechanism or hose guide. Ensure hose capacity (125 ft of 5/8") is not exceeded.
Reel feels unstable after mountingImproper installation, weak mounting surfaceVerify that mounting screws are fully tightened. Ensure the mounting surface is solid and appropriate for the weight. Re-mount if necessary.

Especificacions

  • Model: 2 x STA125B
  • Capacitat: 125 feet of 5/8-inch garden hose
  • Dimensions: Approximately 11.25" (Diameter) x 18.25" (Width) x 21" (Height)
  • Tipus d'instal·lació: Muntatge de paret
  • Mode de funcionament: Manovella manual
  • Color: Dark Taupe

Informació de la garantia

For detailed warranty information, please refer to the warranty card included with your product packaging or visit the official Suncast weblloc. Els termes i condicions de la garantia poden variar.

Atenció al client

If you have any questions, require assistance, or need to order replacement parts, please visit the Suncast official weblloc or contact their customer service department. Have your model number (2 x STA125B) ready when contacting support.
