1. Introducció
This manual provides comprehensive instructions for the Picun X1 Bluetooth Headphones. Please read this manual thoroughly before using the product to ensure proper operation and to maximize your listening experience.
Contingut del paquet
- 1 x Picun X1 Bluetooth Sport Headphones
- 1 x Set of Earbuds Covers
- 1 x Set of Winged Earbuds Covers
- 1 x cable de càrrega
- 1 x Manual d'usuari (aquest document)
Image 1.1: Picun X1 Bluetooth Headphones and included accessories.
2. Producte acabatview
The Picun X1 headphones feature Bluetooth V4.1 connectivity, a 10-hour battery life, IPX5 water resistance, and a built-in HD microphone for clear communication. The magnetic design allows for convenient storage.
Image 2.1: Key features of the Picun X1 Bluetooth Headphones, highlighting Bluetooth V4.1, advanced chip, 10 hours playback, stable signal, Hi-Fi audio, and 13mm drivers.
3. Configuració
3.1 Càrrega dels auriculars
Abans del primer ús, carregueu completament els auriculars. Una càrrega completa triga aproximadament entre 1.5 i 2 hores.
- Connect the provided charging cable to the micro-USB port on the in-line control unit of the headphones.
- Connecteu l'altre extrem del cable de càrrega a una font d'alimentació USB (per exemple, un port USB de l'ordinador o un adaptador de paret USB).
- The LED indicator will show charging status (refer to product for specific LED behavior, typically red for charging, blue/off for fully charged).
- Un cop estigui completament carregat, desconnecteu el cable de càrrega.
Nota: Ensure the headphones are turned off before charging.
3.2 Vinculació Bluetooth
Follow these steps to pair your Picun X1 headphones with a Bluetooth-enabled device.
- Encès: Press and hold the multi-function button (usually the center button on the in-line control) until the LED indicator flashes red and blue, indicating pairing mode.
- Activa el Bluetooth: Al dispositiu (telèfon intel·ligent, tauleta, etc.), activeu el Bluetooth.
- Cerca Dispositius: A la configuració de Bluetooth del dispositiu, cerca els dispositius disponibles.
- Select "Picun X1": From the list of found devices, select "Picun X1".
- Confirmeu l'aparellament: Once paired, the LED indicator on the headphones will typically flash blue slowly or turn off, and you will hear an audio confirmation.
Els auriculars intentaran tornar a connectar-se automàticament amb l'últim dispositiu emparellat quan s'engeguin.
Image 3.1: Demonstrating the compatibility of Picun X1 headphones with Bluetooth-enabled devices.
4. Instruccions de funcionament
4.1 In-Line Control Functions
The in-line control unit provides easy access to various functions:
- Botó multifunció (centre):
- Press once: Play/Pause music, Answer/End calls.
- Press and hold: Power On/Off, Reject incoming call.
- Botó per pujar el volum (+):
- Press once: Increase volume.
- Press and hold: Next song.
- Botó per baixar el volum (-):
- Press once: Decrease volume.
- Press and hold: Previous song.
Imatge 4.1: Detallada view of the in-line control unit and its functions.
4.2 Com posar-se els auriculars
The Picun X1 headphones are designed for comfort and a secure fit, especially during physical activity.
- Select the appropriate earbud covers and winged earbud covers for your ear size to ensure a snug and comfortable fit.
- Insert the earbuds gently into your ears. The ergonomic design helps them stay in place.
- For added security during workouts, use the included clip to attach the cord to your clothing.
Image 4.2: The lightweight and ergonomic design of the Picun X1 earbuds for comfortable wear.
4.3 Disseny magnètic
When not in use, the earbuds feature a magnetic design allowing them to clip together. This prevents them from falling off your neck and simplifies storage.

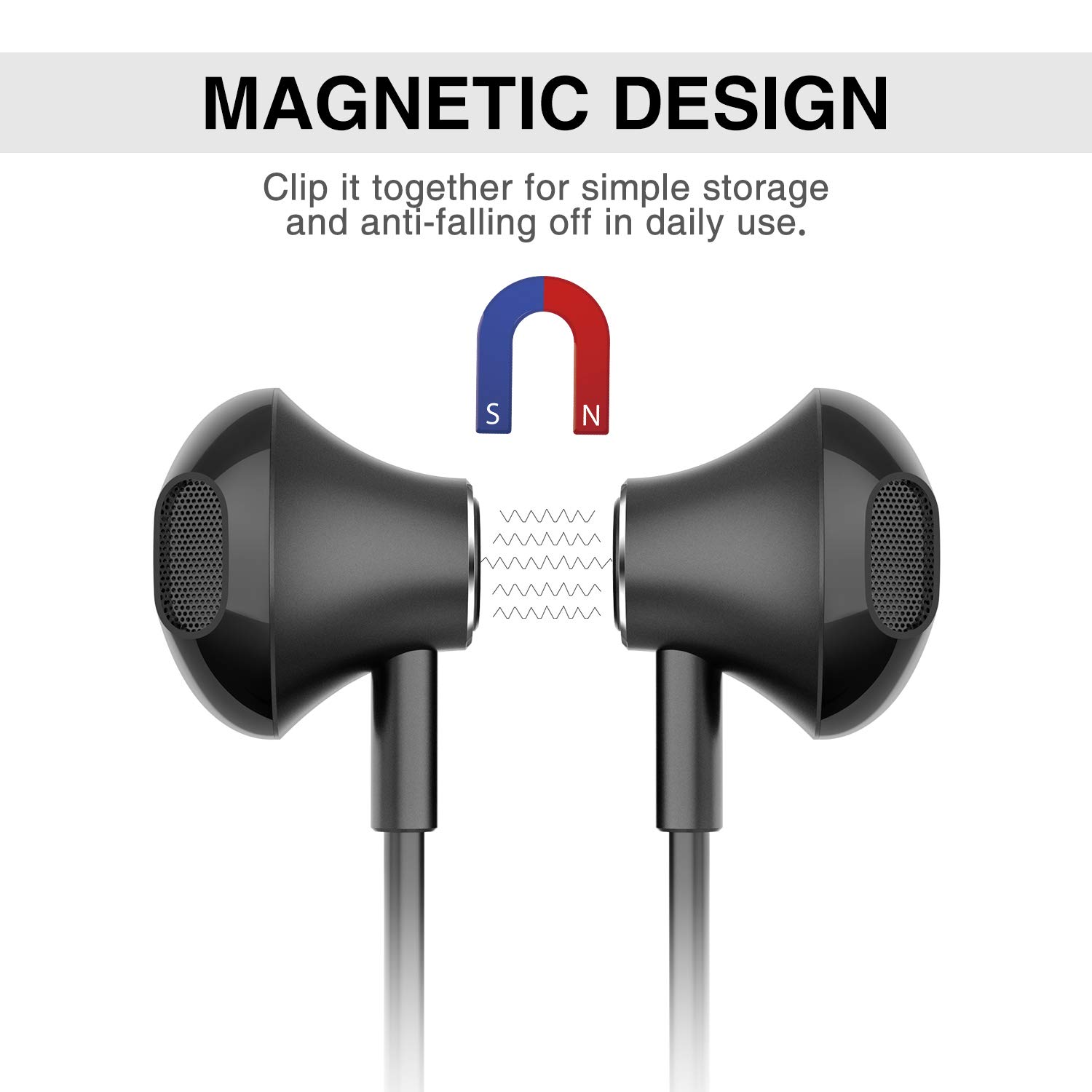

Image 4.3: The magnetic design of the earbuds for convenient storage.
5. Manteniment
5.1 Resistència a l'aigua (IPX5)
The Picun X1 headphones are IPX5 water-resistant, meaning they are protected against low-pressure water jets from any direction. This makes them suitable for use during workouts, light rain, and against sweat and splashes.
- NO immerse the headphones in water.
- NO use them while swimming or showering.
- After exposure to sweat or light moisture, wipe the headphones dry with a soft, clean cloth.
Image 5.1: The IPX5 waterproof feature protecting the headphones from sweat and drizzle.
5.2 Neteja i emmagatzematge
- Clean the earbuds and control unit regularly with a soft, dry cloth.
- Eviteu utilitzar productes químics o materials abrasius per netejar.
- Guardeu els auriculars en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- When storing, use the magnetic feature to keep the earbuds together and prevent tangling.
6. Solució De Problemes
If you encounter issues with your Picun X1 headphones, refer to the following common problems and solutions:
| Problema | Possible solució |
|---|---|
| Els auriculars no s'engeguen. | Assegureu-vos que els auriculars estiguin completament carregats. Connecteu-los a una font d'alimentació i comproveu l'indicador de càrrega. |
| No es pot emparellar amb el dispositiu. |
|
| Sense so o amb un volum baix. |
|
| Poor call quality (buzzing sound, recipient cannot hear). |
|
| La bateria s'esgota ràpidament. |
|
7. Especificacions
| Característica | Detall |
|---|---|
| Versió Bluetooth | V4.1 |
| Unitat d'accionament | 13 MM |
| abast sense fils | Fins a 33 peus (10 metres) |
| Temps de reproducció | Al voltant de 10 hores |
| Temps de càrrega | 1.5-2 hores |
| Vol. De càrregatage | 5V |
| Resistència | 32Ω±15% |
| Sensibilitat | 103 ± 3 dB |
| Sensibilitat del micròfon | -42 ± 3dB |
| Interval de freqüència | 20-20000 HZ |
| Mic Frequency Range | 100-10 KHZ |
| Pes | 19 g (0.04 lliures) |
| Resistència a l'aigua | IPX5 |
| Número de model | X1-black |
| Dimensions del producte | 67.31 x 0.25 x 1.4 cm |
8. Garantia i Suport
Picun offers the following support for the X1 Bluetooth Headphones:
- 30-Day Hassle-Free Return Policy: For returns within 30 days of purchase.
- Garantia de 300 dies: Covers manufacturing defects for 300 days from the date of purchase.
- 24-Hour Customer-Friendly Support Service: For assistance with product inquiries or issues.
For warranty claims or technical support, please contact Picun customer service through the retailer where the product was purchased or refer to the official Picun weblloc per obtenir informació de contacte.
