Introducció
The Lowrance Elite-7 Ti2 is a versatile fish finder and chartplotter designed to enhance your fishing experience. It integrates advanced sonar technologies, detailed mapping capabilities, and wireless connectivity to help you locate fish and navigate waters with precision. This manual provides essential information for setting up, operating, and maintaining your Elite-7 Ti2 unit.

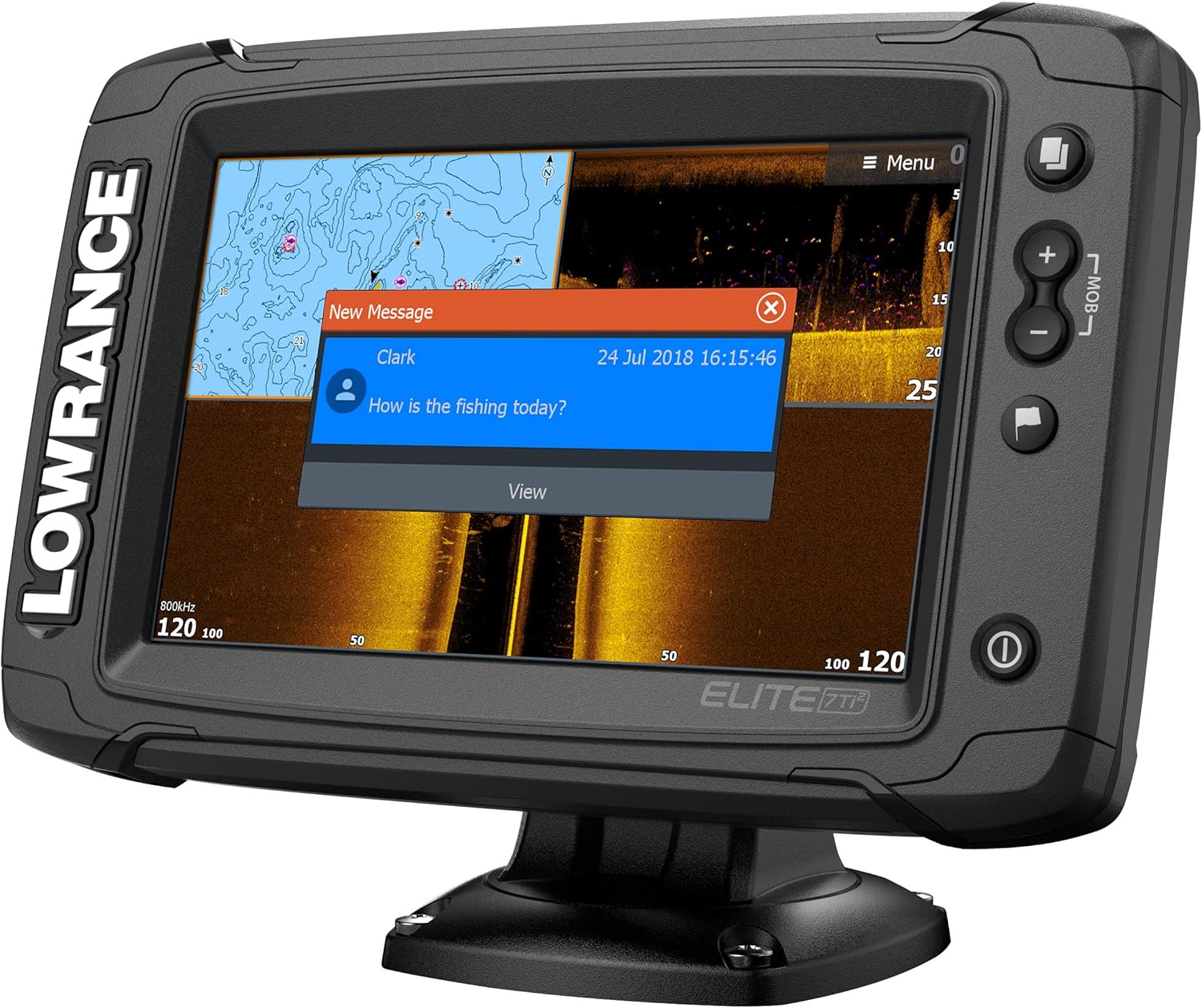

Figure 1: Lowrance Elite-7 Ti2 Fish Finder displaying both mapping and sonar data.
Característiques clau
- Enhanced Display Technology: Features a high-resolution, 7-inch SolarMAX display for improved clarity and target separation.
- FishReveal Smart Target View: Combines clear CHIRP sonar fish targets with high-resolution DownScan Imaging views of bottom detail, structure, and bait fish.
- Genesis Live: Allows real-time creation of custom maps with 0.5-foot contours for unmapped areas or updates to existing maps.
- Preloaded High-Detail Mapping: Comes with preloaded US Inland mapping, featuring 4,000 lakes with 1-foot contours to aid in locating productive fishing spots.
- Xarxes sense fils: Enables sharing of sonar, mapping, waypoint, and route data between Elite Ti2 displays without physical cable connections.
- Notificacions de telèfon intel·ligent: Receive text messages and calls directly on the display, minimizing distractions from your phone.
Configuració
Muntatge
The Lowrance Elite-7 Ti2 is designed for transom mount installation. Ensure the mounting location provides a clear view of the display and allows for proper cable routing. Refer to the included mounting template for precise drilling and hardware installation.
Connexió d'alimentació
The unit is battery powered. Connect the power cable to a 12V DC power source, ensuring proper polarity. It is recommended to install an inline fuse for protection. Consult the wiring diagram in the separate installation guide for detailed instructions.
Figura 2: posterior view of the Elite-7 Ti2 unit, highlighting connection ports for power and transducer.
Instal·lació del transductor
The Elite-7 Ti2 comes with an HDI Transducer. Install the transducer according to the instructions provided with the transducer kit. Proper placement is crucial for optimal sonar performance. Ensure the transducer cable is securely routed and connected to the corresponding port on the back of the Elite-7 Ti2 unit.
Instruccions de funcionament
Encès/Apagat
Press and hold the power button located on the side of the unit to power on or off. A short press will bring up the system menu for quick adjustments.
Navegació per la pantalla tàctil
The Elite-7 Ti2 features an intuitive touchscreen interface. Tap icons to select functions, swipe to navigate menus, and pinch-to-zoom on maps and sonar screens. Physical buttons on the side provide quick access to common functions and menu navigation.
Sonar Operation (Active Imaging & FishReveal)
The Active Imaging sonar provides highly detailed images of fish and underwater structure. Utilize FishReveal to combine the clarity of CHIRP sonar fish targets with the high-resolution views of DownScan Imaging, making fish easier to identify against structure.
Figure 3: Sonar display on the Elite-7 Ti2, showing detailed underwater imaging.
Mapping and Navigation (Genesis Live)
Leverage the preloaded C-MAP US Inland mapping for detailed charts of 4,000 lakes. With Genesis Live, you can create real-time custom maps with 0.5-foot contours of unmapped areas or update existing maps directly on your screen. This feature helps in identifying subtle depth changes and structure.
Figure 4: Detailed C-MAP chart displayed on the Elite-7 Ti2.
Figure 5: Genesis Live feature actively creating and displaying real-time contour maps.
Xarxes sense fils
The Elite-7 Ti2 supports wireless networking, allowing you to share sonar data, mapping information, waypoints, and routes with other compatible Elite Ti2 displays on your vessel without the need for additional cables. This simplifies multi-unit setups and data synchronization.
Integració del telèfon intel·ligent
Connect your smartphone wirelessly to the Elite-7 Ti2 to receive notifications for texts and calls directly on the display. This feature allows you to stay connected without diverting your attention from the fish finder screen.
Figure 6: Smartphone notification displayed on the Elite-7 Ti2 screen.
Vídeo oficial del producte
Vídeo 1: Un overview of the Lowrance HDS LIVE Series of Fish Finders, demonstrating key features and benefits. This video provides a visual guide to the advanced capabilities of Lowrance fish finders, including sonar imaging, mapping, and connectivity.
Manteniment
- Neteja: Netegeu la pantalla i l'exterior de la unitat amb un drap suau iamp drap. Eviteu productes de neteja o dissolvents abrasius.
- Connexions: Comproveu periòdicament totes les connexions dels cables per detectar corrosió o danys. Assegureu-vos que estiguin ben fixades.
- Actualitzacions de programari: Check the Lowrance website for available software updates to ensure optimal performance and access to new features.
- Emmagatzematge: When not in use for extended periods, store the unit in a dry, temperate environment.
Resolució de problemes
This section addresses common issues you might encounter with your Elite-7 Ti2 unit. For more detailed troubleshooting, refer to the comprehensive user manual available on the Lowrance support weblloc.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | No power, loose connection, blown fuse. | Check power cable connection, inspect fuse, ensure battery is charged. |
| No sonar readings | Transducer not connected, incorrect settings, air bubbles under transducer. | Verify transducer connection, check sonar settings, clean transducer face. |
| El GPS no adquireix senyal | Unit not in open sky, GPS antenna obstructed. | Move to an open area, ensure no obstructions above the unit. |
Especificacions
| Atribut | Detall |
|---|---|
| Marca | Lowrance |
| Nom del model | 000-14634-001 |
| Font d'alimentació | Funciona amb bateria |
| Mida de la pantalla | 7 polzades |
| Tipus de visualització | LCD or LED touchscreen |
| Pes de l'article | 6.4 lliures |
| Tipus de muntatge | Muntatge de popa |
| Dimensions del paquet de l'article | 13.5 x 10 x 10 polzades |
| Pes del paquet | 2.9 quilos |
| Dimensions de l'article LxWxH | 12.6 x 9.06 x 9.84 polzades |
| Color | Negre |
| Material | Plàstic |
| Any model | 2019 |
| Components inclosos | Lowrance Elite-7 Ti2 C-MAP US Inland HDI Transducer |
Garantia i Suport
The Lowrance Elite-7 Ti2 comes with a 2 anys de garantia. For warranty claims, technical support, or additional product information, please visit the official Lowrance weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el comprovant de compra per validar la garantia.
Per a més ajuda, també podeu consultar la Lowrance Store on Amazon.
