Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Luceco LED Solar Guardian Wall Light. Please read this manual thoroughly before installation and retain it for future reference.
Figure 1: Luceco LED Solar Guardian Wall Light, showing the solar panel at the top, the PIR motion sensor, and the LED light array at the bottom.
Característiques del producte
- Solar Powered LED: Utilizes a solar panel and high-performing LED chips for efficient lighting.
- PIR / Photocell Sensor: Activates illumination only when motion is detected, conserving energy.
- Security Functionality: Acts as a security light for various outdoor areas.
- Fàcil instal·lació: No wiring required; simply mount onto an outside wall.
- Disseny durador: IP44 rated for outdoor use.
Contingut del paquet
Assegureu-vos que tots els components estiguin presents abans de començar la instal·lació:
- 1 x Luceco LED Solar Guardian Wall Light (Model LEXS22B40-01)
- Cargols de muntatge i tacs de paret (normalment inclosos)
- Manual d'usuari (aquest document)
Nota: The light includes a pre-installed Lithium Ion battery.
Configuració i instal·lació
1. Triar una ubicació
Select a location that receives direct sunlight for at least 6-8 hours daily to ensure optimal charging of the solar panel. Avoid areas under eaves, trees, or other obstructions that may block sunlight or trigger the motion sensor unnecessarily.
Figura 2: Example of the light installed to illuminate an outdoor shed, demonstrating its effectiveness in a practical setting.
2. Muntatge de la llum
- Mark the desired mounting points on the wall using the light's mounting holes as a template.
- Drill holes at the marked positions. Insert wall plugs if mounting into masonry or concrete.
- Align the light with the drilled holes and secure it using the provided screws. Ensure the light is firmly attached.
Figure 3: Product dimensions, showing a width of 6.9 cm and a height of 14.5 cm, useful for planning installation space.

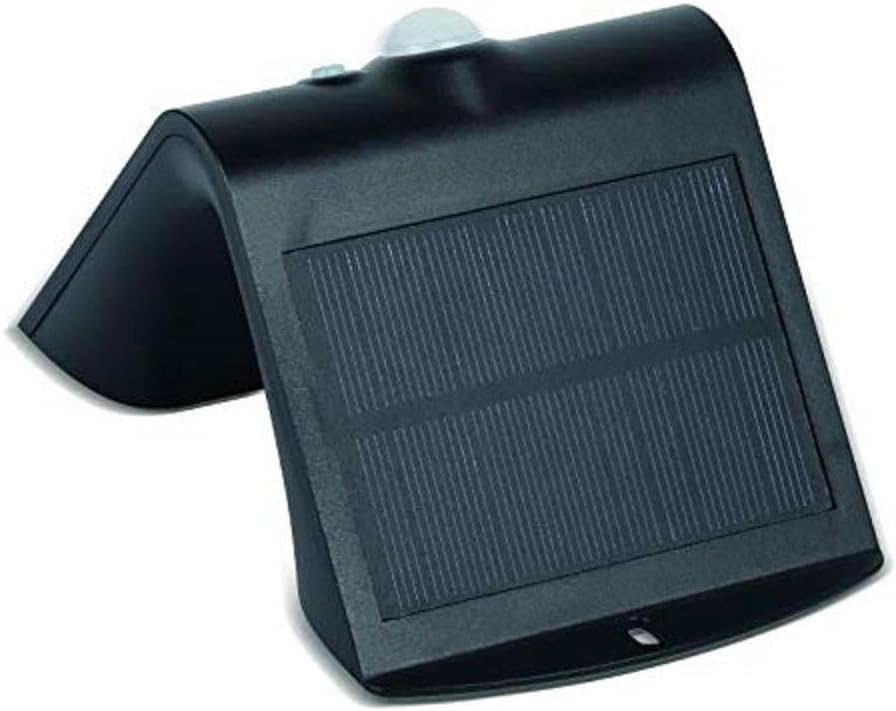

Figura 4: De dalt a baix view of the light, highlighting the integrated solar panel designed for efficient energy absorption.
Instruccions de funcionament
The Luceco LED Solar Guardian Wall Light is designed for automatic operation. It features a photocell sensor that detects ambient light levels and a PIR motion sensor for activation.
- During daylight hours, the solar panel charges the internal battery. The light will not illuminate.
- At dusk, the photocell sensor will detect low light conditions, and the unit will enter standby mode.
- When motion is detected within the sensor's range, the LED light will illuminate at full brightness.
- After a period of no motion, the light will automatically turn off or dim, depending on the specific model's pre-set mode.
No manual switching is required for daily operation.
Manteniment
To ensure optimal performance and longevity of your solar wall light, follow these simple maintenance guidelines:
- Neteja del panell solar: Netegeu periòdicament el panell solar amb un drap suau iamp drap per eliminar la pols, la brutícia, les fulles o la neu. Un panell net garanteix la màxima absorció de la llum solar i una càrrega eficient.
- Cleaning the Light Sensor/PIR: Keep the motion sensor and light sensor clear of obstructions and dirt to ensure proper functionality.
- Bateria: The integrated Lithium Ion battery is designed for long-term use. If the light's performance significantly degrades over time, it may indicate the battery is reaching the end of its lifespan. Battery replacement should only be performed by qualified personnel if the design allows.
- Inspecció general: Regularly check the mounting screws to ensure the light remains securely fastened to the wall.
Do not use abrasive cleaners or solvents on any part of the light.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s'encén a la nit. |
|
|
| La llum es manté encesa durant el dia. |
|
|
| La llum parpelleja o és tènue. |
|
|
| El sensor de moviment no detecta. |
|
|
Especificacions
| Atribut | Valor |
|---|---|
| Marca | Luceco |
| Número de model | LEXS22B40-01 |
| Dimensions del producte | 14.45 x 9.6 x 7.9 cm |
| Pes de l'article | 200 g |
| Color | Negre |
| Material | Policarbonat (PC) |
| Font d'alimentació | Energia solar |
| Tipus de bateria | 1 bateria de ions de liti (inclosa) |
| Voltage | 3.7 Volts |
| Wattage | 1.5 watts |
| Flux lluminós | 150 lumens |
| Classificació de la il·luminació de la zona | IP44 |
| Característiques especials | Sensor de moviment (PIR) |
| Direcció de la llum | LED |
| Índex de reproducció del color (CRI) | 80 |
| Etiqueta d’eficiència energètica de la UE | A++ |
Garantia i Suport
For warranty information and technical support, please refer to the official Luceco weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
Luceco Contact Information:
- Visita el Luceco Store on Amazon per a informació i assistència sobre el producte.
- Refer to the packaging for specific regional contact details or visit the manufacturer's official weblloc.
Informació important
Light Bulb Recycling: For information on recycling this product and other types of lampSi us plau, consulteu les directrius de reciclatge locals o visiteu l'agència ambiental pertinent. webllocs.
Light Bulb Breakage and Clean Up: In case of breakage, follow local guidelines for safe cleanup and disposal of broken or damaged lamps. Avoid direct contact with broken glass and dispose of materials responsibly.
