Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Kohler Artifacts 72774-G-CP Single-Function Showerhead. Please read these instructions carefully before beginning installation or use to ensure proper function and longevity of your product.
The Kohler Artifacts 72774-G-CP showerhead features Katalyst technology, designed to optimize water flow for an enhanced showering experience while conserving water.
Configuració i instal·lació
Eines necessàries: Adjustable wrench, pipe thread sealant tape, soft cloth.
- Preparació: Ensure the main water supply to the shower is turned off. Remove any existing showerhead by turning it counter-clockwise. Clean the threads of the shower arm.
- Aplicar segellador: Wrap pipe thread sealant tape (Teflon tape) clockwise around the threads of the shower arm 3-4 times.
- Col·loca el capçal de dutxa: Thread the Kohler Artifacts showerhead onto the shower arm by hand, turning clockwise until snug.
- Apretar: Using an adjustable wrench, carefully tighten the showerhead an additional 1/4 to 1/2 turn. Do not overtighten, as this can damage the threads or the showerhead. Use a soft cloth between the wrench and the showerhead to protect the finish.
- Comproveu si hi ha fuites: Turn on the main water supply and check for any leaks around the connection point. If leaks occur, turn off water, tighten slightly more, or reapply thread sealant tape.
Image: The Kohler Artifacts showerhead, model 72774-G-CP, shown installed on a shower arm. This image illustrates the product's appearance after successful installation.
Image: A diagram detailing the dimensions of the showerhead, indicating a width of 6 inches (152 mm) and a depth of 3 15/16 inches (100 mm). This helps in planning installation space.
Instruccions de funcionament
The Kohler Artifacts 72774-G-CP is a single-function showerhead, meaning it provides one consistent spray pattern. To operate:
- Engegar l'aigua: Use your shower's existing hot/cold water handles or diverter to turn on the water supply to the showerhead.
- Ajustar la temperatura: Adjust the water temperature to your desired comfort level using the shower's controls.
- Gaudeix: The showerhead will deliver a consistent, optimized spray pattern.

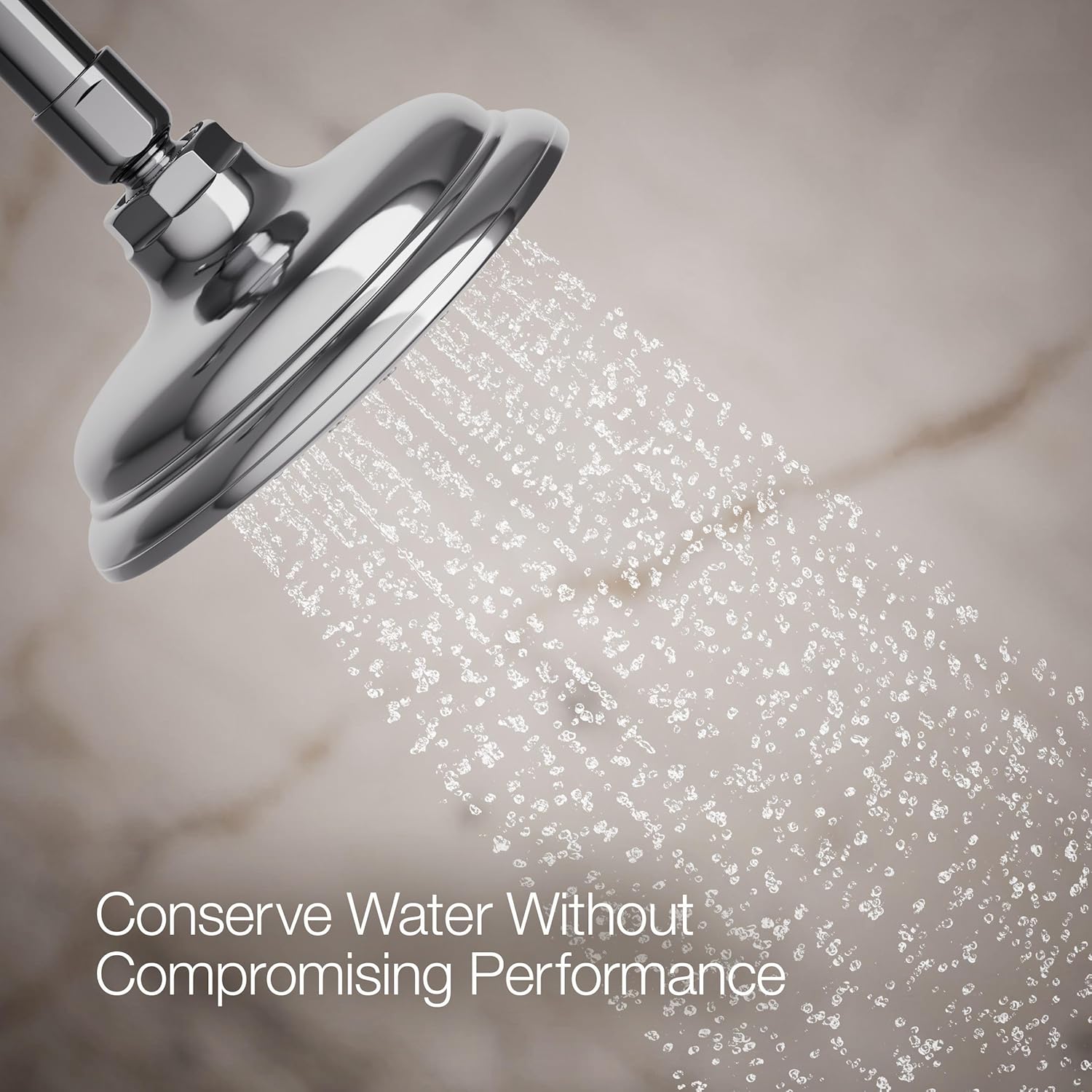

Image: The showerhead actively spraying water, demonstrating its single-function spray pattern and the effect of Katalyst technology.
Manteniment i Neteja
Regular cleaning will help maintain the performance and appearance of your showerhead.
- Cleaning the Sprayface: The MasterClean sprayface is designed to resist mineral buildup. To clean, simply wipe the rubber nozzles with your finger or a soft cloth to dislodge any mineral deposits.
- Neteja general: For general cleaning of the showerhead's finish, use a soft, damp cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the polished chrome finish.
- Taques d'aigua dura: For stubborn hard water stains, a solution of equal parts white vinegar and water can be applied with a soft cloth. Allow it to sit for a few minutes, then rinse thoroughly and dry.
Imatge: Una imatge superior view of the showerhead's sprayface, highlighting the MasterClean nozzles designed for easy cleaning and mineral resistance.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Baix cabal d'aigua | Mineral buildup in nozzles; partially closed shut-off valve; low water pressure in home. | Clean sprayface nozzles (see Maintenance); ensure shut-off valves are fully open; consult a plumber for home water pressure issues. |
| Fuita a la connexió | Insufficient thread sealant; loose connection. | Turn off water, remove showerhead, reapply pipe thread sealant tape, and re-tighten connection. |
| Irregular Spray Pattern | Broquets obstruïts. | Clean sprayface nozzles to remove mineral deposits. |
Especificacions
- Marca: Kohler
- Número de model: 72774-G-CP
- Col·lecció: Artefactes
- Tipus: Single-function showerhead
- Caudal: 1.75 GPM (galons per minut)
- Acabat: Crom polit
- Material: Metall
- Forma: Ronda
- Tipus d'instal·lació: Muntat a la paret
- Dimensions del producte: 3.94" de llargada x 6" d'amplada
- Pes de l'article: 0.32 unces
- NPT Connection: ½" NPT
- Característiques especials: Katalyst Air-Induction Technology, MasterClean Sprayface
Imatge: Una imatge detallada view of the showerhead's polished chrome finish and the Kohler branding, showcasing the product's aesthetic and material quality.
Informació de la garantia
This Kohler product comes with a Garantia limitada de per vida for the original consumer/purchaser as long as they own their home. This warranty covers defects in material and manufacturing workmanship.
For complete warranty details, including terms, conditions, and how to make a claim, please visit the official Kohler weblloc web o consulteu la documentació inclosa amb la compra.
Image: A graphic indicating the Kohler Lifetime Limited Warranty, emphasizing the brand's commitment to product durability and customer satisfaction.
Atenció al client
If you require assistance with installation, troubleshooting, or have questions about your Kohler Artifacts showerhead, please contact Kohler Customer Service:
- Weblloc: Visita l'oficial Kohler weblloc per obtenir informació sobre el producte, preguntes freqüents i recursos d'assistència.
- Telèfon: Refer to your product packaging or the Kohler weblloc web per a números de contacte d'atenció al client regionals.
- Recursos en línia: Explore installation guides, cleaning tips, and product specifications available on the Kohler support pages.
