Introducció
This instruction manual provides essential information for the safe and effective use of your Stack-On PDS-1800-E 2-Handgun Personal Drawer Safe. Please read this manual thoroughly before installation and operation to ensure proper functionality and security. This safe is designed to provide robust protection for handguns, jewelry, and other valuables.
Informació important de seguretat
- Always keep the safe locked when not in use.
- Store keys in a secure location away from the safe and out of reach of unauthorized individuals.
- No guardeu les claus dins de la caixa forta.
- Ensure the safe is mounted securely to prevent unauthorized removal.
- Keep the electronic keypad dry and clean.
- Replace batteries promptly when the low battery indicator appears to avoid lockouts.
- This safe is not water resistant. Avoid exposure to water or high humidity.
Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:
- Stack-On PDS-1800-E Personal Drawer Safe
- Keys (2 included)
- Maquinari de muntatge
- 4 piles AA (incloses)
- Foam Padding (pre-installed)
Configuració
1. Instal·lació de la bateria
- Locate the battery compartment, typically on the inside of the safe door or back panel.
- Obriu la tapa del compartiment de la bateria.
- Inseriu 4 piles AA, assegurant la polaritat correcta (+/-).
- Tanqueu bé la tapa del compartiment de la bateria.
- Test the keypad to ensure it powers on.
2. Muntatge de la caixa forta
The safe features pre-drilled holes and includes mounting hardware for secure installation. Choose a stable surface, such as inside a drawer or cabinet, for mounting.
- Col·loqueu la caixa forta a la ubicació desitjada.
- Mark the locations for the mounting holes.
- Drill pilot holes if necessary, appropriate for your mounting surface.
- Secure the safe using the provided mounting hardware.
Imatge 1: Part superior view of the Stack-On PDS-1800-E safe, showing the electronic keypad and manual key access.
Instruccions de funcionament
1. Configuració del vostre codi personal
Your safe comes with a factory default code. It is highly recommended to change this to a personal code immediately after battery installation.
- With the safe door open, locate the red reset button on the inside of the door or near the hinge.
- Press the reset button. The keypad will beep, and an indicator light will illuminate.
- Enter your desired 3 to 8 digit personal code on the keypad.
- Press the "CHECK" (✓) button to confirm. The indicator light will flash, confirming the new code is set.
- Prova el nou codi amb la porta oberta abans de tancar-la.
2. Obrir la caixa forta
The safe can be opened using either your personal electronic code or the provided override key.
Using the Electronic Keypad:
- Enter your 3 to 8 digit personal code.
- Press the "CHECK" (✓) button.
- Within 5 seconds, turn the knob clockwise to unlock the safe.
- Aixequeu la tapa per obrir-la.
Using the Override Key:
- Insert the key into the keyhole located on the keypad panel.
- Turn the key clockwise to unlock.
- Gireu el pom en sentit horari per obrir la caixa forta.
3. Funcionament en mode silenciós
To disable the keypad beeps for silent operation:
- Press the "MUTE" (speaker icon with a cross) button on the keypad. This will turn off the beeping sound when keys are pressed.
- To re-enable the beeping sound, press the "MUTE" button again.
Imatge 2: Interior view of the safe, showing the protective foam padding and internal LED light.

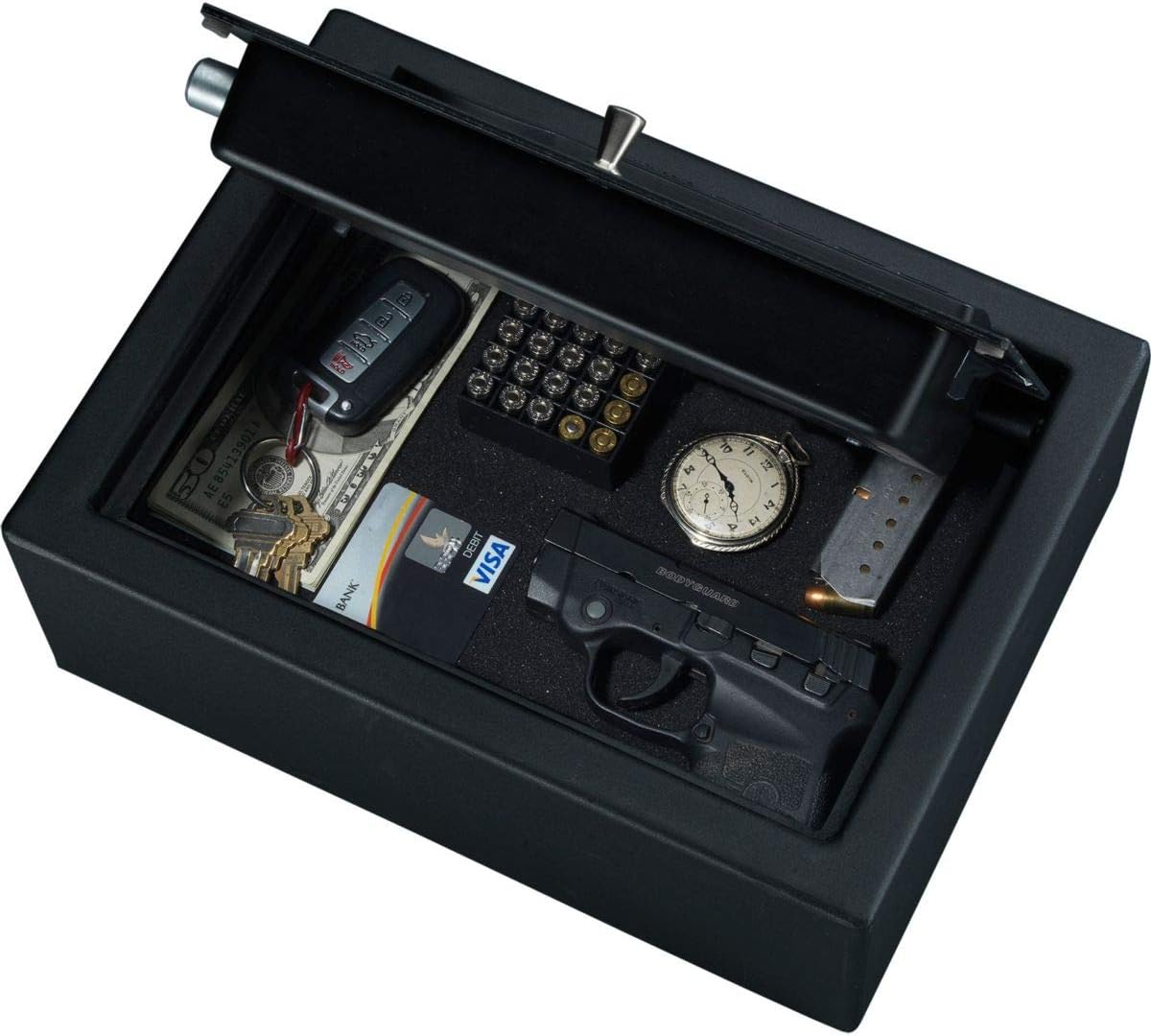

Imatge 3: Ex.ample of items stored inside the safe, including handguns, ammunition, and other small valuables.
Manteniment
- Substitució de la bateria: Replace all 4 AA batteries when the low battery indicator light illuminates or if the keypad becomes unresponsive. Always use new, high-quality alkaline batteries.
- Neteja: Netegeu l'exterior de la caixa forta amb un drap suau iamp drap. Eviteu productes de neteja abrasius o dissolvents que puguin danyar l'acabat o els components electrònics.
- Llum LED interna: The internal LED light activates when the safe is opened, providing visibility. This light is powered by the same AA batteries.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La caixa forta no s'obre amb codi. | Codi incorrecte introduït; piles baixes; mal funcionament del teclat. | Re-enter code carefully. Replace batteries. Use the override key to open and then reset the code. |
| Keypad is unresponsive or beeps rapidly. | Low batteries; internal error. | Replace all 4 AA batteries. If the issue persists, use the override key and contact customer support. |
| Forgot personal code. | Code forgotten. | Use the override key to open the safe. Once open, you can reset a new personal code following the "Setting Your Personal Code" instructions. |
| Safe door feels loose or does not close properly. | Obstrucció; desalineació. | Check for any obstructions around the door frame. Ensure the safe is on a level surface and mounting hardware is secure. |
Especificacions
- Model: PDS-1800-E
- Marca: Stack-On
- Dimensions del producte: 8.5 "P x 11.7" W x 2.3" H
- Tipus de bloqueig: Electronic Keypad with Key Override
- Color: Negre
- Material: Acer d'aliatge
- Característica especial: Alarm System, Internal LED Light
- Tipus de muntatge: Freestanding, Tabletop (Mounting hardware included)
- Pes de l'article: 13.27 lliures
- Bateries: 4 piles AA (incloses)
- Nivell de resistència a l'aigua: No resistent a l'aigua
Garantia i Suport
For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official Stack-On weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
For further assistance, you may contact Stack-On customer service directly.
