1. Introducció
The Luceco Solar LED Projector is a powerful and efficient outdoor lighting solution designed for various applications such as paths, gardens, carports, and awnings. It operates entirely on solar energy, eliminating the need for external wiring and reducing energy costs. Equipped with an integrated PIR motion detector, it enhances security by illuminating areas upon detecting movement. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your solar projector.
Figure 1: The Luceco Solar LED Projector, showcasing its solar panel and LED light array.
Figure 2: The projector's modern design and neutral white light (4000K) for clear and precise illumination.
2. Informació de seguretat
Please read all safety instructions carefully before installing or operating the product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Assegureu-vos que el producte estigui instal·lat en un lloc que rebi llum solar directa per a una càrrega òptima.
- Do not attempt to disassemble, repair, or modify the product. This will void the warranty and may cause damage or injury.
- Keep the product away from flammable materials and extreme heat sources.
- The product is IP65 rated for outdoor use and resistance to weather conditions. However, avoid submerging it in water.
- Clean the solar panel regularly to ensure efficient charging. Use a soft, damp tela.
- Desfeu-vos del producte i de la bateria de manera responsable d'acord amb la normativa local.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents al paquet:
- 1 x Luceco Solar LED Projector
- 1 x suport de muntatge a la paret
- Maquinari de muntatge (cargols, tacs de paret)
4. Configuració i instal·lació
The Luceco Solar LED Projector is designed for easy installation with no wiring required. Follow these steps for optimal placement and mounting:
4.1 Triar una ubicació d'instal·lació
- Select a location that receives maximum direct sunlight throughout the day to ensure the solar panel charges effectively.
- Avoid areas shaded by trees, buildings, or other obstructions.
- Consider the desired illumination area and the PIR motion sensor's detection range (1-6 meters, 120°) when choosing the height and angle.
4.2 Muntatge del projector
- Position the wall mount bracket against the desired surface (exterior wall, fence, etc.).
- Mark the drilling points through the holes on the bracket.
- Drill holes at the marked points using an appropriate drill bit (e.g., 8mm for supplied wall plugs).
- Inseriu els endolls de paret als forats perforats.
- Align the bracket with the holes and secure it using the provided screws.
- Attach the solar LED projector to the mounted bracket, ensuring it is securely fastened.
- Adjust the angle of the solar panel and the light head to optimize sunlight exposure and illumination coverage.

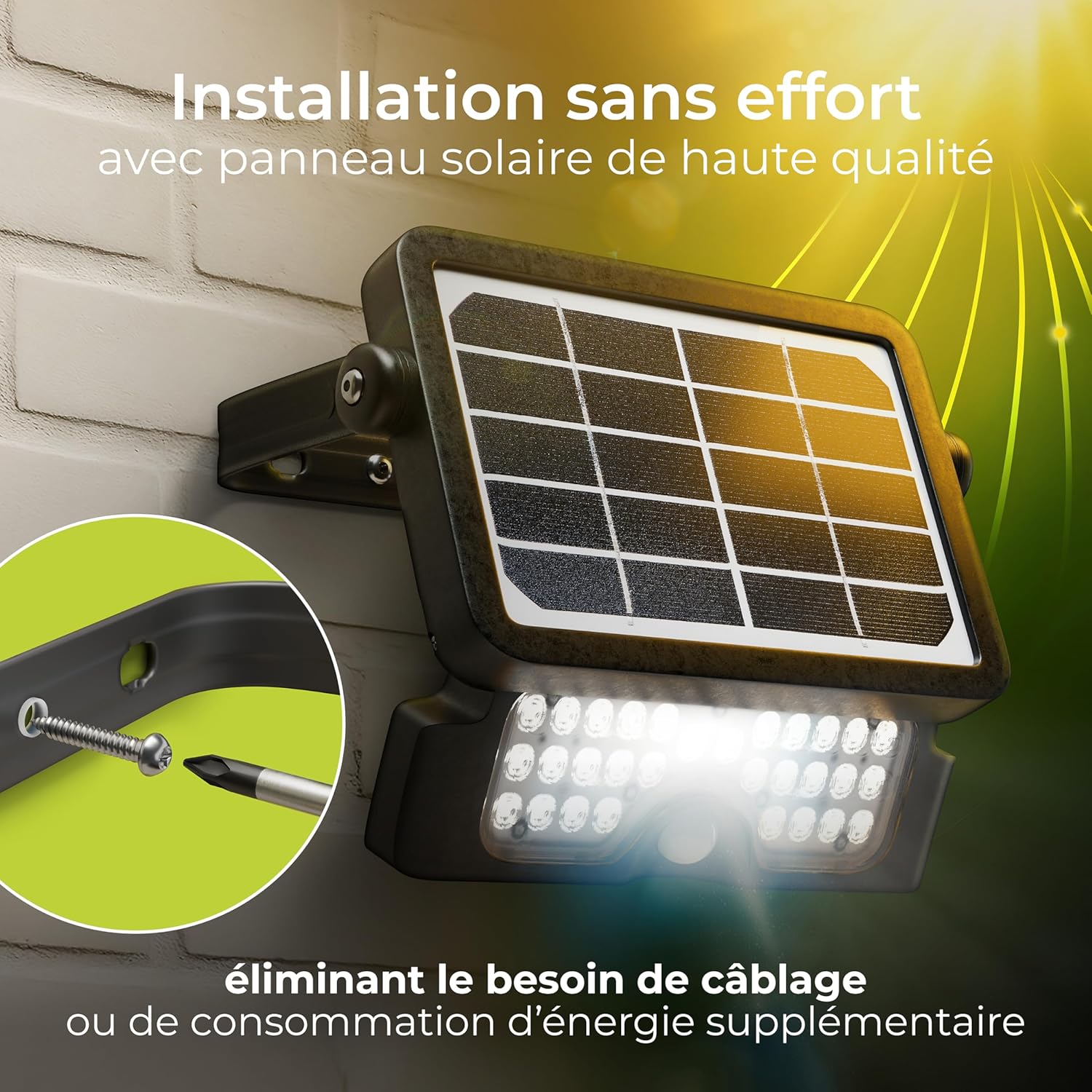

Figure 3: The simple installation process, requiring minimal tools and no complex wiring.
Figure 4: The robust and reliable design, featuring IP65 weather resistance for year-round outdoor use.
5. Instruccions de funcionament
The Luceco Solar LED Projector features intelligent operation modes and a PIR motion sensor for enhanced functionality.
5.1 Càrrega inicial
Before first use, allow the solar projector to charge in direct sunlight for at least 6-8 hours to ensure the internal lithium-ion battery is sufficiently charged.
5.2 Modes de funcionament
The projector offers three adjustable motion modes to suit different security and lighting needs. These modes are typically selected via a switch or button on the unit (refer to the specific product for exact control location):
- Twilight Mode: The light automatically turns on at dusk and remains on at a low brightness level. When motion is detected, it switches to full brightness for a set duration, then returns to low brightness.
- Mode de seguretat: The light remains off until motion is detected. It then illuminates at full brightness for a set duration (e.g., 20-30 seconds) and turns off completely when no motion is detected.
- Presence Mode: Similar to Security Mode, but may offer variations in brightness or duration. (Specific details may vary by model, consult product packaging for precise settings).
Figure 5: The projector offers long-duration lighting with two distinct modes, optimizing battery life.
Sensor de moviment 5.3 PIR
The integrated Passive Infrared (PIR) motion sensor detects heat signatures of moving objects within its detection range (1-6 meters) and angle (120°). When motion is detected, the light activates according to the selected operating mode. Ensure the sensor is not obstructed and is positioned to cover the desired detection area.
Figure 6: The integrated PIR motion sensor detects movement up to 6 meters, instantly activating the light.
Figure 7: The projector providing effective illumination when installed on an exterior wall.
6. Manteniment
Regular maintenance helps ensure the longevity and optimal performance of your Luceco Solar LED Projector.
- Neteja del panell solar: Netegeu periòdicament el panell solar amb un drap suau iamp drap per eliminar la pols, la brutícia i les restes. Un panell net garanteix la màxima absorció de la llum solar i l'eficiència de càrrega.
- Cleaning the Light Head: Gently clean the LED light head and motion sensor lens with a soft, dry cloth to maintain clear illumination and sensor sensitivity.
- Cura de la bateria: The integrated lithium-ion battery is designed for long life. Avoid prolonged periods of storage in a completely discharged state. If storing for an extended time, ensure the battery is fully charged.
- Inspecció: Occasionally check the mounting hardware to ensure it remains secure.
Figure 8: The projector's weather-resistant design ensures durability even in challenging outdoor conditions.
7. Solució De Problemes
If you encounter issues with your solar LED projector, refer to the following table for common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s'encén a la nit. | Càrrega solar insuficient. | Ensure the solar panel is in direct sunlight for 6-8 hours daily. Clean the solar panel. |
| La llum parpelleja o és tènue. | Baixa càrrega de la bateria. | Allow more charging time in direct sunlight. |
| El sensor de moviment no detecta. | Sensor obstruït o brut. | Clean the sensor lens. Ensure no obstructions are blocking the sensor's view. |
| La llum es manté encesa contínuament. | Incorrect mode selected or constant motion. | Check the selected operating mode. Ensure there is no continuous motion in the detection area. |
8. Especificacions
Technical specifications for the Luceco Solar LED Projector:
| Característica | Especificació |
|---|---|
| Marca | Luceco |
| Número de model | LEXSF6B40-01 |
| Dimensions (L x A x A) | 1.33 x 8.56 x 5.88 cm (Product); 8.6L x 1.3W x 5.9H cm (Fixture) |
| Pes | 620 grams |
| Font d'alimentació | Energia solar |
| Wattage | 5 watts |
| Flux lluminós | 550 lúmens |
| Temperatura de color | 4000 Kelvin (blanc neutre) |
| Índex de reproducció del color (CRI) | 80 |
| Tipus de bateria | 2 x 3.7V, 1500 mAh Lithium-ion (included) |
| Classificació IP | IP65 (impermeable) |
| Estil de commutació | Detector de moviment |
| Vida mitjana | 30,000 hores |
| Material | Fundició d'alumini |
| Tipus d'acabat | Pintat |
| Característiques especials | Waterproof, PIR Motion Sensor |
9. Garantia i Suport
Information regarding specific warranty terms and software updates for this product is not available in this manual. For warranty claims, technical support, or inquiries about spare parts, please contact Luceco customer service directly or refer to the product packaging for contact details. It is recommended to retain your proof of purchase for any warranty-related matters.
