1. Introducció
Thank you for choosing the BERNSTEIN Freestanding Bathtub Faucet Model 8028B. This manual provides essential information for the safe installation, operation, and maintenance of your new faucet. Please read these instructions carefully before installation and retain them for future reference.
This freestanding faucet is designed for use with bathtubs, offering both bath filling and a hand shower function. It features a high-quality ceramic cartridge for reliable performance and is suitable for use with gas water heaters.
Image 1.1: BERNSTEIN 8028B freestanding bathtub faucet in black, installed beside a modern white bathtub.
2. Informació de seguretat
- Tanqueu sempre el subministrament principal d'aigua abans de començar qualsevol treball d'instal·lació o manteniment.
- Assegureu-vos que totes les connexions estiguin correctament segellades per evitar fuites.
- Si teniu dubtes sobre alguna part del procés d'instal·lació, consulteu un lampista qualificat.
- Do not use abrasive cleaners or harsh chemicals on the faucet's surface, as this may damage the finish.
- Mantingueu les peces petites fora de l'abast dels nens.
3. Contingut del paquet
Please verify that all components are present before starting the installation:
- Freestanding Bathtub Faucet (Model 8028B, black finish)
- High-quality replaceable ceramic cartridge (pre-installed)
- Shower hose (1.50 m length)
- Dutxa de mà
- Mounting hardware and seals
- Manual d'instruccions
Image 3.1: The black hand shower and its flexible hose, part of the faucet assembly.
4. Instal·lació i configuració
Professional installation is recommended for this product. Ensure you have all necessary tools and materials before proceeding.
4.1 Comprovacions prèvies a la instal·lació
- Verify that the floor is level and capable of supporting the weight of the faucet and water connections.
- Ensure that hot and cold water supply lines are accessible and correctly positioned for connection.
- Netegeu les canonades d'aigua per eliminar qualsevol residu abans de connectar l'aixeta.
4.2 Mounting the Faucet
- Position the faucet base on the desired location on the floor. Mark the drilling points for the mounting hardware.
- Drill holes according to the marked points.
- Secure the faucet base to the floor using the provided mounting hardware. Ensure it is stable and level.
4.3 Connexió del subministrament d'aigua
- Connect the hot and cold water supply lines to the corresponding inlets on the faucet. Use appropriate sealing tape or compound to ensure watertight connections.
- Tighten all connections securely, but do not overtighten.
4.4 Comprovacions finals
- Enceneu lentament el subministrament d'aigua principal.
- Check all connections for leaks. If leaks are detected, turn off the water supply and re-tighten the connections.
- Test the faucet and hand shower functions.

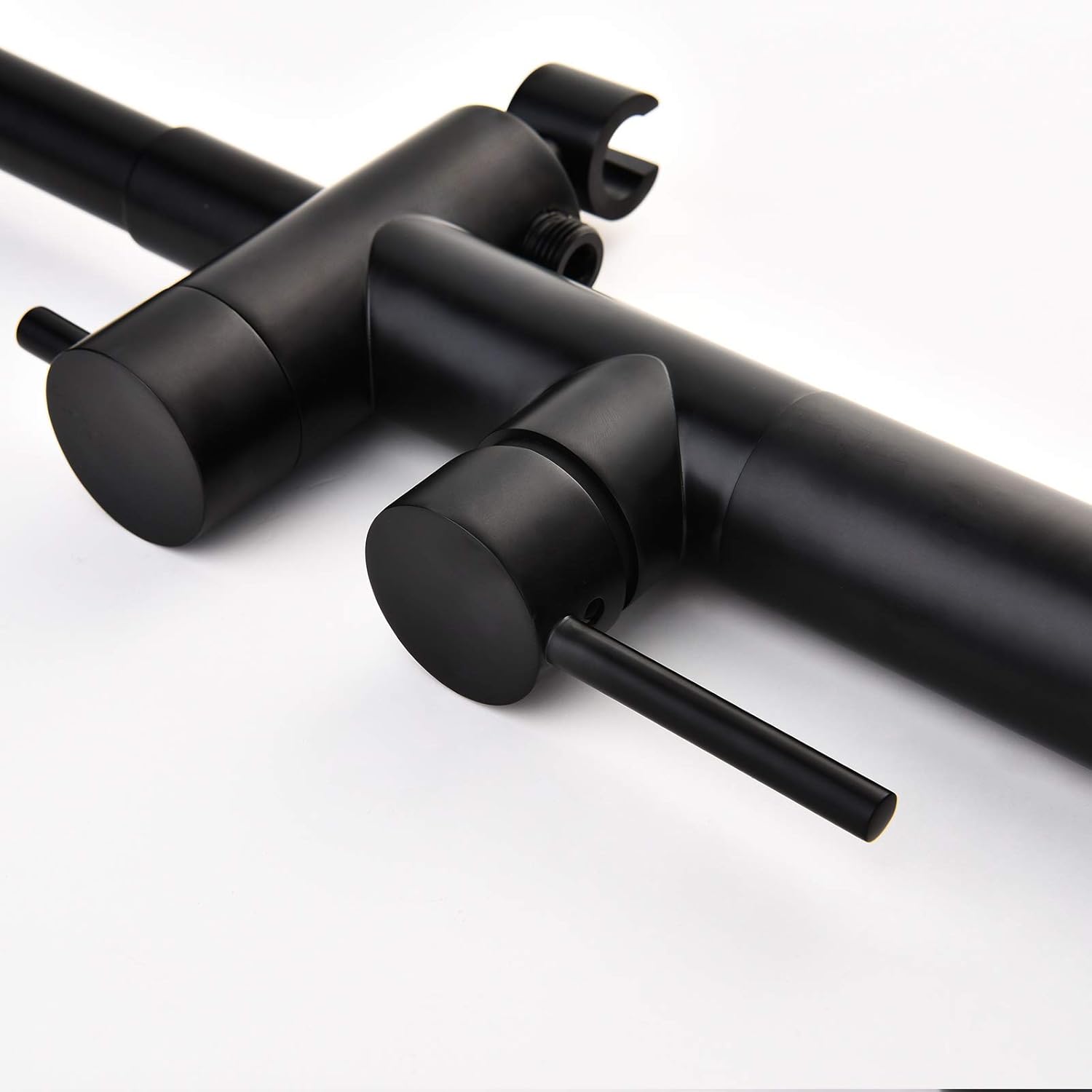

Imatge 4.1: Detallada view of the mixer handle and the diverter for bath and shower functions.
5. Funcionament
5.1 Control del cabal i la temperatura de l'aigua
The faucet features a single lever handle for controlling both water flow and temperature. Move the handle up to increase flow and down to decrease flow. Move the handle left for hot water and right for cold water.

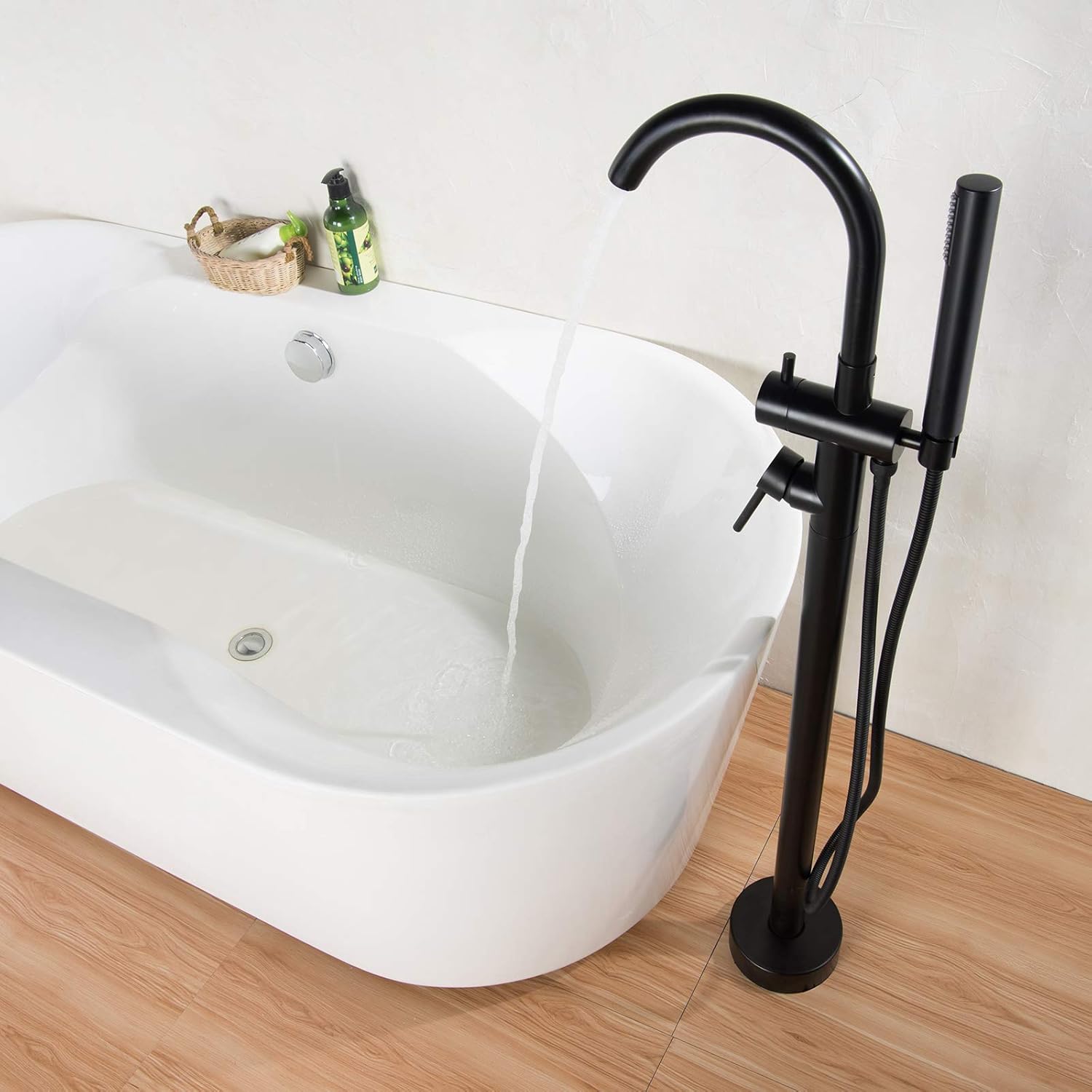

Image 5.1: Water flowing from the main spout into the bathtub.
5.2 Switching Between Bath and Shower
To switch between the main bath spout and the hand shower, use the diverter knob located on the faucet body. Turn the knob to direct water flow to your desired outlet.
Image 5.2: Using the hand shower function of the faucet.
6. Manteniment i cura
6.1 Neteja
To maintain the finish of your faucet, clean it regularly with a soft cloth and mild soap. Rinse thoroughly with water and dry with a soft cloth. Avoid using abrasive cleaners, scouring pads, or chemical solvents, as these can damage the surface.
6.2 Ceramic Cartridge
The faucet is equipped with a high-quality ceramic cartridge designed for durability. If you experience persistent dripping or difficulty controlling water flow/temperature, the ceramic cartridge may need to be replaced. Consult a professional for cartridge replacement.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Baix cabal d'aigua | Clogged aerator or supply lines. | Clean or replace the aerator. Check and flush supply lines. |
| Fuita del broc | Worn ceramic cartridge. | Replace the ceramic cartridge. |
| Fuites a les connexions | Connexions soltes o segells danyats. | Tighten connections. Replace seals if damaged. |
| Difficulty Switching Functions | Diverter mechanism issue. | Inspect diverter for obstructions. If problem persists, professional service may be required. |
8. Especificacions
| Característica | Detall |
|---|---|
| Número de model | 8028B |
| Marca | AMBER |
| Color | Negre |
| Material | Brass (faucet body), Ceramic (cartridge) |
| Nombre de nanses | 1 (single lever) |
| Longitud de la mànega de dutxa | 1.50 m |
| Compatibilitat | Suitable for gas water heaters |
Image 8.1: Dimensional drawing of the faucet, indicating key measurements.
9. Garantia i Suport
BERNSTEIN products are manufactured to high-quality standards. For warranty information or technical support, please refer to the purchase documentation or contact your retailer. Keep your proof of purchase for any warranty claims.
For further assistance, please visit the official BERNSTEIN weblloc o contacteu amb el servei d'atenció al client.
