Magic Chef Retro Mini Refrigerator Instruction Manual

Introducció

Classic yet contemporary, the Magic Chef retro-style 2 door compact refrigerator is designed to fit seamlessly into your home, office, or dorm room. With a 3.2 cu. ft. total capacity, it provides ample space for your favorite beverages and frozen snacks. Featuring an adjustable glass shelf for easy organization and cleaning, and a crisper drawer for fruits and vegetables, this refrigerator also includes a convenient can holder on the door.

Imatge: Frontal view of the Magic Chef Retro Mini Refrigerator, highlighting its retro design and black finish.

Configuració

Desembalatge

• Traieu amb cura la nevera del seu embalatge.
• Inspect for any shipping damage. Report any damage immediately to your retailer.
• Remove all packing materials, including the foam base and adhesive tape.

Col·locació

• Place the refrigerator on a flat, stable surface away from direct sunlight and heat sources (e.g., stoves, radiators).
• Ensure adequate air circulation around the unit. Allow at least 4 inches (10 cm) of space on the sides and back, and 8 inches (20 cm) on top.
• Aquest aparell està dissenyat només per a instal·lació independent. No l'encasteu ni l'integreu en un armari.

Anivellació

• Adjust the leveling legs at the bottom of the unit to ensure it is stable and level. This prevents vibrations and ensures proper door sealing.

Connexió d'alimentació

• Before plugging in, allow the refrigerator to stand upright for at least 2-4 hours. This allows the refrigerant to settle.
• Plug the refrigerator into a dedicated, grounded 115V, 60Hz AC outlet. Do not use extension cords or adapter plugs.

Funcionament

Control de temperatura

• The temperature control dial is located inside the refrigerator compartment.
• Turn the dial to adjust the cooling intensity. "1" is the warmest setting, and "7" is the coldest.
• For normal use, a setting between "3" and "5" is usually sufficient.
• Allow several hours for the temperature to stabilize after adjustment.

Emmagatzematge d'aliments

• The 3.2 cu. ft. capacity offers ample space. The main compartment features adjustable glass shelves for flexible storage.
• A dedicated crisper drawer is provided for fresh fruits and vegetables.
• The door includes a can holder for easy access to beverages.
• The top compartment functions as a small freezer, suitable for ice or small frozen items.

Imatge: Interior view of the refrigerator, showing the main compartment and the top freezer.

Reversibilitat de la porta

• The door hinges are reversible, allowing you to change the door swing direction to suit your space. Refer to the detailed diagram in the full manual for instructions.

Manteniment

Neteja

• Desconnecteu sempre la nevera abans de netejar-la.
• Clean the interior and exterior surfaces regularly with a mild detergent and warm water.
• No utilitzeu productes de neteja abrasius, productes químics agressius ni objectes punxeguts, ja que poden danyar les superfícies.
• Wipe down door gaskets to ensure a tight seal.

Descongelació

• The freezer compartment requires manual defrosting when frost accumulation reaches about 1/4 inch (6 mm) thick.
• Unplug the unit, remove all food, and leave the freezer door open to allow frost to melt naturally.
• Use a soft cloth to wipe away melted water. Do not use sharp objects to remove ice.

Potència Outage

• En cas d'una potènciatage) Mantingueu la porta de la nevera tancada per mantenir la temperatura interna el màxim temps possible.
• Si l'outagSi es prolonga, considereu la possibilitat de transferir els articles peribles a una nevera amb gel.

Resolució de problemes

La nevera no funciona

• Check if the power cord is properly plugged into a live outlet.
• Verifiqueu el disjuntor o el fusible.
• Ensure the temperature control is not set to "OFF".

Temperature is Not Cold Enough

• Check the temperature control setting; adjust to a colder setting if necessary.
• Assegureu-vos que la porta estigui ben tancada i que no s'obri amb freqüència.
• Avoid placing hot food inside.
• Check for proper air circulation around the unit.

Soroll excessiu

• Ensure the refrigerator is level. Adjust leveling legs if needed.
• Check if the unit is touching a wall or other objects.

Aigua al terra

• Comproveu si la safata de drenatge està correctament col·locada i no desborda.
• Ensure the door is sealing correctly.

Especificacions

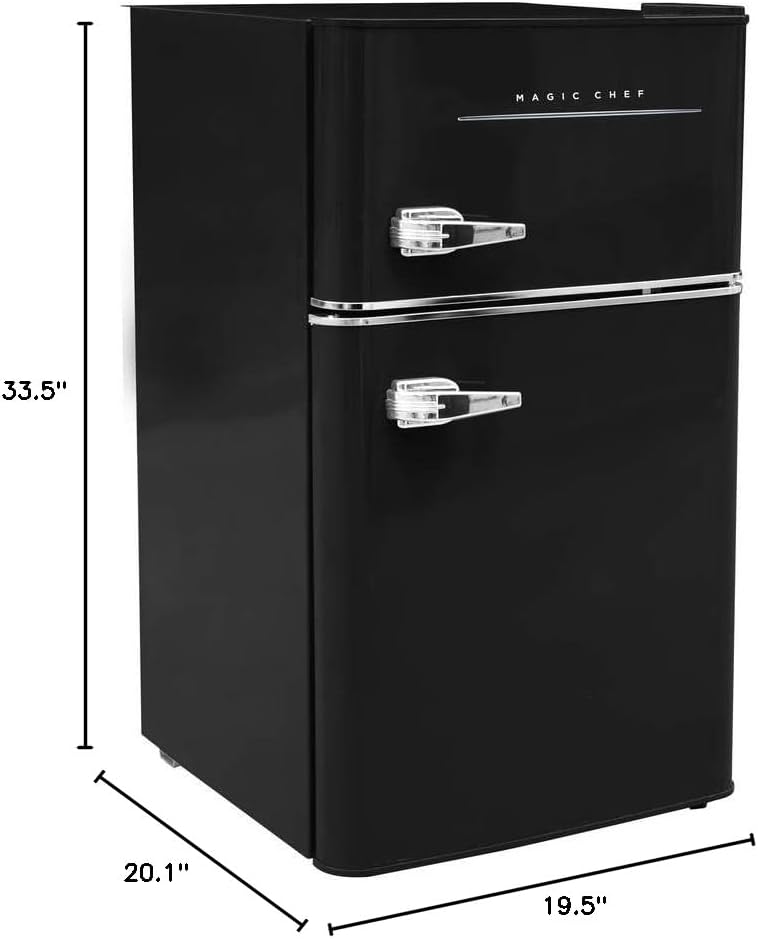

Image: Product dimensions for the Magic Chef Retro Mini Refrigerator.

Garantia i Suport

This product is tested and certified to look and work like new. The refurbishing process includes functionality testing, basic cleaning, inspection, and repackaging. The product ships with all relevant accessories, and may arrive in a generic box. For specific warranty details and customer support, please refer to the documentation included with your purchase or visit the official Magic Chef weblloc.

Per obtenir més ajuda, podeu visitar el Magic Chef Store on Amazon.
