1. Introducció
Thank you for choosing the Bozily 300W Foldable LED Grow Light. This product is designed to provide a full spectrum of light, simulating natural sunlight, to support the healthy growth of your indoor plants through all stages: seeding, growing, flowering, and fruiting. Its efficient design, silent operation, and foldable structure offer versatility and optimal performance for various indoor gardening needs.
2. Instruccions de seguretat
Please read all safety instructions carefully before operating the device. Failure to do so may result in injury or damage to the product.
- Només per a ús interior: This grow light is designed for indoor use in dry environments. Do not expose to water or high humidity.
- Seguretat elèctrica: Assegureu-vos que la font d'alimentació coincideixi amb el volum especificattage (230 Volts). Always unplug the light before cleaning or maintenance.
- Protecció ocular: Do not look directly at the operating LED lights. Prolonged exposure can cause eye strain or damage.
- Ventilació: Ensure adequate airflow around the light to prevent overheating, although the design includes efficient heat dissipation.
- Manipulació: Do not drop or subject the light to strong impacts. Handle with care.
- Desmuntatge: Do not attempt to disassemble or modify the unit. This will void the warranty and may lead to electrical hazards.
- Nens i animals de companyia: Keep the grow light out of reach of children and pets.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents al paquet:
- Bozily 300W Foldable LED Grow Light Unit
- Hanging Kit (chains and hooks)
- Cable d'alimentació
- Manual d'usuari
4. Producte acabatview i Característiques
The Bozily 300W Foldable LED Grow Light is engineered for optimal plant growth with advanced features:
- LED d'espectre complet: Simulates natural sunlight, providing wavelengths from 380 nm to 800 nm. This includes red and blue wavelengths (400 nm to 720 nm) for healthy growth, and infrared (720 nm to 800 nm) and UV (380 nm to 400 nm) to promote cell growth, germination, and pest deterrence.
- Efficient and Wide Illumination: Features 338 LED chips and a 90° reflector for excellent spotlight effect and efficient light distribution. The unit measures 560 x 300 x 18 mm, offering a larger illumination area compared to conventional grow lights.
- Funcionament silenciós: Equipped with an aluminum back wall and individual heat sinks for each LED chip, ensuring excellent heat dissipation without the need for noisy fans.
- Disseny plegable: The ultra-thin and foldable aspect allows for versatile placement and storage, adapting to various growing setups.
Image: Illustration of how Red, UV, Blue, and IR light promote different aspects of plant development.
Image: The Bozily grow light with dimensions (56 cm x 30 cm x 1.8 cm) and a visual representation of its 90-degree reflector cups for wider illumination.
5. Configuració
Follow these steps to set up your Bozily LED Grow Light:
- Desembalar: Carefully remove all components from the packaging. Inspect the light for any signs of damage.
- Assemble Hanging Kit: Attach the metal chains to the designated hanging points on the grow light. Connect the hook to the chains.
- Muntar la llum: Securely hang the grow light from a sturdy support structure using the provided hook. Ensure the light is level and stable.
- Posicionament: Adjust the height of the light above your plants according to their current growth stage (vegeu la secció 6 per obtenir orientació).
- Connectar l'alimentació: Plug the power cord into the grow light's input port, then plug the other end into a standard 230V electrical outlet.
Image: The Bozily LED Grow Light suspended above a tray of young plants in an indoor growing environment.
6. Instruccions de funcionament
Operating your Bozily LED Grow Light is straightforward:
- Encès/apagat: Once plugged in, the light will turn on. There may be an integrated switch on the power cord or the unit itself to control power.
- Ajust de l'alçada: The optimal distance between the grow light and your plants varies by growth stage. Refer to the guidelines below for recommended hanging heights:
| Creixement Stage | Recommended Height (from plant canopy) | Recommended Lighting Duration |
|---|---|---|
| Sembra | 28-40 polzades (71-102 cm) | 16-18 hores encès / 6-8 hores apagat |
| Growing (Vegetative) | 28-22 polzades (71-56 cm) | 14-16 hores encès / 8-10 hores apagat |
| Floració | 22-16 polzades (56-41 cm) | 12 hores encès / 12 hores apagat |
| Fruiting | 16-10 polzades (41-25 cm) | 10-12 hores encès / 12-14 hores apagat |

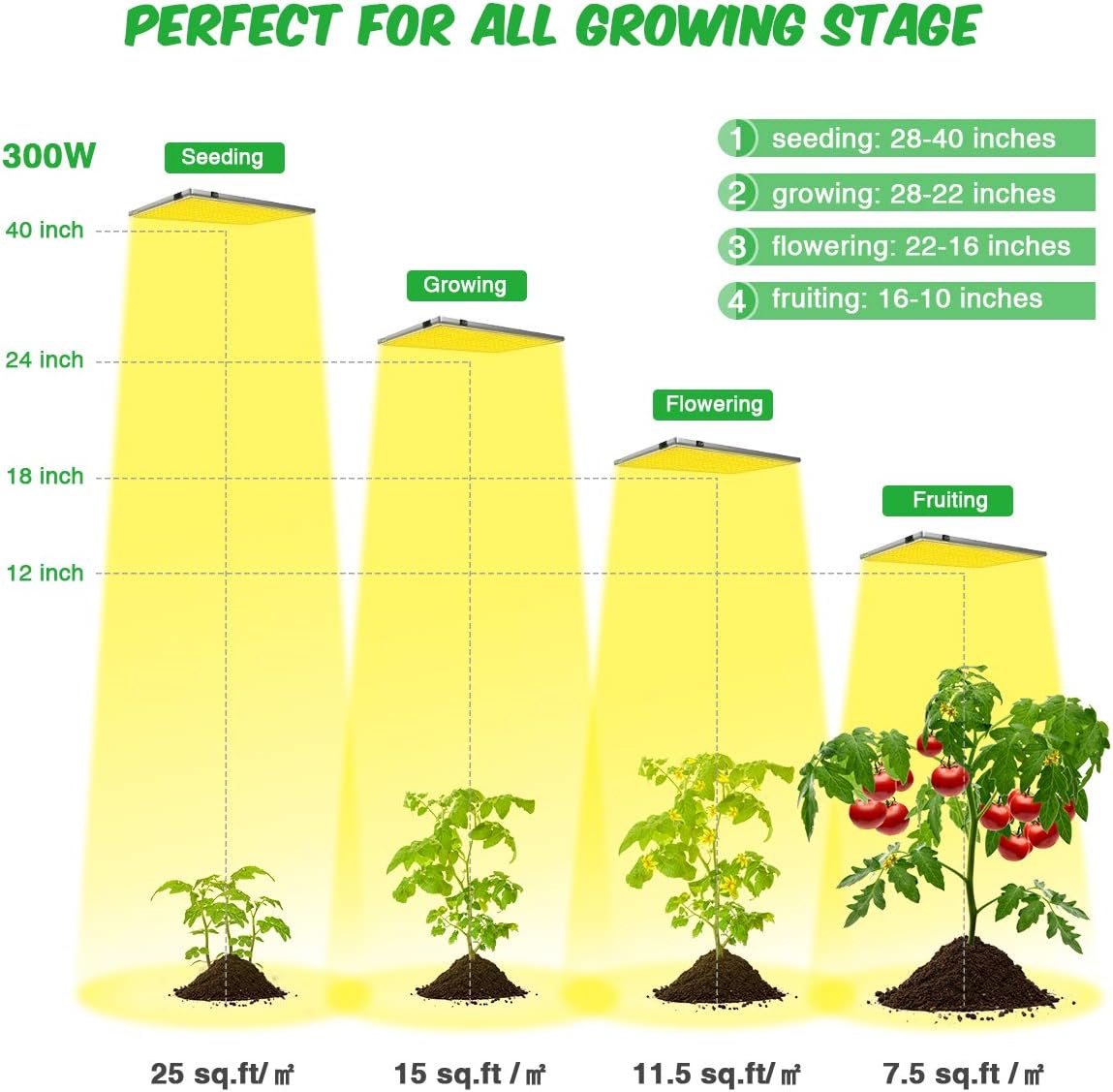

Image: Visual guide for adjusting the grow light height for seeding, growing, flowering, and fruiting stages.
Image: PAR (Photosynthetically Active Radiation) measurements at 0, 6, 12, 18, and 24 inches from the light source, showing light intensity at different distances.
Nota: These are general recommendations. Observe your plants for signs of stress (e.g., stretching, bleaching) and adjust the light height and duration as needed.
7. Manteniment
Regular maintenance ensures the longevity and optimal performance of your grow light:
- Neteja: Ensure the light is unplugged and cool before cleaning. Gently wipe the surface of the light and LEDs with a soft, dry cloth to remove dust and debris. Do not use harsh chemicals or abrasive materials.
- Inspeccionar connexions: Periodically check the power cord and hanging kit for any signs of wear, damage, or loose connections.
- Emmagatzematge: If storing the light for an extended period, ensure it is clean, dry, and stored in a safe place. The foldable design allows for compact storage.
8. Solució De Problemes
If you encounter issues with your Bozily LED Grow Light, refer to the following common problems and solutions:
- El llum no s'encén:
- Check if the power cord is securely plugged into both the light and the electrical outlet.
- Verifiqueu que la presa de corrent funciona connectant-hi un altre dispositiu.
- Ensure any inline switch on the power cord or unit is in the 'ON' position.
- Plants Are Not Thriving:
- Stretching (etiolation): The light may be too far from the plants. Lower the light closer to the canopy.
- Bleaching/Burning: The light may be too close or too intense. Raise the light further from the canopy.
- Slow Growth: Review your lighting schedule to ensure plants are receiving adequate light duration for their growth stage. Consider other environmental factors like nutrients, water, temperature, and humidity.
- Soroll inusual:
- The Bozily grow light is designed for silent operation. If you hear unusual noises, immediately unplug the unit and contact customer support.
If these solutions do not resolve the issue, please contact Bozily customer support for further assistance.
9. Especificacions
| Característica | Especificació |
|---|---|
| Marca | Bozily |
| Número de model | 1053B-FBA-DE-01 |
| Dimensions (L x A x A) | 56 x 30 x 1.8 cm (22 x 11.8 x 0.7 polzades) |
| Pes | 1.7 quilos (3.75 lliures) |
| Consum d'energia | 300 watts |
| Voltage | 230 Volts |
| Nombre de LED | 338 |
| Tipus de llum | LED d’espectre complet |
| Característiques especials | Foldable, Adjustable Arm (implied by hanging kit) |
| Reflector Angle | 90° |
| Certificacions | CE / RoHS / PSE |
10. Garantia i Suport
Bozily is committed to providing high-quality products and customer satisfaction.
- Garantia: This product comes with a 1-year authentic warranty from the date of purchase.
- Garantia de devolució de diners: A 30-day money-back guarantee is offered to ensure your satisfaction.
- Atenció al client: Bozily provides 24/7 customer support. For any questions, concerns, or warranty claims, please contact us through the retailer's platform or our official weblloc.
