1. Introducció
This manual provides essential information for the safe and efficient use of your OSRAM LED Superstar Classic A60 Dimmable LED lamp. Aquest LED lamp is designed to replace conventional 60W incandescent bulbs, offering significant energy savings and a long operational life. It features a classic pear shape, an E27 base, and emits a warm white light at 2700K with 806 lumens of brightness. The lamp is dimmable, allowing for adjustable light levels to suit various environments.
Image 1: OSRAM LED Superstar Classic A60 Dimmable LED lamp and its retail packaging.
2. Instruccions de seguretat importants
Si us plau, llegiu i comprengui totes les instruccions de seguretat abans d'instal·lar o utilitzar elampSi no es segueixen aquestes instruccions, es poden produir descàrregues elèctriques, incendis o altres perills.
- Apagar: Always ensure the power supply to the luminaire is switched off before installation, removal, or maintenance.
- Base correcta: Use only in luminaires designed for E27 base bulbs.
- Compatibilitat regulable: Aquesta lamp is dimmable. Ensure that the dimmer switch used is compatible with LED lamps to prevent flickering or damage. Refer to the dimmer manufacturer's instructions for compatibility.
- Ús interior / exterior: Suitable for indoor use. For outdoor applications, the lamp must be installed in appropriate outdoor luminaires that provide adequate protection against moisture and environmental elements.
- No desmunteu: Do not attempt to disassemble, modify, or repair the lamp. A l'interior no hi ha peces que puguin ser reparades per l'usuari.
- Eviteu el contacte directe: No toqueu la lamp with wet hands or when standing on a wet surface.
- Eliminació: Eliminar la lamp d'acord amb la normativa local sobre residus electrònics.
3. Configuració i instal·lació
Follow these steps to install your OSRAM LED lamp:
- Apagueu l'alimentació: Locate the light switch or circuit breaker that controls the power to the fixture where the lamp will be installed. Turn off the power completely.
- Traieu la bombeta antiga: Carefully unscrew the existing bulb from the E27 base socket. Allow it to cool if it was recently in use.
- Install New LED Lamp: Gently screw the OSRAM LED Superstar Classic A60 lamp into the E27 base socket. Ensure it is securely tightened but do not overtighten.
- Restaura l'alimentació: Turn the power back on at the light switch or circuit breaker.
- Prova: Engegueu l'interruptor de la llum per confirmar la lamp està funcionant correctament.
Imatge 2: Primer pla view of the OSRAM LED lamp, showing its E27 screw base.
4. Instruccions de funcionament
The OSRAM LED Superstar Classic A60 lamp operates like a standard light bulb with the added benefit of dimming capability.
- Activació/desactivació: Use your existing light switch to turn the lamp on or off. The LED lamp provides instant full brightness without any warm-up time.
- Funció d'atenuació: If connected to a compatible dimmer switch, adjust the dimmer to achieve your desired light level. This lamp is designed to work with many conventional dimmers. For optimal performance and to avoid issues like flickering or buzzing, ensure your dimmer is specifically rated for LED lamps.
5. Manteniment
The OSRAM LED Superstar Classic A60 lamp requereix un manteniment mínim.
- Neteja: Assegureu-vos que l'alimentació estigui apagada i que la lamp estigui fred abans de netejar-lo. Netegeu la lamp with a soft, dry cloth. Do not use liquid or abrasive cleaners, as they may damage the lamp.
- No hi ha peces reparables per l'usuari: Aquesta lamp contains no user-serviceable parts. Any attempt to open or modify the lamp will void the warranty and may create a safety hazard.
6. Solució De Problemes
Si teniu problemes amb el vostre LEDamp, consulteu els problemes i solucions habituals següents:
- Lamp No s'il·lumina:
- Check that the power supply to the fixture is on.
- Assegureu-vos que lamp està ben cargolat al portalàmpades E27.
- Prova la lamp in another working fixture to rule out a faulty fixture.
- Lamp Flickers or Buzzes:
- This often indicates incompatibility with the dimmer switch. Ensure your dimmer is specifically designed for LED lamps.
- Ensure the dimmer's load range matches the lampés watage.
- Check for loose wiring in the fixture or switch.
- Brillantor reduït:
- Si feu servir un regulador d'intensitat, assegureu-vos que estigui configurat a la brillantor màxima.
- Comproveu la lamp's specifications match your expectations for brightness.
7. Especificacions tècniques
| Característica | Especificació |
|---|---|
| Marca | OSRAM |
| Nom del model | Retrofit Classic A (4058075054240) |
| Tipus de llum | LED |
| Característica especial | Regulable |
| Mida de la forma del bulb | A60 (A19 equivalent) |
| Base del bulb | E27 |
| Wattage (LED) | 6.5 Watts (7 Watts listed on packaging) |
| Equivalent incandescent | 60 watts |
| Brillantor | 806 lúmens |
| Color clar | Blanc càlid |
| Temperatura de color | 2700 Kelvin |
| Voltage | 220-240 volts, 50 hertz |
| Vida Mitjana | 15,000 hores |
| Índex de reproducció del color (CRI) | ≥ 80 (60 listed in some specs, using higher value from product description) |
| Dimensions del producte | 4.33 x 2.36 x 2.44 polzades (11 x 6 x 6.2 cm) |
| Pes de l'article | 1.13 unces (32 grams) |
| Material | Copper (base), Glass (bulb) |
| Classe d'eficiència | F (New Energy Label) |
Product Data and Energy Label Information
For detailed product information and energy efficiency data, please refer to the official EPREL database:
- Fitxa tècnica del producte: View EPREL Product Data (QR Code from Image 3)
- Etiqueta energètica: View EPREL Energy Label (QR Code from Image 4)

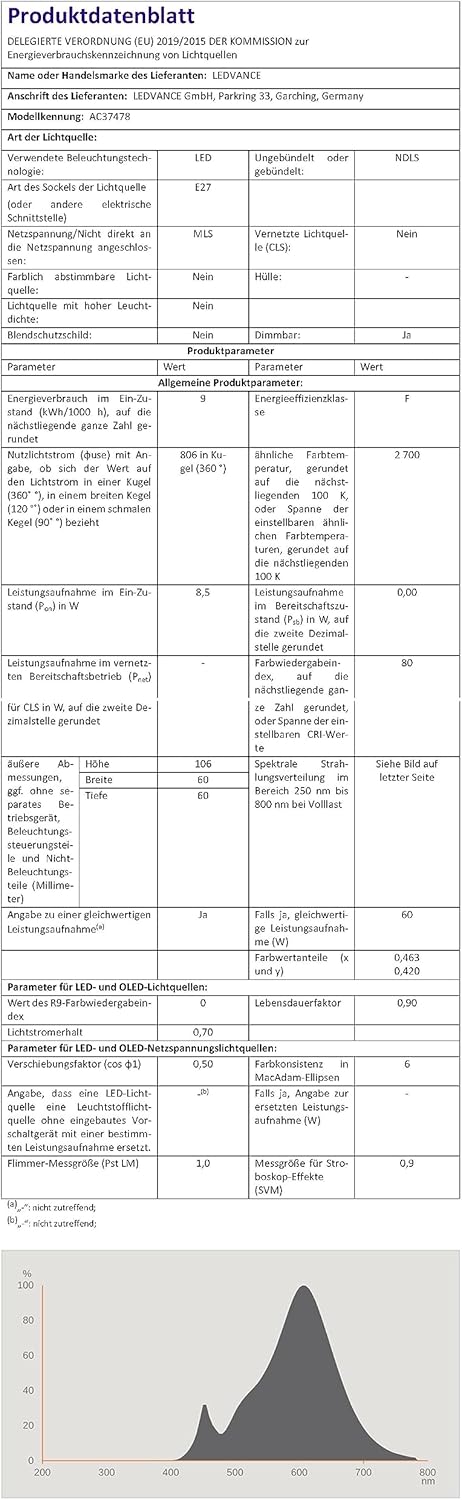

Image 3: Product data sheet for the OSRAM LED lamp, including detailed technical specifications and an EPREL QR code.
Image 4: EU Energy Label indicating the energy efficiency class and consumption of the OSRAM LED lamp.
8. Garantia i Suport
Per obtenir informació sobre la garantia i l'assistència al client, consulteu la documentació que s'inclou amb la compra o visiteu el lloc web oficial d'OSRAM. weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
If you experience any issues not covered in the troubleshooting section, please contact OSRAM customer service or your retailer for assistance.
