1. Introducció
This manual provides detailed instructions for the setup, operation, and maintenance of your JOYACCESS 2.4G Slim and Compact Wireless Keyboard. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.
Un ple view of the JOYACCESS 2.4G Slim and Compact Wireless Keyboard, showcasing its sleek design and full layout with a numeric pad.
2. Contingut del paquet
- JOYACCESS Wireless Keyboard
- Nano receptor USB
- Manual d'usuari (aquest document)
- Note: 2 AA batteries are required and not included.
3. Guia de configuració
3.1 Instal·lació de la bateria
The keyboard requires two AA batteries for operation. Follow these steps to install them:
- Localitzeu el compartiment de la bateria a la part inferior del teclat.
- Obriu la tapa del compartiment de la bateria.
- Introduïu dues piles AA, assegurant-vos de la polaritat correcta (+/-).
- Tanqueu bé la tapa del compartiment de la bateria.
This image illustrates the location of the battery compartment and the USB nano receiver storage slot on the back of the keyboard. The text "BATTERIES NOT INCLUDED" is visible, along with an arrow pointing to the USB receiver.
3.2 Connecting the Keyboard (Plug and Play)
The JOYACCESS Wireless Keyboard uses a 2.4G wireless connection for easy setup:
- Remove the USB nano receiver from its storage slot in the keyboard's battery compartment.
- Plug the USB nano receiver into an available USB port on your computer (Laptop, PC, MacBook, etc.).
- Turn on the keyboard using the ON/OFF switch, usually located near the battery compartment.
- The keyboard will automatically connect to your computer. No additional drivers or software are required.
This image demonstrates the simple plug-and-play setup, showing the keyboard wirelessly connected to a laptop. It highlights the 2.4G wireless technology and a signal range of up to 33 feet.
4. Instruccions de funcionament
4.1 Ús bàsic
Once connected, the keyboard functions like a standard full-size keyboard. The low-profile design and scissor-switch keys provide a comfortable and quiet typing experience.
This image focuses on the scissor-switch key mechanism, illustrating how it provides light, responsive, and quiet typing.
4.2 Llums indicadors
The keyboard features indicator lights for important functions:
- Bloqueig numèric: Indicates when the numeric keypad is active.
- Majúscules activades: Indicates when Caps Lock is enabled.
- Power/Battery Status: Indicates power status and low battery warning.
This image clearly labels the Num Lock, Caps Lock, and Power indicator lights located on the top right of the keyboard.
4.3 Tecles multimèdia i de funció
The keyboard includes 10 additional keys for quick access to multimedia and office functions. These are typically accessed by pressing the Fn en combinació amb la tecla F corresponent (F1-F12).
- Fn + F1-F12: Control volume, media playback, web browser, email, and other common applications. Refer to the key legends for specific functions.
4.4 Funció de suspensió automàtica
To conserve battery life, the keyboard will enter a sleep state after 8 minutes of inactivity. To wake the keyboard, simply press any key. It will reconnect automatically.
This diagram visually explains the auto-sleep feature, showing the transition from active to sleep mode and back to active mode upon key press, designed to save battery power.
4.5 Compatibilitat àmplia
El teclat és compatible amb una àmplia gamma de sistemes operatius i dispositius:
- Windows 2000 / ME / XP / Vista / 7 / 8 / 10
- MacBook, desktops, Chromebook, PC, Laptop, Computer, Smart TV, and more.
This image displays icons for various compatible devices and operating systems, including laptops, desktops, Windows, Mac, and MacBook Pro, illustrating the keyboard's broad compatibility.
5. Manteniment
5.1 Neteja del teclat
Per mantenir l'aspecte i la funcionalitat del teclat:
- Feu servir un drap suau i sec per netejar la superfície del teclat.
- Per a la brutícia persistent, lleugerament dampal drap amb aigua o un netejador suau i no abrasiu.
- Avoid using excessive liquid or harsh chemicals, as they may damage the electronics.
- Feu servir aire comprimit per eliminar la pols i les restes que hi ha entre les tecles.
5.2 Substitució de la bateria
When the power indicator light flashes or the keyboard becomes unresponsive, it's time to replace the batteries. Refer to Section 3.1 for battery installation instructions.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El teclat no respon | Low or dead batteries. USB receiver not properly connected. Keyboard is off. | Replace batteries. Ensure USB receiver is firmly plugged into a working USB port. Turn on the keyboard. |
| Delayed response or intermittent connection | Too far from receiver. Interference from other wireless devices. | Move keyboard closer to the USB receiver (within 33 feet). Move other wireless devices away from the receiver. |
| Tecles específiques que no funcionen | Debris under the key. Software issue. | Clean the key area. Restart your computer. |
| El teclat numèric no funciona | Num Lock is off. | Press the Num Lock key to activate the numeric keypad. |
7. Especificacions
- Model: JKB2B
- Connectivitat: Sense fil 2.4G (receptor USB)
- Interval de funcionament: Fins a 33 peus (10 metres)
- Font d'alimentació: 2 piles AA (no incloses)
- Tipus de clau: Interruptor de tisores
- Nombre de claus: 86
- Dimensions: 15.03 x 5.7 x 1.9 polzades (38.18 x 14.48 x 4.83 cm)
- Pes de l'article: 1.21 lliures (0.55 kg)
- Compatibilitat: Windows 2000/ME/XP/Vista/7/8/10, Mac, PC, Laptop, Chromebook, Smart TV
- Característiques especials: Ergonomic, Lightweight, Silent, Ultra Slim, Numeric Pad, Multimedia Keys, Auto-Sleep

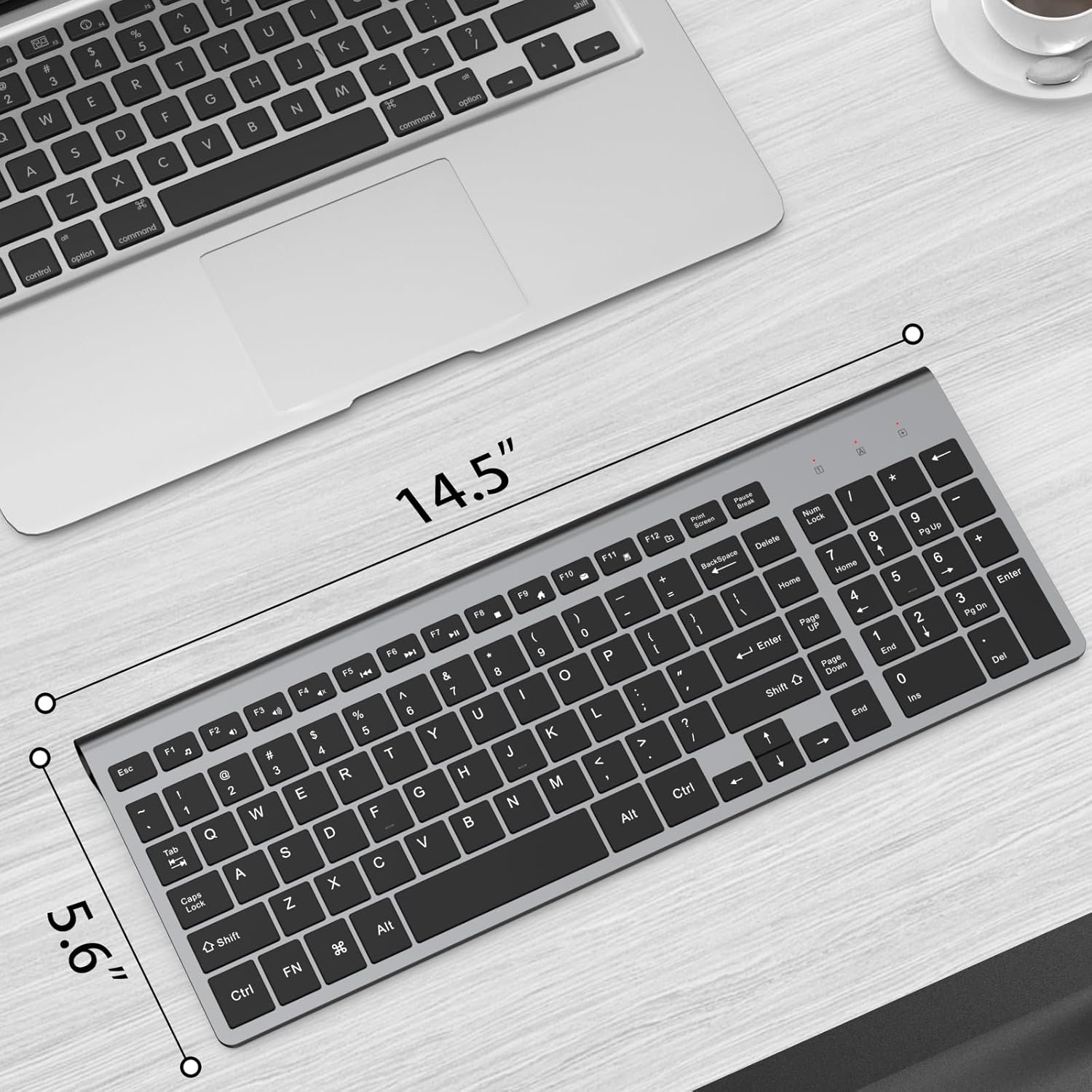

This image provides a visual representation of the keyboard's dimensions, indicating its length and width.
This diagram illustrates the ultra-slim design of the keyboard, showing its minimal thickness at both the front and back edges.
8. Garantia i Suport
For warranty information, technical support, or customer service inquiries, please contact JOYACCESS customer support through the retailer's platform or visit the official JOYACCESS weblloc web. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.
Fabricant: JOYACCESS
