Introducció
The Corsair Harpoon RGB Wireless Gaming Mouse offers versatile connectivity options including hyper-fast, sub 1ms Slipstream Corsair Wireless Technology, low-latency Bluetooth, or a traditional USB wired connection. Designed for comfort and durability, its contoured shape and rubber side grips ensure a confident hold during extended use. This mouse features up to 60 hours of battery life and is compatible with Corsair iCUE software for advanced customization of sensitivity, DPI settings, battery monitoring, and dynamic RGB lighting synchronization across compatible Corsair devices.
Contingut del paquet
- Ratolí per a jocs HARPOON RGB WIRELESS
- Cable de càrrega i dades USB
- Wireless USB transceiver (dongle)
- Guia d'inici ràpid
- Fullet de seguretat
- Targeta de garantia
Configuració
1. Wireless (Slipstream) Connection
- Locate the wireless USB transceiver (dongle) included in the package.
- Plug the wireless USB transceiver into an available USB port on your PC, Mac, PS5, or PS4.
- Turn on the Corsair Harpoon mouse using the power switch located on the underside of the mouse.
- The mouse should automatically connect to the transceiver. The LED indicator on the mouse will confirm connection.
Image: The underside of the Corsair Harpoon mouse, illustrating the storage compartment for the USB wireless transceiver and the power switch. A separate image shows the USB dongle plugged into a laptop.
2. Connexió Bluetooth
- Ensure your device (PC, Mac, PS5, PS4, Xbox) has Bluetooth enabled.
- Turn on the Corsair Harpoon mouse.
- On your device, navigate to Bluetooth settings and search for new devices.
- Select "Corsair Harpoon Wireless" from the list of available devices to pair.
- The mouse LED indicator will confirm successful pairing.
3. Connexió per cable
- Connect the provided USB charging and data cable to the mouse.
- Plug the other end of the USB cable into an available USB port on your PC or console.
- The mouse will function as a wired mouse and will charge its internal battery simultaneously.

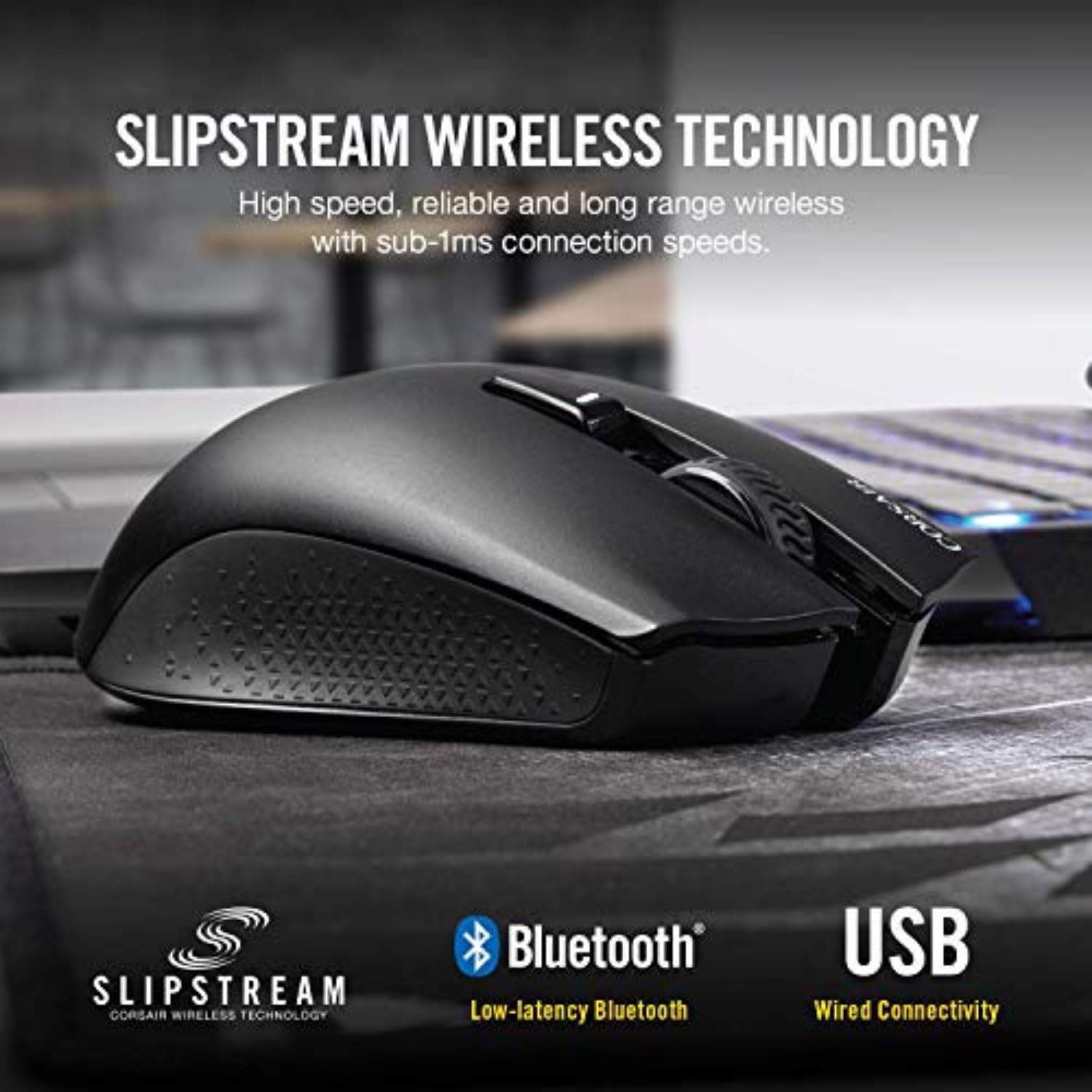

Image: A visual representation of the Corsair Harpoon mouse emphasizing its versatile connectivity options: Slipstream Wireless, Bluetooth, and USB Wired.
Funcionament
1. Botons i controls
The Corsair Harpoon Wireless mouse features 6 programmable buttons for enhanced control and customization. These include the left-click, right-click, scroll wheel click, DPI cycle button, and two side buttons.
Image: A detailed diagram of the Corsair Harpoon mouse, clearly labeling its six programmable buttons for user reference.
2. Ajust de DPI
The mouse offers a 10,000 DPI optical sensor. You can cycle through preset DPI stages using the dedicated DPI button, typically located behind the scroll wheel. For fine-tuning and creating custom DPI profiles, use the Corsair iCUE software.
3. Corsair iCUE Software
Download and install the Corsair iCUE software from the official Corsair weblloc. Aquest programari us permet:
- Customize DPI settings and create multiple profiles.
- Program the 6 buttons with macros or remapped functions.
- Adjust and synchronize the dynamic RGB lighting effects.
- Monitor battery life and other performance metrics.
4. Càrrega i durada de la bateria
The Corsair Harpoon Wireless mouse features an internal rechargeable Lithium Polymer battery, offering up to 60 hours of battery life depending on usage and lighting settings. To charge, connect the mouse using the provided USB charging and data cable to a USB port on your computer or a USB wall adapter. The mouse can be used in wired mode while charging.
Image: The Corsair Harpoon mouse from a top-down perspective, highlighting its lightweight construction (99g) and ergonomic design for comfortable, long-term use.
Manteniment
- Neteja: Feu servir un drap suau i sec per netejar el ratolí. Eviteu utilitzar productes químics agressius o materials abrasius.
- Cura del sensor: Mantingueu el sensor òptic de la part inferior del ratolí net i lliure de pols o restes per garantir un seguiment precís.
- Longevitat de la bateria: For optimal battery life, avoid fully discharging the mouse frequently. Charge it when the battery indicator is low.
- Emmagatzematge: Quan no l'utilitzeu durant períodes prolongats, guardeu el ratolí en un lloc fresc i sec.
Resolució de problemes
- El ratolí no respon:
- Assegureu-vos que el ratolí estigui encès.
- Comproveu el nivell de la bateria i carregueu-la si cal.
- Verify the USB wireless transceiver is securely plugged into a working USB port.
- If using Bluetooth, ensure Bluetooth is enabled on your device and the mouse is paired.
- Try connecting the mouse via the USB wired cable.
- Seguiment inexacte:
- Netegeu el sensor òptic de la part inferior del ratolí.
- Assegureu-vos que feu servir el ratolí sobre una superfície adequada (per exemple, una estora de ratolí).
- Adjust DPI settings via the mouse button or iCUE software.
- iCUE Software Not Detecting Mouse:
- Ensure the mouse is connected to your PC (wired or wireless).
- Restart the iCUE software.
- Update iCUE software to the latest version.
- Try reinstalling the iCUE software.
Especificacions
| Número de model | CH-9311011-NA |
| Connectivitat | Slipstream Wireless (2.4GHz), Bluetooth, USB Wired |
| Tipus de sensor | Òptic |
| DPI màxim | 10,000 DPI |
| Botons programables | 6 |
| Durada de la bateria | Fins a 60 hores (segons l'ús) |
| Pes | 99 grams (3.52 unces) |
| Dimensions (LxWxH) | 4.55 x 2.69 x 1.59 polzades |
| Sistema operatiu compatible | Windows 10, Windows 8, Windows 7 |
| Dispositius compatibles | PC, Mac, PS5, PS4, Xbox |

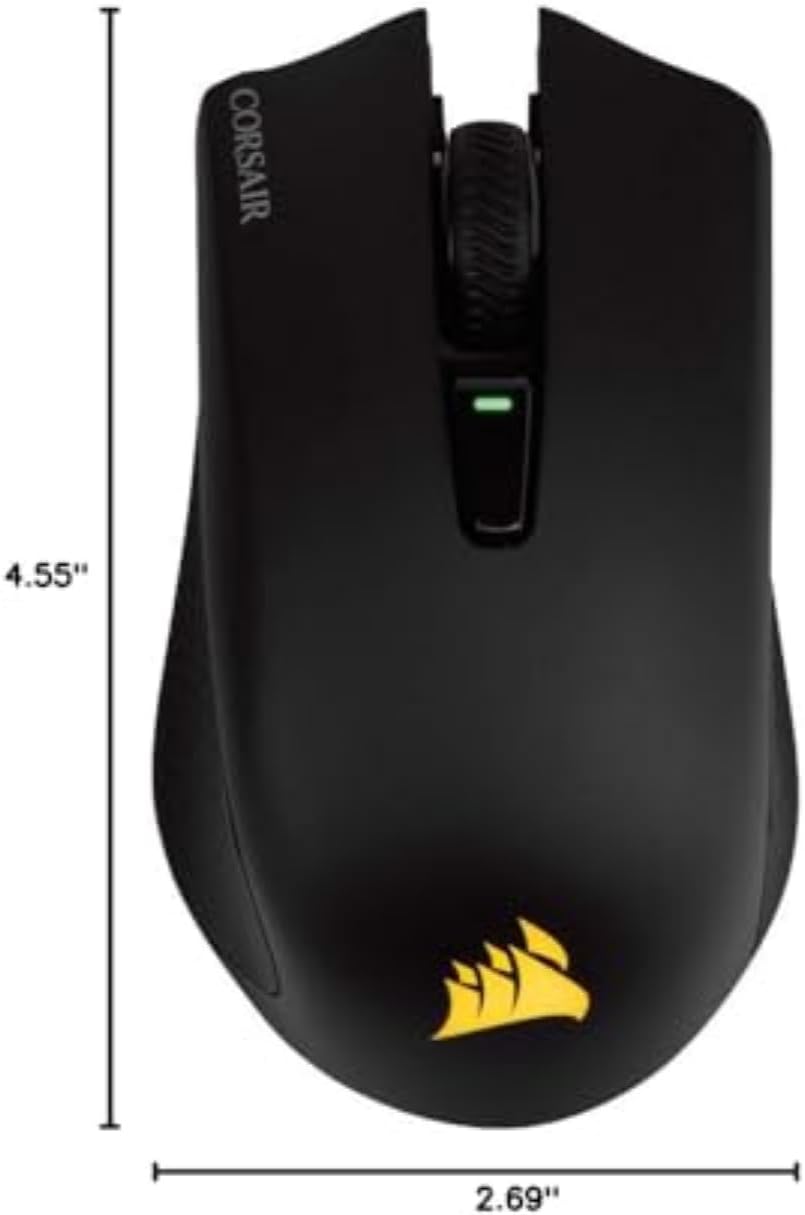

Imatge: Vista de dalt a baix view of the Corsair Harpoon mouse with its length (4.55") and width (2.69") clearly marked.
Garantia i Suport
The Corsair Harpoon RGB Wireless Gaming Mouse comes with a manufacturer's warranty. Please refer to the included Warranty Card in your package for specific terms and conditions. For technical support, driver downloads, and further assistance, visit the official Corsair support weblloc: www.corsair.com/support.
