1. Producte acabatview
The GIRA S3000 Uni-LED Dimmer, model 540000, is a high-quality, durable electrical component designed for precise control of LED lighting. This device offers a flexible design, ensuring reliable performance and integration into various electrical systems.
Característiques principals:
- Flexible design for versatile applications.
- Construcció d'alta qualitat i duradora.
- Robust electrical material for long-lasting performance.

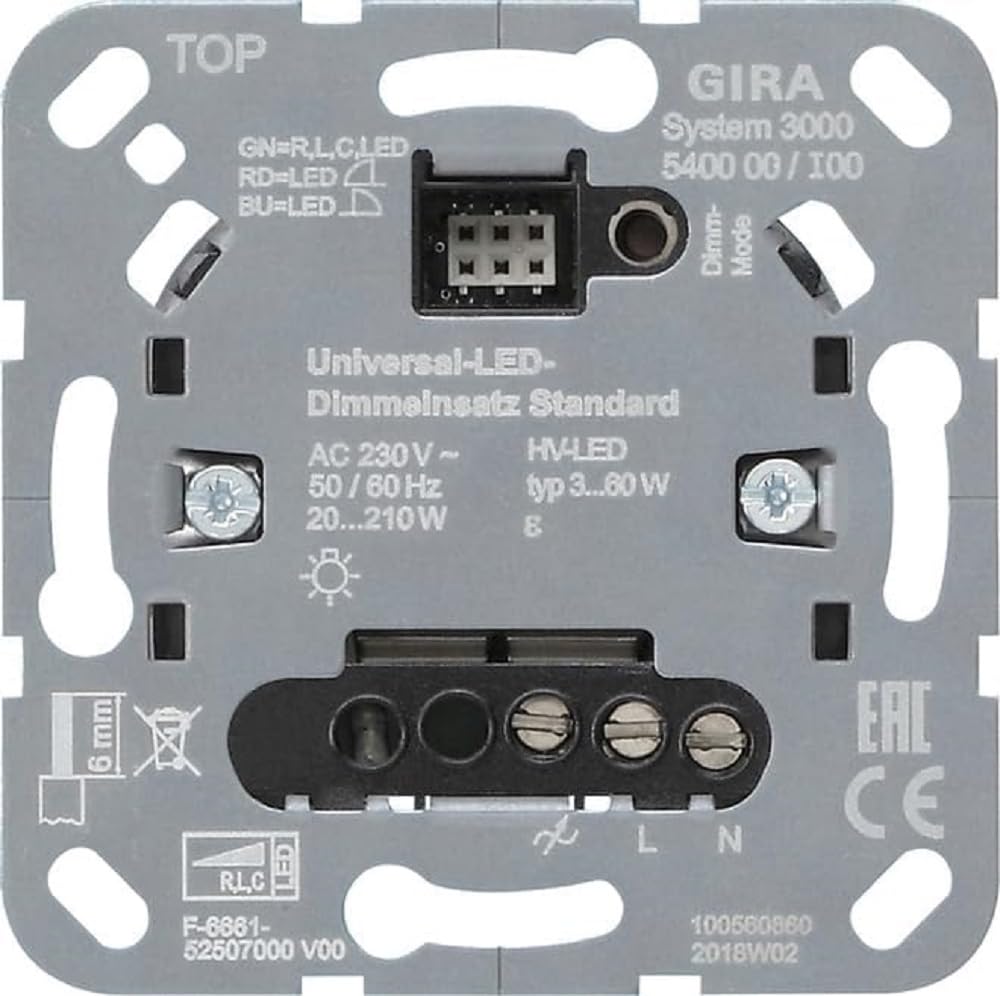

Figura 1: Davant view of the GIRA S3000 Uni-LED Dimmer, Model 540000, showing its rectangular shape and control knob. This image illustrates the standard appearance of the dimmer unit.
2. Configuració i instal·lació
Installation of the GIRA S3000 Uni-LED Dimmer should only be performed by a qualified electrician to ensure safety and compliance with local electrical codes. Incorrect installation can lead to electrical shock, fire, or damage to the device and connected lighting.
Precaucions de seguretat:
- Always disconnect power at the main circuit breaker before beginning any installation work.
- Comproveu que l'alimentació estigui apagada amb un voltage provador.
- Assegureu-vos que totes les connexions del cablejat estiguin segures i aïllades correctament.
- No supereu la potència màximatage rating of 60 watts for connected lighting.
Passos d'instal·lació (generals):
- Apagueu l'alimentació a l'interruptor.
- Remove the existing switch or dimmer from the wall box.
- Identify the wiring (line, load, neutral, ground).
- Connect the GIRA S3000 Uni-LED Dimmer wires according to the wiring diagram provided with the product (refer to included installation accessories).
- Secure the dimmer into the wall box.
- Fixeu la placa frontal.
- Resta l'alimentació al disjuntor.
The product includes necessary installation accessories. For detailed wiring diagrams, please consult the specific documentation packaged with your dimmer unit.
3. Instruccions de funcionament
The GIRA S3000 Uni-LED Dimmer provides intuitive control over your LED lighting. Its design allows for easy adjustment of light intensity.
Funcionament bàsic:
- Activació/desactivació: Press the control knob to toggle the connected lights on or off.
- Ajust de brillantor: Rotate the control knob clockwise to increase light intensity and counter-clockwise to decrease it.
- Minimum/Maximum Brightness: The dimmer allows for adjustment across the full dimming range supported by your LED lamps.
4. Manteniment
The GIRA S3000 Uni-LED Dimmer is designed for durability and requires minimal maintenance. Regular cleaning can help maintain its appearance and functionality.
Neteja:
- Before cleaning, always turn off power to the dimmer at the circuit breaker.
- Utilitzeu un suau, damp cloth to wipe the surface of the dimmer.
- No utilitzeu netejadors abrasius, dissolvents ni productes químics agressius, ja que poden danyar l'acabat.
- Ensure the dimmer is completely dry before restoring power.
No internal user-serviceable parts are present. Do not attempt to disassemble the dimmer.
5. Solució De Problemes
If you encounter issues with your GIRA S3000 Uni-LED Dimmer, please refer to the following common troubleshooting steps. If the problem persists, contact a qualified electrician.
Problemes comuns i solucions:
- Els llums no s'encenen:
- Comproveu si l’interruptor automàtic està activat.
- Assegureu-vos que totes les connexions del cablejat estiguin segures.
- Verify that the light bulbs are functional and correctly installed.
- Lights do not dim or flicker:
- Confirm that the connected LED lamps are dimmable. Not all LED lamps are compatible with dimmers.
- Assegureu-vos el wat totaltage of connected lights does not exceed the dimmer's 60-watt capacity.
- Comproveu si hi ha connexions de cablejat soltes.
- Dimmer feels warm:
- It is normal for dimmers to generate some heat during operation. However, if it feels excessively hot, immediately turn off power and consult an electrician. This could indicate an overload or wiring issue.
6. Especificacions
| Especificació | Detall |
|---|---|
| Fabricant | GIRA |
| Número de model | 540000 |
| Dimensions del producte | 25 x 36 x 36 cm |
| Pes | 100 grams |
| Color | Acer inoxidable |
| Estil | europeu |
| Acabar | Powder-coated (Possible) |
| Material | Stainless Steel (Handle) |
| Forma | Rectangular |
| Tipus de font d'alimentació | AC |
| Wat màxtage | 60 watts |
| Components inclosos | Accessoris d'instal·lació |
| Piles necessàries | No |
7. Garantia i Suport
Information regarding the specific warranty period or direct customer support contacts for the GIRA S3000 Uni-LED Dimmer (Model 540000) was not provided in the product data. For warranty details, technical support, or service inquiries, please refer to the official GIRA website or contact your authorized GIRA dealer.
Es recomana conservar el tiquet de compra com a comprovant de compra per a qualsevol reclamació de garantia.
