HuiNa 1594 RC Excavator Instruction Manual

Producte acabatview

The HuiNa 1594 RC Excavator is a professional-grade, 1:14 scale remote control construction vehicle designed for enthusiasts. This model combines features from the Huina 1580 and 1593 excavators, offering robust performance and realistic operation. It is equipped with metal components for enhanced durability and digging capability.

Figure 1: The HuiNa 1594 RC Excavator, showcasing the main unit, remote control, two rechargeable batteries, and four interchangeable attachments.

Característiques principals:

• Practical Metal Alloy Construction: Features metal tracks, gears, wheels, gearbox, and bucket for stability and powerful digging.
• Advanced 22-Channel 2.4GHz Radio Remote Control: Offers a range of up to 100 feet for precise control.
• Lead Screw Drive: Provides smooth and powerful arm movements.
• Twin Motor Independent Drive: Enables robust and independent track movement.
• Detalls realistes: Includes LED lights in the cabin, simulated sounds, and continuous turret rotation.
• Control proporcional: Allows for precise control of the boom, arm, and bucket.
• Temps de joc llarg: Powered by two 7.4V 2000mAh Li-ion rechargeable batteries, providing up to 50 minutes of operation per full charge.
• Múltiples fitxers adjunts: Comes with four exchangeable attachments for versatile operations.

Què hi ha a la caixa

En obrir el paquet, comproveu que hi hagi tots els components següents:

• 1 x HuiNa 1594 RC Excavator
• 1 comandaments a distància de 2.4 GHz
• 2 bateries recarregables de ions de liti de 7.4 V i 2000 mAh
• 4 x Exchangeable Attachments (e.g., bucket, grapple, hammer, wood grab)
• 1 x cable de càrrega USB
• 1 x Manual d'instruccions (aquest document)

Figure 2: All components included in the HuiNa 1594 RC Excavator package, neatly arranged in its protective suitcase box.

Especificacions

Figure 3: Key dimensions of the HuiNa 1594 RC Excavator, including extended height, stretch length, width, and overall length.

Informació de seguretat

Please read and understand all safety warnings and precautions before operating the RC excavator. Failure to do so may result in injury or damage to the product.

• Supervisió d'adults: This product is recommended for ages 14 and up. Adult supervision is advised, especially during initial setup and operation.
• Seguretat de la bateria:
  • Use only the provided charger and batteries.
  • Do not overcharge or short-circuit batteries.
  • No exposeu les bateries a temperatures extremes ni a la llum solar directa.
  • If batteries leak, avoid contact with skin and eyes. Dispose of properly.
  • Remove batteries from the remote control and excavator when not in use for extended periods.
• Entorn de funcionament:
  • Operate the excavator in open, clear areas, away from people, pets, and obstacles.
  • Avoid operating near water, electrical wires, or fragile objects.
  • No opereu amb vents forts ni condicions meteorològiques adverses.
• Parts mòbils: Keep fingers, hair, and loose clothing away from moving parts such as tracks, arms, and attachments to prevent entanglement or injury.
• Adjunts: Ensure attachments are securely fastened before operation. Do not attempt to lift objects heavier than the excavator's capacity.
• Neteja: Disconnect power and remove batteries before cleaning. Use a dry cloth; avoid water or harsh chemicals.

Configuració

1. Instal·lació de la bateria

Bateria de l'excavadora:

1. Locate the battery compartment on the underside of the excavator.
2. Obriu la tapa del compartiment de la bateria.
3. Connect the 7.4V 2000mAh Li-ion battery to the excavator's power connector.
4. Col·loqueu amb cura la bateria dins del compartiment i tanqueu la tapa de manera segura.

Bateria de control remot:

1. Obriu la tapa de la bateria a la part posterior del comandament a distància.
2. Introduïu 3 piles AA (no incloses) al compartiment, assegurant-vos de la polaritat correcta (+/-).
3. Tanqueu la tapa de la bateria.

Figura 4: Detallada view of the excavator's battery compartment and other structural elements.

2. Carregant la bateria

Before first use, fully charge the excavator's battery.

1. Connect the excavator battery to the provided USB charging cable.
2. Plug the USB charging cable into a suitable USB power adapter (e.g., computer USB port, wall adapter).
3. The charging indicator light on the USB cable will show the charging status (refer to charger instructions for specific light behavior).
4. Charging typically takes 5-7 hours. Do not leave charging unattended.
5. Un cop estigui completament carregat, desconnecteu la bateria del carregador.

3. Emparellament del control remot

The excavator and remote control are usually pre-paired. If pairing is lost or for initial setup:

1. Ensure both the excavator and remote control have fresh batteries installed.
2. Engegueu l'interruptor d'alimentació de l'excavadora.
3. Engegueu l'interruptor d'alimentació del comandament a distància.
4. The remote control's indicator light should blink and then become solid, indicating successful pairing. If not, turn both off and repeat the process.

4. Attaching/Changing Attachments

The HuiNa 1594 comes with multiple interchangeable attachments. To change them:

1. Assegureu-vos que l'excavadora estigui apagada.
2. Carefully detach the current attachment by releasing its locking pins or mechanism.
3. Align the desired new attachment with the arm's connection points.
4. Securely fasten the attachment using the locking pins or mechanism until it clicks into place.
5. Gently tug on the attachment to ensure it is firmly secured before operation.

Figure 5: The excavator highlighting its lead screw drive, metal tracks, metal bucket, and rechargeable battery system.

Funcionament de l'excavadora

Familiarize yourself with the remote control layout and functions before operating the excavator.

Figure 6: The 22-channel remote control and the HuiNa 1594 RC Excavator, emphasizing its advanced control capabilities.

Funcions de control remot:

The 22-channel remote control allows for precise and independent movements. Refer to the remote control diagram (not provided in this text, but typically found in a physical manual) for exact button mapping.

• Joystick esquerre: Controls forward/backward movement of the tracks and left/right rotation of the turret.
• Joystick dret: Controls the main boom (up/down) and the arm (in/out).
• Buttons/Switches:
  • Bucket/Attachment Control: Opens and closes the bucket or operates other attachments.
  • Llums: Turns the cabin LED lights on/off.
  • Sons: Activates/deactivates simulated engine and operation sounds.
  • Mode demostració: Initiates a pre-programmed demonstration sequence.
  • Rotació de la torreta: Continuous 360-degree rotation.

Funcionament bàsic:

1. Encès: Turn on the excavator and then the remote control.
2. Moviment: Use the left joystick to drive the excavator forward, backward, and turn.
3. Rotació de la torreta: Use the left joystick (or dedicated button) to rotate the upper body of the excavator.
4. Control del braç i la galleda: Use the right joystick to raise/lower the main boom, extend/retract the arm, and operate the bucket/attachment.
5. Excavació: Position the excavator, lower the boom and arm, then use the bucket control to scoop material. Lift the boom and arm to dump.

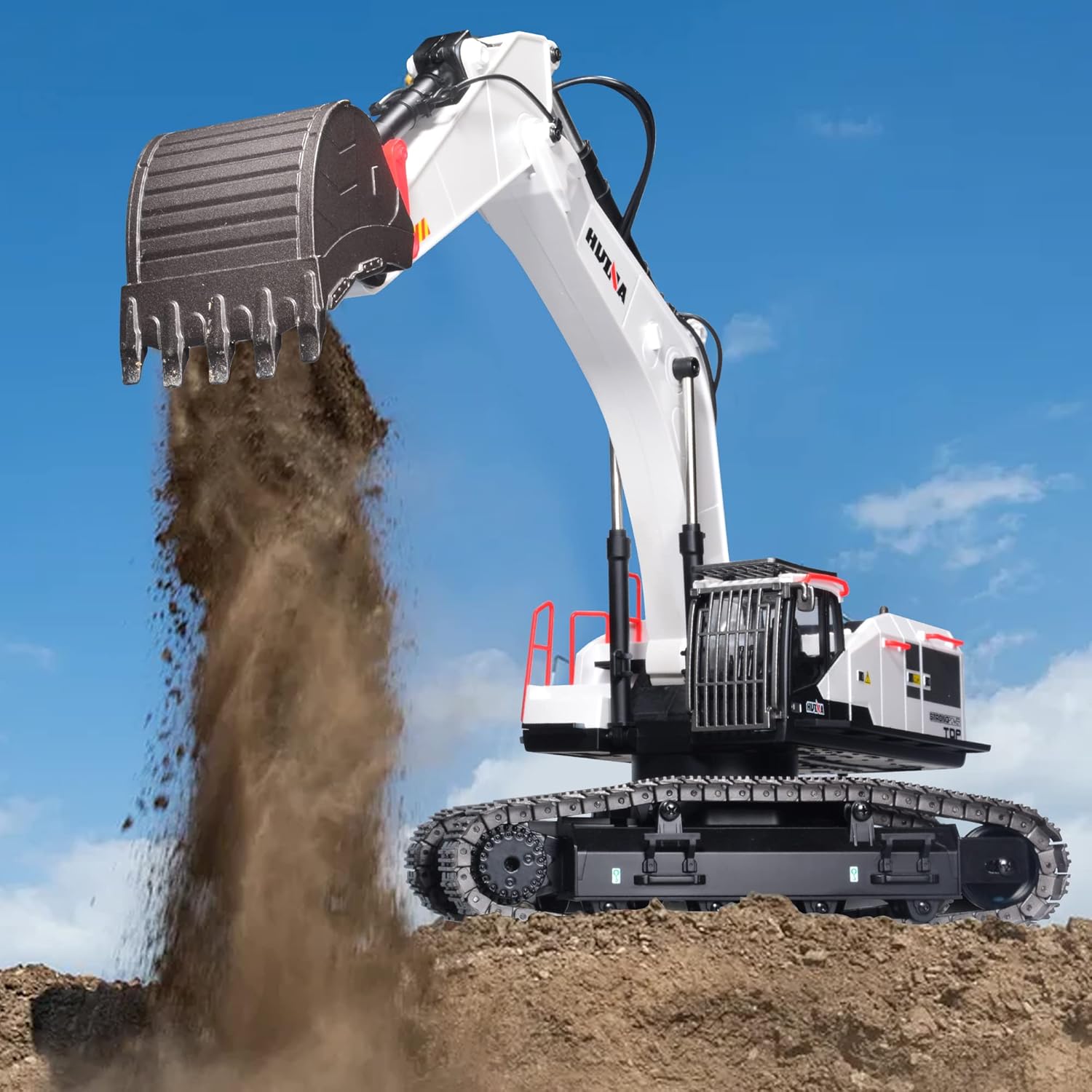

Figure 7: The HuiNa 1594 RC Excavator demonstrating its digging capability, moving loose material with its metal bucket.

Manteniment

Proper maintenance will extend the lifespan of your RC excavator.

• Neteja:
  • After each use, especially if operated in dirt or sand, gently brush off any debris from the tracks, gears, and body.
  • Use a soft, dry cloth to wipe down the exterior. Avoid water or cleaning solutions directly on electronic components.
  • Ensure no foreign objects are lodged in the tracks or moving parts.
• Cura de la bateria:
  • Always fully charge batteries before storage if storing for an extended period.
  • Guardeu les piles en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
  • Do not store fully depleted batteries.
  • If not used for a long time, periodically charge the batteries to maintain their health.
• Emmagatzematge: Store the excavator in its original packaging or a protective case to prevent dust and damage.
• Lubricació: Periodically check moving metal parts for smooth operation. If necessary, apply a small amount of RC-safe lubricant to pivot points, avoiding electrical components.

Resolució de problemes

If you encounter issues with your HuiNa 1594 RC Excavator, refer to the following common problems and solutions:

Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

Garantia i suport

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support, spare parts, or further assistance, please visit the official HuiNa weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
