Manual d'instruccions del capçal fluid del trípode de vídeo Avella V501

1. Introducció

The Avella V501 Video Tripod Fluid Head is designed for smooth and precise camera movements, ideal for videography and photography. Constructed from durable all-metal components, it offers stable support for various cameras, including DSLRs, mirrorless cameras, and video cameras, with a maximum load capacity of 11 lbs (5 kg).

2. Característiques clau

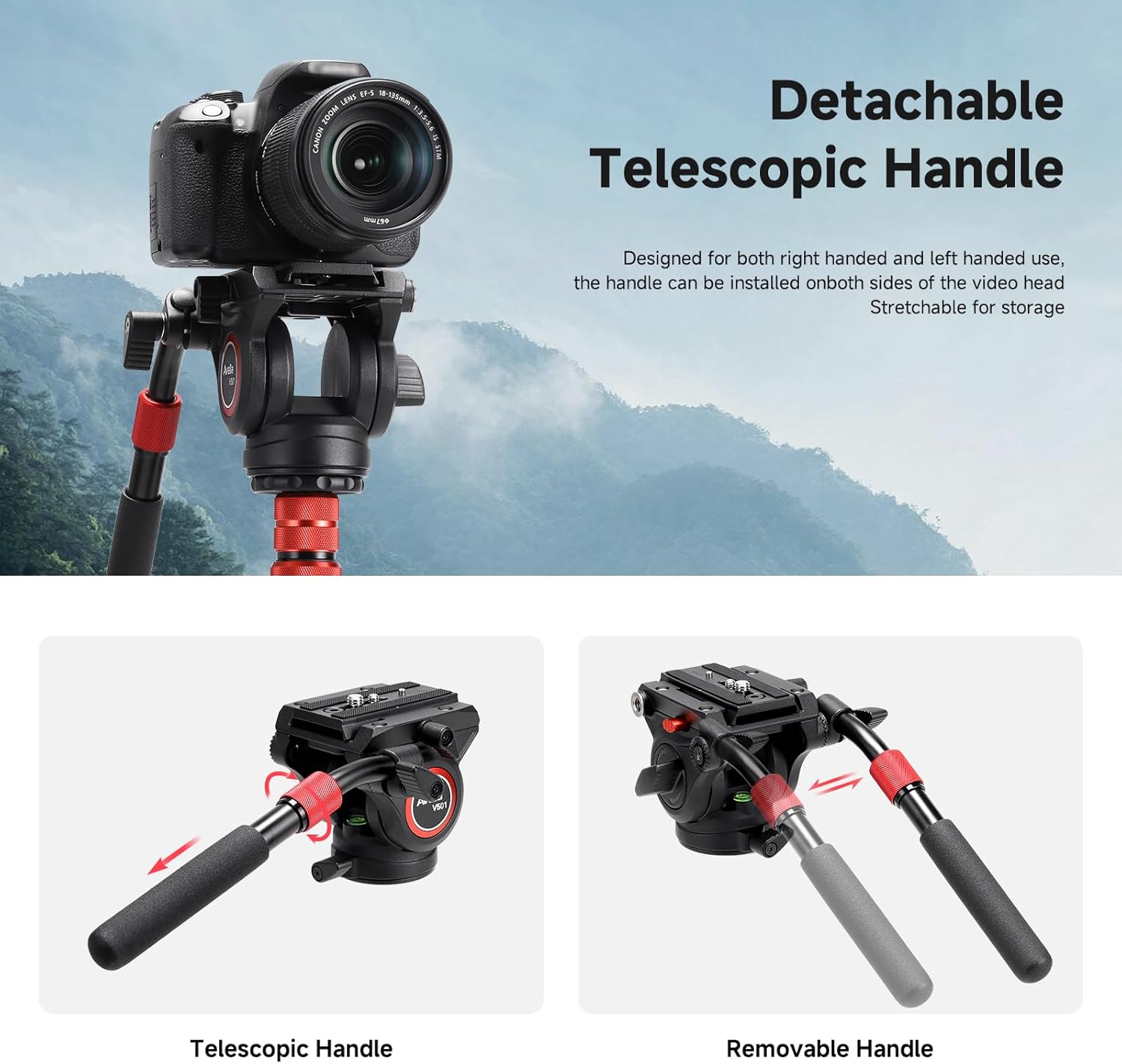

• 2-Section Detachable Pan Bar: The handle can be installed on either the left or right side for user comfort and features a safety lock to prevent accidental camera detachment.
• Construcció totalment metàl·lica duradora: Precision CNC and casting technologies ensure a firm, stable, and smoothly rotating fluid head.
• Opcions de muntatge versàtils: Equipped with 1/4" and 3/8" screws on top for cameras and telescopes. The bottom base has a standard 3/8" screw hole (includes a 3/8" to 1/4" screw adapter) for compatibility with tripods, monopods, light stands, and camera sliders.
• Smooth 360° Panning & Wide Tilt Range: Offers smooth 360-degree horizontal rotation and a tilt range of -50° to 90° with a firm lock for flexible shooting angles.
• Manfrotto 501HDV Compatibility: Designed to be compatible with Manfrotto 501HDV release plates for seamless integration with existing gear.

3. Contingut del paquet

Upon opening your Avella V501 Fluid Head package, please ensure all the following items are present:

• 1 x V501 Fluid Head
• 1 x 3/8 to 1/4 inch Conversion Screw
• 1 x 2-section Pan Handle
• 1 x manual d'instruccions
• 1 x Adjusting Plate
• 1 x Clau hexagonal

4. Producte acabatview

Familiarize yourself with the various components of the Avella V501 Fluid Head for optimal use.

4.1. Universal Quick Release Plate

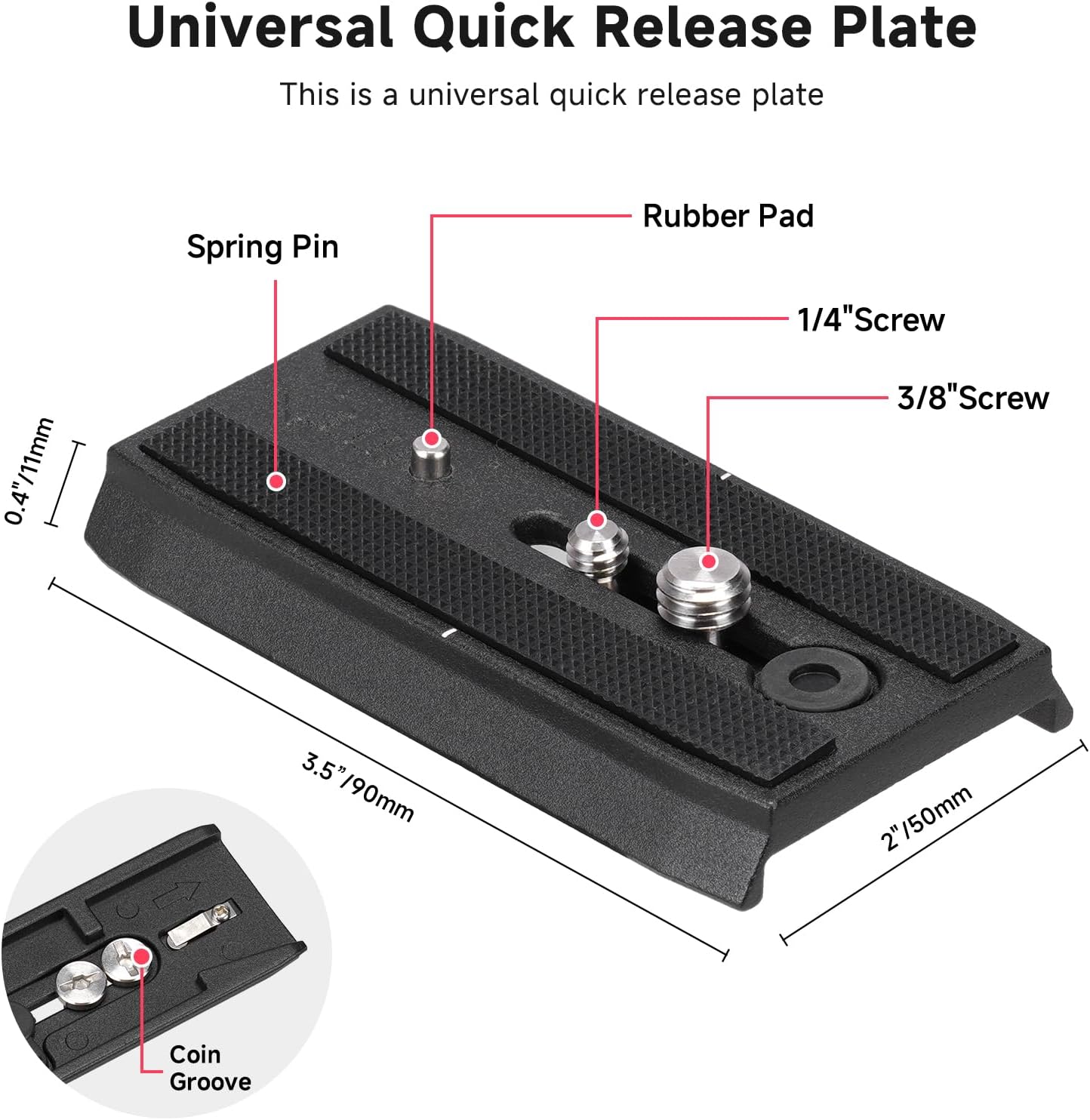

The quick release plate is designed for universal compatibility and features both 1/4" and 3/8" screws for various camera types. It also includes a rubber pad for secure mounting and a coin groove for easy tightening.

5. Configuració

5.1. Attaching the Fluid Head to a Tripod/Monopod/Slider

The Avella V501 Fluid Head features a standard 3/8" screw hole at its base, making it compatible with most tripods, monopods, and camera sliders. A 3/8" to 1/4" screw adapter is included for broader compatibility.

5.2. Attaching the Quick Release Plate to Your Camera

Secure the quick release plate to the bottom of your camera using either the 1/4" or 3/8" screw, depending on your camera's mounting thread. Ensure it is tightened firmly for stability.

5.3. Mounting Your Camera to the Fluid Head

Align the quick release plate (attached to your camera) with the receiver on the fluid head. Slide the plate into the receiver until it clicks into place. Engage the Quick Release Plate Lock for added security. The safety pin and QR Plate Safety Button prevent accidental disengagement.

5.4. Attaching the Pan Bar

The detachable pan bar can be attached to either side of the fluid head for comfortable operation, whether you are right-handed or left-handed. Secure it by tightening the Pan Bar Lock.

5.5. Leveling the Fluid Head

Utilize the integrated bubble level to ensure your fluid head is perfectly level before beginning your shoot. This helps achieve straight horizons and smooth, consistent camera movements.

6. Funcionament

6.1. Adjusting Tilt and Pan

The fluid head allows for smooth 360° horizontal panning and a tilt range from -50° to 90°. Use the Tilt Locking Knob and Pan Base Lock to adjust the resistance and secure your desired position. Loosen these knobs slightly for fluid movement and tighten them to lock the head in place.

6.2. Tret panoràmic

For fluid panoramic shots, ensure the Pan Base Lock is slightly loosened to allow for smooth horizontal rotation. Use the pan bar to guide your camera across the scene, capturing seamless panoramic views.

7. Compatibilitat

The Avella V501 Fluid Head is designed for seamless compatibility with Manfrotto 501HDV release plates, allowing for quick and secure camera mounting across different tripods and setups.

8. Manteniment

• Neteja: Use a soft, dry cloth to wipe down the fluid head after each use. Avoid abrasive cleaners or solvents that could damage the finish or internal components.
• Lubricació: El fluid damping system is factory-sealed and does not require user lubrication. Do not attempt to disassemble the fluid head for lubrication.
• Emmagatzematge: Store the fluid head in a clean, dry environment, away from extreme temperatures and humidity. Detach the pan bar for more compact storage if needed.
• Inspecció: Periodically check all screws and knobs to ensure they are securely tightened. Do not overtighten.

9. Solució De Problemes

• Sticky Pan Movement: If the horizontal panning feels stiff or jerky, ensure the Pan Base Lock is sufficiently loosened. Sometimes, repeated use and slight loosening/tightening can help smooth out initial stiffness.
• Camera Not Secure on Quick Release Plate: Ensure the 1/4" or 3/8" screw is firmly tightened to your camera. When mounting to the fluid head, make sure the quick release plate is fully seated and the Quick Release Plate Lock is engaged. The red QR Plate Safety Button should pop out, indicating a secure lock.
• Pan Bar Interference: If the pan bar interferes with camera movement or other accessories, ensure it is correctly positioned or consider detaching it if space is limited.

10. Especificacions

11. Garantia i assistència

The Avella V501 Fluid Head comes with a Garantia limitada d'5 any. For any inquiries or support needs, please contact our customer service team. We offer Atenció al client 24 hores to assist you with any product-related questions or issues.

Per obtenir més ajuda, visiteu el AVELLA Store on Amazon.
