IKRA IEVL 1840 Electric Scarifier and Aerator User Manual

1. Introducció

The IKRA IEVL 1840 is a versatile 2-in-1 electric garden tool designed for both scarifying and aerating lawns. Regular scarification and aeration promote a denser, healthier, and more beautiful lawn by removing moss, thatch, and dead grass. This multifunctional device comes equipped with easily interchangeable rollers: a scarifying roller with 20 steel blades and an aerating roller with 24 steel tines. Its robust design, wide working width, and convenient features ensure efficient and ergonomic lawn maintenance.

• Funcionalitat 2 en 1: Designed for both scarifying and aerating lawns.
• Interchangeable Rollers: Includes a scarifying cylinder with 20 steel blades and an aerating cylinder with 24 steel tines, easily interchangeable without tools.
• Motor potent: 1800 watts of power for effective performance.
• Wide Working Width: 40 cm working width for efficient coverage.
• Adjustable Working Depth: Easily adjustable working depth from +6 to -12 mm.
• Large Collection Bag: 55-liter collection bag to minimize raking after use.
• Disseny ergonòmic: Stable guide rail with bow switch and large wheels for comfortable maneuvering.
• Emmagatzematge compacte: Foldable handle with quick fasteners for convenient storage.
• Gestió de cables: Cable strain relief prevents accidental disconnection.

2. Instruccions de seguretat

Always prioritize safety when operating the IKRA IEVL 1840. Failure to follow these instructions may result in serious injury or damage to the product.

• Llegeix el manual: Before operation, thoroughly read and understand all instructions in this manual.
• Equips de protecció individual (EPI): Always wear appropriate safety glasses, sturdy footwear, and long trousers. Consider hearing protection, especially during prolonged use.
• Seguretat elèctrica:
  • Assegureu-vos que la font d'alimentació coincideixi amb les especificacions de l'etiqueta del producte.
  • Use only extension cords suitable for outdoor use and rated for the power consumption of the device.
  • Always connect the device to a residual current device (RCD) with a tripping current not exceeding 30 mA.
  • Inspect the power cord and extension cord for damage before each use. Do not use if damaged.
  • Keep the power cord clear of the working area and away from the blades.
  • No estireu mai l'endoll pel cable.
• Àrea d'operació:
  • Clear the work area of stones, sticks, wires, and other debris that could be thrown by the machine.
  • Funcioneu només a la llum del dia o amb bona llum artificial.
  • Do not operate in wet grass or rain.
  • Keep bystanders, children, and pets at a safe distance (at least 15 meters).
• Manipulació:
  • Never lift or carry the machine while the motor is running.
  • Always switch off the motor and disconnect from the power supply before cleaning, performing maintenance, or when leaving the machine unattended.
  • Be aware of the rotating blades/tines. They continue to rotate for a short period after the machine is switched off.
  • Do not operate the machine if any guards or safety devices are damaged or missing.
  • Push the machine, do not pull it towards you.
  • Aneu amb extrema precaució quan canvieu de direcció en pendents.

3. Components mésview

Familiarize yourself with the main components of your IKRA IEVL 1840 scarifier/aerator.

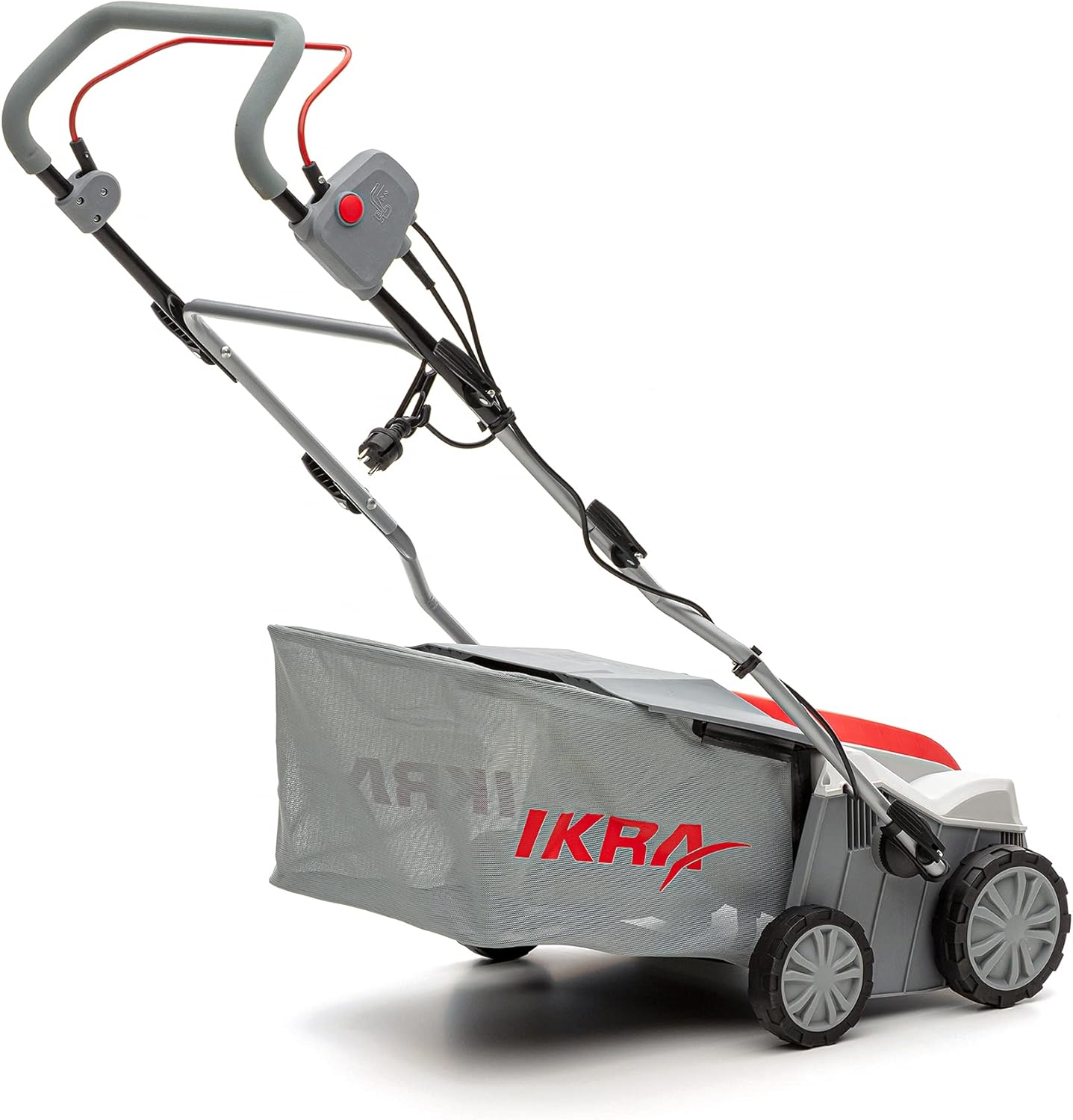

Figura 3.1: En general view of the IKRA IEVL 1840 with both scarifying and aerating rollers shown.

Figura 3.2: The scarifier/aerator with the 55-liter collection bag attached.

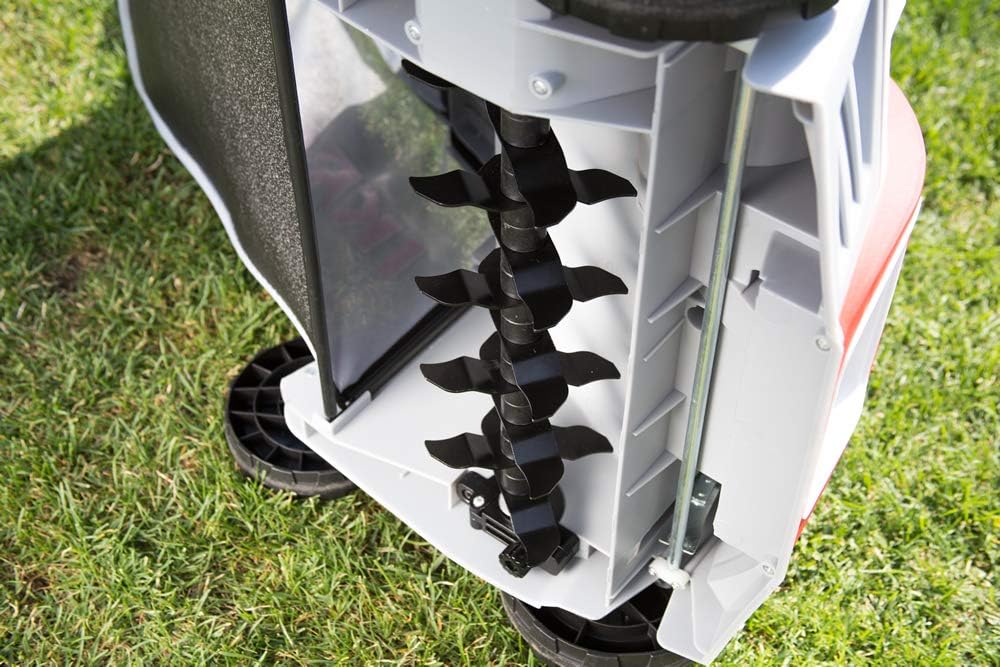

Figura 3.3: Close-up of the scarifying roller with 20 durable steel blades.

Figura 3.4: Close-up of the aerating roller with 24 robust steel tines.

Figura 3.5: The ergonomic handlebar featuring the main control switch.

Figura 3.6: The lever for central working depth adjustment.

4. Configuració

Follow these steps to assemble your IKRA IEVL 1840 before its first use.

Muntatge de 4.1 nanses

1. Attach the lower handle bars to the main unit using the provided fasteners.
2. Connect the upper handle bar (with the control switch) to the lower bars. Ensure all cables are securely routed and fastened with the cable clips to prevent damage and ensure proper strain relief.


Figura 4.1: The quick-release fasteners for folding the handle for storage.

3. Verify that the cable strain relief is correctly installed to prevent the extension cord from accidentally disconnecting during operation.


Figura 4.2: Proper use of the cable strain relief to secure the power cord.

4.2 Roller Installation

The IKRA IEVL 1840 comes with two interchangeable rollers. Choose the appropriate roller for your task (scarifying or aerating).

1. Assegureu-vos que la màquina estigui desconnectada de la font d'alimentació.
2. Tilt the machine onto its side to access the underside.
3. Locate the roller locking mechanism. Release the current roller by disengaging the lock and sliding it out.


Figura 4.3: Removing the scarifying roller from the unit.

4. Insert the desired roller (scarifying or aerating) into the housing, ensuring it clicks securely into place.

Figura 4.4: Inserting the aerating roller into the machine's housing.


Figura 4.5: The mechanism for securing the roller in place.

4.3 Collection Bag Attachment

1. Assemble the collection bag frame and attach the fabric bag to it.
2. Lift the rear flap of the scarifier/aerator.
3. Hook the collection bag onto the designated points under the flap. Ensure it is securely attached to prevent debris from escaping.

Figura 4.6: Attaching the 55-liter collection bag to the rear of the unit.

Guia de vídeo de configuració

5. Instruccions de funcionament

Proper operation ensures effective lawn care and extends the life of your machine.

5.1 Adjusting Working Depth

The working depth can be centrally adjusted using the lever on the side of the machine. The depth ranges from +6 mm (for transport/storage) to -12 mm (deep scarification). For aeration, a shallower depth is usually sufficient, while scarification requires deeper penetration to remove thatch effectively.

Figura 5.1: Adjusting the working depth using the side lever.

Figura 5.2: Detallada view of the depth adjustment settings.

5.2 Inici i aturada

1. Connect the machine to a suitable power outlet using a properly rated extension cord. Ensure the cable is secured with the strain relief.
2. To start, press and hold the safety button on the handle, then pull the bail switch towards the handle. Release the safety button once the motor starts.


Figura 5.3: The main control switch on the handlebar for starting the machine.

3. To stop the machine, release the bail switch. The motor will stop, and the rollers will cease rotation after a short delay.

5.3 Scarifying and Aerating

For best results, scarify your lawn in spring and autumn. Aeration can be done more frequently as needed.

• Scarifying: Use the blade roller. Set a depth that allows the blades to penetrate the thatch layer without digging too deep into the soil. Make overlapping passes across your lawn.
• Airejat: Use the tine roller. This process helps to ventilate the soil and improve water and nutrient absorption. A shallower depth is typically used for aeration.

Figura 5.4: Operating the scarifier/aerator on a lawn.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your IKRA IEVL 1840.

6.1 Neteja

• Always disconnect the machine from the power supply before cleaning.
• Clean the machine immediately after each use.
• Remove grass and debris from the housing, especially around the rollers and air vents, using a brush or cloth.
• Do not use water or high-pressure cleaners directly on the motor or electrical components.

6.2 Collection Bag

• Empty the 55-liter collection bag frequently to maintain optimal performance and prevent clogging.
• Clean the collection bag regularly to ensure proper airflow.

Figura 6.1: Emptying the collection bag after use.

6.3 Roller Maintenance

• Inspect the blades/tines on the rollers regularly for wear or damage. Replace worn or damaged rollers promptly.
• Ensure the rollers spin freely and are not obstructed by tangled grass or debris.

7. Solució De Problemes

Abans de contactar amb l'atenció al client, consulteu la taula següent per veure els problemes habituals i les seves solucions.

8. Especificacions

9. Garantia i Suport

The IKRA IEVL 1840 comes with a manufacturer's warranty of 2 years. For technical support, spare parts, or warranty claims, please contact IKRA customer service through their official website or your point of purchase. Please have your model number (IEVL 1840) and purchase details ready when contacting support.

Note: Information on spare parts availability is currently unavailable.
