Manual d'instruccions de l'aixeta de cuina extraïble Franke 115.0521.438 Atlas Neo

1. Introducció

This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of your Franke 115.0521.438 Atlas Neo Pull-Out Kitchen Faucet. Please read this manual thoroughly before installation and retain it for future reference.

Figure 1: Franke Atlas Neo Pull-Out Kitchen Faucet, showcasing its stainless steel finish and L-type spout.

Producte acabatview

The Franke Atlas Neo Pull-Out Kitchen Faucet (Model 115.0521.438) is designed for modern kitchens, featuring a durable stainless steel construction and a convenient pull-out spout. Its innovative design ensures ease of use and a compact, splash-free water flow.

Característiques clau

• Material: High-quality stainless steel 304 for durability and hygiene.
• Pull-Out Spout: Features an L-type spout with mobile articulation for extended reach and flexibility.
• Laminar Jet: Special aerator design provides a compact, crystal-clear, and splash-free water stream.
• Cartutx de ceràmica: Equipped with a reliable ceramic cartridge for precise water flow and temperature control.
• Moviment de la palanca: Mixer lever offers a 0° to 90° range of motion, facilitating control even when positioned close to a wall.
• Rotació del broc: The spout can rotate up to 180° for versatile use.

2. Informació de seguretat

Please observe the following safety precautions during installation and operation to prevent injury or damage to the product.

• Tanqueu sempre el subministrament principal d'aigua abans de començar qualsevol treball d'instal·lació o manteniment.
• Assegureu-vos que totes les connexions siguin segures i estanques per evitar fuites.
• Si teniu dubtes sobre alguna part del procés d'instal·lació, consulteu un lampista qualificat.
• Do not use abrasive cleaners or harsh chemicals on the faucet's surface, as this may damage the finish.
• Mantingueu les peces petites fora de l'abast dels nens.

3. Components i dimensions

The Franke Atlas Neo Pull-Out Kitchen Faucet includes the main faucet body, a pull-out spout with a nylon hose, and necessary installation hardware. Refer to the diagram below for detailed dimensions.

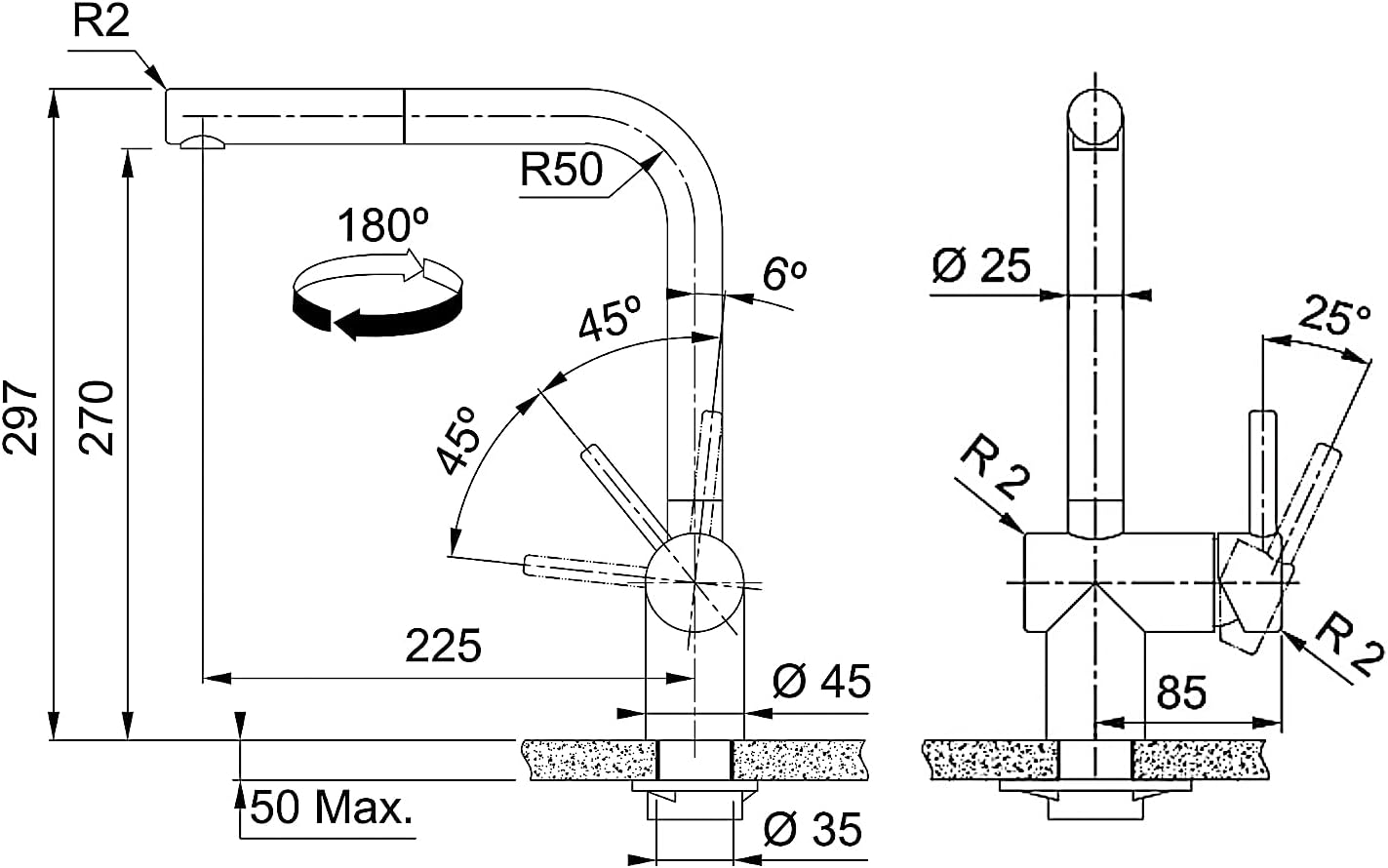

Figure 2: Technical drawing illustrating the dimensions and rotation capabilities of the faucet. Key dimensions include a 35mm installation hole diameter, 297mm spout height, and 225mm spout depth.

Dimensions clau:

• Diàmetre del forat d'instal·lació: 35 mm
• Mida del cartutx: 35 mm
• Alçada del broc: 297 mm
• Profunditat del broc: 225 mm
• Connection Hoses Length: 450 mm
• Tipus de connexió: 3/8"

4. Instruccions d'instal·lació

Follow these steps for proper installation of your Franke Atlas Neo Pull-Out Kitchen Faucet. Professional installation is recommended.

1. Prepareu l'àrea d'instal·lació: Ensure the main water supply is turned off. Clear the area under the sink and ensure the sink hole is clean and free of debris. The required installation hole diameter is 35 mm.
2. Muntar l'aixeta: Insert the faucet body into the prepared hole on the sink or countertop. Ensure the base gasket is correctly positioned to prevent water ingress.
3. Assegureu l'aixeta: From underneath the sink, slide the rubber washer, metal washer, and then the body nut onto the threaded rod of the faucet. Tighten the body nut securely using an appropriate wrench until the faucet is stable.
4. Connecteu les línies de subministrament d'aigua: Connect the hot and cold water supply lines (450 mm length, 3/8" connection) from the faucet to your home's water supply. Use appropriate sealing tape or compound on threaded connections to prevent leaks. Ensure hot and cold lines are connected to the correct inlets.
5. Install the Pull-Out Hose: Connect the pull-out hose to the designated port on the faucet body underneath the sink. Ensure the hose moves freely and does not kink.
6. Attach Counterweight (if applicable): If a counterweight is provided, attach it to the pull-out hose at a suitable height to ensure smooth retraction of the spout.
7. Prova de fuites: Once all connections are made, slowly turn on the main water supply. Check all connections for any signs of leaks. Operate the faucet, including the pull-out function, to ensure proper water flow and retraction.

Figura 3: Un example of the Franke Atlas Neo Faucet installed in a kitchen environment, demonstrating its aesthetic integration.

5. Instruccions de funcionament

Your Franke Atlas Neo Pull-Out Kitchen Faucet is designed for intuitive operation.

Control del flux i la temperatura de l'aigua

• The single lever handle, located on the right side, controls both water flow and temperature.
• Lift the lever to increase water flow. Push it down to decrease or stop the flow.
• Move the lever left for hot water and right for cold water. The lever has a 0° to 90° range of motion.

Using the Pull-Out Spout

• Gently pull the L-type spout head from its housing to extend the hose.
• The mobile articulation allows for flexible movement and extended reach for various tasks, such as rinsing vegetables or cleaning the sink basin.
• After use, guide the spout head back into its housing. The counterweight (if installed) will assist in smooth retraction.

Figure 4: Detail of the pull-out spout mechanism, showing the flexible connection for extended reach.

Laminar Water Jet

• The faucet is equipped with a laminar aerator, which produces a compact, non-aerated, and splash-free water stream. This is ideal for filling pots and general rinsing tasks.

6. Manteniment i cura

Regular cleaning and proper care will ensure the longevity and appearance of your Franke Atlas Neo Faucet.

Neteja de l'aixeta

• Clean the stainless steel surface regularly with a soft cloth and mild soap or a specialized stainless steel cleaner.
• Rinse thoroughly with clean water and dry immediately to prevent water spots.
• No utilitzeu: Abrasive sponges, scouring pads, harsh detergents, acidic cleaners, or cleaners containing chlorine or ammonia, as these can damage the finish.

Manteniment de l'aireador

• If water flow becomes restricted, the aerator may be clogged with mineral deposits.
• Unscrew the aerator from the tip of the spout.
• Rinse the aerator under running water and gently brush away any debris. For stubborn deposits, soak the aerator in a solution of equal parts white vinegar and water for a few hours.
• Torneu a fixar l'airejador de manera segura.

7. Solució De Problemes

Aquesta secció tracta problemes comuns que podeu trobar amb la vostra aixeta.

If you are unable to resolve an issue using these troubleshooting steps, please contact Franke customer support or a qualified plumber.

8. Especificacions tècniques

9. Informació de la garantia

Franke products are manufactured to high-quality standards. Specific warranty terms and conditions for your Franke Atlas Neo Pull-Out Kitchen Faucet are typically provided with your purchase documentation. Please refer to the warranty card or Franke's official weblloc web per obtenir informació detallada sobre la cobertura, la durada i els procediments de reclamació.

Conserveu el comprovant de compra per a qualsevol reclamació de garantia.

10. Atenció al client

For technical assistance, spare parts, or further inquiries regarding your Franke Atlas Neo Pull-Out Kitchen Faucet, please contact Franke customer support.

Visit the official Franke weblloc per obtenir les dades de contacte específiques de la vostra regió.

Weblloc: www.franke.com
