1. Introducció
Gràcies per la compraasing the Luceco Rechargeable Pivoting LED Torch. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before use and retain it for future reference.
2. Informació de seguretat
Observeu sempre les següents precaucions de seguretat per evitar lesions o danys al producte:
- No mireu directament a la llum LED quan estigui encesa, ja que podeu causar lesions oculars.
- Keep the device away from water and moisture. This product has an IP20 rating, meaning it is protected against solid objects over 12.5mm, but has no protection against liquids.
- Do not attempt to disassemble or modify the torch. Repairs should only be performed by qualified personnel.
- Use only the provided USB charging cable for recharging.
- Store the torch in a cool, dry place when not in use.
- Mantenir fora de l'abast dels nens.
3. Producte acabatview
The Luceco Rechargeable Pivoting LED Torch is designed for versatile lighting needs, featuring a robust construction and multiple functionalities.
Figura 3.1: Frontal view of the Luceco Rechargeable Pivoting LED Torch, showing its main light panel and green power button.
Característiques principals:
- Pivoting LED Torch: Provides clear and bright LED light with two illumination modes.
- Rechargeable with Integrated Power Bank: No batteries needed; simply plug in and charge. Includes a USB charging cable. The integrated power bank allows charging of other devices.
- Robust and Durable Design: Engineered to withstand daily wear and tear in demanding environments. Features rubber moulding for a comfortable grip.
- Múltiples opcions de fitxers adjunts: Equipped with a tiltable magnetic base and a 360° foldable hook for hands-free operation and versatile positioning.
- Single Source Light: Designed to prevent multi-shadowing, providing clear illumination.
Figure 3.2: Illustration showing the single source light feature of the torch, which prevents multiple shadows, ideal for professional use.
Figure 3.3: The torch demonstrating its hands-free operation using the folding hook and the 360° rotatable and tiltable magnetic base.

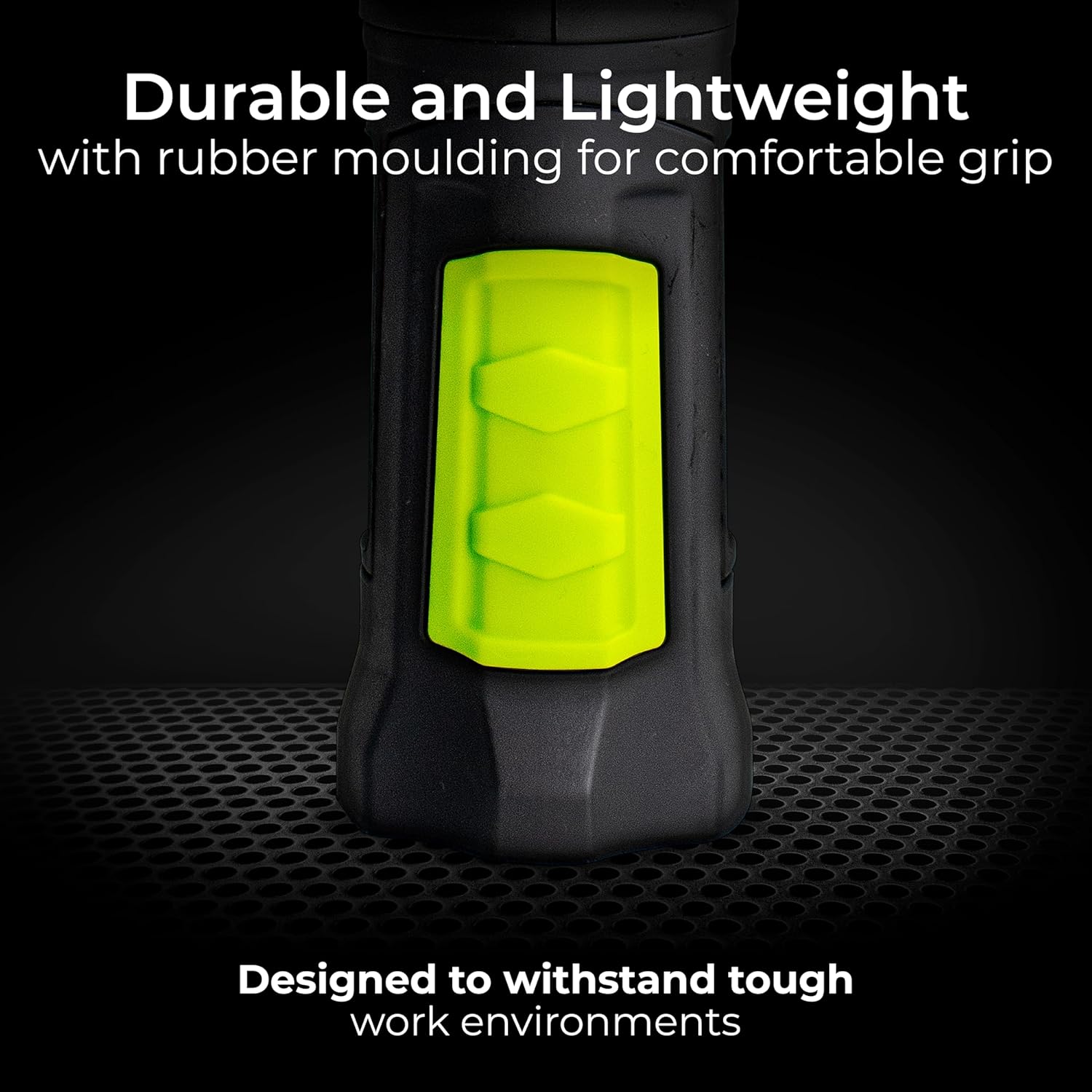

Figura 3.4: Primer pla view of the durable and lightweight design, highlighting the rubber moulding for a comfortable grip.
Figure 3.5: The torch being used as an integrated USB power bank to charge a mobile device, showcasing its high capacity battery.
Figure 3.6: Close-up of the USB-C charging port and USB-A output port, indicating that the torch is USB-C rechargeable with the cable included.
4. Configuració
4.1 Càrrec inicial
- Before first use, fully charge the torch.
- Connect the provided USB charging cable to the USB-C input port on the torch.
- Connecteu l'altre extrem del cable a un adaptador de corrent USB estàndard (no inclòs) o a un port USB de l'ordinador.
- El llum indicador de càrrega mostrarà l'estat de càrrega.
5. Instruccions de funcionament
5.1 Modes d'encesa/apagada i de llum
- To turn on the torch, press the green power button located on the side.
- Press the button again to cycle through the two available light modes (e.g., high brightness, low brightness, or spotlight/lamp mode).
- To turn off the torch, press the button until the light switches off.
5.2 Ús del capçal pivotant
The torch head can pivot to direct light where needed. Gently rotate the head to adjust the angle of illumination.
5.3 Utilizing the Magnetic Base and Hook
- Base magnètica: The base of the torch contains a strong magnet. Attach it to any ferrous metal surface for hands-free lighting. The base can also be tilted for optimal positioning.
- Folding Hook: Extend the integrated hook from the base to hang the torch from a nail, pipe, or other suitable fixture. The hook can rotate 360° for flexible placement.
Figure 5.1: A user inspecting a car engine with the Luceco torch, demonstrating its utility in tight spaces.
Figure 5.2: The torch providing illumination for a user working under a sink, highlighting its hands-free capabilities.
5.4 Ús com a bateria externa
- Connect your device's USB charging cable to the USB-A output port on the torch.
- The torch's internal battery will begin charging your device.
- Note that using the power bank feature will deplete the torch's battery.
6. Manteniment
6.1 Neteja
Wipe the torch with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the charging ports are free of dust and debris.
6.2 Emmagatzematge
When storing for extended periods, charge the battery to approximately 50% every 3-6 months to maintain battery health. Store in a cool, dry place away from direct sunlight.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La torxa no s'encén. | La bateria està esgotada. | Recharge the torch using the provided USB cable. |
| La llum és tènue. | Nivell de bateria baix. | Recharge the torch. |
| El dispositiu no es carrega des del banc d'energia. | Torch battery is low or cable is faulty. | Ensure torch is charged. Try a different USB cable. |
| Torch not charging. | Cable o adaptador de corrent defectuós. | Prova un altre cable USB-C o adaptador de corrent. Assegura't que les connexions siguin segures. |
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | Luceco |
| Número de model | LILT30R65-01 |
| Dimensions (L x A x A) | 4.58 x 5.58 x 24.5 cm |
| Pes | 270 grams |
| Poder | 3 watts |
| Flux lluminós | 300 lúmens |
| Temperatura de color | 6500 Kelvin |
| Índex de reproducció del color (CRI) | 80 |
| Tipus de bateria | 1 bateria de liti-ió (inclosa) |
| Voltage | 5 volts (CC) |
| Classificació de protecció d'entrada (IP). | IP20 |
| Vida mitjana | 30,000 hores |
| Material | Plàstic |
| Característiques especials | Rechargeable, Integrated Power Bank, Magnetic Mount, Folding Hook |
9. Garantia i Suport
9.1 Informació de la garantia
The Luceco Rechargeable Pivoting LED Torch comes with a 3 any de garantia from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper maintenance.
9.2 Suport tècnic
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Luceco customer support. Refer to the Luceco weblloc web o l'embalatge del producte per obtenir la informació de contacte més actualitzada.
