Magic Chef MCSTCW30W4 3.0 Cu. Ft. Compact Washer Instruction Manual

Introducció

Gràcies per la compraasing the Magic Chef MCSTCW30W4 3.0 Cubic Foot Compact Washer. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and retain it for future reference.

This compact top-load washer is designed for small spaces, offering convenience with its electronic controls, LED display, and multiple wash cycles. Its stainless steel inner tub ensures durability.

Informació important de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica o lesions.

• Llegiu totes les instruccions abans d'utilitzar l'aparell.
• No renteu articles que s'hagin netejat, rentat, remullat o tacat prèviament amb gasolina, dissolvents de neteja en sec o altres substàncies inflamables o explosives, ja que emeten vapors que podrien encendre's o explotar.
• No permeteu que els nens juguin sobre o dins de l'aparell. És necessària una supervisió estreta dels nens quan l'aparell s'utilitza a prop dels nens.
• Abans de treure l'aparell del servei o descartar-lo, traieu la porta del compartiment de rentat.
• No introduïu la mà a l'aparell si la tina o l'agitador es mou.
• No instal·leu ni emmagatzemeu aquest aparell on estigui exposat a la intempèrie o a temperatures de congelació.
• No tampeh amb controls.
• No repareu ni substituïu cap peça de l'aparell ni intenteu fer cap servei, tret que es recomana específicament a les instruccions de manteniment de l'usuari o a les instruccions de reparació de l'usuari publicades que entengueu i tingueu les habilitats per dur a terme.
• Desconnecteu sempre l'aparell de la xarxa elèctrica abans de netejar-lo o fer-ne qualsevol manteniment.

Configuració i instal·lació

1. Desembalatge

Carefully remove all packaging materials. Ensure all components are present: washer unit, bottom cover, screw, quick connect adapter, water intake cap, and two water supply hoses.

2. Requisits d'ubicació

Place the washer on a firm, level surface. Ensure there is adequate space around the unit for ventilation and connections. Avoid direct sunlight or extreme temperatures.

3. Installing the Bottom Cover

Attach the bottom cover to the base of the washer using the provided screw. This helps reduce noise and protects internal components.

4. Connexió de mànegues d'aigua

Connect the two water supply hoses to the hot and cold water inlets on the back of the washer. Connect the other ends to your household hot and cold water faucets. Use the quick connect adapter for sink faucet connections if needed. Ensure all connections are tight to prevent leaks.

5. Drain Hose Setup

Position the drain hose into a utility sink or standpipe. Ensure the hose is securely fastened to prevent it from dislodging during the drain cycle, which could cause flooding.

6. Anivellar la rentadora

Adjust the leveling feet at the bottom of the washer until the unit is stable and level. An unlevel washer can cause excessive vibration and noise during operation.

7. Connexió d'alimentació

Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. No feu servir cables d'extensió.

Image: Washer dimensions. This image illustrates the overall dimensions of the compact washer, including height, width, and depth, which are important for placement and installation.

Instruccions de funcionament

1. Tauler de control acabatview

Image: Control Panel. This image shows a detailed view of the washer's control panel, highlighting the LED display, cycle selection buttons, water level, and temperature controls.

The control panel features an LED display, buttons for selecting wash cycles, water levels, temperature settings, and a delay start function. The 'ON/OFF' button powers the unit, and 'START/PAUSE' controls the cycle progression.

2. Càrrega de la bugaderia

Open the soft-close lid. Load clothes loosely into the stainless steel inner tub. Do not overload the washer, as this can affect cleaning performance and cause excessive wear. For best results, distribute items evenly.

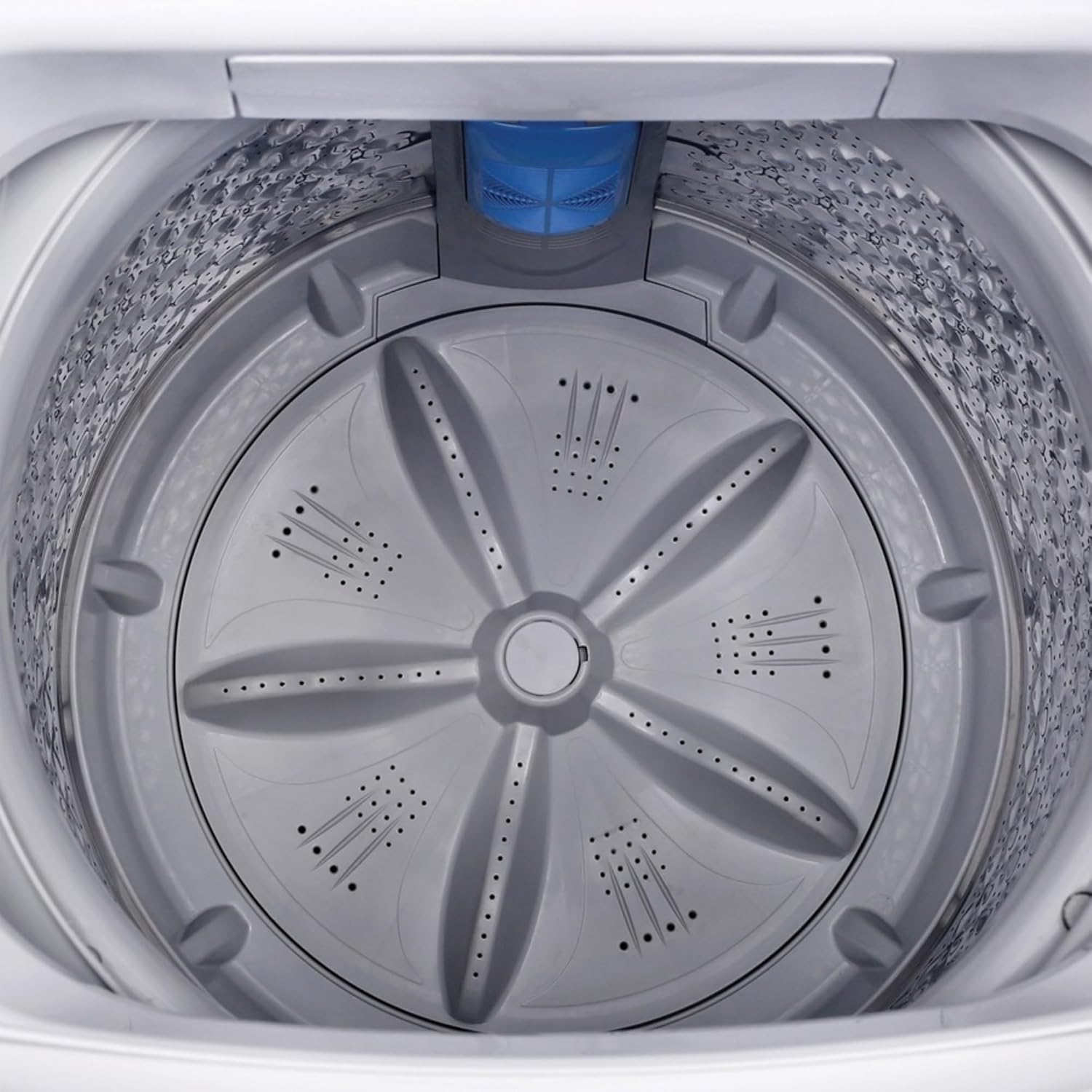

Image: Washer Tub Interior. This image provides a clear view inside the washer's stainless steel tub, showing the agitator and the textured surface designed for effective cleaning.

3. Afegint detergent

Add the appropriate amount of detergent to the detergent dispenser. Refer to your detergent's instructions for recommended quantities based on load size and soil level.

4. Selecting Wash Cycles

Choose from 6 fully automatic wash cycles using the cycle selection buttons on the control panel. Common cycles include Normal, Delicates, Heavy Duty, Quick Wash, and Rinse. Select the cycle that best suits your laundry type.

5. Adjusting Water Level and Temperature

Select one of the 3 available water level settings based on your load size. Choose from 3 temperature controls (Hot, Warm, Cold) according to fabric care instructions.

6. Using Delay Start

The delay start function allows you to set a time for the wash cycle to begin automatically. Press the 'Delay Start' button and adjust the desired delay time before pressing 'START/PAUSE'.

7. Començar un cicle

After loading laundry, adding detergent, and selecting your desired settings, press the 'START/PAUSE' button to begin the wash cycle. The washer will automatically shut off after the cycle ends.

Manteniment

1. Cleaning the Water Pump Filter

Regularly clean the water pump filter to capture and collect debris, ensuring efficient operation and preventing drainage issues. Refer to the diagram in your full manual for the exact location and removal instructions.

2. Cleaning the Washer Exterior

Netegeu les superfícies exteriors amb un damp drap. Eviteu productes de neteja abrasius o dissolvents que puguin danyar l'acabat.

3. Cleaning the Inner Tub

Periodically run a cleaning cycle with a washing machine cleaner or a mixture of vinegar and baking soda to remove detergent residue and odors from the stainless steel tub.

4. Winterizing (for infrequent use in cold environments)

If the washer will not be used for an extended period in an area subject to freezing temperatures, drain all water from the hoses and pump to prevent damage. Consult a qualified technician if unsure.

Resolució de problemes

Abans de contactar amb el servei tècnic, torneu aview els següents problemes i solucions habituals:

• Washer does not start: Ensure the power cord is securely plugged in, the lid is closed, and the 'START/PAUSE' button has been pressed. Check if a circuit breaker has tripped.
• Soroll o vibració excessius: Verify the washer is level. Ensure the load is balanced inside the tub. Remove any shipping bolts or packing materials if recently installed.
• Clothes are still wet after spin cycle: An unbalanced load can prevent proper spinning. Redistribute clothes and restart the spin cycle. Ensure the drain hose is not kinked or blocked, and the water pump filter is clean.
• Fuites d'aigua: Check all hose connections for tightness. Ensure the drain hose is properly secured in the standpipe or sink.
• Unusual odor (e.g., burning rubber): This can sometimes occur with new appliances during initial use. If the smell persists or is accompanied by smoke, immediately unplug the unit and contact customer support. Ensure the washer is not overloaded.
• L'aigua no s'escorre: Check the drain hose for kinks or blockages. Clean the water pump filter.

For issues not resolved by these steps, please refer to the support section.

Especificacions del producte

Garantia i assistència al client

For warranty information, please refer to the warranty card included with your product or visit the official Magic Chef website. If you require technical assistance, replacement parts, or have questions regarding your appliance, please contact Magic Chef customer support.

Keep your purchase receipt and model number (MCSTCW30W4) readily available when contacting support.
