TROTEC TP10 Infrared Thermometer

1. Introducció

The TROTEC TP10 is a high-precision infrared thermometer designed for non-contact surface temperature measurements across a wide range. This device is suitable for various applications, including industrial diagnostics, HVAC system maintenance, and general temperature monitoring. Its advanced features ensure accurate and reliable readings, even for small or distant objects.

This manual provides essential information for the safe and effective use of your TP10 infrared thermometer. Please read it thoroughly before operating the device and keep it for future reference.

2. Instruccions de seguretat

Observeu les següents precaucions de seguretat per evitar lesions i danys al dispositiu:

• Seguretat làser: The TP10 uses a Class 2 laser. Do not stare directly into the laser beam or direct it at other people's eyes. Avoid prolonged exposure.
• Entorn de funcionament: Do not use the device in explosive atmospheres or near flammable materials.
• Límits de temperatura: Do not expose the device to extreme temperatures outside its specified operating range.
• Seguretat elèctrica: No intenteu obrir ni modificar el dispositiu. Envieu totes les tasques de manteniment a personal qualificat.
• Manipulació de superfícies calentes: When measuring hot surfaces, be aware of potential burns from contact. The infrared thermometer measures surface temperature only.
• Neteja: Utilitzeu un drap suau i sec per netejar. No utilitzeu netejadors abrasius ni dissolvents.

3. Producte acabatview

The TROTEC TP10 is a robust and ergonomic infrared thermometer designed for ease of use and high accuracy. It features a clear digital display and intuitive controls.

Característiques principals:

• Wide temperature measurement range: -50°C to +1850°C (-58°F to +3362°F).
• High optical resolution of 75:1 for precise measurements of small or distant objects.
• Adjustable emissivity for accurate readings on various surface types.
• Integrated data logging function for storing up to 30 measurement points.
• Automatic display of Minimum, Maximum, Differential, and Average values.
• Clear, high-resolution digital display with backlight.
• Laser targeting for precise aiming.
• Automatic power-off function to conserve battery life.
• Indicació de l'estat de la bateria.

Components del dispositiu:

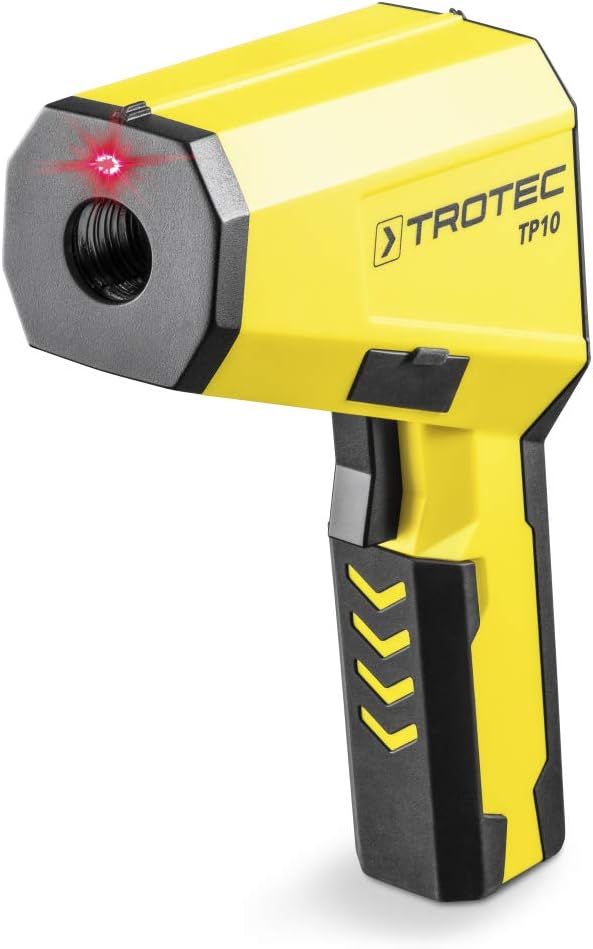

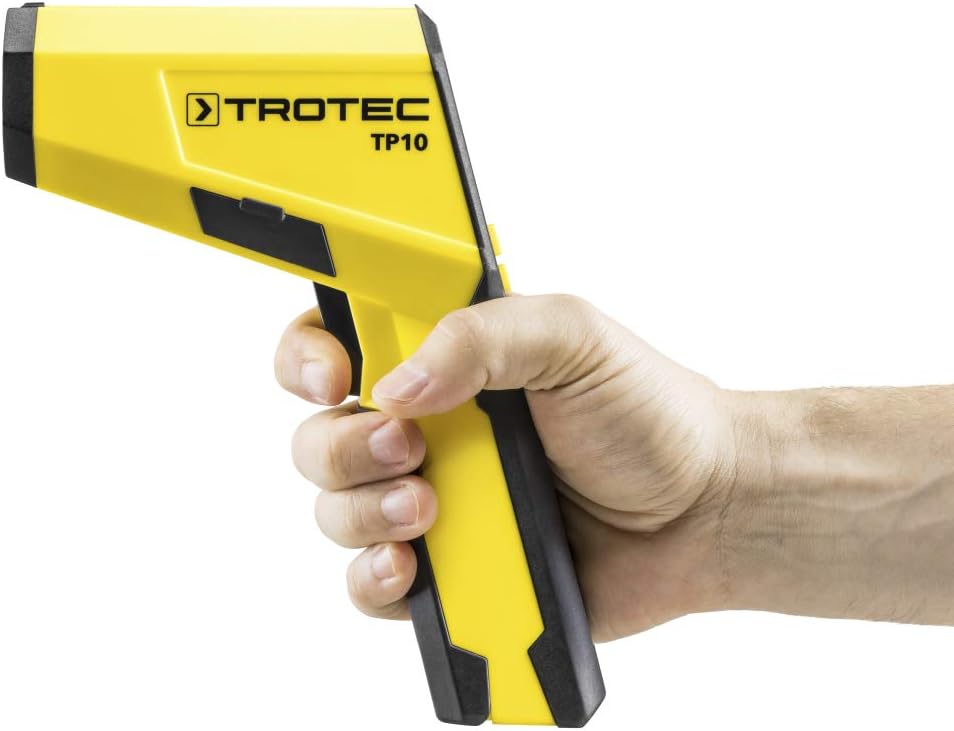

The device features a pistol-grip design for comfortable handling. The main body houses the infrared sensor and laser emitter at the front, with the trigger located on the underside of the handle. The digital display is positioned at the rear, providing clear visibility of measurement data and settings.

4. Configuració

4.1 Instal·lació de la bateria

1. Locate the battery compartment cover on the handle of the device.
2. Obriu la coberta fent-la lliscar o desenganxant-la.
3. Insert the required batteries (e.g., 9V battery, not specified in data, assuming common type) according to the polarity indicators (+/-).
4. Tanqueu bé la tapa del compartiment de la bateria.

4.2 Engegada/apagada

Press the trigger to power on the device. The device will automatically power off after a period of inactivity to save battery life.

4.3 Selecció d'unitats (°C/°F)

The device allows selection between Celsius (°C) and Fahrenheit (°F). Refer to the on-screen menu or dedicated button (if available) to switch between units. This setting is usually found within the 'MODE' options.

4.4 Ajust d'emissivitat

Emissivity (ε) is a crucial setting for accurate infrared temperature measurement. Different materials emit infrared energy differently. The TP10 allows for adjustable emissivity to match the surface being measured. Consult an emissivity table for common materials. Adjust the emissivity value using the device's menu buttons (e.g., F1, F2, F3, MODE) to ensure accurate readings.

5. Instruccions de funcionament

5.1 Prendre una mesura

1. Point the infrared sensor (front of the device) towards the target surface.
2. Press and hold the trigger. The laser pointer will activate to indicate the measurement spot.
3. The current surface temperature will be displayed on the screen.
4. Deixeu anar el gallet per mantenir la mesura a la pantalla.

5.2 Comprensió de la pantalla

The TP10's digital display provides comprehensive information:

• Temperatura actual: The primary reading in the selected unit (°C or °F).
• Valors mínims/màxims: Displays the minimum and maximum temperatures recorded during a continuous measurement.
• Diff (Differential) Value: Shows the difference between the maximum and minimum recorded temperatures.
• Avg (Average) Value: Calculates the average temperature over a measurement period.
• Emissivity Setting (E): Indicates the currently set emissivity value.
• Estat de la bateria: An icon indicating the remaining battery life.

5.3 Registre de dades

The TP10 can store up to 30 measurement points. To use the data logging function:

1. Initiate a measurement as described above.
2. While holding the trigger or after releasing it (depending on mode), press the 'SAVE' button (often F2 or F3) to store the current reading.
3. To recall stored data, navigate through the menu using the 'MODE' button and select the data logging review opció.

5.4 Relació distància-punt (D:S)

The TP10 has a D:S ratio of 75:1. This means that at a distance of 75 units, the measurement spot diameter is 1 unit. For example, at 75 cm distance, the spot size is 1 cm. Maintain an appropriate distance to ensure the target completely fills the measurement spot for accurate readings.

6. Manteniment

6.1 Neteja

Keep the device clean to ensure optimal performance. Wipe the casing amb un suau, damp cloth. Do not use harsh chemicals or abrasive materials. Pay special attention to keeping the infrared lens and laser aperture clean and free of dust or debris.

6.2 Emmagatzematge

When not in use for extended periods, remove the batteries to prevent leakage. Store the device in a cool, dry place, away from direct sunlight and extreme temperatures.

6.3 Substitució de la bateria

When the battery indicator shows low power, replace the batteries promptly to avoid interruption of operation. Follow the battery installation steps in Section 4.1.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

For warranty information, technical support, or service inquiries, please refer to the documentation included with your product or visit the official TROTEC weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.

Fabricant: TROTEC

Model: TP10 (3510003046)
