Introducció
Welcome to the user manual for your TW Steel TW996 Chronograph Quartz Watch. This timepiece is a limited edition model, designed with the Coronel brothers, featuring a powerful chronograph movement and a durable leather strap. This manual will guide you through the proper setup, operation, maintenance, and troubleshooting of your watch to ensure its longevity and accurate performance.
Your watch package includes the TW Steel TW996 watch, a Guarantee card, and a Cleaning cloth.
Producte acabatview
Aquesta imatge mostra la part frontal view of the TW Steel TW996 watch, highlighting its black dial with orange accents, three sub-dials, and the tachymeter bezel. The robust 46mm case and leather strap are also visible.
Aquesta imatge ofereix un costat view of the TW Steel TW996 watch, focusing on the screwed crown and the two chronograph pushers located on the right side of the watch case. The texture of the leather strap is also visible.

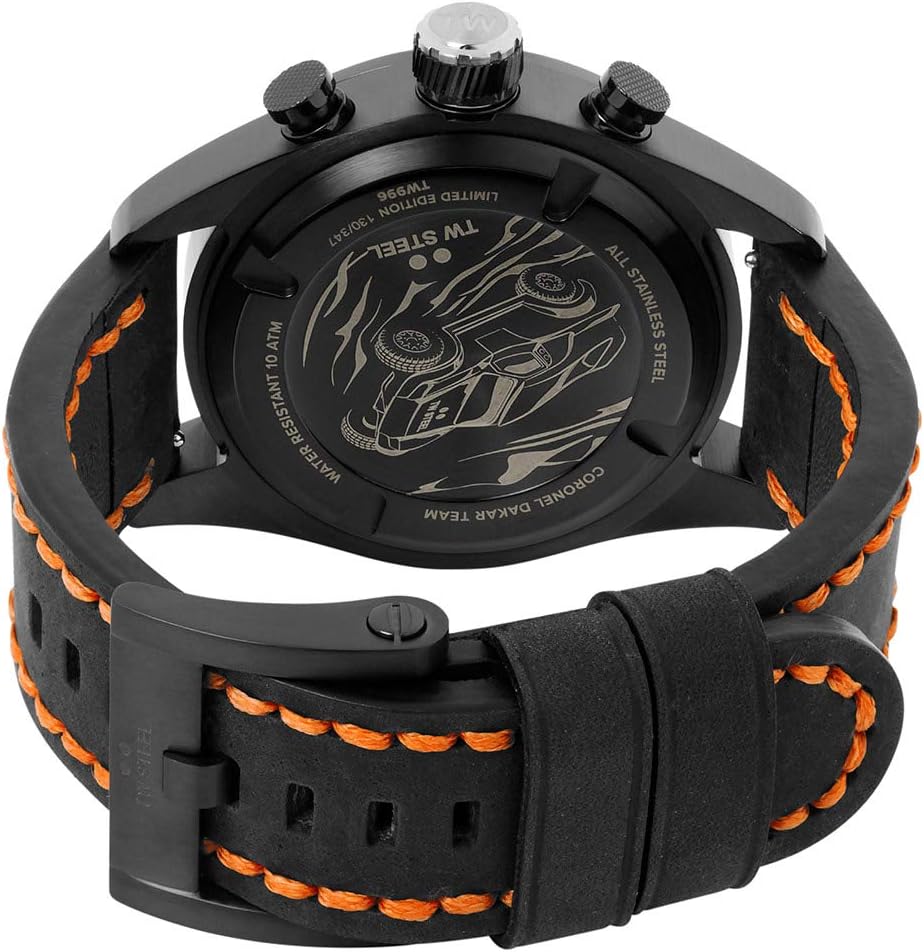

This image displays the back of the TW Steel TW996 watch, revealing the engraved case back with details such as "TW STEEL", "LIMITED EDITION", "WATER RESISTANT 10 ATM", and "ALL STAINLESS STEEL". The leather strap with its orange stitching is also prominent.
This image shows the TW Steel TW996 watch being worn on a wrist, providing a perspective on its size and how it appears when worn. The black and orange color scheme stands out against the skin.
Configuració
Desembalatge i inspecció inicial
- Carefully remove the watch and its accessories from the luxurious gift box.
- Verify that all components are present: the TW Steel TW996 watch, the Guarantee card, and the Cleaning cloth.
- Inspect the watch for any visible damage or defects.
Configuració de l'hora i la data
- Desenrosqueu la corona: The TW996 features a screwed crown for enhanced water resistance. Gently unscrew the crown counter-clockwise until it pops out to position 1.
- Set the Date (if applicable): Estireu la corona fins a la posició 2 (primer clic). Gireu la corona en sentit horari o antihorari per ajustar la data.
- Estableix l'hora: Pull the crown out further to position 3 (second click). Turn the crown to move the hour and minute hands. Ensure you set the correct AM/PM time.
- Empenyeu i cargoleu la corona: Once the time and date are set, push the crown back into position 1, then carefully screw it back down clockwise until it is securely tightened against the case. This is crucial for maintaining water resistance.
Funcionament de la funció de cronògraf
Your TW Steel TW996 watch is equipped with a powerful chronograph movement, allowing you to measure elapsed time with precision.
Chronograph Pushers
- Pusher A (Top Pusher): Inicia i atura el cronògraf.
- Pusher B (Bottom Pusher): Reinicia el cronògraf a zero.
Ús del cronògraf
- Inici: Press Pusher A to start the chronograph. The large second hand (chronograph second hand) will begin to move, along with the minute and hour sub-dials.
- Atura: Press Pusher A again to stop the chronograph. The elapsed time will be indicated by the chronograph second, minute, and hour hands on their respective sub-dials.
- Restablir: After stopping the chronograph, press Pusher B to reset all chronograph hands to their zero positions.
- Temps parcial (si escau): Some chronographs allow for split-time measurement. Refer to the specific movement's detailed instructions if this feature is desired.
Manteniment i cura
Proper care will ensure your TW Steel watch remains in excellent condition for years to come.
- Neteja: Use the provided cleaning cloth to gently wipe the watch case, crystal, and strap regularly to remove dust, dirt, and fingerprints. For more stubborn marks, a slightly damp, soft cloth can be used, followed by immediate drying.
- Water Resistance (10 ATM): Your watch is water resistant up to 10 ATM (100 meters / 330 feet). This means it is suitable for swimming, snorkeling, and showering. However, it is not suitable for high-impact water sports or diving. Always ensure the crown is securely screwed down before any contact with water. Do not operate the crown or pushers when the watch is wet or submerged.
- Extrems de temperatura: Eviteu exposar el rellotge a temperatures extremes (calor o fred) o canvis sobtats de temperatura, ja que això pot afectar el moviment i les juntes.
- Productes químics: Keep the watch away from chemicals such as solvents, detergents, perfumes, and cosmetics, as they can damage the case, strap, or seals.
- Camps magnètics: Strong magnetic fields can affect the accuracy of quartz watches. Avoid placing your watch near strong magnets, such as those found in speakers, refrigerators, or certain electronic devices.
- Cura de la corretja: The leather strap should be kept dry and clean. Avoid prolonged exposure to direct sunlight or moisture, which can cause the leather to crack or discolor.
Resolució de problemes
If you encounter any issues with your TW Steel watch, please refer to the following common troubleshooting steps:
- Mira No Corrent:
- Comproveu si la corona està completament empenta i cargolada.
- The battery may need replacement. Contact an authorized service center.
- Temps inexacte:
- Ensure the time was set correctly (AM/PM).
- Strong magnetic fields can affect accuracy. Move the watch away from magnetic sources.
- És possible que la bateria estigui baixa.
- Les agulles del cronògraf no es reinicien a zero:
- Press Pusher B firmly. If they still do not reset, there might be a need for calibration or service.
- Condensació sota el cristall:
- This indicates a breach in water resistance. Immediately take the watch to an authorized service center to prevent further damage.
For issues not covered here, or if problems persist, please contact TW Steel customer support or an authorized service center.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | TW996 |
| Moviment | Cronògraf de quars |
| Material de la caixa | High grade 316L steel |
| Diàmetre de la caixa | 46 mm |
| Cristall | Reinforced mineral crystal |
| Corona | Corona cargolada |
| Resistència a l'aigua | 10 ATM (100 metres / 330 peus) |
| Material de la corretja | Cuir |
| Bateria | 1 bateria específica del producte (inclosa) |
| Dimensions del paquet | 14 x 10.8 x 8.9 cm |
| Pes de l'article | 169 g |
| Edició Limitada | Yes (347 pieces) |
Garantia i Suport
Your TW Steel TW996 watch comes with a Guarantee card. Please refer to this card for detailed information regarding the warranty period and terms and conditions.
For any service, repair, or support inquiries, please contact TW Steel customer service or visit their official website for a list of authorized service centers. Always ensure that any repairs or battery replacements are performed by authorized personnel to maintain the watch's integrity and warranty.
Per a més informació, podeu visitar el TW Steel Store on Amazon.
