Introducció
The Bushnell Pro XE Golf Laser Rangefinder is an advanced optical instrument designed to provide precise distance measurements for golfers. It features cutting-edge technology to enhance accuracy and user experience on the course, including slope compensation with environmental factors and a magnetic cart mount.

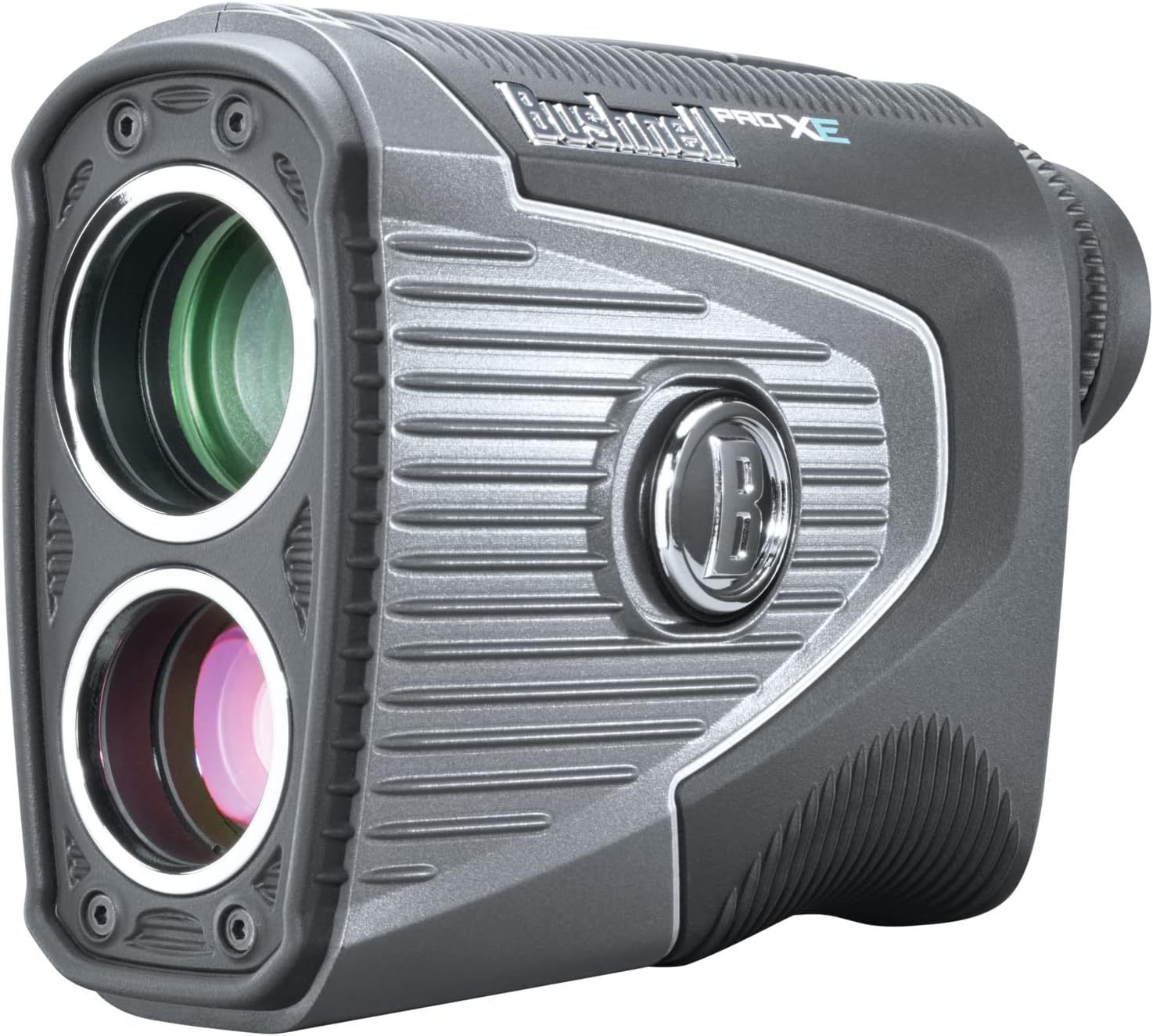

Davant view of the Bushnell Pro XE Golf Laser Rangefinder, showing the objective and laser apertures.
Característiques clau
- Slope with Elements: Provides compensated distance based on terrain slope, temperature, and barometric pressure for highly accurate readings.
- PinSeeker with Visual JOLT Technology: Confirms target acquisition with a vibrating pulse and a red ring around the "B" logo, ensuring you've locked onto the flag.
- Built-in BITE Magnetic Cart Mount: Allows for secure attachment to a golf cart frame or other metal surfaces for easy access.
- Positive Click Slope Switch: Easily toggle the slope compensation feature on or off, making the device legal for tournament play when off.
- Interval estès: Capable of measuring distances from 5 to 1,300 yards.
- Disseny impermeable: IPX7 rated, ensuring protection against water immersion.
- Ampliació 7x: Provides clear and bright optics for easy target identification.
Diagram illustrating the various features and components of the Bushnell Pro XE.
Configuració
1. Instal·lació de la bateria
The Bushnell Pro XE uses one 3-volt CR2 Lithium battery. To install or replace the battery:
- Locate the battery compartment cap on the bottom of the unit.
- Rotate the cap counter-clockwise to remove it.
- Inseriu una pila CR2 nova amb el terminal positiu (+) cap a dins.
- Replace the battery cap and turn it clockwise until it is securely tightened.
2. Ajust del focus
To adjust the focus for a clear view a través de l'ocular:
- Mira a través de l'ocular.
- Rotate the diopter adjustment ring (located on the eyepiece) until the display and the view of the target appear sharp and clear.

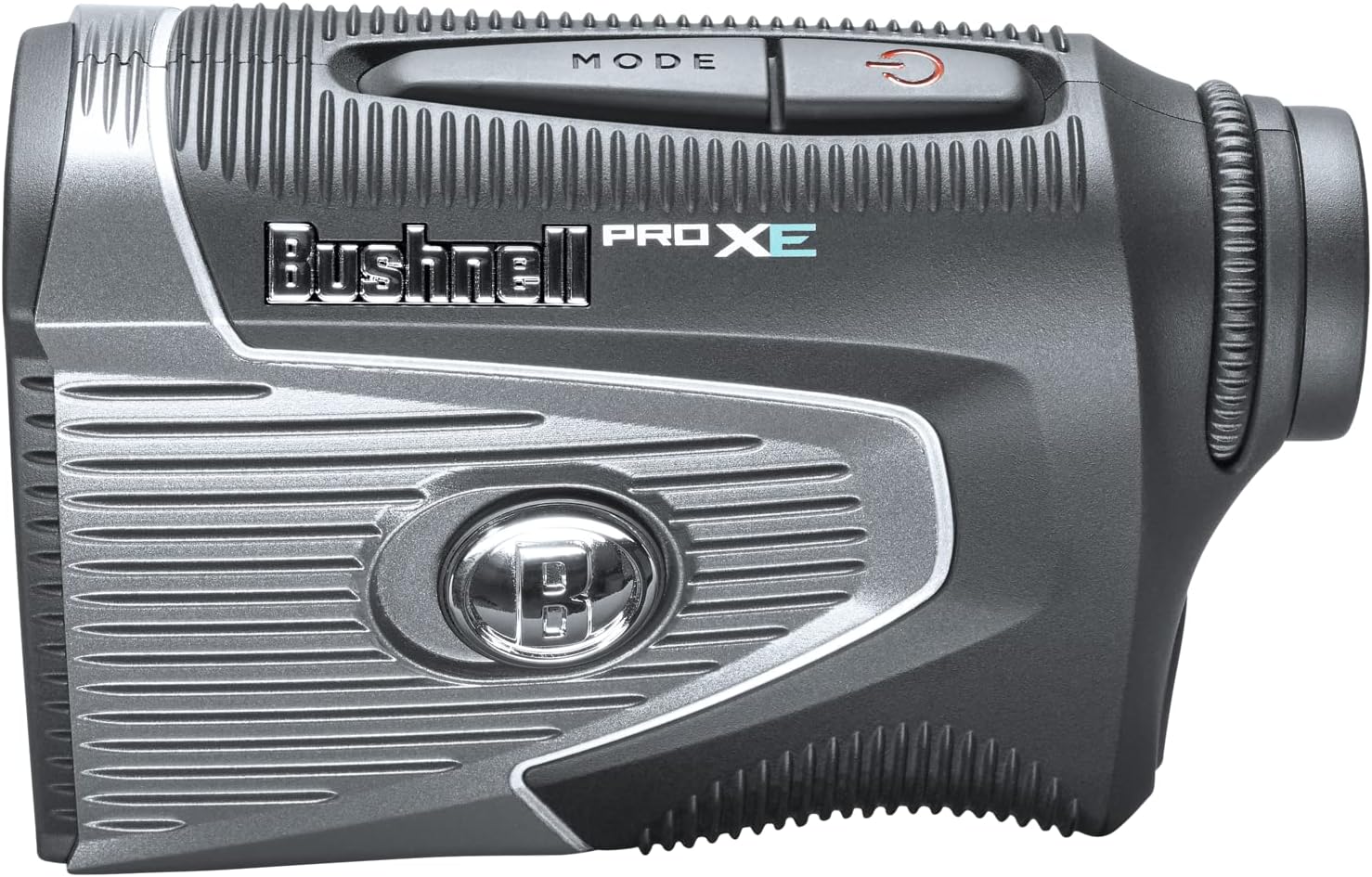

lateral view of the rangefinder, showing the power and mode buttons for operation.
Instruccions de funcionament
1. Engegada i mesura de distància
To activate the rangefinder and measure distance:
- Premeu el botó Poder/Foc button (red button on top) once to turn on the unit and activate the display.
- Aim the aiming circle (reticle) at your desired target.
- Manteniu premut el botó Poder/Foc button until the distance reading appears in the display.
- Release the button to turn off the laser. The display will remain active for approximately 10 seconds.
2. Mode Selection (Slope Switch)
The Pro XE features a positive click slope switch on the side of the unit to enable or disable the Slope with Elements feature.
- Feu lliscar l'interruptor cap a dret (red indicator visible) to activate Slope with Elements. The display will show the compensated distance.
- Feu lliscar l'interruptor cap a esquerra (no red indicator) to disable Slope with Elements. The display will show only the actual linear distance, making it legal for tournament play.
Close-up of the "B" logo with the red indicator, signifying that the Slope with Elements feature is active.
3. PinSeeker with Visual JOLT
This technology helps you easily acquire the flag without inadvertently getting distances to background targets.
- While looking through the eyepiece, align the aiming circle over the flagstick.
- Manteniu premut el botó Poder/Foc botó.
- Once the flagstick is identified, the display will show the distance, and the unit will vibrate (JOLT) and illuminate a red ring around the "B" logo, confirming target lock.
4. Suport magnètic per a carro BITE
The integrated BITE magnetic mount allows for convenient attachment to a golf cart or other metal surfaces.
- Simply press the side of the rangefinder with the "BITE" textured grip against a metal surface on your golf cart.
- Ensure the magnet is securely attached before releasing la unitat.
lateral view of the rangefinder highlighting the BITE magnetic cart mount area.
Manteniment
Cleaning the Lenses and Body
- Gently brush away any dust or debris from the lenses using a soft lens brush or compressed air.
- Use a clean, soft microfiber cloth to wipe the lenses. For stubborn smudges, a small amount of lens cleaning fluid can be applied to the cloth (not directly to the lens).
- Wipe the body of the rangefinder with a damp tela. Eviteu utilitzar netejadors abrasius o dissolvents.
Emmagatzematge
- When not in use, store the rangefinder in its protective carrying case.
- Emmagatzemar en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- If storing for extended periods, it is recommended to remove the battery to prevent leakage.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No display or unit does not turn on. | La bateria està morta o mal instal·lada. | Substituïu la pila CR2, assegurant-vos de la polaritat correcta. |
| Lectures inexactes o inconsistents. | Lens is dirty; target is too small or reflective; environmental conditions (fog, heavy rain). | Clean lenses; ensure stable aiming; try ranging a larger object near the target. |
| JOLT technology not activating. | Not properly locked onto the flagstick; low battery. | Ensure the aiming circle is precisely on the flagstick; replace battery if needed. |
| La pantalla és tènue o difícil de llegir. | Low battery; display brightness setting. | Replace battery; adjust display brightness (refer to full manual for specific steps). |
Especificacions
| Atribut | Detall |
|---|---|
| Nom del model | Telemetre làser de golf |
| Número de model | 46BU066 |
| Interval de mesura | 5-1300 iardes |
| Ampliació | 7x |
| Font d'alimentació | 3-volt CR2 Lithium Battery (included) |
| Nivell de resistència a l'aigua | Impermeable (IPX7) |
| Color | Negre/Plata |
| Material | Polièster |
| Pes de l'article | 580.59 grams |
| Dimensions del producte (LxWxH) | 6" x 4.75" x 4.63" |
| Components inclosos | Rangefinder, Manual, CR2 Battery, Case |

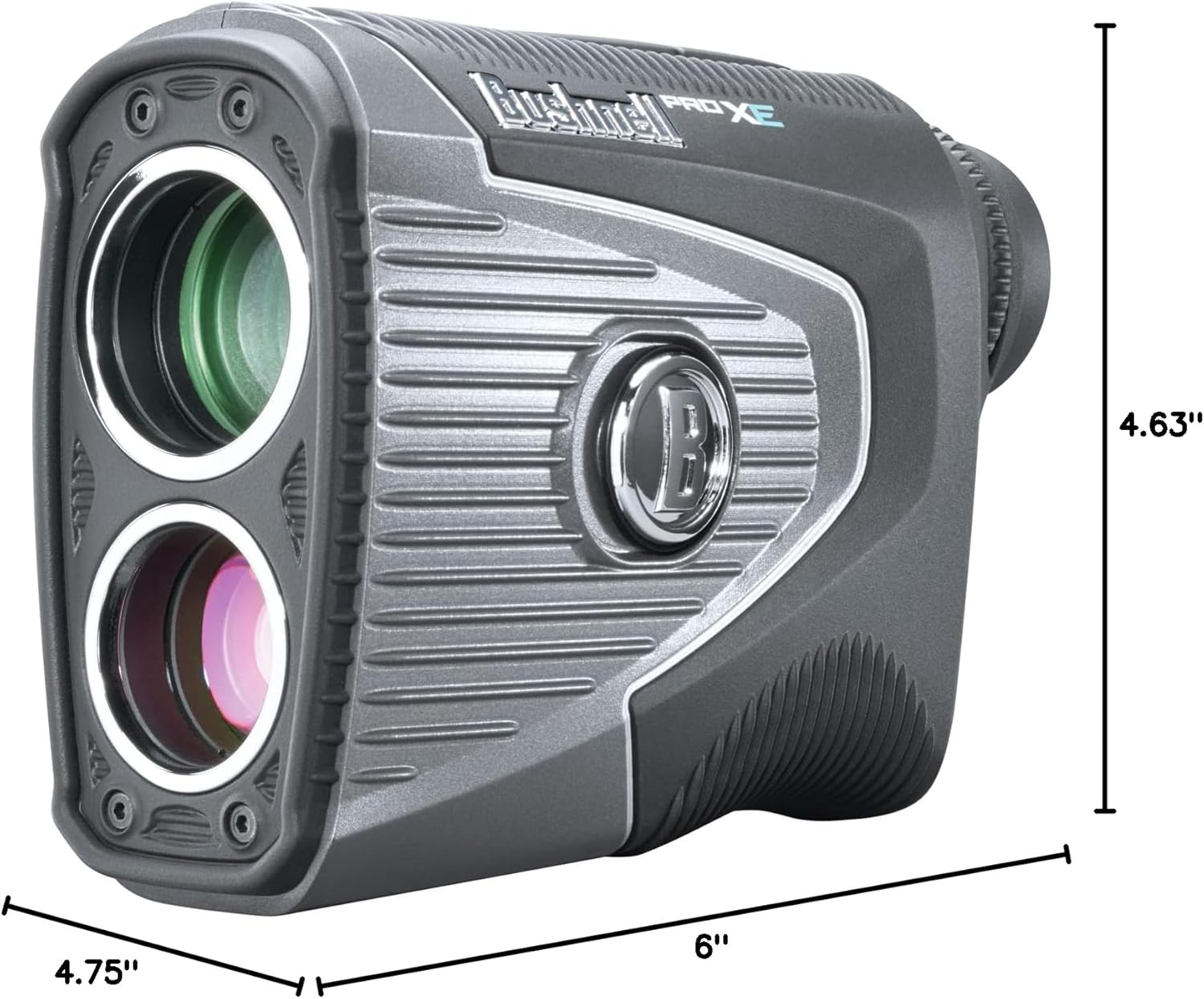

Diagram showing the dimensions of the Bushnell Pro XE Golf Laser Rangefinder.
Informació de la garantia
The Bushnell Pro XE Golf Laser Rangefinder comes with a Garantia limitada d'2 any from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, please refer to the official Bushnell weblloc web o el manual d'usuari complet.
Suport
For more detailed information, advanced settings, or further assistance, please refer to the comprehensive user manual available in PDF format:
Descarrega el manual d'usuari complet (PDF)
You can also visit the official Bushnell website for product registration, FAQs, and customer service contact information.
