1. Introducció
This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your Midea MC-HF645 Built-in Ceramic Hob. Please read this manual thoroughly before using the appliance and keep it for future reference.
2. Informació de seguretat
Your safety and the safety of others are paramount. Always adhere to the following basic safety precautions:
- Assegureu-vos que l'aparell l'instal·li un tècnic qualificat d'acord amb la normativa local.
- No toqueu superfícies calentes. Feu servir sempre guants de forn o guants de cuina.
- Desendolleu l'aparell de la xarxa elèctrica abans de netejar-lo o fer-ne el manteniment.
- Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat.
- Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
- Do not operate the hob if the glass ceramic surface is cracked or broken. Immediately disconnect from the power supply.
- Eviteu col·locar objectes metàl·lics com ara ganivets, forquilles, culleres i tapes a la superfície de la placa, ja que poden escalfar-se.
- The hob features an Automatic Safety Shut-off i a Bloqueig infantil function for enhanced safety.
3. Característiques del producte
The Midea MC-HF645 Ceramic Hob is designed for modern kitchens, offering a blend of style and functionality:
- High-Quality Surface: Features durable German Schott glass ceramic surface.
- Touch Control Sensor: Intuitive and precise control over all cooking zones.
- Four Heating Zones: Provides versatile cooking options with different power outputs.
- 9 nivells de potència: Allows for fine-tuned heat adjustment for various cooking needs.
- Funció de temporitzador: Set cooking durations for individual zones.
- Indicador de calor residual: Alerts you when a cooking zone is still hot after use.
- Bloqueig per a nens: Evita el funcionament accidental, millorant la seguretat.
- Apagada automàtica de seguretat: Automatically turns off the hob after a period of inactivity.
This image displays the Midea MC-HF645 built-in ceramic hob from a top-down perspective. It features a sleek black Schott glass surface with four distinct circular heating zones. Below the heating zones, a touch control panel is visible, indicating power levels, timer functions, and a child lock.
4. Configuració i instal·lació
The Midea MC-HF645 is a built-in appliance and requires professional installation. Ensure proper ventilation and clearances as specified below:
- Retall de taulell: The cutout dimensions for installation are approximately 560mm (width) x 490mm (depth).
- Liquidacions: Maintain a minimum clearance of 50mm from adjacent walls or surfaces.
- Connexió d'alimentació: The hob operates on 240V and requires a dedicated electrical circuit with a total power output of 7000W. Connection must be made by a qualified electrician.
- Segellat: Ensure a proper seal is applied around the edges of the hob to prevent liquid ingress.

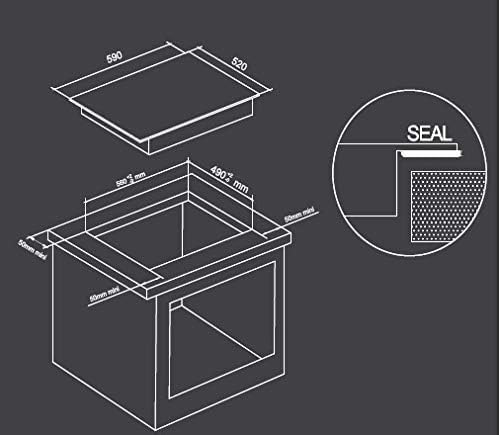

This diagram illustrates the required cutout dimensions for installing the Midea MC-HF645 ceramic hob. It shows the hob's overall dimensions (590mm width, 520mm depth) and the recommended cutout dimensions for the countertop (560mm width, 490mm depth). It also indicates minimum clearance requirements of 50mm on all sides and a seal around the edge for proper installation.
5. Instruccions de funcionament
Familiarize yourself with the touch control panel for optimal use of your ceramic hob.
5.1 Encesa/apagada
- To turn on, press the Power button (I). Els indicadors s'il·luminaran.
- To turn off, press the Power button (I) de nou.
5.2 Selecció d'una zona de cocció i ajust de la potència
- After turning on the hob, select the desired cooking zone by pressing its corresponding zone selection button.
- Use the '+' or '-' buttons to adjust the power level from 1 (low) to 9 (high).
5.3 Funció de temporitzador
- Select the cooking zone you wish to set a timer for.
- Premeu el botó del temporitzador (Icona del rellotge).
- Use the '+' or '-' buttons to set the desired cooking time. The zone will automatically turn off when the timer expires.
5.4 Bloqueig infantil
- To activate the Child Lock, press and hold the Lock button (Icona de bloqueig) for a few seconds until the indicator lights up. This prevents accidental changes to settings.
- To deactivate, press and hold the Lock button again until the indicator turns off.
5.5 Indicador de calor residual
- After a cooking zone is turned off, the corresponding indicator will show 'H' (Hot) if the surface is still hot enough to cause burns.
- Do not touch the surface until the 'H' indicator disappears.
6. Neteja i Manteniment
Regular cleaning and maintenance will ensure the longevity and performance of your ceramic hob.
- Assegureu-vos sempre que la placa estigui freda i desconnectada de la xarxa elèctrica abans de netejar-la.
- For daily cleaning, wipe the ceramic surface with a soft cloth and a mild detergent.
- For stubborn stains or burnt-on food, use a specialized ceramic hob cleaner and a scraper designed for glass ceramic surfaces.
- Avoid using abrasive cleaners, scouring pads, or harsh chemicals as they can scratch or damage the surface.
- Netegeu el tauler de control amb anunciamp drap i assecar bé.
7. Solució De Problemes
If you encounter issues with your Midea MC-HF645 Ceramic Hob, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La placa de cuina no s'encén. | No power supply; Child Lock activated. | Check power connection and circuit breaker. Deactivate Child Lock. |
| Heating zone not heating sufficiently. | Incorrect power level selected; Pan not suitable. | Increase power level. Ensure cookware has a flat base and is suitable for ceramic hobs. |
| La placa de cuina fa sorolls estranys. | Normal expansion/contraction of materials; Pan resonance. | This is usually normal. If noises are excessive or persistent, contact service. |
| El tauler de control no respon. | Surface is wet; Child Lock activated. | Dry the control panel thoroughly. Deactivate Child Lock. |
If the problem persists after attempting these solutions, please contact Midea customer service or a qualified service technician.
8. Especificacions
Detailed technical specifications for the Midea MC-HF645 Built-in Ceramic Hob:
| Especificació | Valor |
|---|---|
| Nom de marca | Midea |
| Informació del model | MC-HF645 |
| Dimensions del producte (L x A x A) | 52 x 59 x 5.5 cm |
| Pes de l'article | 10 quilos |
| Tipus d'instal·lació | Integrat |
| Característiques especials | Schott Glass, Child Lock |
| Tipus de placa | Ceran / Ceramic |
| Nombre d'elements de calefacció | 4 |
| Color | Negre |
| Voltage | 240 Volts |
| Energia elèctrica | 7000 watts |
| Tipus de combustible | Elèctric |
| Tipus de material | Ceràmica |
| Material de la superfície de l'escalfador | Ceràmica de vidre |
| Peces incloses | Manual d'usuari |
| Zona Front Esquerra | 200mm / 1800W |
| Zona posterior esquerra | 165mm / 1200W |
| Zona Dual | 140/230mm / 1000/2200W |
| Zona davantera dreta | 165mm / 1200W |
9. Garantia i assistència
The Midea MC-HF645 Built-in Ceramic Hob comes with a 1 any de garantia from the date of purchase. This warranty covers manufacturing defects and faulty materials under normal domestic use.
For warranty claims, technical support, or service inquiries, please contact Midea customer service. Ensure you have your proof of purchase and the product model number (MC-HF645) ready when contacting support.
Please note that the warranty does not cover damage caused by improper installation, misuse, neglect, unauthorized repairs, or normal wear and tear.
