1. Introducció
This manual provides detailed instructions for the assembly, operation, and maintenance of your vidaXL Greenhouse, model 45534, measuring 300 x 300 x 200 cm. Please read these instructions carefully before beginning assembly and retain them for future reference. Proper assembly and care will ensure the longevity and optimal performance of your greenhouse.

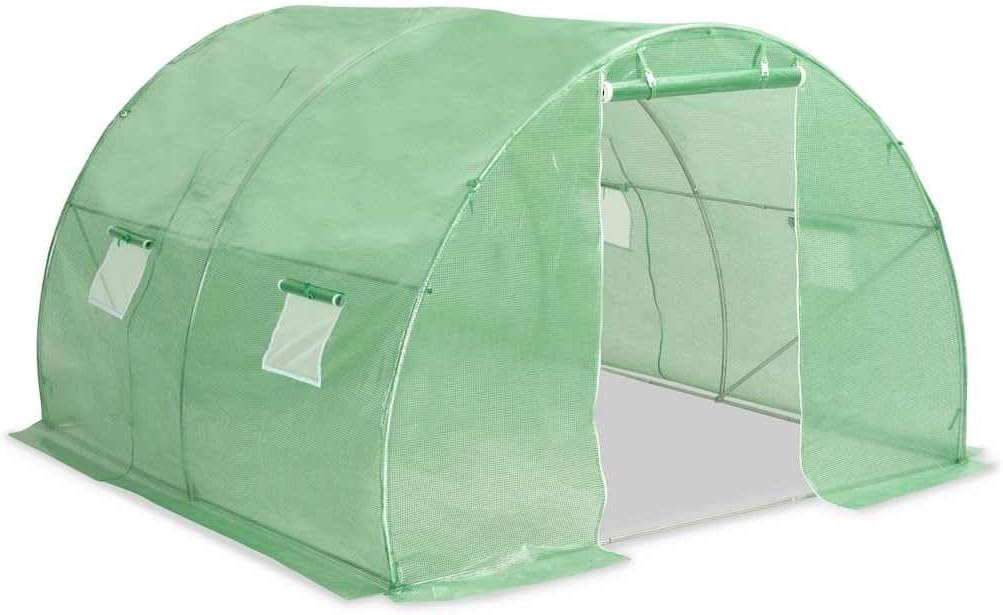

Image 1.1: Fully assembled vidaXL Greenhouse (300 x 300 x 200 cm) in an outdoor setting.
2. Informació de seguretat
Always prioritize safety during assembly and use. Failure to follow these guidelines may result in injury or damage to the product.
- Assegureu-vos que tots els components siguin presents i no estiguin danyats abans del muntatge.
- Assemble the greenhouse on a level, stable surface.
- Securely anchor the greenhouse to the ground to prevent wind damage.
- Do not use the greenhouse in extreme weather conditions, such as strong winds or heavy snow.
- Mantingueu els nens i les mascotes allunyats de la zona de reunió.
- Feu servir equips de seguretat adequats, com ara guants, durant el muntatge.
- Periodically check all connections and anchors for tightness.
3. Contingut del paquet
Verify that all parts are included in your package. If any parts are missing or damaged, contact vidaXL customer support.
- Galvanized steel frame tubes (various lengths and shapes)
- Connectors i elements de fixació
- Polyethylene (PE) cover (140 g/m²)
- Ground stakes or anchoring ropes (may vary by model)
- Manual d'instruccions
4. Instruccions de muntatge
Assembly typically requires two people. Follow the steps below for proper construction.
4.1. Preparació del lloc
Choose a level, well-drained area for your greenhouse. Clear the area of any debris, rocks, or sharp objects that could damage the cover.
Image 4.1: Greenhouse dimensions (300 cm x 300 cm x 200 cm).
4.2. Muntatge del marc
- Desembaleu tots els components del marc i col·loqueu-los segons el diagrama inclòs.
- Connect the base frame tubes using the provided connectors. Ensure all connections are secure.
- Assemble the arched roof sections by connecting the curved tubes.
- Attach the arched sections to the base frame, ensuring they are evenly spaced and upright.
- Install any horizontal support bars to reinforce the structure.
Image 4.2: Diagram of the greenhouse frame structure.

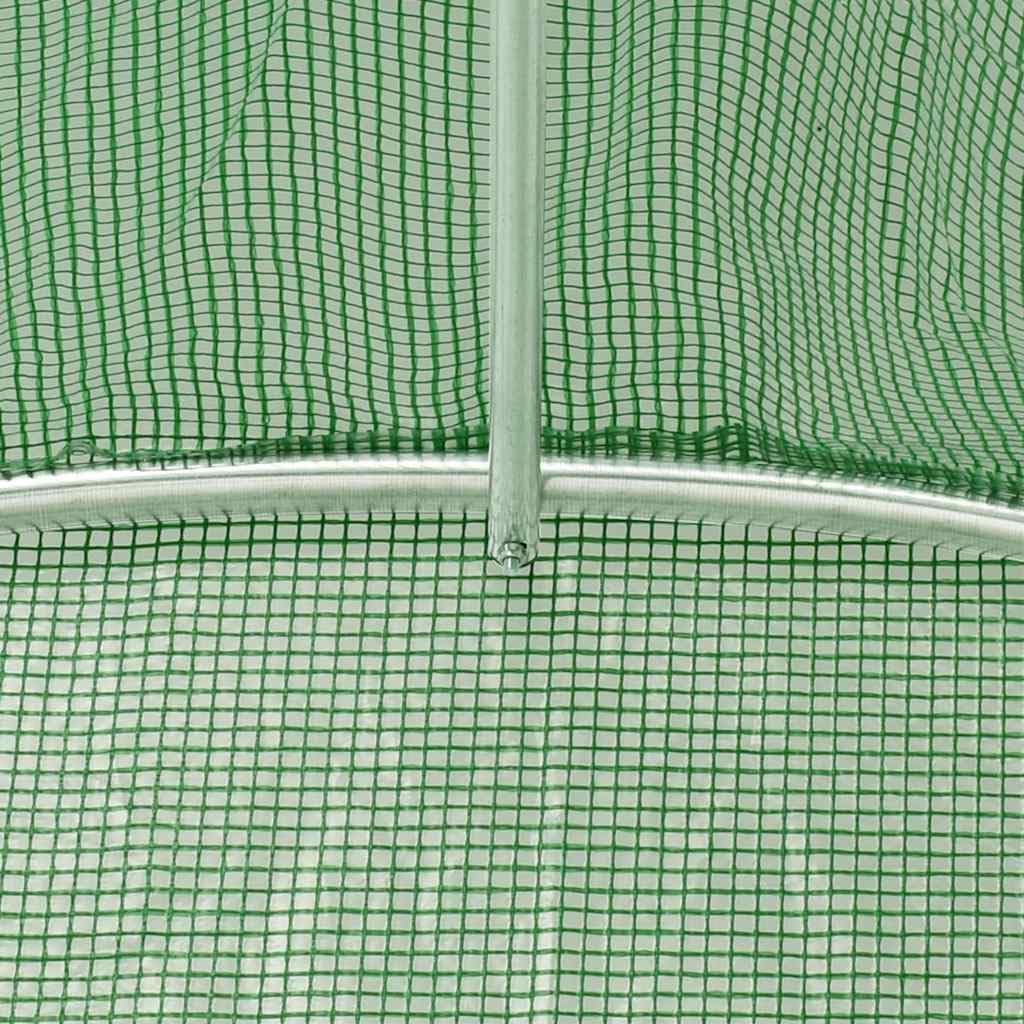

Image 4.3: Detail of a frame connection point, showing the sturdy galvanized steel.
Image 4.4: Detail of the base frame connection, showing how the frame is secured.
4.3. Instal·lació de la coberta
- Carefully unfold the polyethylene cover over the assembled frame.
- Ensure the cover is centered and draped evenly over the frame.
- Secure the cover to the frame using the ties, clips, or fasteners provided. Ensure it is taut to prevent flapping in the wind.
- Zip up the main entrance and ensure all window flaps are closed.

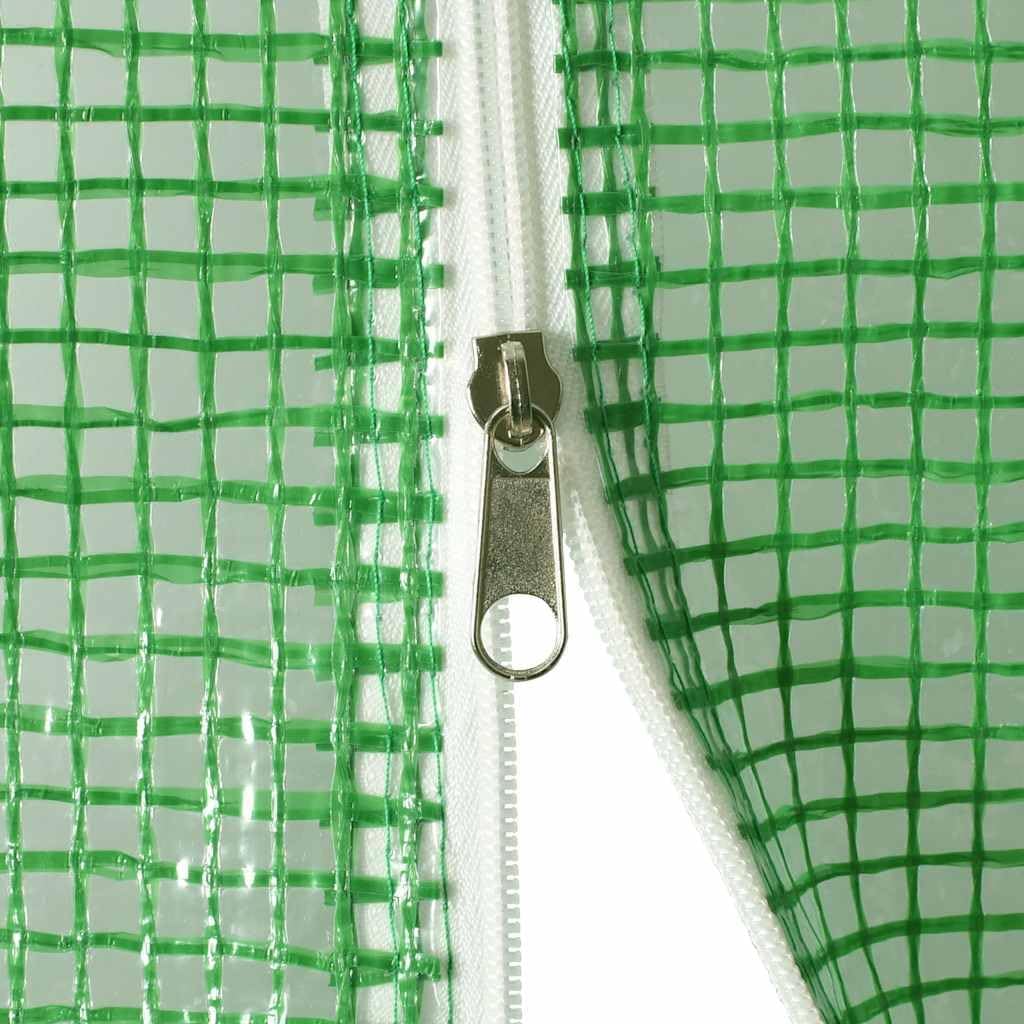

Image 4.5: Detail of the heavy-duty zipper on the greenhouse cover.
Image 4.6: Detail of a ventilation window, showing the roll-up flap and tie mechanism.
4.4. Ancoratge
Once the cover is in place, securely anchor the greenhouse to the ground using the provided stakes or by burying the skirt of the cover. This is crucial for stability, especially in windy conditions.
5. Funcionament del vostre hivernacle
Per maximitzar els beneficis del vostre hivernacle, tingueu en compte les següents pautes operatives:
5.1. Ventilació
The greenhouse is equipped with 4 ventilation openings. Open these windows during warm periods to prevent overheating and ensure adequate air circulation for your plants. Close them during cooler temperatures or at night to retain heat.

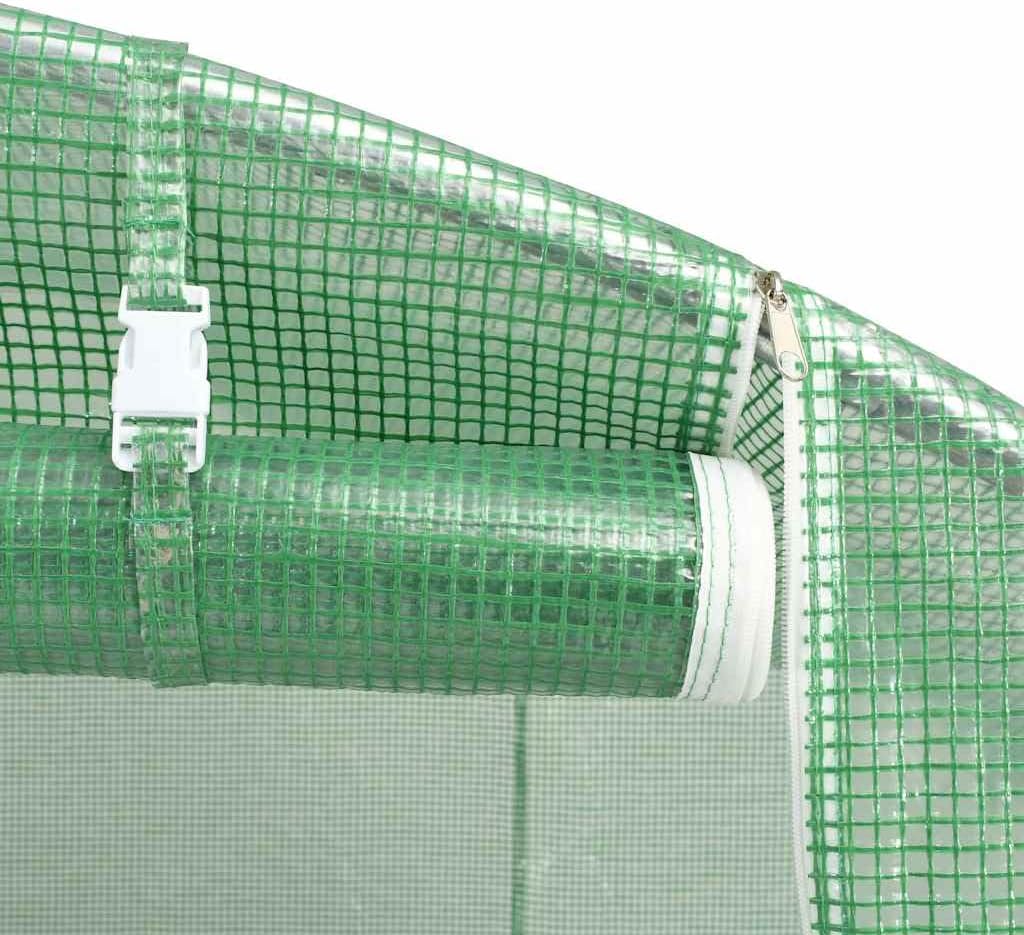

Image 5.1: Mechanism for rolling up and securing a door or window flap for ventilation.
5.2. Accés
The greenhouse features 1 door for easy access. Use the zipper to open and close the door. For extended periods of access or ventilation, the door can be rolled up and secured.
5.3. Temperature and Humidity Control
Monitor the internal temperature and humidity. Adjust ventilation as needed to maintain optimal conditions for your specific plants. Consider using a thermometer and hygrometer inside the greenhouse.
6. Manteniment
Regular maintenance will extend the life of your greenhouse.
- Neteja de la coberta: Periodically clean the polyethylene cover with mild soap and water to remove dirt and algae, which can reduce light transmission. Avoid abrasive cleaners.
- Inspecció del marc: Regularly inspect the steel frame for any signs of rust, damage, or loose connections. Tighten any loose bolts or connectors.
- Comprovació d'ancoratge: Ensure the greenhouse remains securely anchored, especially after strong winds. Re-secure stakes or ropes if necessary.
- Cura d'hivern: In areas with heavy snowfall, consider removing the cover during winter months to prevent structural damage from snow accumulation. Store the cover in a dry, protected area.
7. Solució De Problemes
Aquí teniu solucions a problemes comuns que podeu trobar:
| Problema | Causa possible | Solució |
|---|---|---|
| Greenhouse unstable/wobbles | Insufficient anchoring; loose frame connections | Ensure all anchors are firmly in the ground. Tighten all frame bolts and connectors. Consider additional anchoring if in a windy area. |
| Cover flapping in wind | Cover not tautly secured | Re-tension all ties and clips securing the cover to the frame. Ensure the cover skirt is properly weighted or buried. |
| Excés de calor a l'interior | Ventilació inadequada | Open all ventilation windows and the door during warm periods to allow airflow. |
| Aigua acumulada a la teulada | Cover not taut; frame sagging | Ensure the cover is pulled taut over the frame. Check frame integrity for any sagging or bending. |
8. Especificacions
| Característica | Detall |
|---|---|
| Número de model | 45534 |
| Dimensions (L x A x A) | 300 x 300 x 200 cm (9 m²) |
| Pes del producte | 19.2 kg |
| Material del marc | Acer galvanitzat |
| Material de coberta | Polyethylene (PE), 140 g/m² |
| Color | Verd |
| Nombre de portes | 1 |
| Number of Ventilation Openings | 4 |
| Característica especial | Durable |
| Ús | A l'aire lliure |
9. Garantia i Suport
vidaXL products are designed for quality and durability. For specific warranty information or technical support, please refer to the warranty card included with your purchase or visit the official vidaXL weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
If you encounter any issues not covered in this manual, please contact vidaXL customer service for assistance.
