EverNary Wireless Dog Door Bell Instruction Manual

1. Producte acabatview

The EverNary Wireless Dog Door Bell system is designed to assist in potty training your dog by providing a clear communication method for when they need to go outside. This system includes touch-sensitive transmitters and plug-in receivers, offering a convenient and effective solution to reduce barking and scratching at doors.

Image: The EverNary Wireless Dog Door Bell system, featuring two black square receivers and two black circular touch transmitters.

2. Contingut del paquet

Si us plau, verifiqueu que tots els elements que s'enumeren a continuació estiguin inclosos al vostre paquet:

• 2 x Receiver units
• 2 x Transmitter units
• 2 x Velcro adhesive sets
• 1 x manual d'usuari
• 2 x 23A 12V Batteries (pre-installed in transmitters)
• 1 x mini tornavís

3. Característiques clau

• Potty Training Aid: Helps pets signal their need to go outside, reducing unwanted behaviors like scratching or barking.
• Activació fàcil: Transmitters require only a light touch from a paw or nose, suitable for dogs of all sizes and even cats.
• Instal·lació sense fil: Simple setup with no wiring required. Transmitters attach with Velcro, and receivers plug into standard AC outlets.
• Ús versàtil: Can also function as a standard home doorbell or a caregiver pager for elderly or sick individuals.
• Interval estès: Operates wirelessly over 800+ feet in open areas.
• Alertes personalitzables: Features 55 selectable ringtones and 5 adjustable volume levels (0dB to 110dB), including a mute mode.
• Disseny durador: IP55 waterproof rating for outdoor transmitters, with a working temperature range of -30°C to +70°C.

Image: The EverNary doorbell is designed for dogs of all sizes, from small puppies to large adult dogs.

4. Instruccions de configuració

4.1. Instal·lació del receptor

1. Locate a standard AC electrical outlet in a central area of your home where the doorbell sound can be easily heard.
2. Plug the receiver unit directly into the chosen AC outlet. The receiver will power on and be ready for pairing.

Image: A receiver unit plugged into a standard electrical outlet, ready for use.

4.2. Instal·lació del transmissor

1. Identify the desired location for the transmitter. Common placements include near a door, on the floor, or on a wall at your pet's height.
2. Assegureu-vos que la superfície estigui neta i seca.
3. Peel the backing from one side of the provided Velcro adhesive. Attach it firmly to the back of the transmitter.
4. Peel the backing from the other side of the Velcro adhesive. Press the transmitter firmly onto the chosen surface.
5. The transmitter can be easily removed and repositioned if needed due to the Velcro attachment.

Image: The transmitter unit, highlighting its touch area and Velcro backing, with examples of installation on various surfaces.

4.3. Pairing Transmitters with Receivers

The units are typically pre-paired. If re-pairing is necessary or if adding new transmitters/receivers:

1. Connecteu el receptor.
2. On the receiver, press and hold the pairing button (often located on the side, labeled with a bell icon or similar) for approximately 5 seconds until you hear a "ding" sound or see a flashing indicator light. This indicates pairing mode.
3. Within 5 seconds of the receiver entering pairing mode, gently touch the surface of the transmitter.
4. The receiver will chime, confirming successful pairing.
5. Repeat this process for any additional transmitters you wish to pair with the same receiver.

Image: Close-up of the receiver's side buttons for volume and pairing, and the transmitter's touch surface.

4.4. Adjusting Chime and Volume

• Selecció de timbres: Use the "Forward" and "Backward" buttons on the side of the receiver to cycle through the 55 available ringtones.
• Control de volum: Use the "Volume Control" button to adjust the volume through 5 levels, from 0dB (mute) to 110dB.

5. Operació i formació

5.1. Funcionament bàsic

Once installed and paired, the system operates by a pet touching the transmitter, which sends a wireless signal to the receiver, causing it to chime. This signals to the owner that the pet requires attention, typically to go outside.

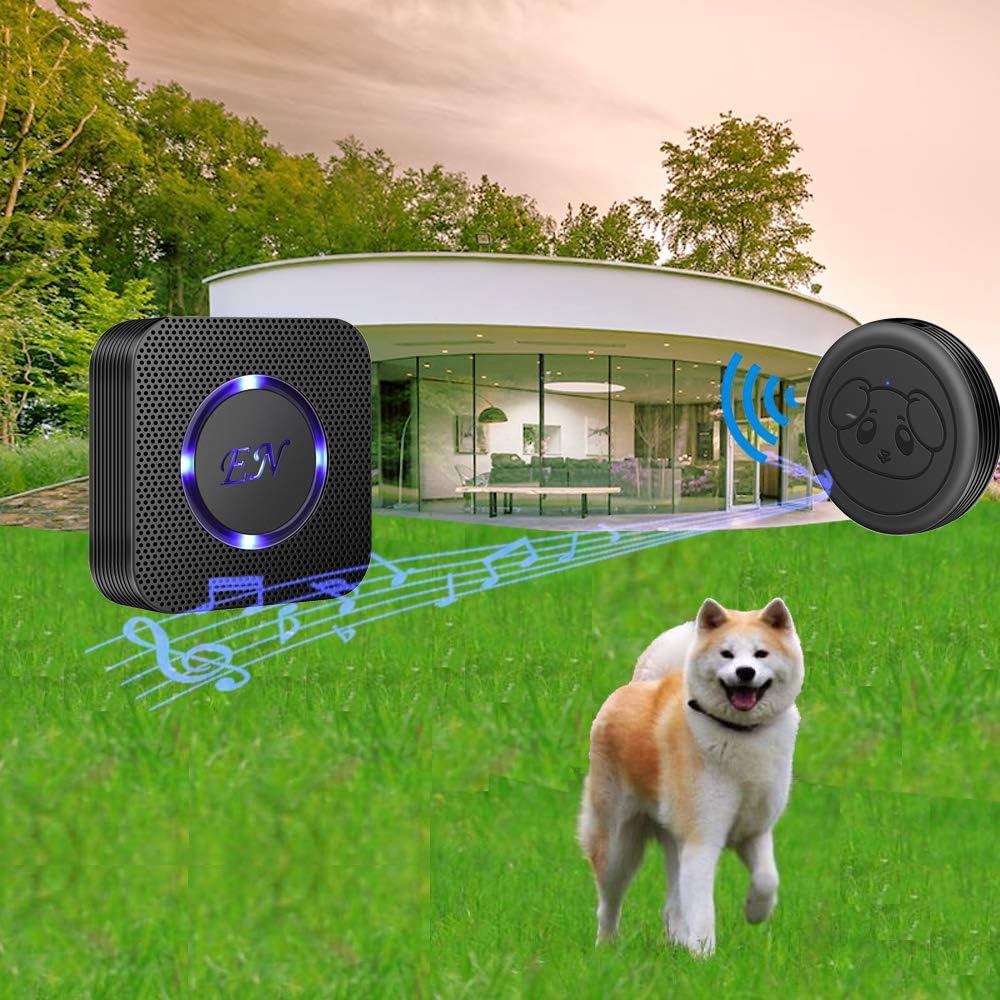

Image: A visual representation of the wireless dog doorbell system in action, with a dog in the yard and the signal transmitting to the receiver inside the house.

5.2. Potty Training Your Dog

Consistent training is key for your dog to associate ringing the bell with going outside. Here's a recommended training method:

1. Introduce the Bell: Before taking your dog outside for potty breaks, gently guide their paw or nose to touch the transmitter. As soon as they touch it and the bell rings, immediately praise them enthusiastically and open the door to go outside.
2. Reforç positiu: Always praise and reward your dog when they successfully ring the bell and go outside.
3. Consistency is Crucial: Every time your dog needs to go out, ensure they ring the bell first. Even if they ring it and don't immediately go to the bathroom, still take them outside for a short period. This reinforces the connection between the bell and outdoor access.
4. Address False Alarms: If your dog rings the bell excessively without needing to go out, you can temporarily remove the transmitter or ignore the ring for a short period, then reintroduce it when they genuinely need to go. Some owners find success by only responding to the bell when they know it's a legitimate need.
5. Alternative Activation: For dogs hesitant to use their paw, a small dab of peanut butter on the touch area can encourage them to lick and activate the bell with their nose.

Consell: Patience and repetition are essential for successful training.

6. Manteniment

6.1. Neteja

• Wipe the receiver and transmitter units with a soft, damp tela.
• Avoid using harsh chemicals or abrasive cleaners, as these can damage the units.
• If the transmitter gets wet (e.g., from a dog's wet nose), wipe it dry to prevent continuous ringing.

6.2. Battery Replacement (Transmitter)

The transmitters use 23A 12V batteries. Battery life typically lasts about a year, depending on usage.

1. Use the provided mini screwdriver to carefully open the back cover of the transmitter.
2. Traieu la bateria antiga.
3. Introduïu una pila nova de 23 A i 12 V, assegurant-vos de la polaritat correcta.
4. Tanqueu de manera segura la coberta posterior.

Nota: If the transmitter stops working, try replacing the battery before troubleshooting other issues.

7. Solució De Problemes

8. Especificacions del producte

• Número de model: GM01
• Pes de l'article: 10.6 unces (paquet total)
• Dimensions del transmissor: Approximately 2.36 in (diameter) x 0.59 in (thickness)
• Dimensions del receptor: Approximately 3.19 in x 3.19 in x 1.0 in
• Interval sense fil: 800+ feet (open area)
• Tons de trucada: 55 campanes seleccionables
• Nivells de volum: 5 nivells (de 0 dB a 110 dB)
• Classificació impermeable: IP55 (Transmitter)
• Temperatura de treball: -30 °C a +70 °C
• Power Source (Transmitter): 1 x 23A 12V battery (included)
• Power Source (Receiver): Endoll de CA
• Components inclosos: Plug-in Receiver, Touch Button Transmitters
• Usos específics: Interior, Exterior

Image: Dimensional drawing of the EverNary receiver and transmitter units.

9. Garantia i Suport

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official EverNary weblloc. Conserveu el rebut de compra per a reclamacions de garantia.

Fabricant: EverNary

Primera data disponible: 5 d'abril de 2019
