Introducció
This manual provides essential instructions for the safe installation, operation, and maintenance of your Modern Forms Axis 52-inch Smart Ceiling Fan. Please read this manual thoroughly before installation and retain it for future reference. This fan is designed for both indoor and outdoor use, featuring a durable matte white finish and an integrated 2700K Warm LED light.

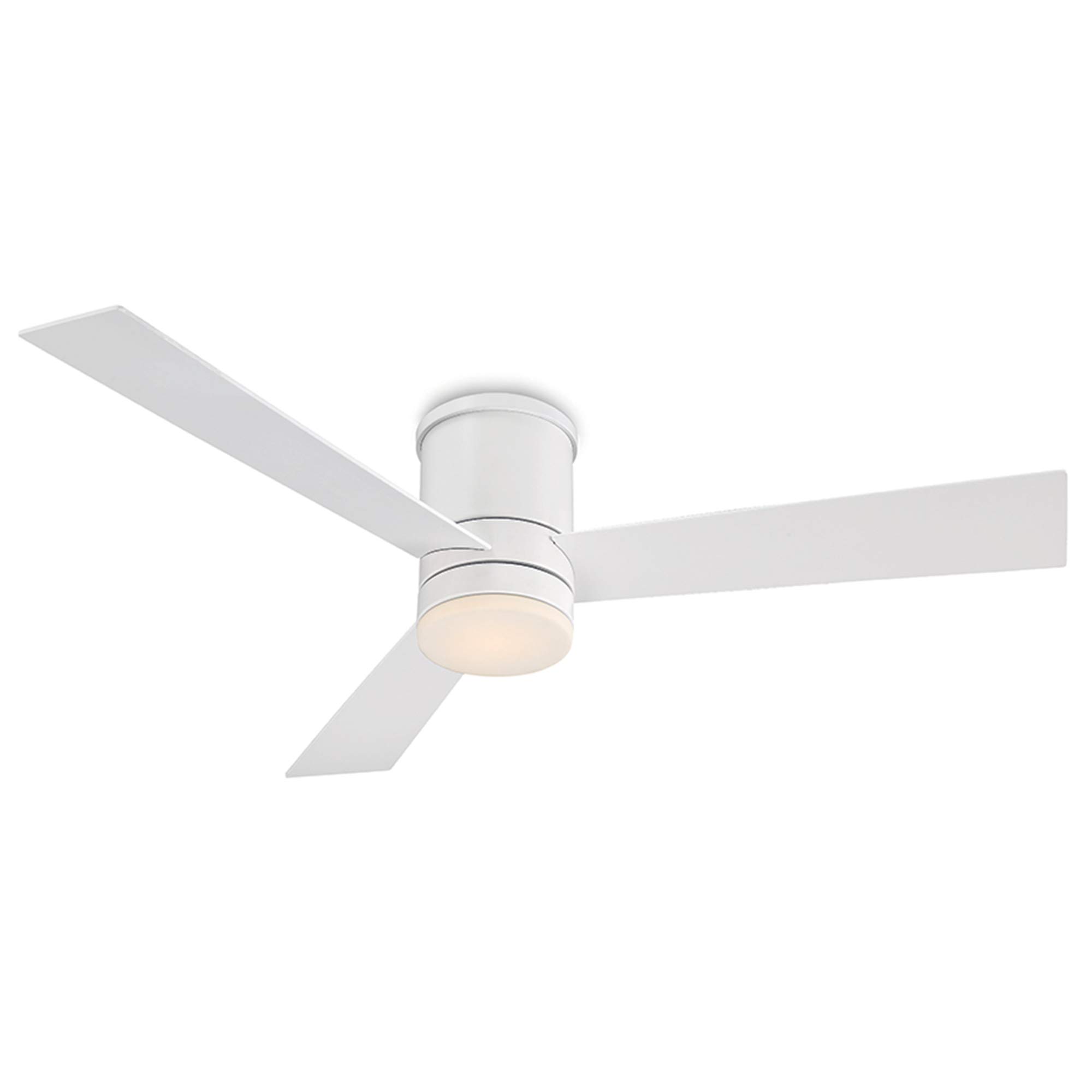

Image: Modern Forms Axis 52-inch Smart Ceiling Fan in Matte White with integrated LED light.
Informació de seguretat
Always follow basic safety precautions when installing and operating electrical appliances. Failure to do so may result in fire, electric shock, or personal injury.
- Seguretat elèctrica: Disconnect power at the circuit breaker before installation or servicing. Ensure all wiring is in accordance with national and local electrical codes.
- Muntatge: The fan must be mounted to a structurally sound ceiling junction box capable of supporting the fan's weight (approximately 14.3 pounds).
- Espai lliure de la fulla: Assegureu-vos que les aspes del ventilador estiguin a almenys 2.1 metres del terra i que tinguin una distància adequada de les parets o altres obstacles.
- Wet Rating: This fan is wet-rated, suitable for outdoor and indoor use in damp locations. However, avoid direct water spray.
Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- Fan Motor Assembly with Integrated LED Light
- Pales de ventilador (3)
- Suport de muntatge i maquinari
- Remote Control (Bluetooth enabled)
- Wall Cradle for Remote Control
- Batteries (2 CR2032, included for remote)
- Manual d'instruccions
Configuració
1. Instal·lació
Detailed installation instructions are provided in the separate installation guide included with your fan. It is recommended that a qualified electrician perform the installation to ensure proper wiring and safety. The fan is designed for flush mount installation.
2. Initial Power-Up and Pairing
After physical installation and power restoration, the fan will be ready for pairing. The remote control is typically pre-paired. For app control, download the Modern Forms app from your device's app store and follow the on-screen instructions to connect your fan to your home Wi-Fi network.
Image: Modern Forms Axis Smart Ceiling Fan shown with its remote control.
Operating Your Smart Fan
1. Funcions de control remot
The included Bluetooth remote allows direct control of your fan's primary functions:
- Velocitat del ventilador: Adjust through 6 speeds using the fan speed buttons.
- Control de la llum: Turn the LED light on/off and dim its intensity.
- Direcció del fan: Change the blade rotation direction for seasonal use (see Seasonal Operation).
- Bip audible: The remote provides an audible beep to confirm button presses, useful in low light conditions.
2. App Control (Modern Forms App)
The Modern Forms app provides advanced control and smart features:
- Accés remot: Control your fan from anywhere with an internet connection.
- Programació: Set custom schedules for fan operation and lighting.
- Adaptive Learning: The fan can learn your preferences and adjust automatically.
- Actualitzacions de firmware: The app facilitates necessary firmware updates for optimal performance.
Image: The Modern Forms app interface displayed on a smartphone, showing fan and light controls.
3. Voice Control and Smart Home Integration
The fan integrates with popular smart home platforms for voice control and automation:
- Amazon Alexa: Use voice commands like "Alexa, turn on the fan" or "Alexa, dim the light."
- Assistent de Google: Control your fan with phrases such as "Hey Google, set fan speed to 3."
- Ecobee & Samsung SmartThings: Integrate with these systems for enhanced energy management and home automation.
4. Funcionament estacional
Adjust the fan's direction for optimal comfort year-round:
- Mode d'estiu (sentit antihorari): Crea un flux d'aire descendent, produint un efecte de refredament.
- Mode d'hivern (en sentit horari): Crea un flux d'aire ascendent, fent circular l'aire calent atrapat a prop del sostre.
Image: Diagram showing fan blade rotation for summer (counter-clockwise) and winter (clockwise) modes.
Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del ventilador.
- Neteja: Utilitzeu un suau, damp drap per netejar les aspes del ventilador i la carcassa del motor. No utilitzeu productes de neteja abrasius ni dissolvents.
- Kit de llum: The integrated LED light is designed for long life and typically does not require replacement.
- Inspeccions: Periodically check all connections and mounting hardware for tightness.
Resolució de problemes
If you experience issues with your fan, refer to the following common solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no funciona | Sense alimentació, cablejat solt, comandament a distància no emparellat. | Check circuit breaker. Ensure all connections are secure. Re-pair remote if necessary. |
| La llum no funciona | No power to light, LED failure. | Check light switch. If LED is faulty, contact customer support. |
| Remote/App not responding | Low remote battery, Wi-Fi issue, app not connected. | Replace remote batteries. Check Wi-Fi connection. Ensure app is properly linked to fan. |
| Fan makes a beeping sound | Normal operation feedback, firmware update required. | The beep confirms remote input. If persistent or unusual, check app for firmware updates. |
| El ventilador trontolla | Loose blades, unbalanced blades, loose mounting. | Ensure all blade screws are tight. Use a balancing kit if necessary. Verify mounting bracket is secure. |
Especificacions
Key technical details for the Modern Forms Axis 52-inch Smart Ceiling Fan (FH-W1803-52L-27-MW):
| Número de model | FH-W1803-52L-27-MW |
| Envergadura de la fulla | 52 polzades |
| Acabar | Blanc mat |
| Tipus de llum | Integrated 2700K Warm LED |
| Flux lluminós | 1600 lumens |
| Tipus de motor | 6-Speed Brushless DC Motor |
| Capacitat de cabal d'aire | 5187 peus cúbics per minut (CFM) |
| Wattage | 51.5 watts |
| Nivell de soroll | 15 decibels |
| Voltage | 120 Volts |
| Dimensions (P x A x A) | 52 "P x 52" W x 11.5" H |
| Pes de l'article | 14.26 lliures |
| Classificació de seguretat | ETL & cETL, Wet Listed |
| Compatibilitat amb la llar intel·ligent | Amazon Alexa, Google Assistant, Ecobee, Samsung SmartThings |
| Eficiència energètica | Certificació Energy Star |
Images: Energy Star certification, Wet Rated icon, and DC Motor icon highlighting key features.
Informació de la garantia
Your Modern Forms Axis Smart Ceiling Fan is covered by the following warranty:
- Components LED: 5 any de garantia
- Motor: Garantia de per vida
- Totes les altres parts: 1 any de garantia
Conserveu el vostre comprovant de compra per a reclamacions de garantia.
Suport
For further assistance, technical support, or warranty inquiries, please contact Modern Forms customer service. You can find contact information on the official Modern Forms weblloc web o a través del vostre distribuïdor.
Vídeo oficial del producte
Video: Modern Forms Smart Fans Features Video. This video provides an overview of the smart features and capabilities of Modern Forms fans, including app and voice control integration.
