1. Introducció
This manual provides essential information for the safe and efficient use of your Fujitsu General nocria AS-C22J-W air conditioner. Please read this manual thoroughly before operating the unit and retain it for future reference. The nocria AS-C22J-W is a compact air conditioning unit designed for cooling, heating, and dehumidifying, utilizing R32 refrigerant for efficient climate control in rooms typically sized for 6 to 9 tatami mats (cooling) or 6 to 7 tatami mats (heating).
2. Informació de seguretat
To prevent injury to the user or others and property damage, the following instructions must be observed. Incorrect operation due to ignoring instructions may cause harm or damage.
- Instal·lació: Installation should only be performed by qualified personnel. Improper installation can lead to water leakage, electric shock, or fire.
- Seguretat elèctrica: Ensure the power supply matches the unit's specifications (100V). Do not use extension cords or multi-outlet adapters. Always connect to a dedicated circuit.
- Refrigerant: This unit uses R32 refrigerant. Do not attempt to repair or recharge the refrigerant yourself. Contact a qualified service technician.
- Funcionament: Do not insert fingers or objects into the air inlet/outlet. Do not operate with wet hands.
- Manteniment: Desconnecteu sempre l'alimentació i desendolleu la unitat abans de netejar-la o fer qualsevol manteniment.
3. Components del producte
Familiarize yourself with the main components of your air conditioner system.

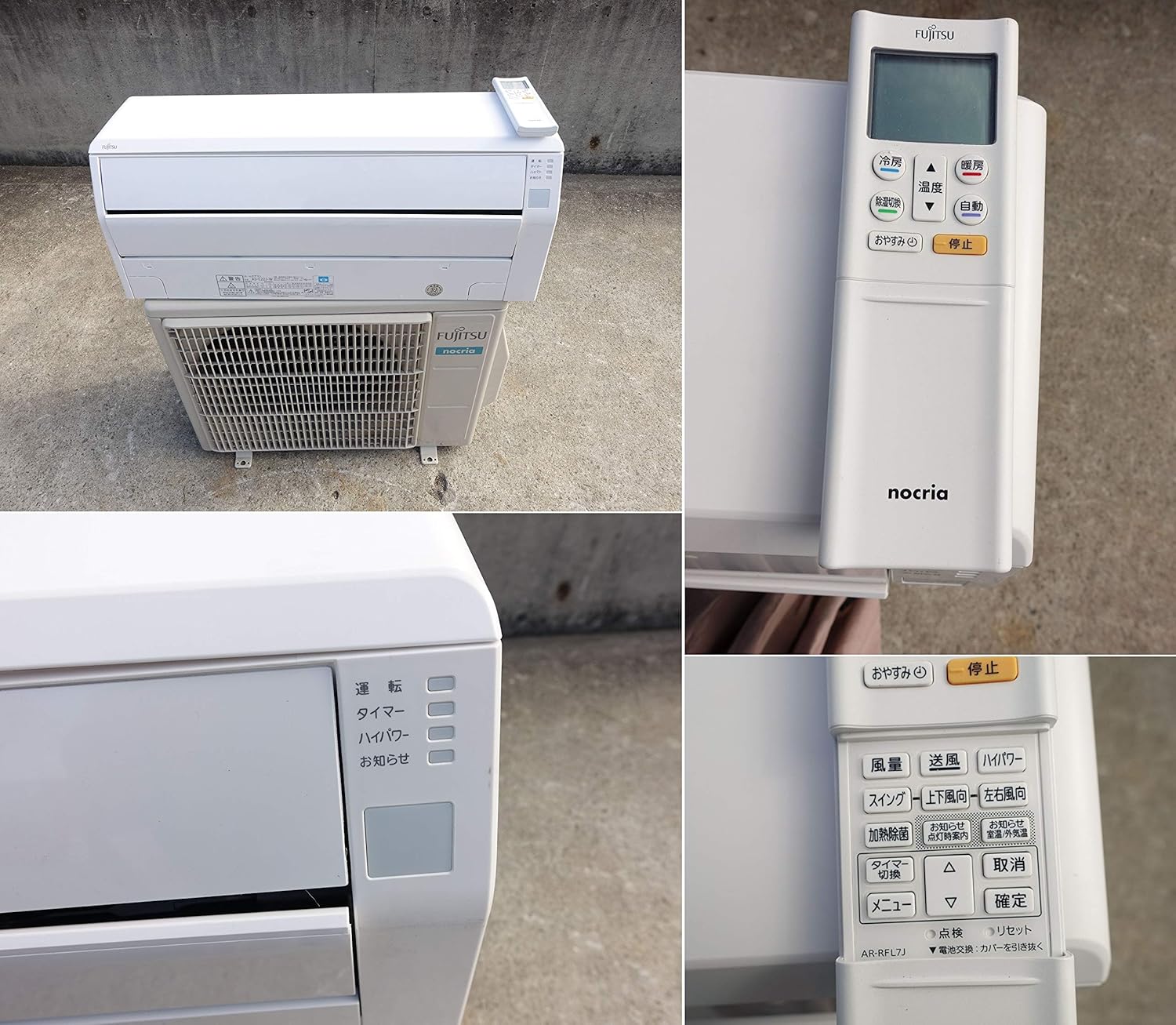

Figura 3.1: Acabatview of the Fujitsu General nocria AS-C22J-W air conditioner, showing the indoor unit, outdoor unit, and the wireless remote control. The remote control allows for easy adjustment of settings.
Figura 3.2: The indoor unit with its front panel opened, revealing the removable air filters. Regular cleaning of these filters is crucial for maintaining air quality and unit efficiency.
Figura 3.3: Close-up of the product labels found on both the indoor (top) and outdoor (bottom) units. These labels contain important model information, electrical specifications, and refrigerant type.

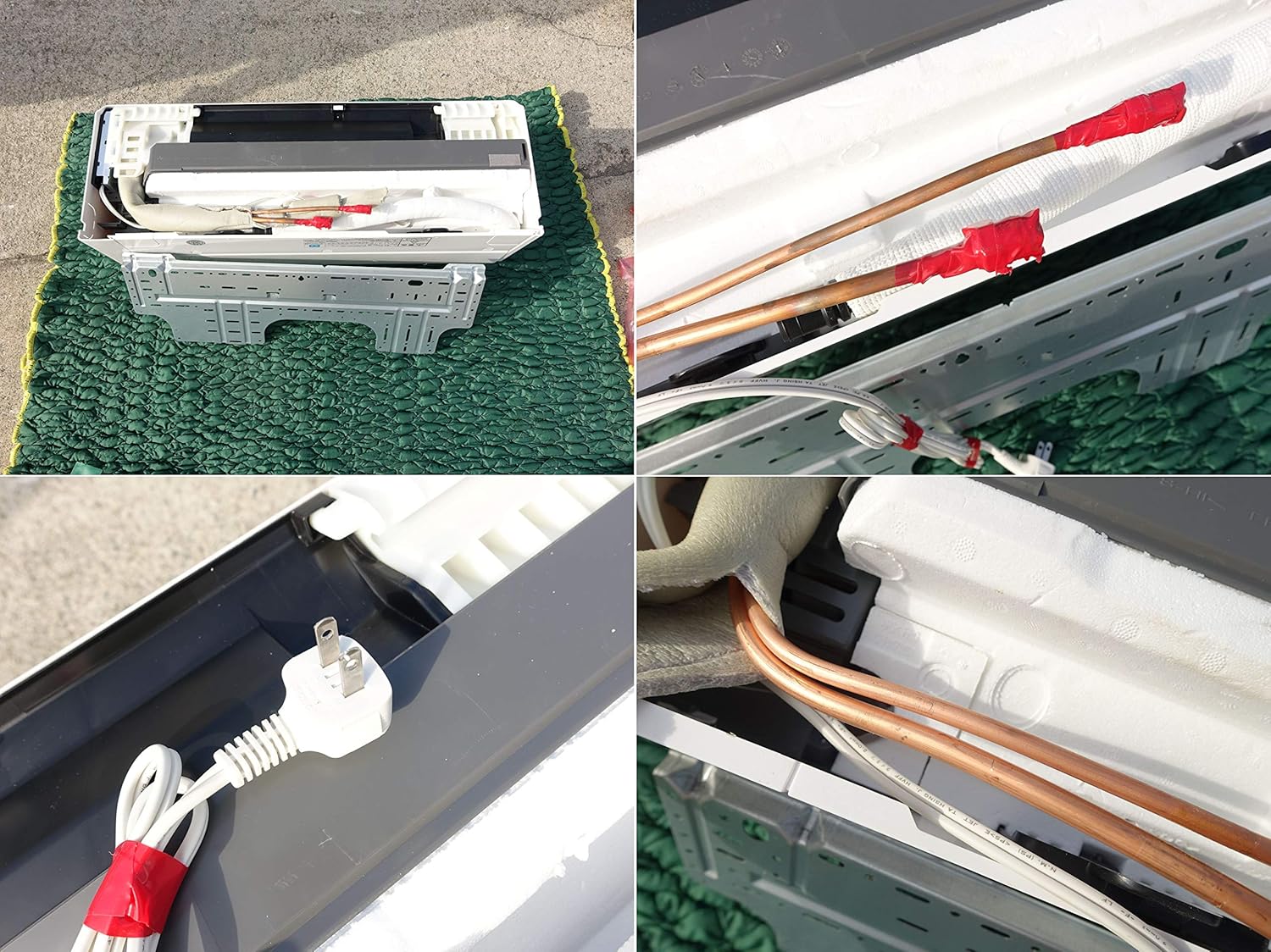

Figura 3.4: View of the internal wiring and power plug connection for the indoor unit. This illustrates the electrical connections required for operation.
Figura 3.5: The refrigerant pipe connections on the outdoor unit, typically covered for protection. These connections are critical for the refrigerant cycle between the indoor and outdoor units.
4. Configuració
Proper installation is key to the performance and longevity of your air conditioner. It is strongly recommended that installation be performed by a certified professional.
4.1 Comprovacions prèvies a la instal·lació
- Ubicació: Choose a location for the indoor unit that allows for even air distribution and easy access for maintenance. The compact design of the nocria C series makes it suitable for narrow spaces.
- Col·locació de la unitat exterior: Ensure the outdoor unit is placed in a well-ventilated area, away from direct sunlight or obstructions, and on a stable surface.
- Font d'alimentació: Verify that a dedicated 100V power outlet is available and meets the electrical requirements of the unit.
4.2 Instal·lació professional
The installation process involves electrical wiring, refrigerant piping, and drainage work, which require specialized tools and knowledge. Refer to the detailed installation manual provided to the installer or contact your dealer for professional installation services.
5. Instruccions de funcionament
Your air conditioner can be operated using the provided wireless remote control.
5.1 Funcions de control remot
The remote control features buttons for various functions:
- Encès/apagat: Premeu el botó 運転 (operació) botó per iniciar o aturar la unitat.
- Selecció del mode: Utilitza el モード (Mode) button to cycle through Cooling (冷房), Calefacció (暖房), i deshumidificació (除湿) modes.
- Ajust de temperatura: Utilitza el 温度 (temperatura) fletxes amunt/avall per ajustar la temperatura desitjada.
- Velocitat del ventilador: Adjust the fan speed using the dedicated fan button.
- Temporitzador: Set on/off timers for automated operation.
5.2 Passos bàsics d'operació
- Assegureu-vos que la unitat estigui connectada a una font d'alimentació.
- Point the remote control towards the indoor unit.
- Premeu el botó 運転 (operació) per engegar la unitat.
- Select your desired mode (Cooling, Heating, or Dehumidifying).
- Ajusteu la temperatura al vostre nivell de confort.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil del teu aire condicionat.
6.1 Neteja del filtre d'aire
Clean the air filters every two weeks or more frequently if the unit is used often or in dusty environments.
- Apagueu l'aire condicionat i desconnecteu l'alimentació.
- Open the front panel of the indoor unit (refer to Figure 3.2).
- Traieu suaument els filtres d'aire.
- Clean the filters using a vacuum cleaner or wash them with lukewarm water and a mild detergent. Rinse thoroughly.
- Deixeu que els filtres s'assequin completament en una zona a l'ombra abans de tornar-los a col·locar.
- Close the front panel and reconnect the power supply.
6.2 Neteja de la unitat
- Netegeu les unitats interior i exterior amb un drap suau i sec. Per a la brutícia resistent, utilitzeu un drapamp drap amb un detergent neutre i després eixugueu-lo.
- Do not use harsh chemicals, abrasive cleaners, or hot water, as these can damage the unit's surfaces.
6.3 Professional Cleaning and Inspection
It is recommended to have your air conditioner professionally cleaned and inspected annually to ensure optimal performance and identify any potential issues.
7. Solució De Problemes
Abans de contactar amb el servei tècnic, comproveu els següents problemes habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no funciona | No power supply; Remote control batteries are dead; Timer is set. | Check power connection and circuit breaker; Replace remote batteries; Cancel timer setting. |
| Refrigeració/calefacció insuficient | Air filters are dirty; Air inlet/outlet blocked; Room temperature setting incorrect; Doors/windows open. | Clean air filters; Remove obstructions; Adjust temperature setting; Close doors/windows. |
| Soroll inusual | Peces soltes; Unitat no anivellada; Obstrucció del ventilador. | Check for loose parts and tighten; Ensure unit is on a level surface; Check for and remove any fan obstructions. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb un tècnic de servei qualificat.
8. Especificacions
Key technical specifications for the Fujitsu General nocria AS-C22J-W air conditioner:
- Marca: General Fujitsu
- Número de model: AS-C22J-W (Indoor Unit), AO-C22J (Outdoor Unit)
- Factor de forma: Mini-split
- Característiques especials: Funció deshumidificador
- Voltage: 100 Volts
- Font d'alimentació: Elèctric amb cable
- Refrigerant: R32
- Dimensions de la unitat interior: 720 mm (W) x 290 mm (H) x 250 mm (D)
- Dimensions de la unitat exterior: 740 mm (W) x 350 mm (H) x 540 mm (D)
- Capacitat de refrigeració: Suitable for 6-9 tatami mats (approx. 2.2kW)
- Capacitat de calefacció: Suitable for 6-7 tatami mats (approx. 2.2kW)
- Any de fabricació: 2019
9. Garantia i Suport
Per conèixer els termes i condicions específics de la garantia, consulteu la documentació proporcionada en el moment de la compra o poseu-vos en contacte amb el vostre distribuïdor. La cobertura de la garantia normalment inclou defectes de fabricació durant un període especificat.
For technical support, service requests, or inquiries regarding your Fujitsu General nocria AS-C22J-W air conditioner, please contact your authorized dealer or Fujitsu General customer service. Ensure you have your model number and purchase details available when contacting support.
