Instruccions importants de seguretat
ADVERTIMENT: Llegeix totes les instruccions i advertències de seguretat. El no seguir les advertències i instruccions pot provocar descàrregues elèctriques, incendis i/o lesions greus.
- Always wear eye protection when operating this tool. Safety glasses or goggles are essential.
- Wear long pants, long sleeves, and sturdy footwear to protect against debris.
- Mantingueu els vianants, els nens i les mascotes a una distància mínima de 15 metres de la zona d'operació.
- Inspect the area before operation. Remove any objects that could be thrown by the cutting line.
- Do not operate in wet conditions. Avoid using the tool in rain or damp ambients.
- Ensure the extension cord is suitable for outdoor use and in good condition. Prevent cord disconnection using the cord retention system.
- Disconnect the tool from the power supply before making any adjustments, cleaning, or when not in use.
- No sobrepasseu. Mantenir un bon peu i un equilibri en tot moment.
- Never operate the tool without the guard in place.
Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:
- 1 x BLACK+DECKER ST8600 13" String Trimmer/Edger
- 1 x AF-100 Spool (pre-installed or separate)
- 1 x Guàrdia
- 1 x Nansa auxiliar
Muntatge i configuració
The BLACK+DECKER ST8600 requires minimal assembly before first use.
1. Fixació de la protecció
- Alineeu el protector amb les ranures del capçal de la retalladora.
- Premeu fermament la protecció fins que encaixi al seu lloc. Assegureu-vos que estigui ben fixada.
- Use a Phillips head screwdriver to secure any provided screws through the guard into the trimmer head.
2. Fixació de la nansa auxiliar
- Afluixeu el pom de la maneta auxiliar.
- Slide the handle onto the shaft to a comfortable operating position.
- Tighten the knob securely to lock the handle in place.
This image displays the complete BLACK+DECKER ST8600 string trimmer and edger, showcasing its orange and black design with the auxiliary handle and guard attached.
Instruccions de funcionament
1. Connexió a l'alimentació
- Assegureu-vos que la retalladora estigui apagada.
- Plug a suitable outdoor extension cord into the trimmer's power inlet.
- Utilize the cord retention system by looping the extension cord through the designated slot on the handle to prevent accidental disconnection during operation.
- Connecteu el cable d'extensió a una presa de corrent exterior amb connexió a terra.
2. Arrancada i aturada
- Per començar: premeu el botó de disparar.
- Per aturar: Deixeu anar el gatillo.
3. Operació de retall
- Subjecteu la retalladora fermament amb les dues mans.
- Mantingueu una distància còmoda del capçal de tall.
- Mou la retalladora d'un costat a l'altre, tallant petites quantitats d'herba amb cada passada.
- Avoid hitting hard objects, as this can damage the line and the tool.

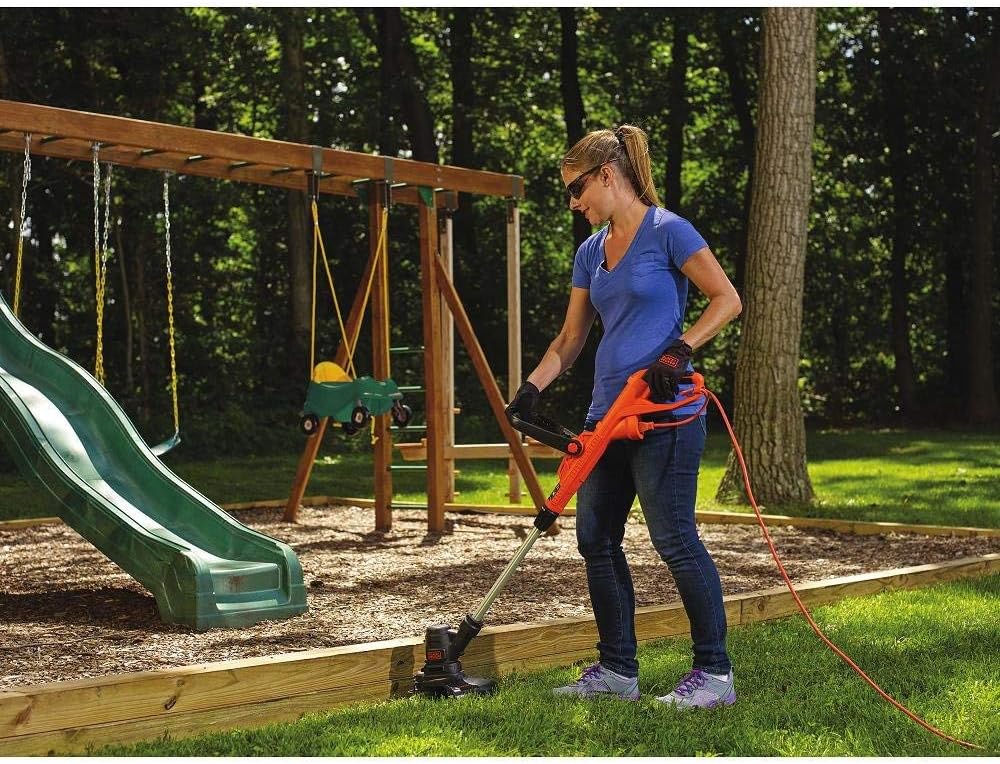

A person is shown operating the BLACK+DECKER ST8600 string trimmer in a grassy area, demonstrating its use for trimming around obstacles and utilizing the cord retention system.
4. Operació de vores
- To convert to edger mode, rotate the trimmer head 180 degrees. Refer to your specific model's mechanism for rotation.
- Position the edger guide wheel along the edge of the pavement or garden bed.
- Camineu lentament, guiant la retalladora al llarg de la vora desitjada.
This image shows a person using the BLACK+DECKER ST8600 in edger mode, creating a clean line along a garden bed.
Un primer pla view of the BLACK+DECKER ST8600 trimmer head, illustrating its function as an edger along a paved surface.
The trimmer head of the BLACK+DECKER ST8600 is shown precisely edging along a wooden landscape border, demonstrating its versatility.
5. Carret d'alimentació automàtica (AFS)
The AFS system automatically feeds new trimmer line as needed when the existing line wears down. There is no need to bump the head to advance the line.
6. Adjustable Height and Pivoting Handle
- The shaft length can be adjusted to suit your height for comfortable operation. Loosen the collar, adjust, and retighten.
- The auxiliary handle can be pivoted to various positions for optimal balance and control. Loosen the handle knob, adjust, and retighten.
A user holds the BLACK+DECKER ST8600, with the 13-inch cutting width clearly visible on the guard, indicating the tool's cutting capacity and demonstrating the adjustable handle.
Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la vostra eina.
1. Neteja
- ADVERTIMENT: Desconnecteu el cable d'alimentació abans de netejar.
- Netegeu l'eina amb un anunciamp drap i sabó suau. No utilitzeu productes químics agressius ni netejadors abrasius.
- Remove any grass clippings or debris from the guard and air vents to prevent overheating.
2. Replacing the Trimmer Line Spool
- ADVERTIMENT: Desconnecteu el cable d'alimentació.
- Premeu les pestanyes de la tapa del carret i retireu-la.
- Traieu la bobina buida.
- Inseriu un nou carrete de recanvi BLACK+DECKER AF-100, assegurant-vos que el fil passi per l'ullet.
- Torneu a col·locar la tapa del carret, assegurant-vos que encaixi correctament al seu lloc amb un clic.
3. Emmagatzematge
- Guardeu l'eina en un lloc sec i segur, fora de l'abast dels nens.
- Eviteu emmagatzemar-lo a la llum solar directa o a temperatures extremes.
Resolució de problemes
If your BLACK+DECKER ST8600 is not operating correctly, consult the table below for common issues and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| L'eina no s'inicia. | Sense subministrament elèctric; connexió fluixa; interruptor defectuós. | Check power outlet and extension cord. Ensure connections are secure. If problem persists, contact service. |
| El fil de la retalladora no s'alimenta automàticament. | Spool empty; line tangled; debris in feed mechanism. | Replace spool. Disconnect power and clear any tangles or debris from the spool area. |
| El motor funciona però el fil no gira. | Spool not installed correctly; line broken inside head. | Disconnect power. Reinstall spool correctly. Replace spool if line is broken. |
| Vibració excessiva. | Damaged cutting line; loose components. | Replace cutting line. Check all fasteners and tighten if necessary. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | BLACK+DECKER |
| Model | ST8600 |
| Font d'alimentació | Elèctric amb cable |
| Motor Ampedat | 5 Amp |
| Amplada de tall | 13 polzades |
| Muntatge obligatori | Sí |
| Dimensions del producte | 8 x 36 x 4 polzades |
| Pes de l'article | 6.44 lliures |
| UPC | 723548801136 |
Garantia i Suport
BLACK+DECKER products are manufactured to high quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official BLACK+DECKER weblloc.
If you require assistance with your product, have questions about its operation, or need to order replacement parts, please contact BLACK+DECKER customer support. Contact details can typically be found on the product packaging or the official brand weblloc.
