1. Introducció
This manual provides essential information for the safe and efficient operation, installation, and maintenance of the Crown DP-60F Direct Steam Stationary Kettle. Please read this manual thoroughly before operating the equipment to ensure proper usage and to prevent injury or damage.
The Crown DP-60F is a robust 60-gallon capacity stationary kettle designed for commercial food service applications. It features direct steam heating, a full jacket for even heat distribution, a 2-inch draw-off valve, and a durable 316 stainless steel interior liner. The unit is mounted on a pedestal base and includes a perforated strainer, a spring-assisted hinged cover, and a faucet cover for convenience and hygiene. It operates at 35 psi and is NSF certified.
2. Instruccions de seguretat
Seguiu sempre les precaucions de seguretat següents per evitar lesions personals o danys a l'equip.
- Ensure the kettle is properly installed and grounded by a qualified technician before use.
- Do not operate the kettle if any components are damaged or missing.
- Always wear appropriate personal protective equipment (PPE), such as heat-resistant gloves, when operating or cleaning the kettle.
- Be aware of hot surfaces and steam. Use caution when opening the cover or operating the draw-off valve.
- Never exceed the maximum operating pressure of 35 psi.
- Disconnect the steam supply and allow the kettle to cool before cleaning or performing maintenance.
- Keep the area around the kettle clear of obstructions and flammable materials.
- Regularly inspect steam lines and connections for leaks.
3. Configuració i instal·lació
Installation of the Crown DP-60F kettle should only be performed by certified professionals in accordance with local codes and regulations.
3.1 Desembalatge
Carefully remove the kettle from its packaging. Inspect for any shipping damage. Report any damage to the carrier immediately.
3.2 Requisits d'ubicació
Place the kettle on a level, stable surface capable of supporting its weight when full. Ensure adequate clearance for operation, cleaning, and maintenance. Provide proper ventilation.
3.3 Steam and Condensate Connections
Connect the kettle to a direct steam supply line with a maximum pressure of 35 psi. Install appropriate steam traps and condensate return lines as per manufacturer guidelines and local plumbing codes.
3.4 Electrical Connections (if applicable)
While primarily steam-operated, ensure any auxiliary electrical components (e.g., controls, indicators) are connected to a grounded power source as specified on the unit's data plate.

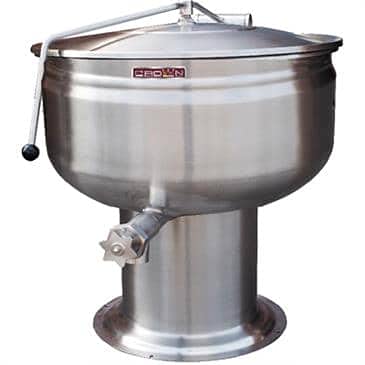

Figure 1: Crown DP-60F Direct Steam Stationary Kettle. This image shows the stainless steel kettle with its pedestal base, hinged cover, and draw-off valve. The kettle has a smooth, polished finish.
4. Instruccions de funcionament
4.1 Llista de verificació prèvia a l'operació
- Verify all connections (steam, condensate) are secure and free of leaks.
- Ensure the kettle interior is clean and free of debris.
- Confirm the draw-off valve is closed.
4.2 Omplir la tetera
Add desired ingredients to the kettle. Do not overfill; leave adequate headspace to prevent boil-overs.
4.3 Steam Operation
- Slowly open the main steam supply valve to the kettle.
- Monitor the pressure gauge to ensure it does not exceed 35 psi.
- Allow the kettle to heat to the desired temperature. The full jacket design ensures even heating.
- Adjust the steam supply valve as needed to maintain temperature.
4.4 Draining the Kettle
Once cooking is complete, close the steam supply valve. Carefully open the 2-inch draw-off valve to dispense contents. Use caution as contents will be hot.
4.5 Post-Operation
After draining, close the draw-off valve. Allow the kettle to cool before cleaning.
5. Manteniment i Neteja
Regular cleaning and maintenance are crucial for the longevity and hygienic operation of your Crown DP-60F kettle.
5.1 Neteja diària
- Ensure the kettle is cool and steam supply is off.
- Traieu qualsevol residu d'aliment.
- Wash the interior and exterior surfaces with a mild detergent and warm water.
- Esbandiu bé amb aigua neta.
- Wipe all surfaces dry with a clean cloth to prevent water spots and corrosion.
- Clean the perforated strainer and faucet cover separately.
5.2 Manteniment periòdic
- Inspect steam traps and condensate lines for proper function.
- Check all valves and connections for leaks.
- Lubricate hinges and moving parts as recommended by Crown (refer to specific service manual if available).
- Periodically inspect the 316 stainless steel interior for pitting or signs of wear.
Instruccions de cura del producte: Hand wash, Wipe clean.
6. Solució De Problemes
This section provides solutions to common issues. For problems not listed, contact a qualified service technician.
| Problema | Causa possible | Solució |
|---|---|---|
| La tetera no escalfa o s'escalfa lentament | Insufficient steam pressure; Clogged steam trap; Steam supply valve closed | Verify steam supply pressure; Inspect and clean steam trap; Open steam supply valve fully |
| Steam leaking from connections | Loose fittings; Worn gaskets | Tighten fittings; Replace worn gaskets |
| Draw-off valve leaking | Worn seal; Obstruction | Inspect and replace seal; Clear any obstruction |
7. Especificacions
| Característica | Detall |
|---|---|
| Número de model | DP-60F |
| Capacitat | 60 galons |
| Tipus de calefacció | Direct Steam, Full Jacket |
| Material interior | Acer inoxidable 316 |
| Material exterior | Acer inoxidable |
| Draw-off Valve Size | 2 polzades |
| Pressió màxima de funcionament | 35 psi |
| Certificacions | NSF |
| Tipus de base | Pedestal |
| Accessoris inclosos | Perforated strainer, Spring-assisted hinged cover, Faucet cover |
8. Garantia i Suport
For specific warranty information regarding your Crown DP-60F kettle, please refer to the warranty card included with your purchase or contact Crown customer service directly. Warranty terms typically cover manufacturing defects under normal use.
For technical support, parts, or service inquiries, please contact Crown customer service. Ensure you have your model number (DP-60F) and serial number ready when contacting support.
Fabricant: Corona
Data de primera disponibilitat: 24 d'abril de 2019
